Haswell-U 4025/4200U

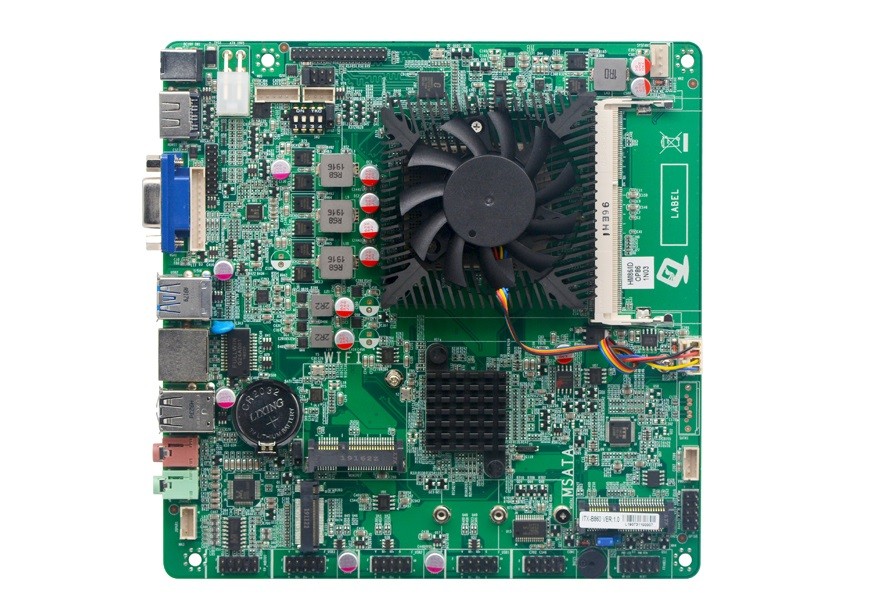

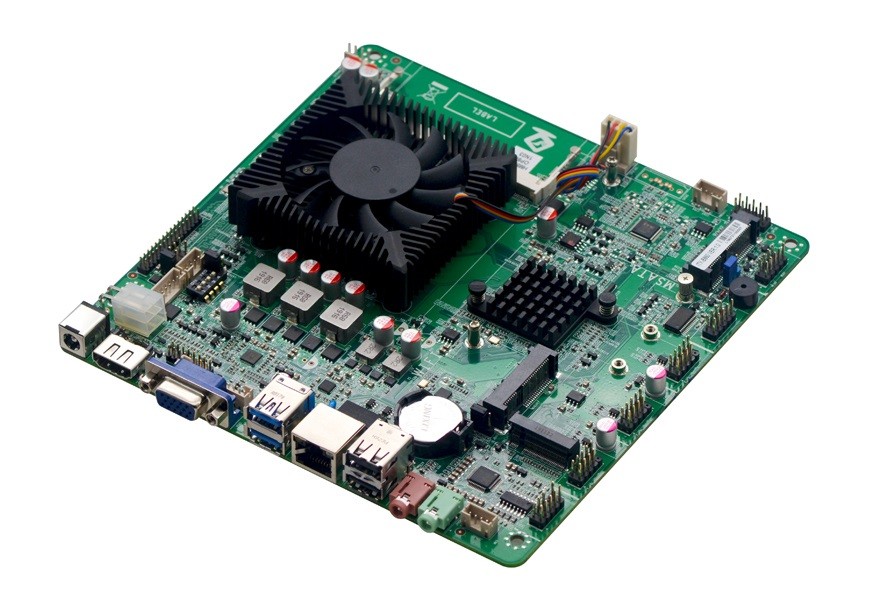

ITX-B860 VER:1.0

项目介绍:

Model No.

ITX-B860 VER1.0

Processor

Support Intel®PGA 946 Intel® haswell 4th Celeron/Pentium/Corei3/i5/i7 processor

Chipset

Adopt HM86 high speed chipset

Memory

1*SODIMM, support 1600/1333MHz DDR3L/1.35V memory, up to 16GB

Graphics

Integrated Intel®HD Graphics


1*VGA,1*HDMI,1* LVDS,support dual channel 24BIT


Support VGA/HDMI/LVDS synchronous/asynchronous display

Network

1*Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

Storage

1*M.2 slot ,support M.2 2280/2260/2242 SSD,the transfer rate up to 6Gbps


1* MSATA slot ,support Intel protocol SSD, the transfer rate up to 6Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion slots

1* Mini-PCIE slot ,support WIFI module

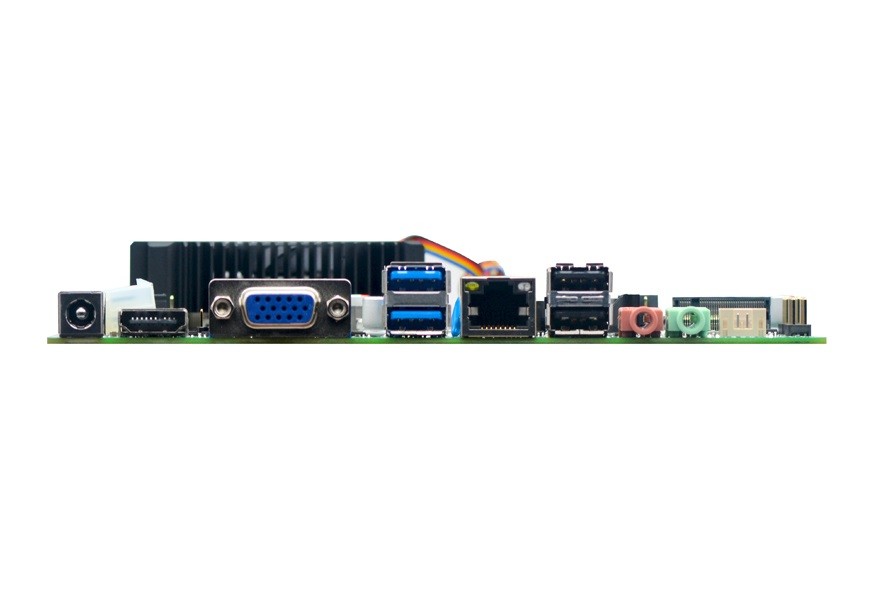

Rear I/O

2* USB 2.0,2*USB3.0


1* HDMI


1* VGA


1* RJ-45 gigabit ethernet connector


1* Line out(Green)、1* MIC(Red)


1* DC power input port

Internal I/O

1*JVGA,1*12pin, the same signal with DB15


1* JHDMI ,2*8pin, the same signal with HDMI


1* LVDS,2*15pin,support dual channel  24BIT


1* screen backlight power supply port  1*6pin


1* Front panel function button and indicator LED port 2*5Pin


6* USB2.0, 2*5pin


1* front audio port  2*5pin


1* power amplifier 1*4pin


1* RS232 serial port  2*5pin


1* 4pin ATX power port ,support 12V power input/output

FAN connector

1*4pin CPU smart fan connector,1*4pin system fan connector

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

DC12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


事宜人群:

◆ Support Intel®PGA 946 Intel® haswell 4th Celeron/Pentium/Corei3/i5/i7 processor

◆ Adopt HM86 high speed chipset

◆ 1*SODIMM, support 1600/1333MHz DDR3L/1.35V memory, up to 16GB

◆ Integrated Intel®HD Graphics,1*VGA,1*HDMI,1* LVDS

◆ 1*Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

◆ 8* USB2.0,2* USB2.0,1* RS232 serial port


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-B860 VER1.0

Processor

Support Intel®PGA 946 Intel® haswell 4th Celeron/Pentium/Corei3/i5/i7 processor

Chipset

Adopt HM86 high speed chipset

Memory

1*SODIMM, support 1600/1333MHz DDR3L/1.35V memory, up to 16GB

Graphics

Integrated Intel®HD Graphics


1*VGA,1*HDMI,1* LVDS,support dual channel 24BIT


Support VGA/HDMI/LVDS synchronous/asynchronous display

Network

1*Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

Storage

1*M.2 slot ,support M.2 2280/2260/2242 SSD,the transfer rate up to 6Gbps


1* MSATA slot ,support Intel protocol SSD, the transfer rate up to 6Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion slots

1* Mini-PCIE slot ,support WIFI module

Rear I/O

2* USB 2.0,2*USB3.0


1* HDMI


1* VGA


1* RJ-45 gigabit ethernet connector


1* Line out(Green)、1* MIC(Red)


1* DC power input port

Internal I/O

1*JVGA,1*12pin, the same signal with DB15


1* JHDMI ,2*8pin, the same signal with HDMI


1* LVDS,2*15pin,support dual channel  24BIT


1* screen backlight power supply port  1*6pin


1* Front panel function button and indicator LED port 2*5Pin


6* USB2.0, 2*5pin


1* front audio port  2*5pin


1* power amplifier 1*4pin


1* RS232 serial port  2*5pin


1* 4pin ATX power port ,support 12V power input/output

FAN connector

1*4pin CPU smart fan connector,1*4pin system fan connector

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

DC12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


NO.

Model

Processor

Southbridge

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

ITX-B860 VER:1.0

RPGA946

HM86

1*SODDR3L

1

1

2ch/24bit

1*8111H

10

1

DC12V


SpecificationsITX-B860 VER:1.0


Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-B860
Win7/8/10 32/64BITGraphicsVGAITX-B860
Win7/8/10 32/64BITAudioRealtek AudioITX-B860
Win7/8/10 32/64BITLANRealtekITX-B860
Win7/8/10 32/64BITMEME_SW_MSIITX-B860
WIN7 32/64BITUSB3.0USB3.0ITX-B860


◆ Support Intel®PGA 946 Intel® haswell 4th Celeron/Pentium/Corei3/i5/i7 processor

◆ Adopt HM86 high speed chipset

◆ 1*SODIMM, support 1600/1333MHz DDR3L/1.35V memory, up to 16GB

◆ Integrated Intel®HD Graphics,1*VGA,1*HDMI,1* LVDS

◆ 1*Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

◆ 8* USB2.0,2* USB2.0,1* RS232 serial port
