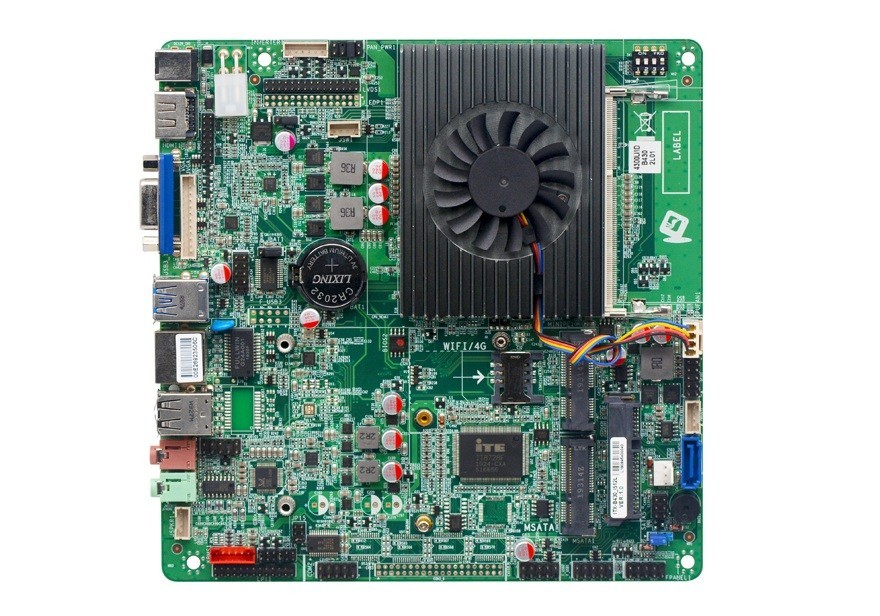

Model No. | ITX-B430_I512L VER:1.0(4300U) |
Processor | Integrated Intel®Haswell-U I5-4300U/1.9GHz dual core processor |
Compatible Intel Celeoron,Pentium,Core®I3/I5/I7 Haswell/Broadwell-U processor |
Chipset | Based on Intel®Haswell-U/Broadwell-U SOC platform |
Memory | 1* SODIMM ,support 1600/1333MHz DDR3L/1.35V memory, up to 8GB |
Graphics | Integrated Intel® HD Graphics 4400 |
1* VGA,1*HDMI,1*LVDS(support dual channel 24BIT) |
Support single display/double display/extended mode |
Network | 1* RTL8111H Gigabit Ethernet,support wake on LAN/PXE |
Storage | 1* SATA3.0 2.5 inch laptop HDD slot |
| 1* 7pin SATA3.0 HDD port ，the transfer rate up to 6Gbps |
Audio | Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier. |
Support amplifer 2Ω5W trumpet |
Expansion slots | 1* Mini-PCIE slot,support WIFI/3G module |
1* MSATA slot ,support Intel protocol SSD, the transfer rate up to 6Gbps |
| Note: If use MINIPE1 support 3G module, need to adjust related hardware settings, thus will lead to F_USB2 support 1*USB only. |

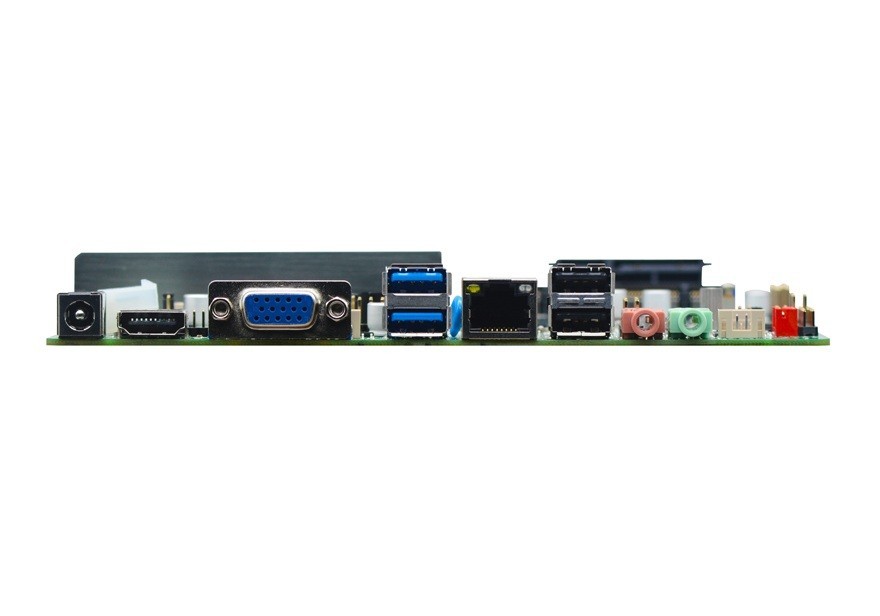

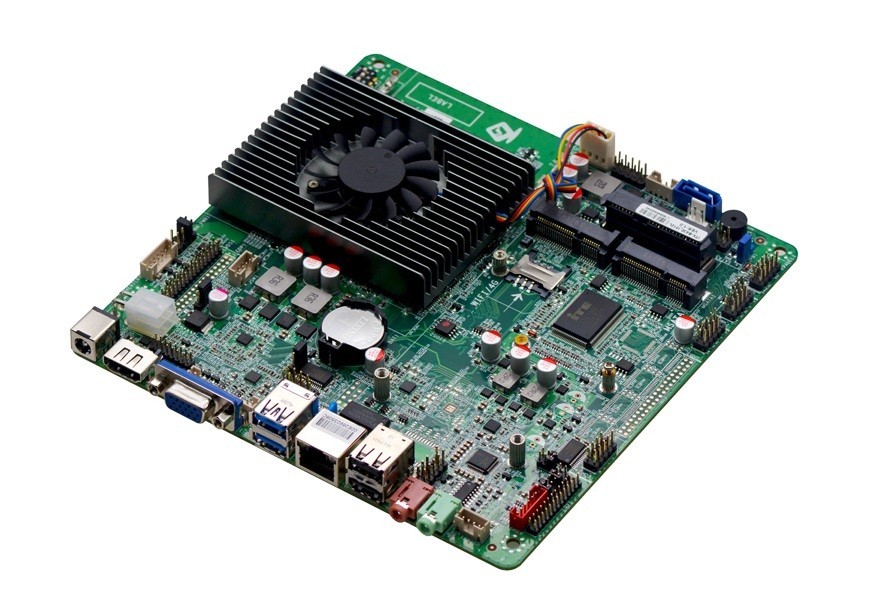

Rear I/O | 1* 12V DC JACK power input port |
1* HDMI |
1* VGA |
2* USB 3.0 |
2* USB2.0 |
1* RJ-45 Gigabit Ethernet connector |
1* Line out (Green) |
1* MIC (Red) |
Internal I/O | 1* JVGA1 1*12Pin(the same signal with DB15）） |
1* J_HDMI 2*8pin(the same signal with HDMI) |
1* support dual channel 24bit(double 8)LVDS 2*15pin |
1* LVDS backlight power supply port 1*6pin |
1* screen brightness adjustment port 1*4pin |
1* front audio port 2*5pin |
1* power amplifier 1*4Pin |
4* USB 2.0 2*5Pin |
2* RS232 serial ports 2*5pin COM1/COM2 support 9th charged function,COM2 support RS485 |
1* LPT print port 2*13pin |
1* PS/2 KB/MS port 1*6Pin |
1* HDD power supply port 1*4pin |
1* SIM card socket |
1* Front panel function button and indicator LED port 2*5pin |
1* 4pin ATX power port |
FAN connector | 1* 4pin CPU smart fan connector，1* 3pin system fan connector |
GPIO | Support 4 way input/output GPIO |
BIOS | AMI 64Mb Flash ROM |
Watch Dog | Support hardware reset function (L256, 0~255 seconds) |
OS | Windows 7/Windows 10/Linux |
Power input | DC_12V power input |
Working Temp. | -10℃～60℃ |
Storage Temp. | -20℃～70℃ |
Working Humidity | 5%-95% relative humidity, non-condensing |
Dimension | 170mm x 170mm |
