Model | STX-N92_I5 VER:1.2(4210Y) |
CPU | Intel®Haswell-U I5-4210Y/1.5GHz dual core processor TDP 15 w |
Chipset | Intel®Haswell-U SOC |
Memory | 1* SODIMM memory slot,support 1600/1333MHz DDR3L/1.35V RAM,Max up to8GB |
Graphics | Intel® HD Graphics 4200 Graphic |
| 1* VGA,1*HDMI,support VGA;HDMI synchronous / asynchronous display |
LAN | 2* RTL8111F Gigabit LAN can do one LAN),Support Wake-on-LAN/PXE |
Storage | 2* 7pin SATA3.0 HDD port,transfer rate up to 6Gbps |
Audio | Integrated ALC662 6-Channel audio controller ,support MIC/Line-out |
Expansion Slots | 1* Mini-PCIE support WIFI/4G module |
| 1* MSATA support SSD/WIFI(Default SSD),SSD transfer rate up to 6Gbps |

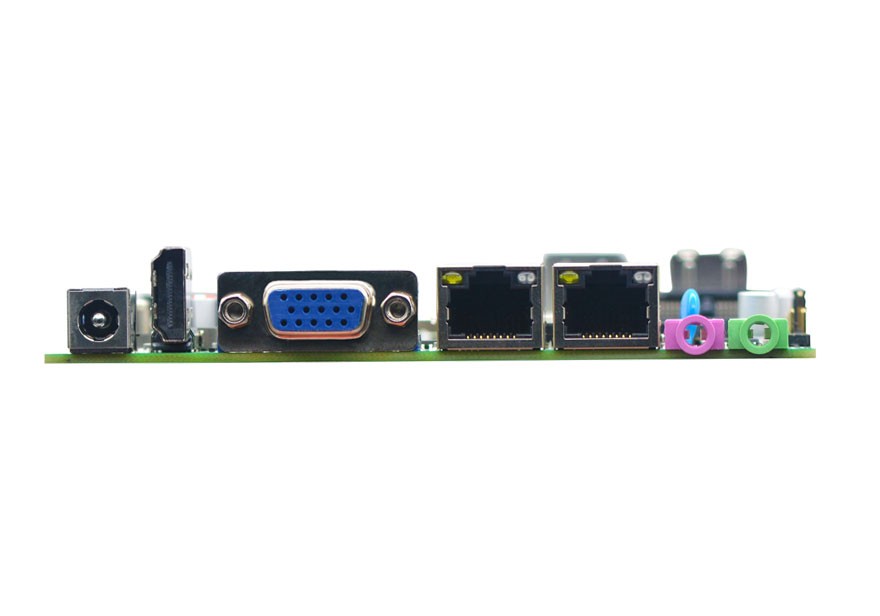

Rear I/O | 2* USB2.0，2*USB3.0 |
| 1* HDMI |
| 1* VGA |
| 2* Gigabit RJ-45 LAN ports |
| 1* Line out(green),1* MIC（purple） |
| 1* CISCO standard COM port |
| 1* Power switch |
| 1* 12V DC JACK input |
| 1*power light，1*HDD light |
Internal I/O | 1* JVGA1(1*12pin) Same signal with DB15 |
| 2* USB2.0(2*5pin,Optional to USB3） |
| 1* SIM |
| 1* PWROUT (Hard disk Power supply connector) |
| 1* FP1(2*5pin front panel function buttons and indicator connector) |
FAN Interface | Support non FAN cooling,,reserve 1* 3pin CPUFAN |
GPIO | 1* GPIO (Support 4-way GPIO function) |
BIOS | AMI 64Mb Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Operation OS | Windows 7/Windows 10/Linux |
Power Input | DC 12V single power supply |
Operating Temp | -10℃～60℃ |
Storage Temp. | -20℃～70℃ |
Humidity | 5%-95%(relative humidity; non-condensing) |
Dimension | 120mm x 120mm |
