| Model NO. | ITX-S192_A925S VER:1.1 |
| Processor | Integrated Intel ® Celeron J1900 2.0GHz quad-core processor, TDP 10W |
| Compatible with Intel ® Bay Trail - I/M/D full range of CPUs for flexible customer choice |
| Chipset | Based on the Intel ® Bay trail SOC platform |
| Internal storage | 1 x SODDR3L memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB |
| Display | Integrated Intel ® HD Graphics Core Graphics |
| 1 x VGA, 1 x HDMI interface 1 x LVDS interface, transfer using EDP-LVDS plate |
| Support for VGA/HDMI/LVDS synchronous/asynchronous display |
| Network | 2 x Intel I211AT Gigabit card with support for network wake-up, PXE function |
| Storage | 5 x SATA hard drive interface, where SATA1 is 2.0 and SATA2 to 5 is 3.0 |
| 1 x MSATA slot with SSD SSD support for up to 3Gbps |
| Audio | On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out support |
| Extended slot | 1-Mini-PCIE slot, WIFI, 3G/4G module, (default), two-in-one with PCIE X4 slot |
| 1 x PCIE X4 slot, one for the miniPCIE |

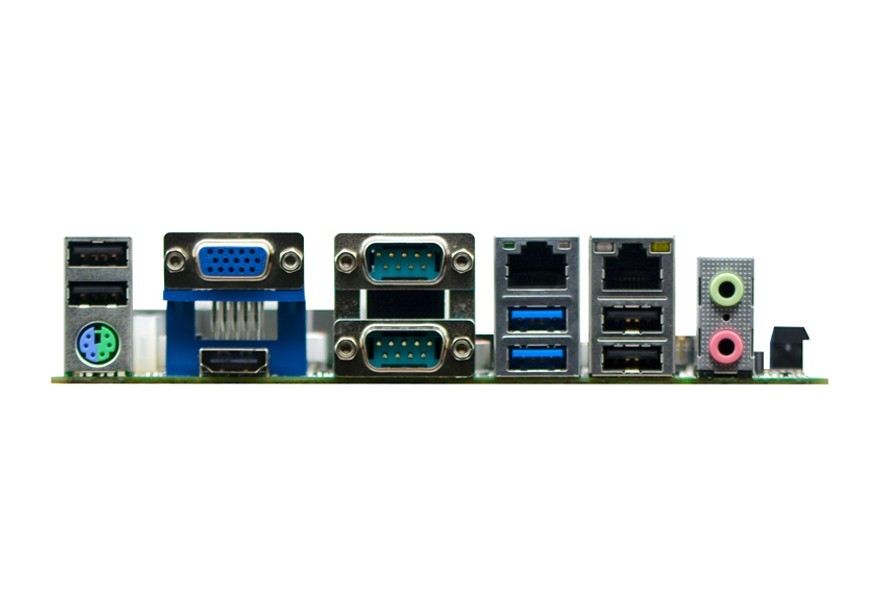

| Backplane I/O Interface | 1x Keyboard mouse interface |
| 2 x RS232 serial port, |
| 1x HDMI interface |
| 1 x VGA display interface |
| 5x USB 2.0 interface, 1 x USB 3.0 interface |
| 2x RJ-45 Gigabit Network Interface |
| 1x Line out interface (green), 1 x MIC interface (red) |
| Built-in I/O interface | 1 x JEDP1 interface 2 x 17pin, transferred to LVDS interface using EDP-LVDS plate |
| 1 x JVGA1 interface 1 x 12Pin, with THE same signal as DB15 |
| 1 x LPT interface 2 x 13pin |
| 2 x USB 2.0 Interface 2x5Pin |
| 1 x front audio interface 2 x 5pin |
| 1 x front panel switch button and LED interface 2 x 5Pin |
| 1 x SIM seat |
| 1 x 20Pin ATX power connector |
| Fan interface | Fanless cooling design, reserved 1x4pin CPU smart fan interface, 1 x 4pin system fan interface |
| GPIO | Support for 4-way input and output GPIO |
| Bios | 64Mb Flash ROM |
| Watchdog | Support for hardware reset (256 levels, 0 to 255 seconds) |
| Operating system | Windows 7/Windows 10/Linux |
| Power type | ATX power supply |
| Operating temperature | -10C to 60C |
| Storage temperature | -20C to 70C |
| Working humidity | 5%-95% relative humidity, no condensation |
| Size | 170mm x 170mm |
