Baytrail J1900/2.0G

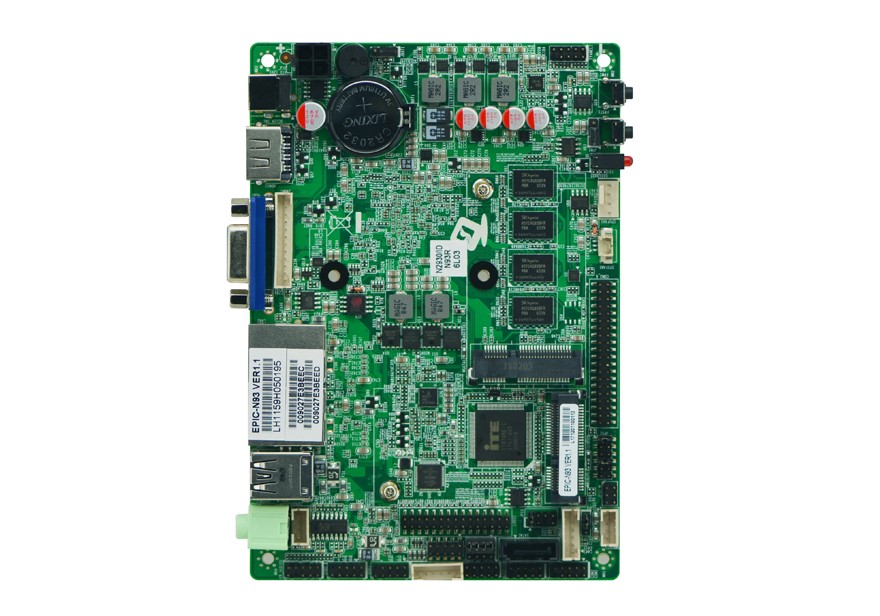

EPIC-N93 VER:1.1

项目介绍:

Model

EPIC_N93 VER:1.1

Processor

Intel® Celeron CPU N2940 @ 1.83GHz TDP 7.5W

Compatible Intel® Bay Trail -I/M/D full range of CPUs for flexible customer selection


Base on Bay Trail,CPU integration

Chipst

Onboard DDR3L 4GB high speed memory particle

Memory

Integrated Intel® HD Graphics graphics,Supports separate display, double display mode, extended mod


Provide VGA、LVDS、HDMI, LVDS support dual channel 24bit

display

2* IntelWGI211AT Gigabit Ethernet, Support Wake On LAN, PXE

network

1* SATA2.0 slot,transmission speed up to 3Gbps


1* JSATA hard disk pin interface,,SATA(optional)

storage

Integrated ALC662 6 channel high fidelity audio controller, support MIC,Line_out,Power amplifier


Power amplifier recommended to use 2Ω5W speaker

audio

1* Mini-PCIE slot, support WIFI/3G model


1*MSATA slot,support WIFI (optional), SSD solid-state hard disk (default SSD, transmission speed up to 3Gbps)

Expansion slot

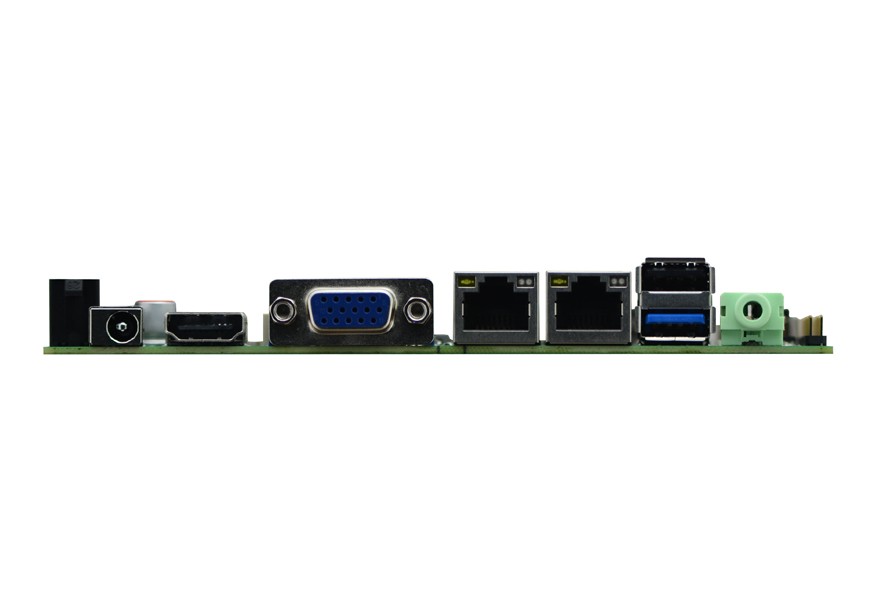

1* 12V DC power input interface


1* HDMI


1* VGA


2* RJ-45 Lan


1* USB 2.0 slot,1*USB3.0 slot


1* Line out(green)


1* Power switch, 1 * reset switch, 1 * Power / hard disk LED Lamp (Front Panel)

Built in I/O

1* 4pin ATX Power interface (can do 12V voltage input and output power interface)


4* USB 2.0 slot, 2*5Pin


1* JVGA slot, 1*12Pin,same signal as DB15


1* PS/2 KB/MS 1*6Pin


6* RS232,COM2 support RS485/RS422 function


1* front audio interface2*5pin


1* power amplifier interface 1*4pin


1* Front panel function button and indicator interface 2*5Pin


1* LVDS  2*15pin,support dual channel 24bit(dual 8)


1* LVDS Backlight power supply interface  1*6pin


1* Hard disk power interface  1*4pin


1* SIM

Fan

Fanless design,reserved 1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 way input output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows7/Windows 10/Linux

Power

Adopt DC 12V power

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

148mm x 102mm


事宜人群:

♦ Intel® Celeron CPU N2940 @ 1.83GHz TDP 7.5W

♦ Based on Intel® Bay trail SOC

♦ Onboard DDR3L 4GB high speed memory particle

♦ Integrated Intel®HD Graphics,Provide 1*VGA,1*HDMI,1*LVDS

♦ 2* IntelWGI211AT Gigabit Ethernet, Support Wake On LAN, PXE

♦ 5* USB2.0,1* USB3.0,6* RS232 serial ports


  • Product Specifications
  • Ordering Information
  • Download Center

Model

EPIC_N93 VER:1.1

Processor

Intel® Celeron CPU N2940 @ 1.83GHz TDP 7.5W

Compatible Intel® Bay Trail -I/M/D full range of CPUs for flexible customer selection


Base on Bay Trail,CPU integration

Chipst

Onboard DDR3L 4GB high speed memory particle

Memory

Integrated Intel® HD Graphics graphics,Supports separate display, double display mode, extended mod


Provide VGA、LVDS、HDMI, LVDS support dual channel 24bit

display

2* IntelWGI211AT Gigabit Ethernet, Support Wake On LAN, PXE

network

1* SATA2.0 slot,transmission speed up to 3Gbps


1* JSATA hard disk pin interface,,SATA(optional)

storage

Integrated ALC662 6 channel high fidelity audio controller, support MIC,Line_out,Power amplifier


Power amplifier recommended to use 2Ω5W speaker

audio

1* Mini-PCIE slot, support WIFI/3G model


1*MSATA slot,support WIFI (optional), SSD solid-state hard disk (default SSD, transmission speed up to 3Gbps)

Expansion slot

1* 12V DC power input interface


1* HDMI


1* VGA


2* RJ-45 Lan


1* USB 2.0 slot,1*USB3.0 slot


1* Line out(green)


1* Power switch, 1 * reset switch, 1 * Power / hard disk LED Lamp (Front Panel)

Built in I/O

1* 4pin ATX Power interface (can do 12V voltage input and output power interface)


4* USB 2.0 slot, 2*5Pin


1* JVGA slot, 1*12Pin,same signal as DB15


1* PS/2 KB/MS 1*6Pin


6* RS232,COM2 support RS485/RS422 function


1* front audio interface2*5pin


1* power amplifier interface 1*4pin


1* Front panel function button and indicator interface 2*5Pin


1* LVDS  2*15pin,support dual channel 24bit(dual 8)


1* LVDS Backlight power supply interface  1*6pin


1* Hard disk power interface  1*4pin


1* SIM

Fan

Fanless design,reserved 1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 way input output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows7/Windows 10/Linux

Power

Adopt DC 12V power

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

148mm x 102mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

RS485/RS422

Power

1

EPIC-N93 VER:1.1

 N2930

1.83G~2.16G

On-board 4G

1

1

2*24BIT

2*WGI211AT

6

6

1

DC12V


Specifications      EPIC-N93 VER:1.1




Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload New
Win7/8/10 32/64BITChipsetchipsetEPIC-N93
Win7/8/10 32/64BITGraphicsVGAEPIC-N93
Win7/8/10 32/64BITAudioRealtek AudioEPIC-N93
Win7/8/10 32/64BITLANIntel
EPIC-N93
Win7/8/10 32/64BITTXETXEEPIC-N93
Win7/8/10 32/64BITMBIMBIEPIC-N93
Win7 32/64BITUSB3.0USB3.0EPIC-N93
