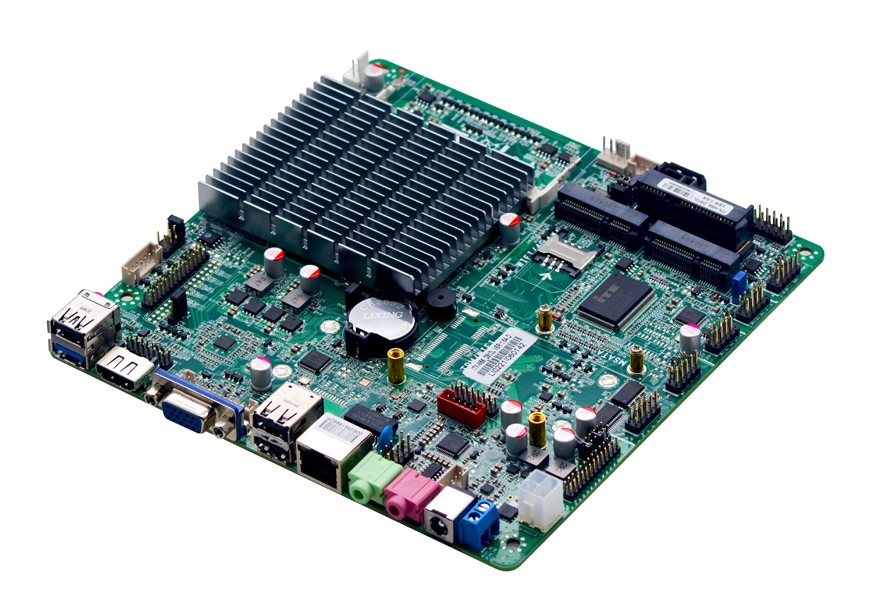

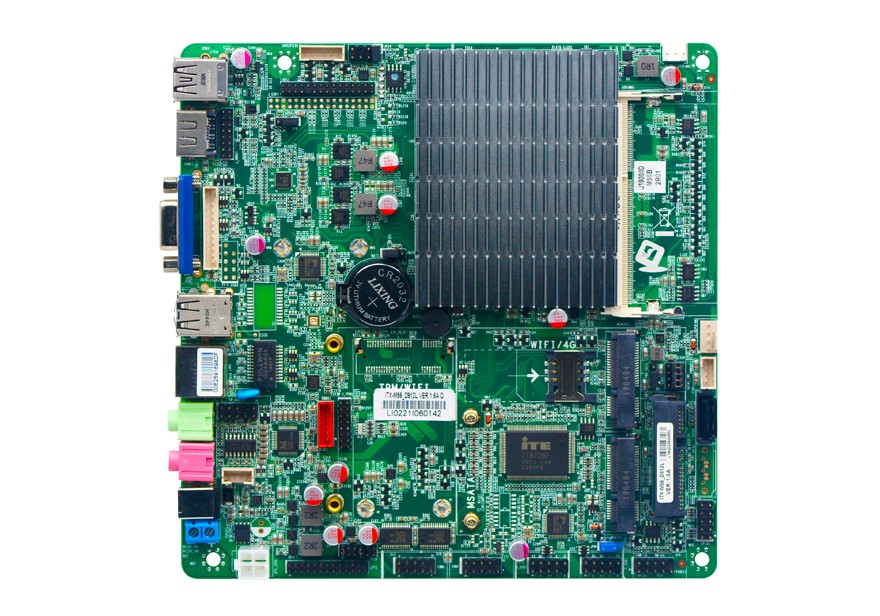

Baytrail J1900/2.0G

ITX-M56_D912L VER:1.6A

项目介绍:

Model No.

ITX-M56_D912L VER:1.6A

Processor

Integrated  Intel® Celeron J1900/2.0GHz quad core processor TDP 10W


Compatible Intel® Bay Trail -I/M/D series CPU,flexible choice for customers

Chipset

Based on Intel® Bay trail SOC platform

Memory

1*SODDR3L SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory ,up to 8GB

Display

Integrated Intel® HD Graphics


1* VGA,1*HDMI,1* LVDS


Support VGA;HDMI;LVDS synchronous/asynchronous display

Network

1* Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

Storage

1* SATA2.0 HDD interface  (SATA2 and 2.5 inch HDD optional)


1* SATA 2.5 inch Notebook hard disk place ,can installed  the hard disk directly


1* MSATA slot , supports  SSD hard disk, the transfer rate up to 3Gbps

Audio

Onboard  ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Amplifier proposed using 2Ω5W speakers

Expansion slot

1* Mini-PCIE slot,support WIFI、3G module

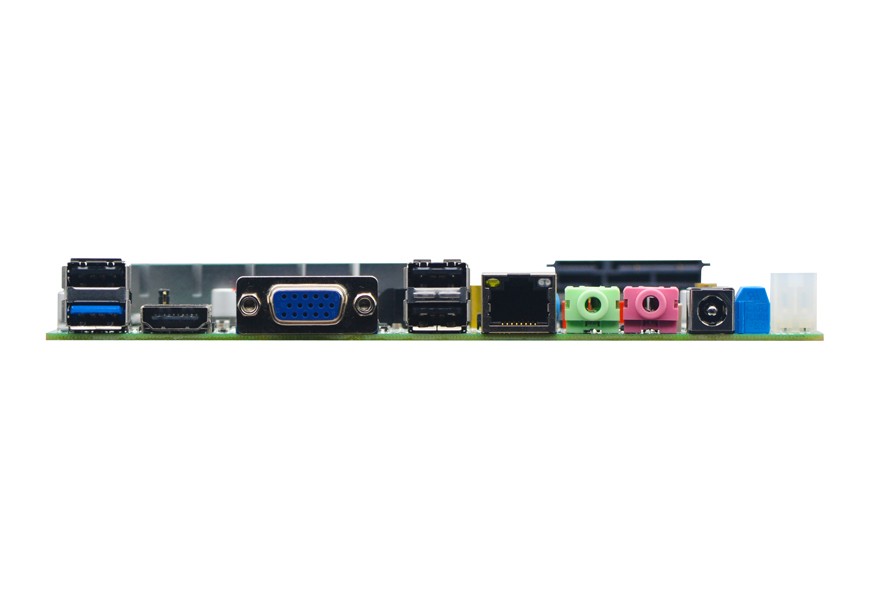

Rear I/O

1* HDMI


1* VGA


3* USB 2.0


1* USB3.0


1* RJ-45  Gigabit Ethernet


1* Line out (Green)、1* MIC(Red)


1* 12V DC power input port

Internal I/O

1* 4pin ATX power port (can do 12V input/output power port)


1* 2pin 12V DC power input port


4* USB 2.0 2*5Pin,


1* J_HDMI 2*8Pin(same signal with HDMI1)


1* JVGA 1*12Pin(same signal with DB15)


1* LVDS 2*15pin, support dual channel 24bit,


1* screen backlight power supply port  1*6pin


1* PS/2 KB/MS port (Red) 1*6Pin


2* RS232 serial ports,


1* JTPM,2*8pin ,


1* LPT print port  2*13Pin


1* front audio port  2*5pin


1* front panel function buttons and indicator connector,2*5Pin


1* HDD power supply port  1*4pin


1* power amplifier interface, 1*4pin


1* SIM card socket

FAN interface

Fanless Cooling design ,Reserve 1*4pin CPU fan interface,1* 3pin system fan interface

GPIO

support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

Adopt  DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm


事宜人群:

◆ Integrated Intel® Celeron J1900/2.0GHz quad core processor

◆ 1*SODDR3L memory slot,Support 1600/1333MHz DDR3L/1.35V Memory ,up to 8GB

◆ Integrated Intel®HD Graphics ,1*VGA,1*HDMI,1*LVDS

◆ 1* Realtek RTL8111H Gigabit ethernet ports ,Support wake on LAN/PXE functiont

◆ 7*USB2.0,1*USB3.0,2*RS232 serial ports


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M56_D912L VER:1.6A

Processor

Integrated  Intel® Celeron J1900/2.0GHz quad core processor TDP 10W


Compatible Intel® Bay Trail -I/M/D series CPU,flexible choice for customers

Chipset

Based on Intel® Bay trail SOC platform

Memory

1*SODDR3L SODIMM,support single channel 1600/1333MHz DDR3L/1.35V memory ,up to 8GB

Display

Integrated Intel® HD Graphics


1* VGA,1*HDMI,1* LVDS


Support VGA;HDMI;LVDS synchronous/asynchronous display

Network

1* Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE

Storage

1* SATA2.0 HDD interface  (SATA2 and 2.5 inch HDD optional)


1* SATA 2.5 inch Notebook hard disk place ,can installed  the hard disk directly


1* MSATA slot , supports  SSD hard disk, the transfer rate up to 3Gbps

Audio

Onboard  ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Amplifier proposed using 2Ω5W speakers

Expansion slot

1* Mini-PCIE slot,support WIFI、3G module

Rear I/O

1* HDMI


1* VGA


3* USB 2.0


1* USB3.0


1* RJ-45  Gigabit Ethernet


1* Line out (Green)、1* MIC(Red)


1* 12V DC power input port

Internal I/O

1* 4pin ATX power port (can do 12V input/output power port)


1* 2pin 12V DC power input port


4* USB 2.0 2*5Pin,


1* J_HDMI 2*8Pin(same signal with HDMI1)


1* JVGA 1*12Pin(same signal with DB15)


1* LVDS 2*15pin, support dual channel 24bit,


1* screen backlight power supply port  1*6pin


1* PS/2 KB/MS port (Red) 1*6Pin


2* RS232 serial ports,


1* JTPM,2*8pin ,


1* LPT print port  2*13Pin


1* front audio port  2*5pin


1* front panel function buttons and indicator connector,2*5Pin


1* HDD power supply port  1*4pin


1* power amplifier interface, 1*4pin


1* SIM card socket

FAN interface

Fanless Cooling design ,Reserve 1*4pin CPU fan interface,1* 3pin system fan interface

GPIO

support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

Adopt  DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-M56_D912E VER:1.6A

 J1900

2.0G

1*SODDR3L

1

1

/

1

1*8111H

8

2

/

DC12V

2

ITX-M56_D912L VER:1.6A

J1900

2.0G

1*SODDR3L

1

1

2ch/24BIT

/

1*8111H

8

2

/

DC12V

3

ITX-M56_D812L VER:1.6A

J1800

2.41G

1*SODDR3L

1

1

2ch/24BIT

/

1*8111H

8

2

/

DC12V


SpecificationsITX-M56_D912L VER:1.6A



Driver(WIN7/8/10)


OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-M56
Win7/8/10 32/64BITGraphicsVGAITX-M56
Win7/8/10 32/64BITAudioRealtek AudioITX-M56
Win7/8/10 32/64BITLANRealtekITX-M56
Win7/8/10 32/64BITTXETXEITX-M56
Win7/8/10 32/64BITMBIMBIITX-M56
Win7 32/64BITUSB3.0USB3.0ITX-M56



◆ Integrated Intel® Celeron J1900/2.0GHz quad core processor

◆ 1*SODDR3L memory slot,Support 1600/1333MHz DDR3L/1.35V Memory ,up to 8GB

◆ Integrated Intel®HD Graphics ,1*VGA,1*HDMI,1*LVDS

◆ 1* Realtek RTL8111H Gigabit ethernet ports ,Support wake on LAN/PXE functiont

◆ 7*USB2.0,1*USB3.0,2*RS232 serial ports
