Celeron_U 1037U/1.8G

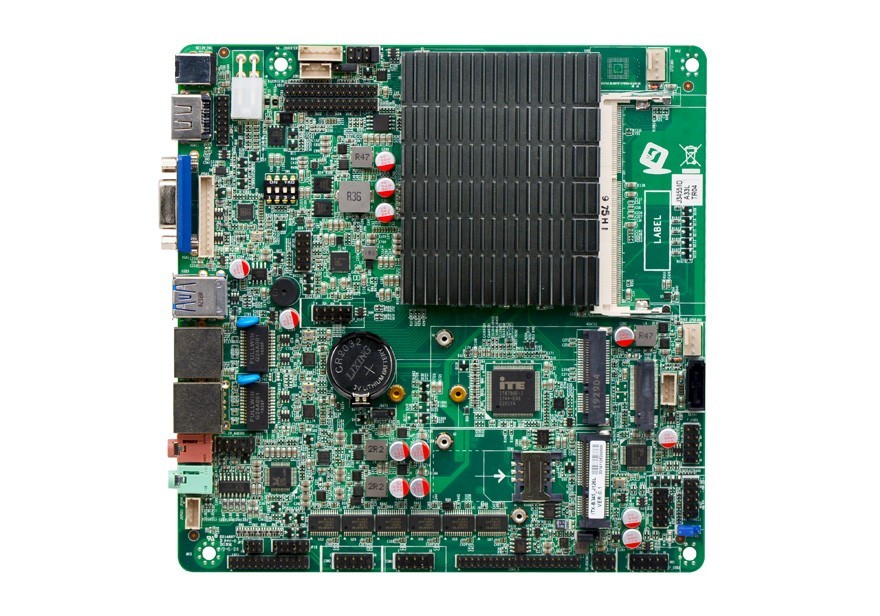

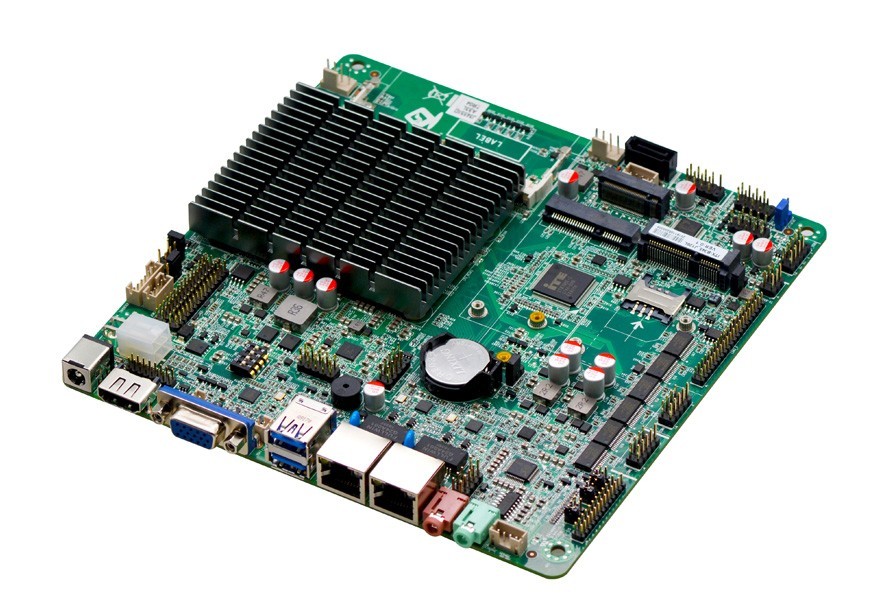

ITX-B345_J126L VER:1.0(J3455)

项目介绍:
Model NO.ITX-B345_J126L VER: 1.0 (J3455)
ProcessorIntegrated Intel® Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W
Compatible with Intel® Apollo Lake Celeron/Pentium Low Power Processor
ChipsetSoc
Internal storage1'DDR3L SODIMM, supports dual-channel 1600/1866MHz 1.35V memory, up to 8GB
DisplayIntegrated Intel ® HD Graphics 500 Core Graphics
1 x VGA, 1 x HDMI, 1 x LVDS interface (supports dual-channel 24Bit) or 1 x EDP interface
Support for VGA, HDMI, LVDS synchronous/asynchronous display
Network2x RTL811H Gigabit Card Chip, Support snetwork/PXE function
Storage1x 7pin SATA3.0 hard drive interface with a transfer rate of up to 6Gbps
1 x MSATA slot, supports SSD transmission speed of up to 6Gbps,
1 x M.2 slot, supports M.2 2280 NVME PCIE standard SSD
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers are recommended for the use of a 2-plus-5W horn
Expansion1x Mini-PCIE Slot Support WIFI/3G Module

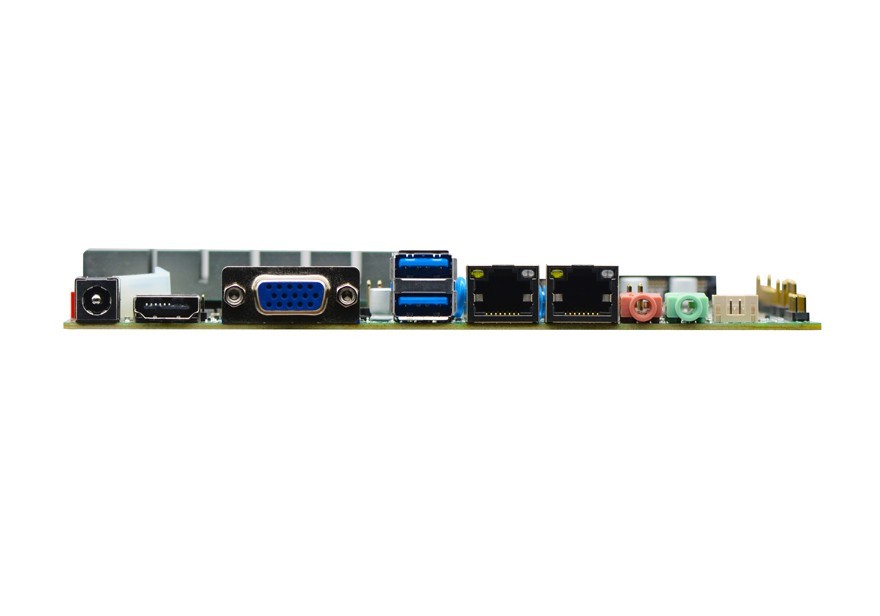

Backplane I/O Interface2 x USB3.0 interface
1 x HDMI1.4 interface
1 x VGA DB15 interface
2x RJ-45 Gigabit Network Interface
1 x Line out (green)
1 x Mic (red)
1 x 12V DC power input
Built-in I/O interface1 x LVDS interface 2 x 15pin, supports dual-channel 24Bit LCD display
1 x screen backlit power supply interface (1 x 6pin)
1 x screen brightness adjustment interface 1x4pin
1 x EDP interface 2 x 15pin, (optional) and LVDS for two options
1 x HDMI interface 2x8Pin, with the same signal as the HDMI interface of the back plane
1 x JVGA interface 1 x 12pin, same signal as DB15
6x RS232 serial port, COM2 supports RS485/RS422, COM1/COM2 supports 9pin live
1 x LPT interface 2 x 13pin
8x USB2.0 interface, 2 x 5pin
1 x Front Panel Audio Interface 2x5pin
1 x SIM seat
1 x hard drive power interface, 1x 4pin
1 x front panel function button and LED interface 2 x 5pin
2x 2pin ATX power connector for 12V input and output
1 x Amplifier Interface 1x4pin
Fan interfaceFanless cooling, reserved 1x 4pin CPU Smart Fan Interface, 1x 4pin System Fan Interface
GPIOSupport for 4-way input and output GPIO
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Power typeDC 12V single power input
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm x 170mm


事宜人群:

◆Integrated Intel ® Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W

◆1 x DDR3L SODIMM, support snare s1600/1866MHz 1.35V memory, up to 8GB

◆Integrated Intel ® HD Graphics 500 Core Graphics

◆1 x VGA, 1 x HDMI, 1 x LVDS interface (support s24Bit support) or 1 x EDP interface

◆2 x RTL811H gigabit card chip, support network wake-up/PXE function

◆6 x RS232 serial port, COM2 can support RS485/RS422, COM1/COM2 supports the 9th pin live function

◆8 x USB 2.0 interface, 2 x USB3.0 interface


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.ITX-B345_J126L VER: 1.0 (J3455)
ProcessorIntegrated Intel® Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W
Compatible with Intel® Apollo Lake Celeron/Pentium Low Power Processor
ChipsetSoc
Internal storage1'DDR3L SODIMM, supports dual-channel 1600/1866MHz 1.35V memory, up to 8GB
DisplayIntegrated Intel ® HD Graphics 500 Core Graphics
1 x VGA, 1 x HDMI, 1 x LVDS interface (supports dual-channel 24Bit) or 1 x EDP interface
Support for VGA, HDMI, LVDS synchronous/asynchronous display
Network2x RTL811H Gigabit Card Chip, Support snetwork/PXE function
Storage1x 7pin SATA3.0 hard drive interface with a transfer rate of up to 6Gbps
1 x MSATA slot, supports SSD transmission speed of up to 6Gbps,
1 x M.2 slot, supports M.2 2280 NVME PCIE standard SSD
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers are recommended for the use of a 2-plus-5W horn
Expansion1x Mini-PCIE Slot Support WIFI/3G Module
Backplane I/O Interface2 x USB3.0 interface
1 x HDMI1.4 interface
1 x VGA DB15 interface
2x RJ-45 Gigabit Network Interface
1 x Line out (green)
1 x Mic (red)
1 x 12V DC power input
Built-in I/O interface1 x LVDS interface 2 x 15pin, supports dual-channel 24Bit LCD display
1 x screen backlit power supply interface (1 x 6pin)
1 x screen brightness adjustment interface 1x4pin
1 x EDP interface 2 x 15pin, (optional) and LVDS for two options
1 x HDMI interface 2x8Pin, with the same signal as the HDMI interface of the back plane
1 x JVGA interface 1 x 12pin, same signal as DB15
6x RS232 serial port, COM2 supports RS485/RS422, COM1/COM2 supports 9pin live
1 x LPT interface 2 x 13pin
8x USB2.0 interface, 2 x 5pin
1 x Front Panel Audio Interface 2x5pin
1 x SIM seat
1 x hard drive power interface, 1x 4pin
1 x front panel function button and LED interface 2 x 5pin
2x 2pin ATX power connector for 12V input and output
1 x Amplifier Interface 1x4pin
Fan interfaceFanless cooling, reserved 1x 4pin CPU Smart Fan Interface, 1x 4pin System Fan Interface
GPIOSupport for 4-way input and output GPIO
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Power typeDC 12V single power input
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-B345_J126LVER:1.0

J3455

1.5G

1*SODDR3L

1

1

2ch/24Bit

/

2*8111H

10

6

COM2

DC12V


SpecificationsITX-B345_J126L VER:1.0(J3455)
 Driver  ITX-B345_J126L VER:1.0(J3455)



◆Integrated Intel ® Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W

◆1 x DDR3L SODIMM, support snare s1600/1866MHz 1.35V memory, up to 8GB

◆Integrated Intel ® HD Graphics 500 Core Graphics

◆1 x VGA, 1 x HDMI, 1 x LVDS interface (support s24Bit support) or 1 x EDP interface

◆2 x RTL811H gigabit card chip, support network wake-up/PXE function

◆6 x RS232 serial port, COM2 can support RS485/RS422, COM1/COM2 supports the 9th pin live function

◆8 x USB 2.0 interface, 2 x USB3.0 interface
