Atom

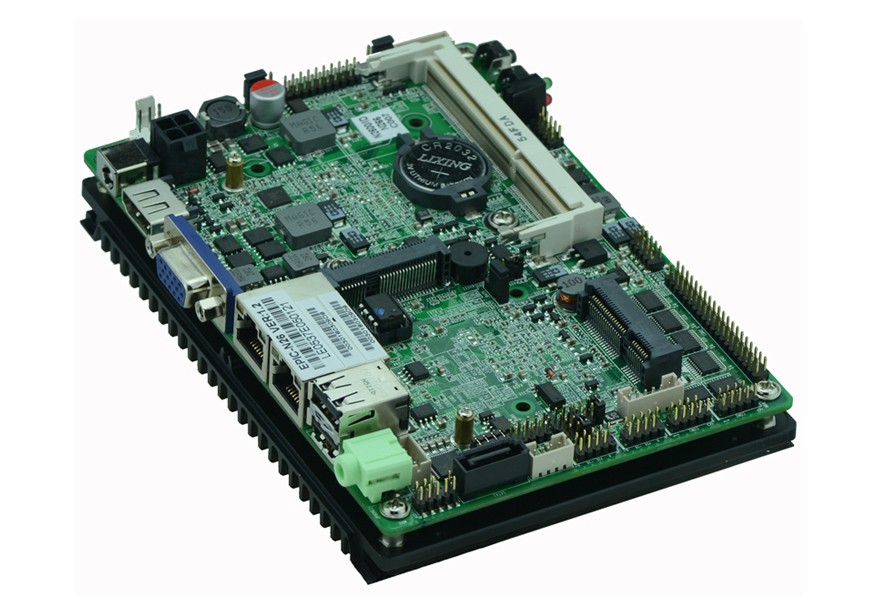

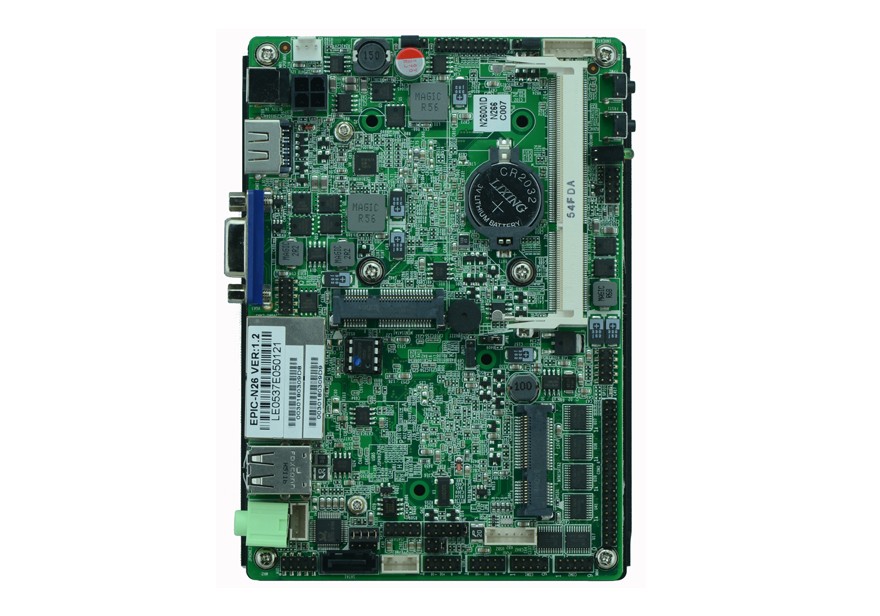

EPIC-N28 VER:1.2

项目介绍:

Model No.

EPIC-N28 VER:1.2

CPU

Integrated Intel® Atom N2800 1.86GHZ dual core processor

Chipset

Adopt Intel® NM10 Express chipset

Memory

1* DDR3 SODIMM ,support 1333/1066MHz memory, up to 4GB

Graphics

Integrated Intel® 3600 Graphics


Provide 1*VGA、1*HDMI , 1* support single channel  24bit LVDS,


Support single display, double display mode, extended mode

LAN

Integrated 2* Realtek RTL8111F Gigabit Ethernet

Support wake on LAN/PXE

Storage

Provide 1* SATA2.0 HDD interface, the transfer rate up to 3Gbps


Provide 1* MSATA slot, support WIFI(optional)、SSD(support intel protocol, the transfer rate up to 3Gbps)

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Amplifier proposed using 3Ω2W speakers

Expansion slots

1* Mini-PCIE slot support WIFI/3G module

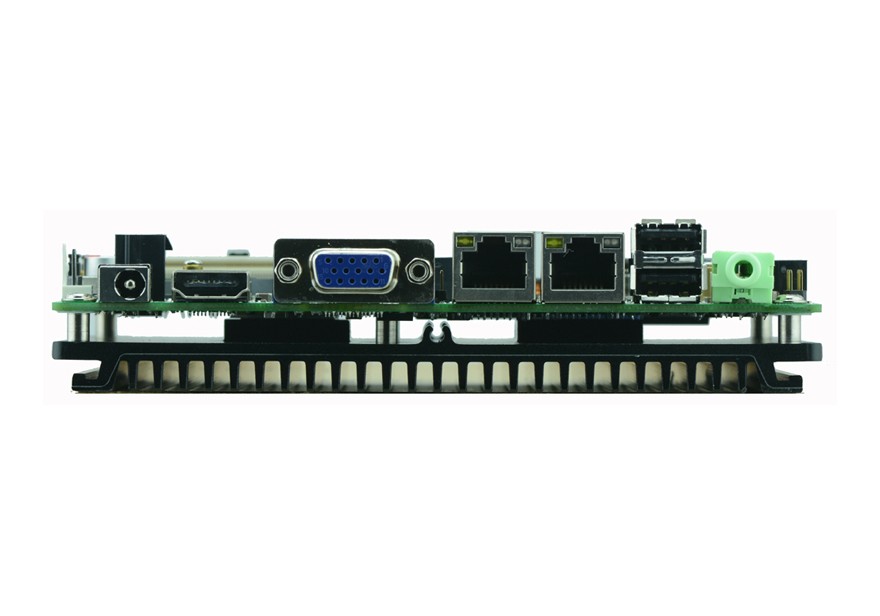

Rear I/O

1* 12V DC power input


1* HDMI


1* VGA


2* USB 2.0


2* RJ-45 Gigabit Ethernet connector


 1* Line out (Green)


1* power switch


1* reset switch


1* Power/HDD LED

Internal I/O

1* 4pin ATX 12V power input/output interface


1* JVGA1  2*5Pin  same signal with DB15


1* support single channel 24bit LVDS  2*10pin


1* LVDS Backlight power supply connector 1*6Pin


1* front panel audio connector 2*5pin


1* front panel power amplifier connector 1*4Pin


4* USB 2.0  2*5Pin


1* front panel function buttons and  indicator connector 2*5pin


6* RS232 serial port , COM2 support RS485/422


1* HDD power supply interface


1* PS/2 KB/MS connector 1*6Pin

FAN interface

Fanless Cooling design , Reserve 1* 3pinCPU FAN interface

GPIO

Support 4 way input and output GPIO

BIOS

16Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

Adopt DC 12V power supply

Operating Temp.

-10℃~60℃

Storage Temp

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

148mm x 102mm


事宜人群:

♦ Integrated Intel® Atom N2800 1.86GHZ dual core processor

♦ Adopt Intel® NM10 Express chipset

♦ 1* DDR3 SODIMM ,support 1333/1066MHz memory, up to 4GB

♦ 2* Realtek RTL8111F Gigabit Ethernet,Support wake on LAN/PXE

♦ Integrated Intel®HD Graphics graphics,1* VGA,1* LVDS,1*HDMI

♦ 6* USB2.0,6* RS232 serial ports


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

EPIC-N28 VER:1.2

CPU

Integrated Intel® Atom N2800 1.86GHZ dual core processor

Chipset

Adopt Intel® NM10 Express chipset

Memory

1* DDR3 SODIMM ,support 1333/1066MHz memory, up to 4GB

Graphics

Integrated Intel® 3600 Graphics


Provide 1*VGA、1*HDMI , 1* support single channel  24bit LVDS,


Support single display, double display mode, extended mode

LAN

Integrated 2* Realtek RTL8111F Gigabit Ethernet

Support wake on LAN/PXE

Storage

Provide 1* SATA2.0 HDD interface, the transfer rate up to 3Gbps


Provide 1* MSATA slot, support WIFI(optional)、SSD(support intel protocol, the transfer rate up to 3Gbps)

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Amplifier proposed using 3Ω2W speakers

Expansion slots

1* Mini-PCIE slot support WIFI/3G module

Rear I/O

1* 12V DC power input


1* HDMI


1* VGA


2* USB 2.0


2* RJ-45 Gigabit Ethernet connector


 1* Line out (Green)


1* power switch


1* reset switch


1* Power/HDD LED

Internal I/O

1* 4pin ATX 12V power input/output interface


1* JVGA1  2*5Pin  same signal with DB15


1* support single channel 24bit LVDS  2*10pin


1* LVDS Backlight power supply connector 1*6Pin


1* front panel audio connector 2*5pin


1* front panel power amplifier connector 1*4Pin


4* USB 2.0  2*5Pin


1* front panel function buttons and  indicator connector 2*5pin


6* RS232 serial port , COM2 support RS485/422


1* HDD power supply interface


1* PS/2 KB/MS connector 1*6Pin

FAN interface

Fanless Cooling design , Reserve 1* 3pinCPU FAN interface

GPIO

Support 4 way input and output GPIO

BIOS

16Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

Adopt DC 12V power supply

Operating Temp.

-10℃~60℃

Storage Temp

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

148mm x 102mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

RS485/RS422

Power

1

EPIC-N26 VER:1.2

N2600

1.66G

1*SODDR3

1

1

1ch/24Bit

2*8111F

6

6

COM2

DC12V

2

EPIC-N28 VER:1.2

N2800

1.86G

1*SODDR3

1

1

1ch/24Bit

2*8111F

6

6

COM2

DC12V


SpecificationsEPIC-N28 VER:1.2



Driver(WIN XP/7/8)

OSDriver TypeDriver NameDownload Now
WinXP/7/8 32/64BITChipsetinfEPIC-N28
WinXP/7/8 32/64BITTGraphicsVGAEPIC-N28
WinXP/7/8 32/64BITAudioRealtek AudioEPIC-N28
WinXP/7/8 32/64BITLANRealtekEPIC-N28
Win7 32/64BITUSB3.0USB3.0EPIC-N28
