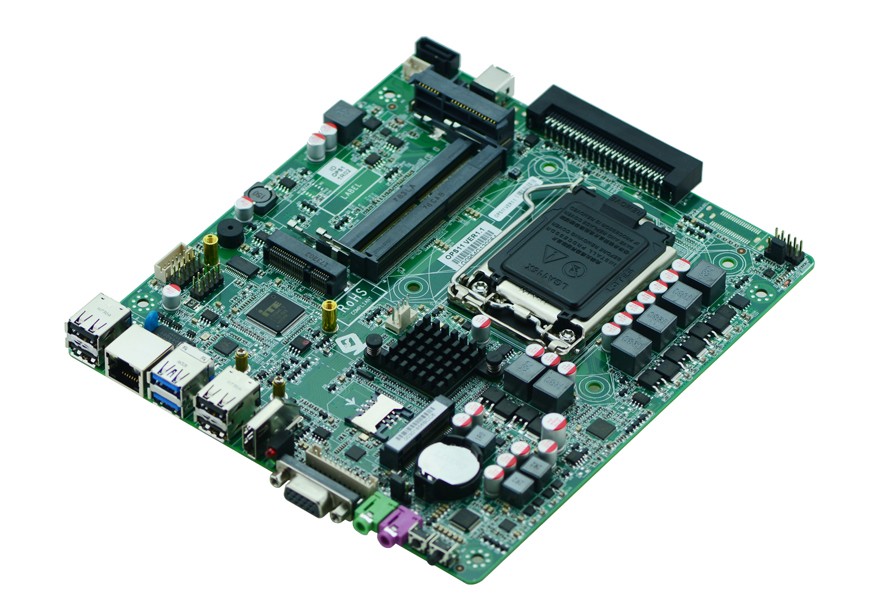

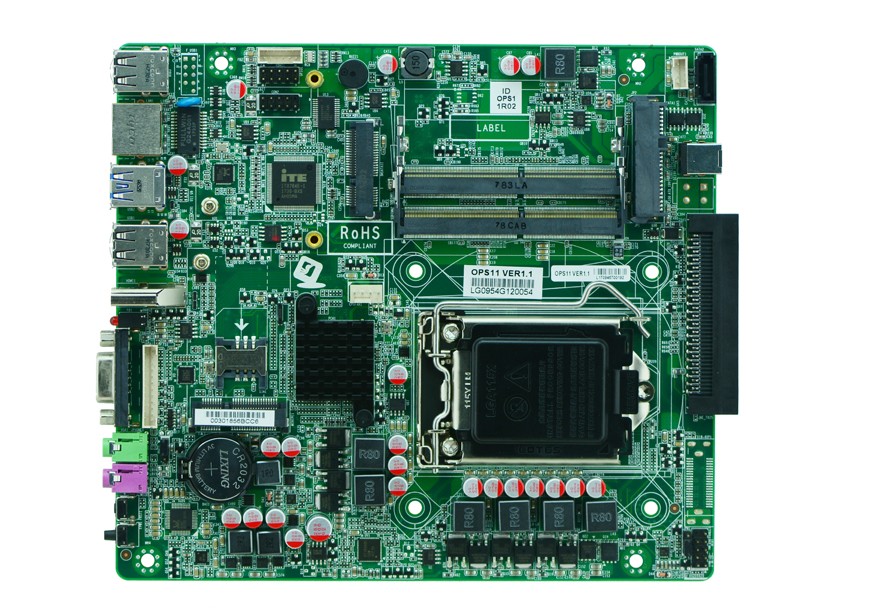

LGA115X H81/H110

OPS11 VER:1.1

项目介绍:

Model NO.

OPS11 VER1.1

Processor

Support Intel®Skylake/Kabylake-S Celeron/PentiumCore™ i7/i5/i3 LGA1151 processor

Chipset

Adopt Intel® H110 high speed chopset

Memory

2* DDR4 SODIMM memory slot, support 2133/2400MHz memory, up to 16GB

Display

Integrated Intel®HD Graphics, support DirectX* 11.2/12, OpenGL 4.3 and 4K


1* VGA, the highest resolution is 1920X1200@60Hz


1* HDMI1.4 the highest resolution is 4096X2304 @24Hz

LAN

1* RTL8111F Gigabit Ethernet,support wake on LAN/PXE

Storage

Provide 1 *2.5 inch SATA 3.0 Notebook hard disk place,can installed hard disk directly


1* MSATA 3.0 slot, support SSD, the transfer rate up to 6Gbps


1* standard 7PIN SATA3.0 HDD interface(with HDD place optional,)s

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out.

Expansion

Provide 1* Mini-PCIE slot, support WIFI、3G module

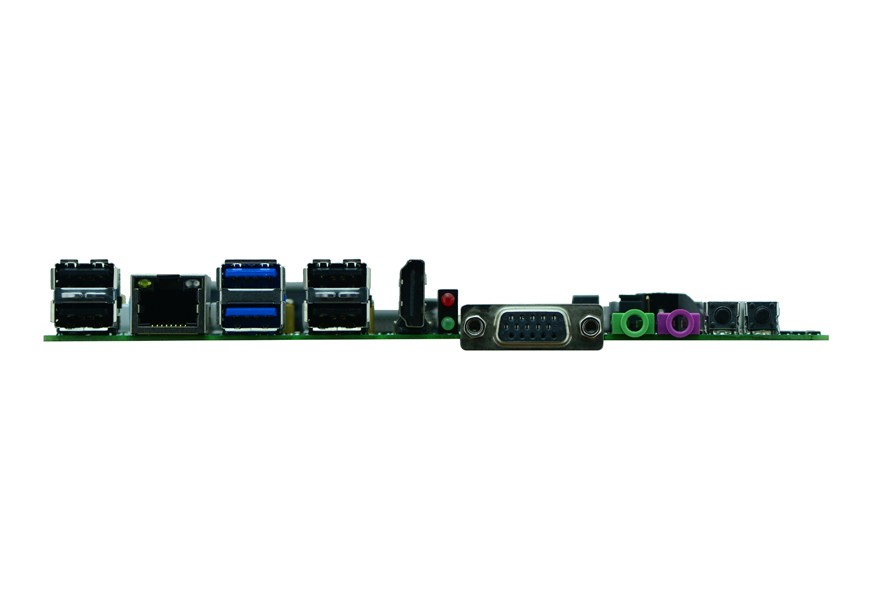

Rear I/O

4* USB 2.0


2* USB 3.0


1* HDMI


1* VGA


1* RJ45 Gigabit Ethernet port


1* Line-out(Green),1*MIC(Red)


1* power switch, 1* reset switch


1* HDD LED,1*power LED

Internal I/O

1* DC input support 12~19V ATX power connector


Support 1*OPS-C Standard JAE_TX25 slot  (1*USB3.0,2*USB2.0,1*HDMI,1*UART,80Pin)


Support 1*OPS-C+ standard FX18-40P1 slot (40pin, optional)

Internal I/O

1* JVGA, 1*12pin (The same signal with DB15)


1* PS/2 KB/MS port 1* 6pin


1* RS232 serial port  2*5pin (optional)


2* USB2.0  2*5pin (optional)


1* HDD power supply connector 1*4pin


1* Front panel function buttons and indicator port 2*5pin


1* SIM card slot


1* 4pin ATX power input (support 12V~19V power input& output optional)

FAN interface

1*4pin CPU intelligent fan connector

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function(L256,0~255 second)

Power input

 Adopt DC 12~19V power supply or through JAE_TX25 slot provide 12V~19V power

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Operating humidity

5%-95% (relative humidity; non-condensing)

Dimension

190mm x 170mm

GPIO

Support 4 way input/output GPIO


事宜人群:

◆Support Intel®Skylake/Kabylake-S Celeron/PentiumCore™ i7/i5/i3 LGA1151 processor

◆Adopt Intel® H110 high speed chopset,

◆2* DDR4 SODIMM memory slot, support 2133/2400MHz memory, up to 16GB

◆Integrated Intel®HD Graphics, support DirectX* 11.2/12, OpenGL 4.3 and 4K

◆1*VGA和1*HDMI1.4

◆1* RTL8111F Gigabit Ethernet,support wake on LAN/PXE


  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

OPS11 VER1.1

Processor

Support Intel®Skylake/Kabylake-S Celeron/PentiumCore™ i7/i5/i3 LGA1151 processor

Chipset

Adopt Intel® H110 high speed chopset

Memory

2* DDR4 SODIMM memory slot, support 2133/2400MHz memory, up to 16GB

Display

Integrated Intel®HD Graphics, support DirectX* 11.2/12, OpenGL 4.3 and 4K


1* VGA, the highest resolution is 1920X1200@60Hz


1* HDMI1.4 the highest resolution is 4096X2304 @24Hz

LAN

1* RTL8111F Gigabit Ethernet,support wake on LAN/PXE

Storage

Provide 1 *2.5 inch SATA 3.0 Notebook hard disk place,can installed hard disk directly


1* MSATA 3.0 slot, support SSD, the transfer rate up to 6Gbps


1* standard 7PIN SATA3.0 HDD interface(with HDD place optional,)s

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out.

Expansion

Provide 1* Mini-PCIE slot, support WIFI、3G module

Rear I/O

4* USB 2.0


2* USB 3.0


1* HDMI


1* VGA


1* RJ45 Gigabit Ethernet port


1* Line-out(Green),1*MIC(Red)


1* power switch, 1* reset switch


1* HDD LED,1*power LED

Internal I/O

1* DC input support 12~19V ATX power connector


Support 1*OPS-C Standard JAE_TX25 slot  (1*USB3.0,2*USB2.0,1*HDMI,1*UART,80Pin)


Support 1*OPS-C+ standard FX18-40P1 slot (40pin, optional)

Internal I/O

1* JVGA, 1*12pin (The same signal with DB15)


1* PS/2 KB/MS port 1* 6pin


1* RS232 serial port  2*5pin (optional)


2* USB2.0  2*5pin (optional)


1* HDD power supply connector 1*4pin


1* Front panel function buttons and indicator port 2*5pin


1* SIM card slot


1* 4pin ATX power input (support 12V~19V power input& output optional)

FAN interface

1*4pin CPU intelligent fan connector

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function(L256,0~255 second)

Power input

 Adopt DC 12~19V power supply or through JAE_TX25 slot provide 12V~19V power

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Operating humidity

5%-95% (relative humidity; non-condensing)

Dimension

190mm x 170mm

GPIO

Support 4 way input/output GPIO


NO.

Model

Processor

Southbridge

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

OPS11 VER:1.1

LGA1151

H110

2*DDR4

1

1

/

1*8111F

6

1

DC/12V~19V


SpecificationsOPS11 VER:1.1
