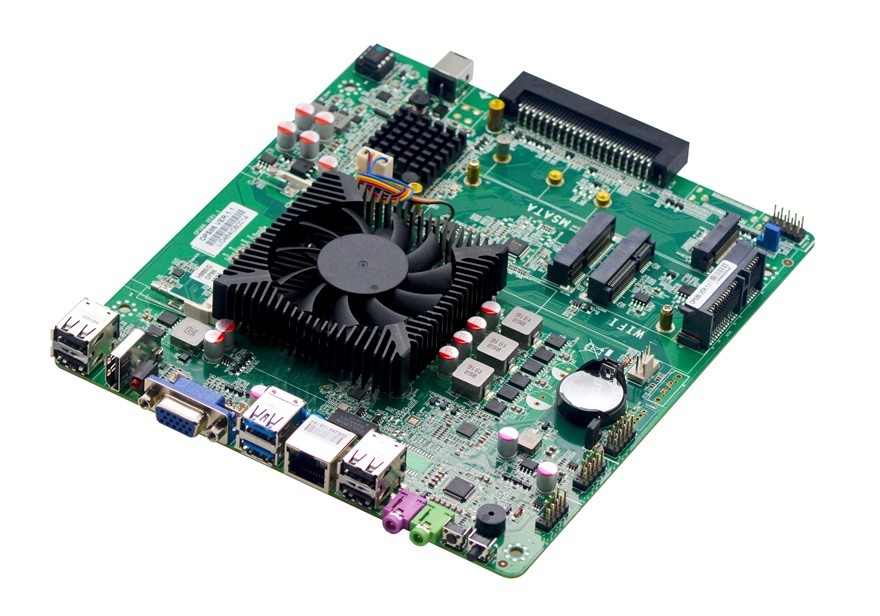

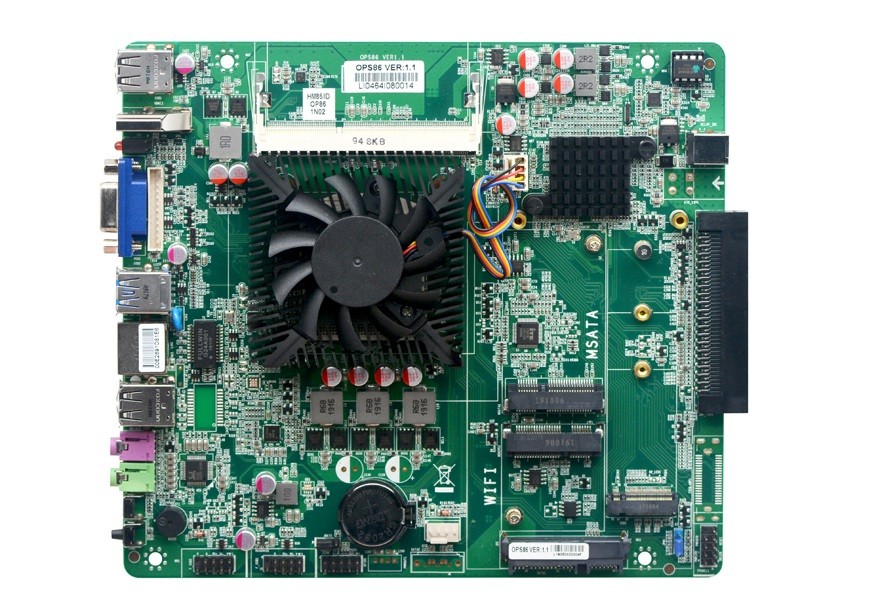

Haswell-U 4120U/2.0G

OPS86 VER:1.1

项目介绍:

Model No.

OPS86 VER1.1

Processor

Support Intel®PGA 946 Intel® haswell 4th Celeron/Pentium/Corei3/i5/i7 processor

Chipset

Adopt HM86 high speed chipset

Memory

1*SODIMM memory,support 1600/1333MHz DDR3L/1.35V memory,up to 16GB

Graphics

Integrated Intel®HD Graphics


1*VGA,1*HDMI,


Support VGA/HDMI synchronous/asynchronous display

Network

1*Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE function

Storage

1* SATA2.0 2.5 inch HDD interface SATA5, can be installed HDD directly ,the transfer rate up to 3Gbps


1*M.2 slot,support  M.2 2280/2260/2242 SSD,the transfer rate up to 6Gbps


1* MSATA slot, support Intel protocol SSD, the transfer rate up to 6Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out

Expansion slots

1* Mini-PCIE slot, support WIFI module


1* JAE TX25 OPS standard slot(80pin)

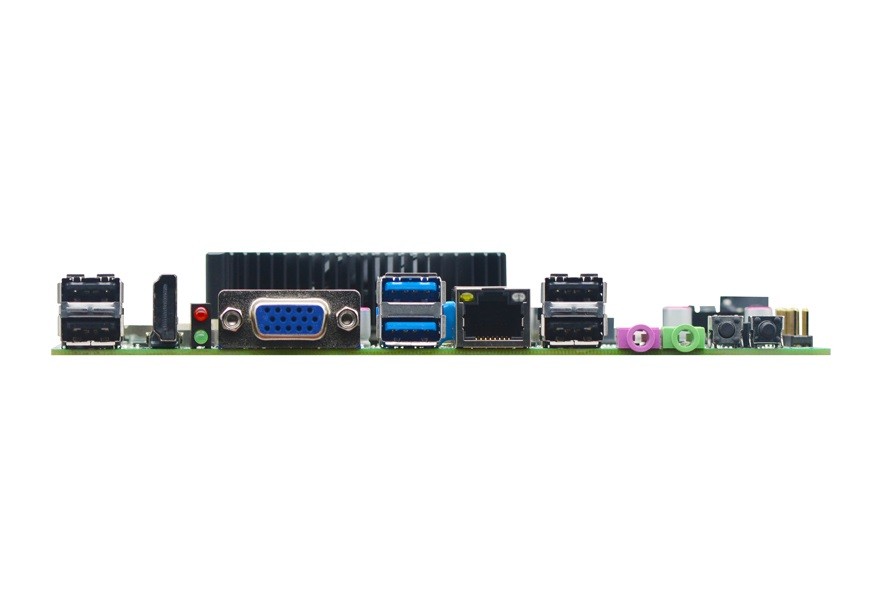

Rear I/O

4* USB 2.0 ,2*USB3.0


1* HDMI


1* VGA


1* RJ-45 Gigabit Ethernet connector


1* Line out(Green)、1* MIC(Red)


1* Power switch ,


1* support for on-key restore function button


1* HDD LED,1* power LED


1* DC power input port

Internal I/O

4* USB2.0


1* JVGA 1*12pin , the same signal with DB15


1* Front panel switching button and LED indicator port 2*5Pin

FAN interface

1*4pin CPU fan interface ,1*4pin system fan interface

GPIO

Support 4 way input/output GPIO function

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

Adopt DC 12~19V power supply or provide 12V~19V power through JAE_TX25 slot

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%( relative humidity, non-condensing)

Dimension

190mm x 170mm


事宜人群:

♦ Support Intel®PGA 946 Intel® haswell 4th Celeron/Pentium/Corei3/i5/i7 processor

♦ Adopt HM86 high speed chipset

♦ 1*SODIMM memory,support 1600/1333MHz DDR3L/1.35V memory,up to 16GB

♦ Integrated Intel®HD Graphics

♦ 1*VGA,1*HDMI,

♦ 1*Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE function

♦ 1* JAE TX25 OPS standard slot(80pin)

♦ Adopt DC 12~19V power supply or provide 12V~19V power through JAE_TX25 slot


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

OPS86 VER1.1

Processor

Support Intel®PGA 946 Intel® haswell 4th Celeron/Pentium/Corei3/i5/i7 processor

Chipset

Adopt HM86 high speed chipset

Memory

1*SODIMM memory,support 1600/1333MHz DDR3L/1.35V memory,up to 16GB

Graphics

Integrated Intel®HD Graphics


1*VGA,1*HDMI,


Support VGA/HDMI synchronous/asynchronous display

Network

1*Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE function

Storage

1* SATA2.0 2.5 inch HDD interface SATA5, can be installed HDD directly ,the transfer rate up to 3Gbps


1*M.2 slot,support  M.2 2280/2260/2242 SSD,the transfer rate up to 6Gbps


1* MSATA slot, support Intel protocol SSD, the transfer rate up to 6Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out

Expansion slots

1* Mini-PCIE slot, support WIFI module


1* JAE TX25 OPS standard slot(80pin)

Rear I/O

4* USB 2.0 ,2*USB3.0


1* HDMI


1* VGA


1* RJ-45 Gigabit Ethernet connector


1* Line out(Green)、1* MIC(Red)


1* Power switch ,


1* support for on-key restore function button


1* HDD LED,1* power LED


1* DC power input port

Internal I/O

4* USB2.0


1* JVGA 1*12pin , the same signal with DB15


1* Front panel switching button and LED indicator port 2*5Pin

FAN interface

1*4pin CPU fan interface ,1*4pin system fan interface

GPIO

Support 4 way input/output GPIO function

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power input

Adopt DC 12~19V power supply or provide 12V~19V power through JAE_TX25 slot

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%( relative humidity, non-condensing)

Dimension

190mm x 170mm


NO.

Model

Processor

Southbridge

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

OPS86 VER:1.1

RPGA946

HM86

1*SODDR3L

1

1

/

1*8111H

10

/

DC/19V

2

OPS86_C4 VER:1.1(2950M)

2950M

HM86

1*SODDR3L

1

1

/

1*8111H

10

/

DC/19V

3

OPS86_I3 VER:1.1(4000M)

I3-4000M

HM86

1*SODDR3L

1

1

/

1*8111H

10

/

DC/19V


SpecificationsOPS86 VER:1.1



Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetOPS86
Win7/8/10 32/64BITGraphicsVGAOPS86
Win7/8/10 32/64BITAudioRealtek AudioOPS86
Win7/8/10 32/64BITLANRealtekOPS86
Win7/8/10 32/64BITMEME_SW_MSIOPS86
WIN7 32/64BITUSB3.0USB3.0OPS86



♦ Support Intel®PGA 946 Intel® haswell 4th Celeron/Pentium/Corei3/i5/i7 processor

♦ Adopt HM86 high speed chipset

♦ 1*SODIMM memory,support 1600/1333MHz DDR3L/1.35V memory,up to 16GB

♦ Integrated Intel®HD Graphics

♦ 1*VGA,1*HDMI,

♦ 1*Realtek RTL8111H Gigabit Ethernet ,support wake on LAN/PXE function

♦ 1* JAE TX25 OPS standard slot(80pin)

♦ Adopt DC 12~19V power supply or provide 12V~19V power through JAE_TX25 slot
