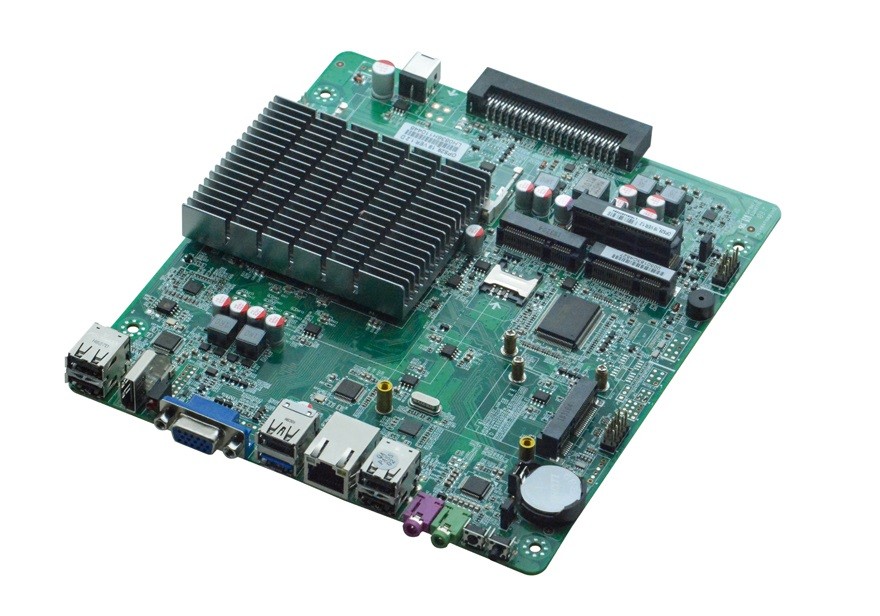

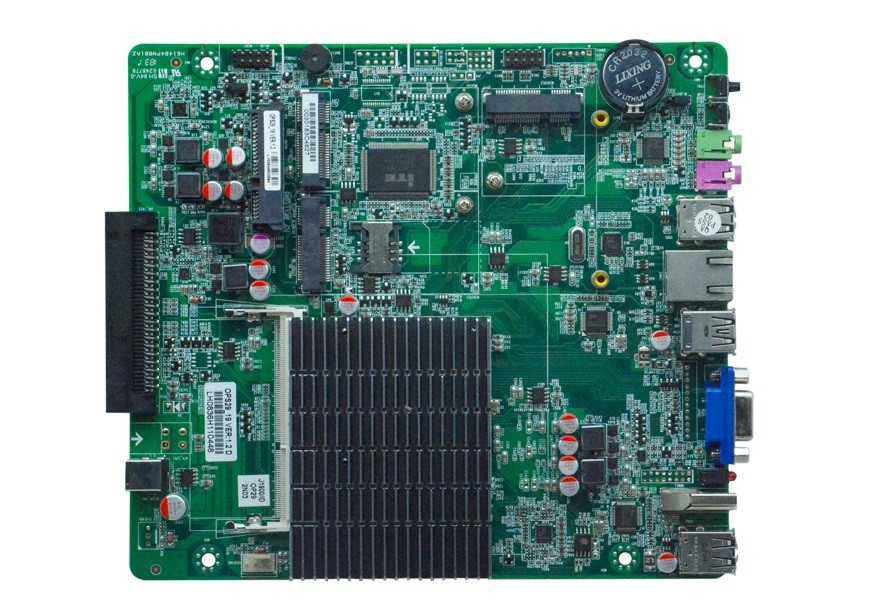

Baytrail J1900/2.0G

OPS29_19 VER:1.2

项目介绍:

Model NO.

OPS29_19 VER1.2

Processor

Integrated ,Intel® Celeron J1900/2.0GHz quad core processor ,TDP 10W

Compatible with Intel Bay Trail-I/M/D series CPU, flexible choice for customers

Chipset

Based on Intel® Bay trail SOC platform

Memory

Support single channel SODIMM 1066/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel®HD Graphics


Provide 1*VGA,1*HDMI


Support VGA;HDMI synchronous/asynchronous display

LAN

1*Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

Storage

1*2.5 inch SATA Notebook hard disk place , can be installed the hard disk directly


1* MSATA slot, support SSD the transfer rate up to 3Gbps

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out

Expansion

2* Mini-PCIE slot support WIFI/3G Model


1* accord with OPS-C standard slot JAE_TX25 (80Pin)

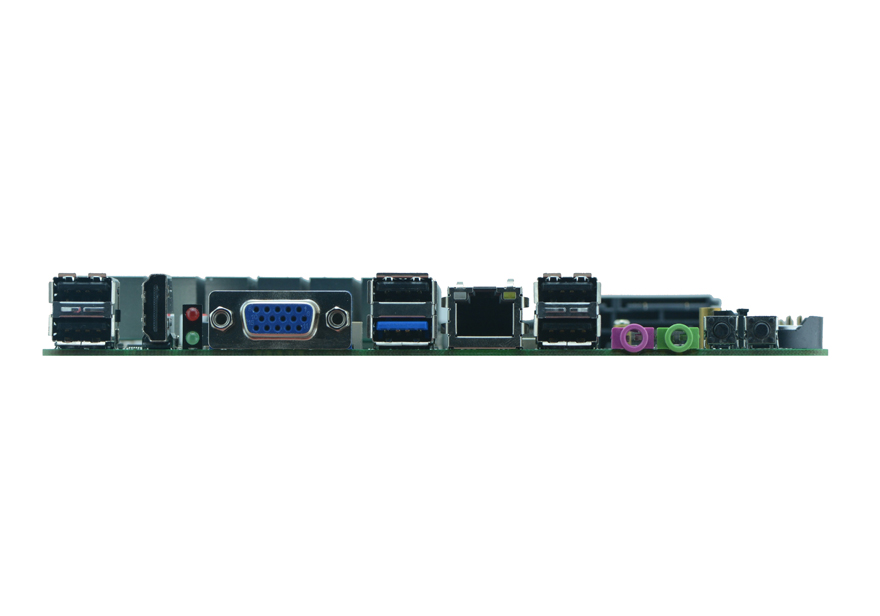

Rear I/O

5* USB 2.0


1* USB3.0


1* HDMI


1* VGA


1* RJ-45 Gigabit Ethernet connector


1* Line out(Green)、1* MIC(Red)


1* DC12V~19V power input interface


1* power LED/1* HDD LED


1* power switch,1* reset switch


1* accord with OPS-C standard slot JAE_TX25 (80Pin)

Internal I/O

1*GPIO  2*5Pin


1* front panel function buttons and indicator connector  2*5Pin


1* SIM card socket

FAN interface

Fanless Cooling design,Reserve 1*4pin CPU fan interface,1*3pin system fan interface

GPIO

Support 4 wan input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

Power input

Adopt DC 12V~19V power supply provide 12V~19V power supply through OPS-C standard slot JAE_TX25

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

190mm x 170mm



事宜人群:

♦ Integrated ,Intel® Celeron J1900/2.0GHz quad core processor ,TDP 10W

♦ Compatible with Intel Bay Trail-I/M/D series CPU, flexible choice for customers

♦ Support single channel SODIMM 1066/1333MHz DDR3L/1.35V memory, up to8GB

♦ 1*Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

♦ 5* USB2.0,1* USB3.0,



  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

OPS29_19 VER1.2

Processor

Integrated ,Intel® Celeron J1900/2.0GHz quad core processor ,TDP 10W

Compatible with Intel Bay Trail-I/M/D series CPU, flexible choice for customers

Chipset

Based on Intel® Bay trail SOC platform

Memory

Support single channel SODIMM 1066/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel®HD Graphics


Provide 1*VGA,1*HDMI


Support VGA;HDMI synchronous/asynchronous display

LAN

1*Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

Storage

1*2.5 inch SATA Notebook hard disk place , can be installed the hard disk directly


1* MSATA slot, support SSD the transfer rate up to 3Gbps

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out

Expansion

2* Mini-PCIE slot support WIFI/3G Model


1* accord with OPS-C standard slot JAE_TX25 (80Pin)

Rear I/O

5* USB 2.0


1* USB3.0


1* HDMI


1* VGA


1* RJ-45 Gigabit Ethernet connector


1* Line out(Green)、1* MIC(Red)


1* DC12V~19V power input interface


1* power LED/1* HDD LED


1* power switch,1* reset switch


1* accord with OPS-C standard slot JAE_TX25 (80Pin)

Internal I/O

1*GPIO  2*5Pin


1* front panel function buttons and indicator connector  2*5Pin


1* SIM card socket

FAN interface

Fanless Cooling design,Reserve 1*4pin CPU fan interface,1*3pin system fan interface

GPIO

Support 4 wan input/output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

Power input

Adopt DC 12V~19V power supply provide 12V~19V power supply through OPS-C standard slot JAE_TX25

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

190mm x 170mm



NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

OPS29_19 VER:1.2

J1900

2.00G

1*SODDR3L

1

1

/

1*8111F

9

/

DC/12V~19V

2

OPS29_29 VER:1.2

N2920

1.86G

1*SODDR3L

1

1

/

1*8111F

9

1

DC/12V~19V


SpecificationsOPS29_19 VER:1.1




Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetops29
Win7/8/10 32/64BITGraphicsVGAops29
Win7/8/10 32/64BITAudioRealtek AudioOPS29
Win7/8/10 32/64BITLANRealtekOPS29
Win7/8/10 32/64BITTXETXEOPS29
Win7/8/10 32/64BITMBIMBIOPS29
Win7 32/64BITUSB3.0USB3.0OPS29





♦ Integrated ,Intel® Celeron J1900/2.0GHz quad core processor ,TDP 10W

♦ Compatible with Intel Bay Trail-I/M/D series CPU, flexible choice for customers

♦ Support single channel SODIMM 1066/1333MHz DDR3L/1.35V memory, up to8GB

♦ 1*Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

♦ 5* USB2.0,1* USB3.0,
