Skylake-U

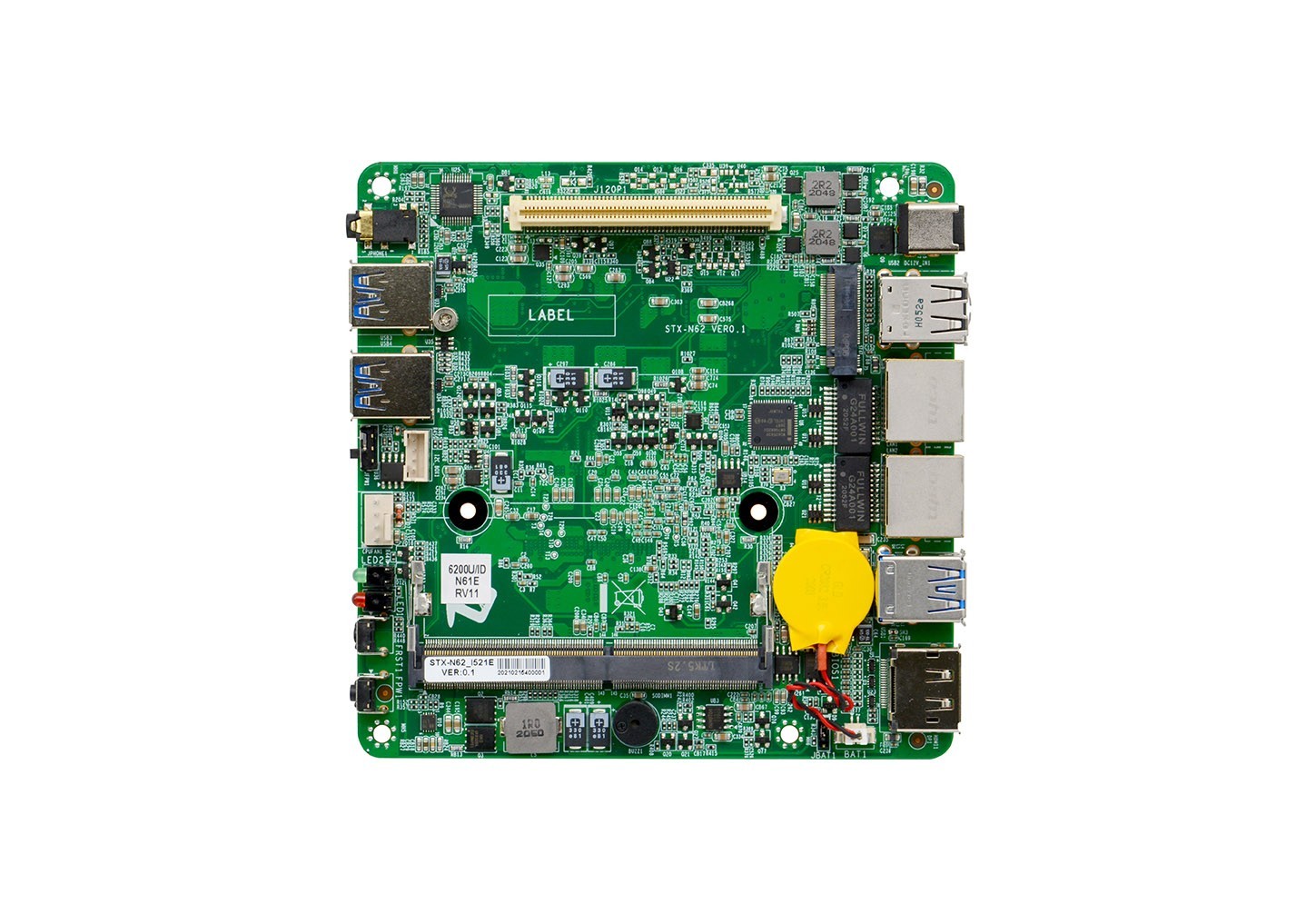

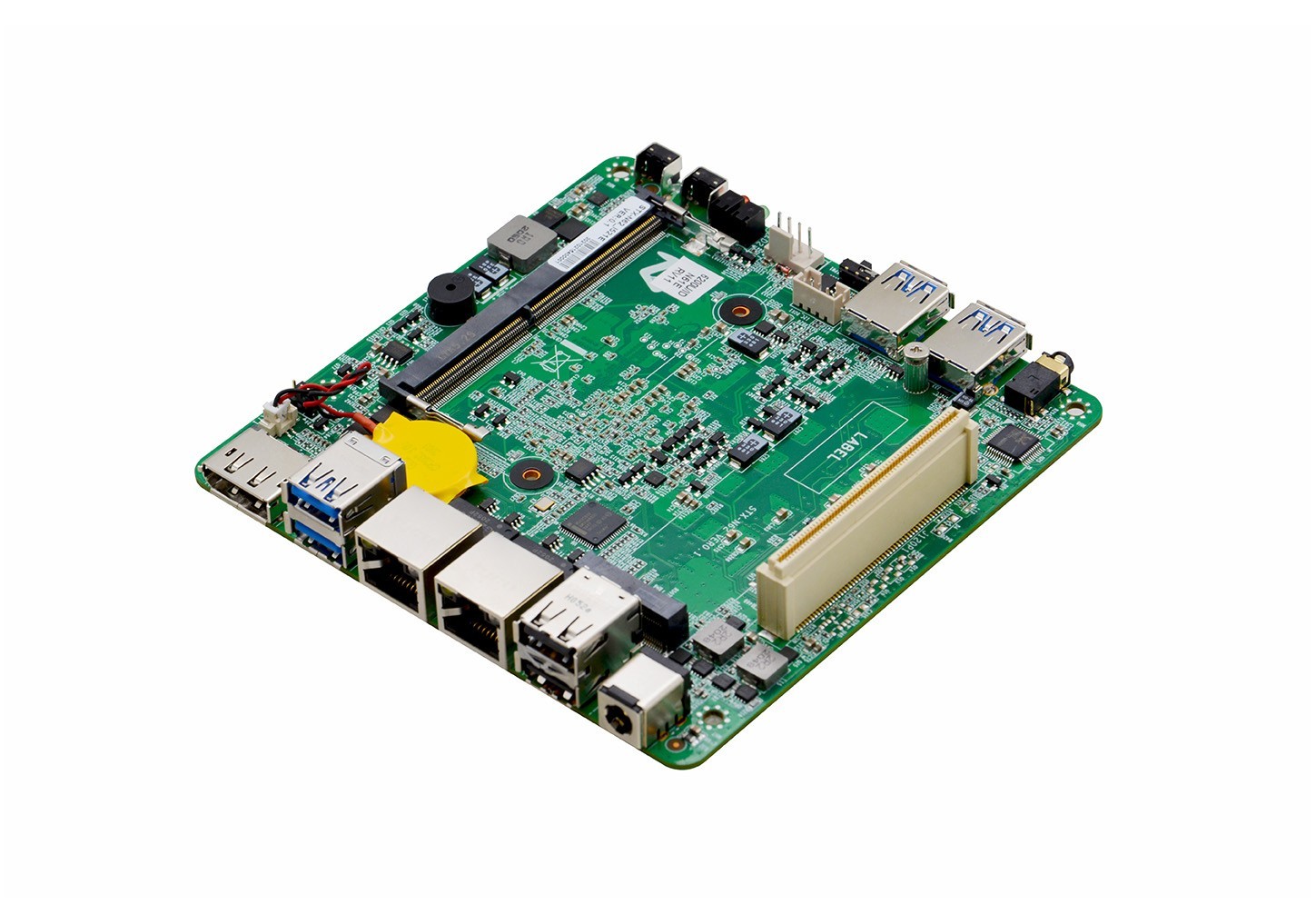

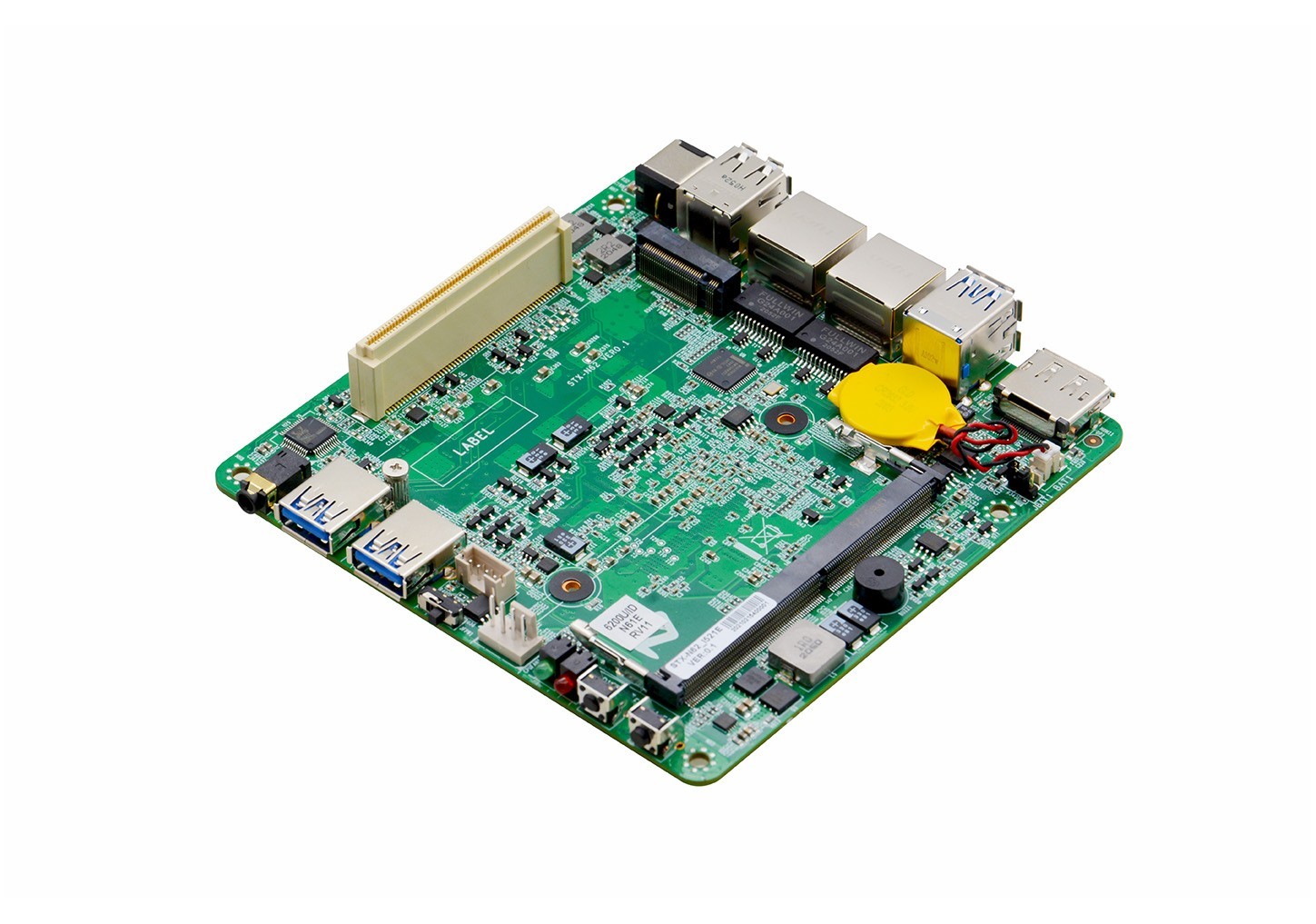

STX-N62_I521E VER:0.1

项目介绍:

Product No.

STX-N62_I521E VER:0.1

Processor

Integrated Intel® Processor I5-6200U/2..3GHz dual-core four-thread processor, TDP 15W


Compatible with Intel® Skylake-U Celeron/Pentium/I3/I5/I7 low-power processors

Chipset

SOC

RAM

1* DDR4 SODIMM memory slot, support 2133MHz memory, maximum support 32GB

Display



Integrated Intel® HD Graphics 520 supports DirectX 12 OpenGL 4.5, supports 4K/60Hz

1* Displayport, the highest resolution supported is 4096x2304@60Hz

Note: Displayport and HDMI are two options, optional HDMI interface

It can support DP/HDMI2.0 display or 2*HDMI display, realized through 120pin high-speed socket to IO board

The internet

2* Intel WG82583V Gigabit Ethernet, support Wake on LAN, PXE function

Store



1* M.2 slot, support M.2 2280 NVME PCIEx4/SATA adaptive standard SSD

Note: It can support 1* 2.5-inch hard disk position, realized by 120pin high-speed socket to IO board

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support Line-out.MICK

Expansion Slot

1* 120pin high-speed terminal, including 2* COM, 5*USB2.0, 1*DDI, 1*EDP, 2*PCIE, 1*SATA, 1*AUDIO signal

Rear panel I/O interface



1* DP interface

2* USB3.0 interface, 2*USB2.0

2* RJ45 Gigabit network interface

1* DC12V power interface, support 12V power input and output

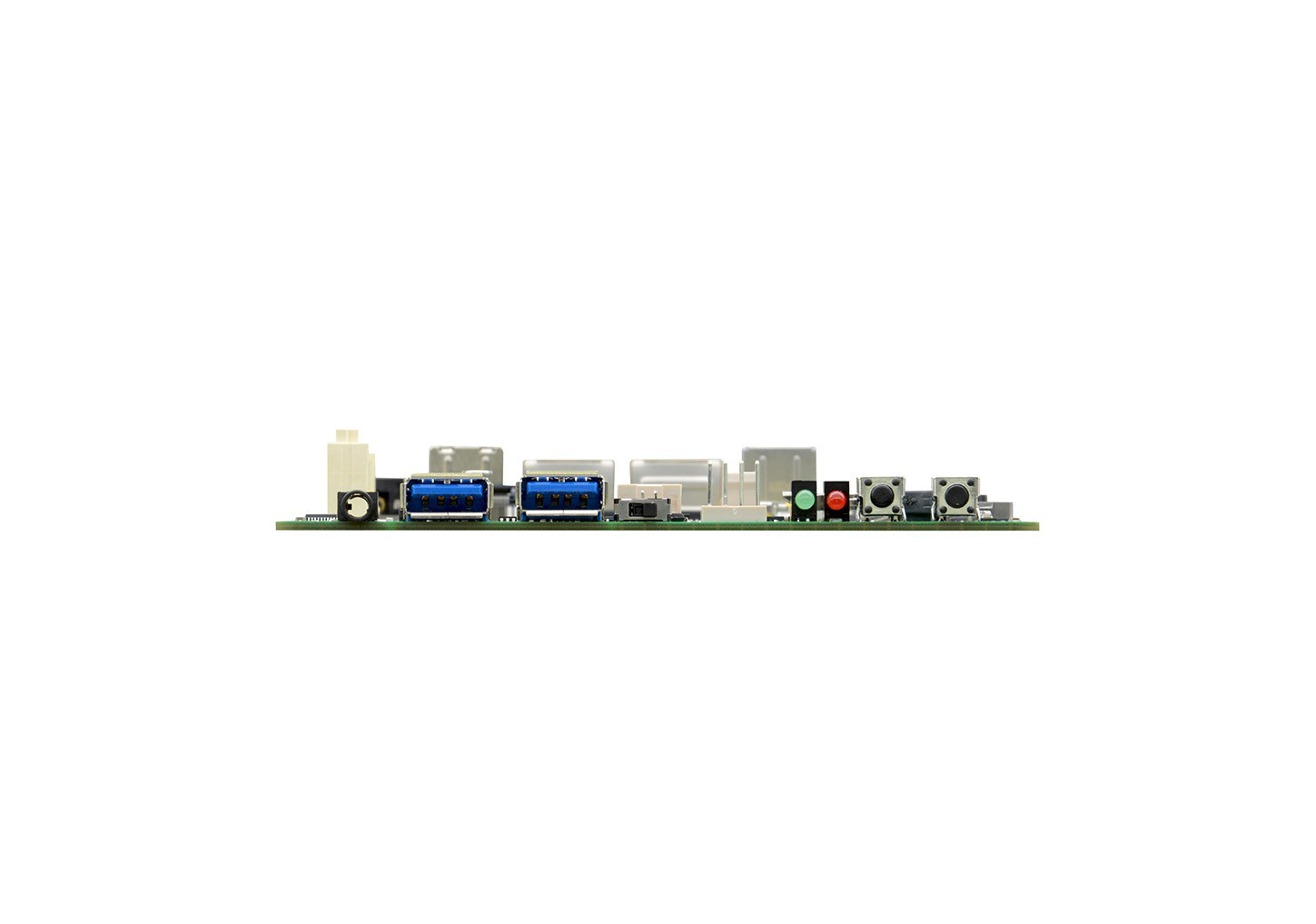

Front panel I/O interface



1* power switch, 1* restart switch, 1* call self-start control switch

1* Power indicator (green) 1* Hard disk indicator (red)

2* USB3.0 interface

1* Audio interface, support Line-out/Mick

Built-in I/O interface

N/A

Fan interface

No fan cooling, reserved 1*4pin CPU smart fan interface,

GPIO

NA

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 10/Linux

Power type

Powered by DC 12V power supply

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

120mm x 120mm


事宜人群:

♦Integrated Intel® Processor I5-6200U/2..3GHz dual-core four-thread processor, TDP 15W

♦Compatible with Intel® Skylake-U Celeron/Pentium/I3/I5/I7 low-power processors

♦1* DDR4 SODIMM memory slot, support 2133MHz memory, maximum support 32GB

♦Integrated Intel® HD Graphics 520 supports DirectX 12 OpenGL 4.5, supports 4K/60Hz

♦1* Displayport, the highest resolution supported is 4096x2304@60Hz

♦Note: Displayport and HDMI are two options, optional HDMI interface

♦It can support DP/HDMI2.0 display or 2*HDMI display, realized through 120pin high-speed socket to IO board

♦2* Intel WG82583V Gigabit Ethernet, support Wake on LAN, PXE function


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

STX-N62_I521E VER:0.1

Processor

Integrated Intel® Processor I5-6200U/2..3GHz dual-core four-thread processor, TDP 15W


Compatible with Intel® Skylake-U Celeron/Pentium/I3/I5/I7 low-power processors

Chipset

SOC

RAM

1* DDR4 SODIMM memory slot, support 2133MHz memory, maximum support 32GB

Display



Integrated Intel® HD Graphics 520 supports DirectX 12 OpenGL 4.5, supports 4K/60Hz

1* Displayport, the highest resolution supported is 4096x2304@60Hz

Note: Displayport and HDMI are two options, optional HDMI interface

It can support DP/HDMI2.0 display or 2*HDMI display, realized through 120pin high-speed socket to IO board

The internet

2* Intel WG82583V Gigabit Ethernet, support Wake on LAN, PXE function

Store



1* M.2 slot, support M.2 2280 NVME PCIEx4/SATA adaptive standard SSD

Note: It can support 1* 2.5-inch hard disk position, realized by 120pin high-speed socket to IO board

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support Line-out.MICK

Expansion Slot

1* 120pin high-speed terminal, including 2* COM, 5*USB2.0, 1*DDI, 1*EDP, 2*PCIE, 1*SATA, 1*AUDIO signal

Rear panel I/O interface



1* DP interface

2* USB3.0 interface, 2*USB2.0

2* RJ45 Gigabit network interface

1* DC12V power interface, support 12V power input and output

Front panel I/O interface



1* power switch, 1* restart switch, 1* call self-start control switch

1* Power indicator (green) 1* Hard disk indicator (red)

2* USB3.0 interface

1* Audio interface, support Line-out/Mick

Built-in I/O interface

N/A

Fan interface

No fan cooling, reserved 1*4pin CPU smart fan interface,

GPIO

NA

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

operating system

Windows 10/Linux

Power type

Powered by DC 12V power supply

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

120mm x 120mm


No

Model

Processor

Frequency

Memory

DP

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

STX-N62_I521E VER:0.1

I5-6200U

2.3

1* SODDR4

1

/

/

/

2*82583V

6

/

/

DC12V


SpecificationSTX-N62_I521E VER:0.1



Driver(Win7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetSTX-N62_I521E VER:0.1
Win7/8/10 32/64BITGraphicsVGASTX-N62_I521E VER:0.1
Win7/8/10 32/64BITAudioRealtek AudioSTX-N62_I521E VER:0.1
Win7/8/10 32/64BITLANIntel
STX-N62_I521E VER:0.1
Win7/8/10 32/64BITMEMESTX-N62_I521E VER:0.1
Win7/8/10 32/64BITDPTF
STX-N62_I521E VER:0.1
Win7/8/10 32/64BITRSTRSTSTX-N62_I521E VER:0.1
Win7/8/10 32/64BITSerial IOSerial_IOSTX-N62_I521E VER:0.1
