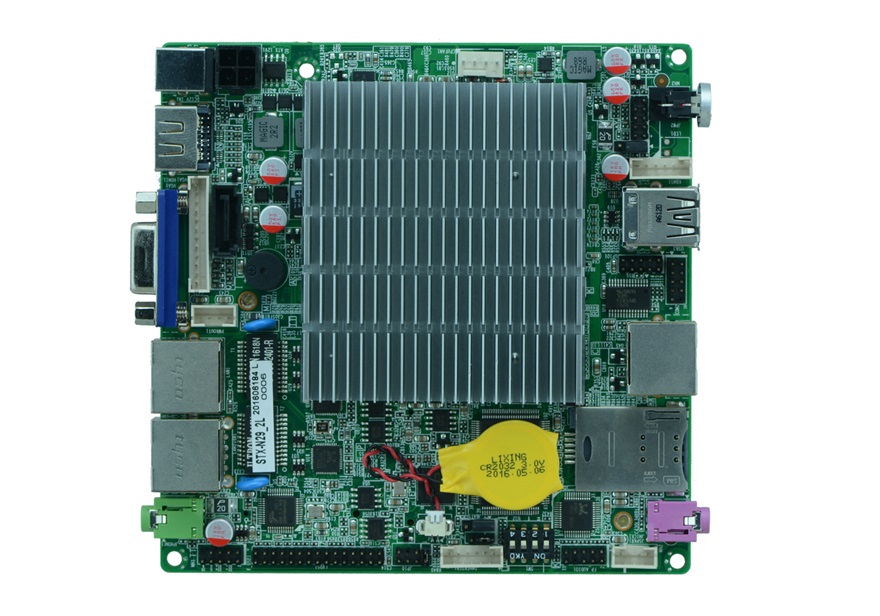

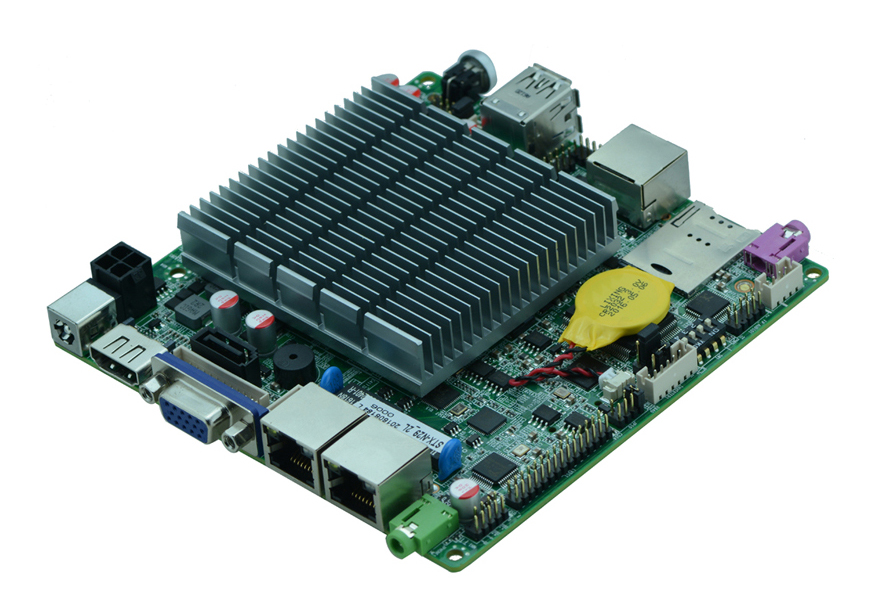

Baytrail J1900/2.00G

STX-N29_2L VER:1.5

项目介绍:

Model No.

STX-N29_2L VER:1.5

CPU

Integrated Intel®J1800/2.00GHz Quad core processor,TDP10W

Chipset

Based on Intel® Bay trail SOC platform

Memory

1*DDR3 SODIMM,Support 1600/1333MHz DDR3L/1.35V Memory,up to 8GB

Graphics

Integrated Intel®HD Graphics


Provide 1*VGA,1*HDMI,1*LVDS (Support double channel 24BIT)


Supprot VGA;HDMI;LVDS Synchronous/asynchronous display

LAN

2* RTL8111F Gigabit Ethernet support wake on LAN/PXE

Storage

1* SATA

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Advise 2Ω5W speaker

Expansion Slots

1* Mini-PCIE slot support 3G/WIFI module


1* MSATA slot support SSD/WIFI.SSD transfer rate up to 3Gbps

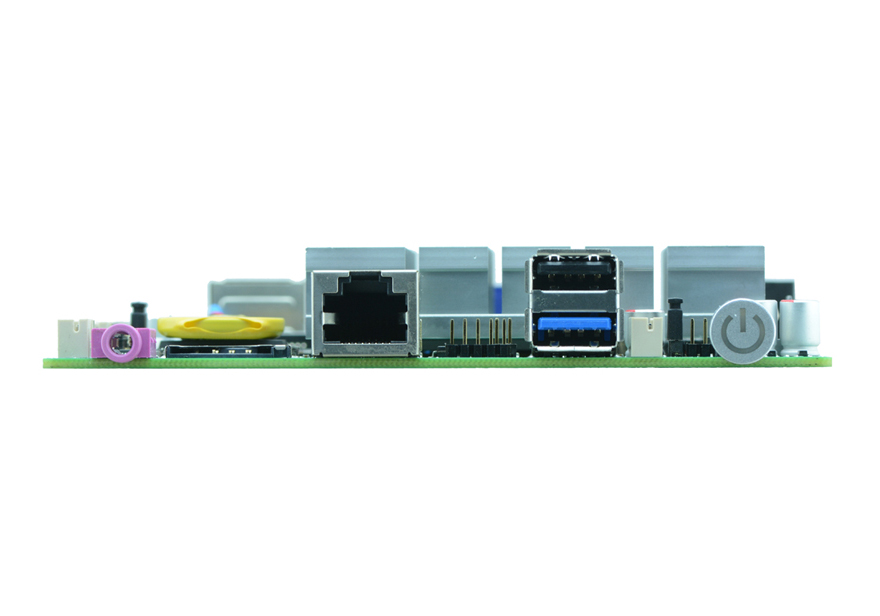

Rear I/O

1*USB2.0,1*USB3.0


1* HDMI


1* VGA


2* RJ-45 Gigabit Ethernet connector


1* Line out(Green),1* MIC(Violet)


1* COM


1* Power switch


1* 12V DC_JACK power input

Internal I/O

1* LVDS (2*15pin),Support double channel 24BIT LCD display


1* LVDS INVERTER(Screen backlight power supply interface) 1*6pin


1* JVGA1(1*12pin) same signal with DB15


1* RS232 2*5pin


2* USB2.0(2*5pin)


1* PS/2 KB/MS Connector(1*6Pin)


1*Front panel audio connector 2*5pin


1* SIM card socket


1* PWROUT (HDD power supply connector) 1*4pin


1* front panel function buttons and indicator connector 2*5Pin


1* 4pin ATX 12V power input


1* Power amplifier interface(1*4pin)

FAN interface

1*4pin CPU FAN Reserve

GPIO

Support 4 way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V single power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

120mm x 120mm



事宜人群:

♦ Integrated Intel®J1800/2.00GHz Quad core processor,TDP10W

♦ Based on Intel® Bay trail SOC platform

♦ 1*DDR3 SODIMM,Support 1600/1333MHz DDR3L/1.35V Memory,up to 8GB

♦2* RTL8111F Gigabit Ethernet support wake on LAN/PXE

♦3* USB2.0,2*USB3.0,2*RS232 serial ports

  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

STX-N29_2L VER:1.5

CPU

Integrated Intel®J1800/2.00GHz Quad core processor,TDP10W

Chipset

Based on Intel® Bay trail SOC platform

Memory

1*DDR3 SODIMM,Support 1600/1333MHz DDR3L/1.35V Memory,up to 8GB

Graphics

Integrated Intel®HD Graphics


Provide 1*VGA,1*HDMI,1*LVDS (Support double channel 24BIT)


Supprot VGA;HDMI;LVDS Synchronous/asynchronous display

LAN

2* RTL8111F Gigabit Ethernet support wake on LAN/PXE

Storage

1* SATA

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Advise 2Ω5W speaker

Expansion Slots

1* Mini-PCIE slot support 3G/WIFI module


1* MSATA slot support SSD/WIFI.SSD transfer rate up to 3Gbps

Rear I/O

1*USB2.0,1*USB3.0


1* HDMI


1* VGA


2* RJ-45 Gigabit Ethernet connector


1* Line out(Green),1* MIC(Violet)


1* COM


1* Power switch


1* 12V DC_JACK power input

Internal I/O

1* LVDS (2*15pin),Support double channel 24BIT LCD display


1* LVDS INVERTER(Screen backlight power supply interface) 1*6pin


1* JVGA1(1*12pin) same signal with DB15


1* RS232 2*5pin


2* USB2.0(2*5pin)


1* PS/2 KB/MS Connector(1*6Pin)


1*Front panel audio connector 2*5pin


1* SIM card socket


1* PWROUT (HDD power supply connector) 1*4pin


1* front panel function buttons and indicator connector 2*5Pin


1* 4pin ATX 12V power input


1* Power amplifier interface(1*4pin)

FAN interface

1*4pin CPU FAN Reserve

GPIO

Support 4 way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V single power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

120mm x 120mm




No.

Mode

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

STX-N29_2L VER:1.5

J1900

2.0G

1*SODDR3L

1

1

2ch/24BIT

2

4

2

DC/12V

2

STX-N29_18 VER:1.5

J1800

2.41G

1*SODDR3L

1

1

X

2

4

2

DC/12V

3

STX-N29_19 VER:1.5

J1900

2.0G

1*SODDR3L

1

1

X

2

4

2

DC/12V

4

STX-N29 VER:1.5

J1900

2.0G

1*SODDR3L

1

1

X

1

6

2

DC/12V

5

STX-N29_20 VER:1.5

N2920

1.86G

1*SODDR3L

1

1

X

2

4

2

DC/12V

6

STX-N29_1L VER:1.5

J1900

2.0G

1*SODDR3L

1

1

2ch/24BIT

1

6

2

DC/12V



♦ Integrated Intel®J1800/2.00GHz Quad core processor,TDP10W

♦ Based on Intel® Bay trail SOC platform

♦ 1*DDR3 SODIMM,Support 1600/1333MHz DDR3L/1.35V Memory,up to 8GB

♦2* RTL8111F Gigabit Ethernet support wake on LAN/PXE

♦3* USB2.0,2*USB3.0,2*RS232 serial ports
