LGA115X H81/H110/H310

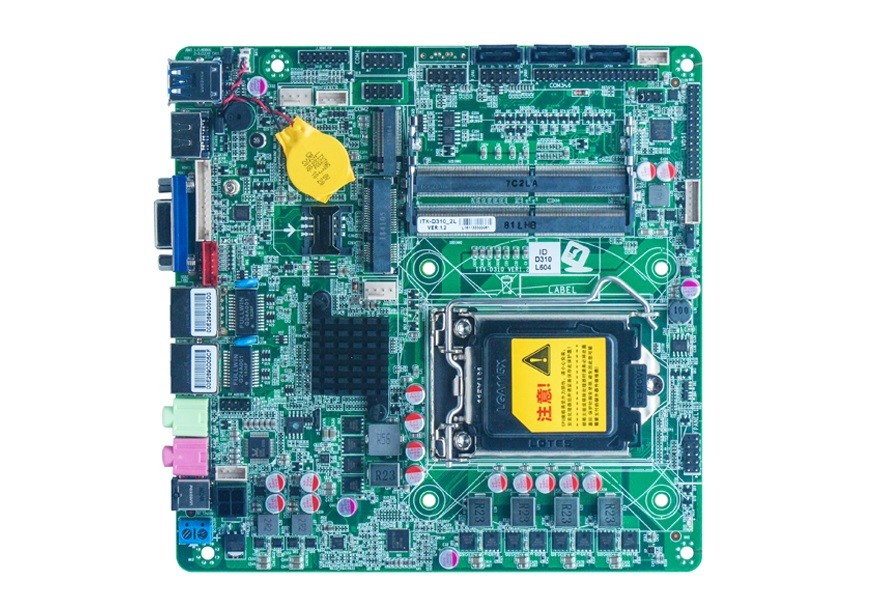

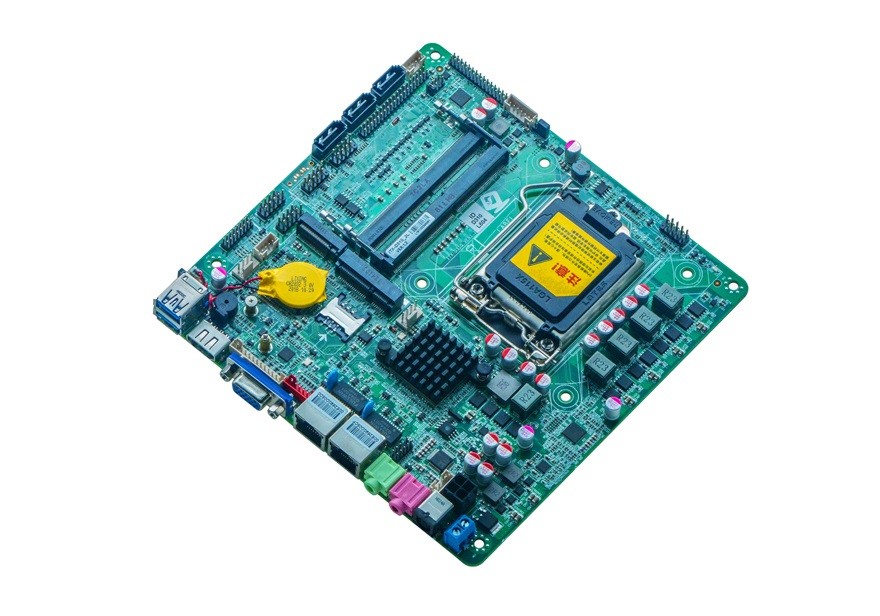

ITX-D310_2L VER:1.2

项目介绍:

Model No.

ITX-D310_2L VER:1.2

Processor

Support LGA1151 8th Intel® Celeron/Pentium/Core™ i3/i5/i7 CFL-S processor

Chipset

Adopt Intel® H310 express chipset

Memory

2* DDR4 SODIMM memory slot, support 2133/1866MHz memory ,up to 32GB

Display

Integrated Intel® HD Graphics,support DirectX12,OpenGL4.4,support 4K

1* VGA, support resolution: 1920X1200@60Hz

2* HDMI1.4, support 4096X2304@24Hz, Or 1*DP2.0 & 1*HDMI1.4 (optional)

1* dual channel 24bit LVDS supported

Network

2* RTL8111H Gigabit Ethernet, support Wake On LAN /PXE

Storage

3* SATA3.0 HDD port ,transmission rate up to 6Gbps


1* M.2 slot, support M.2242 SSD

Audio

Onboard ALC662 6 channel high fidelity audio controller ,support MIC/Line-out, Power amplifier support 2Ω/5W dual channel

Expansion Slot

1* MiniPCIE slot ,support WIFI/3G/4G module

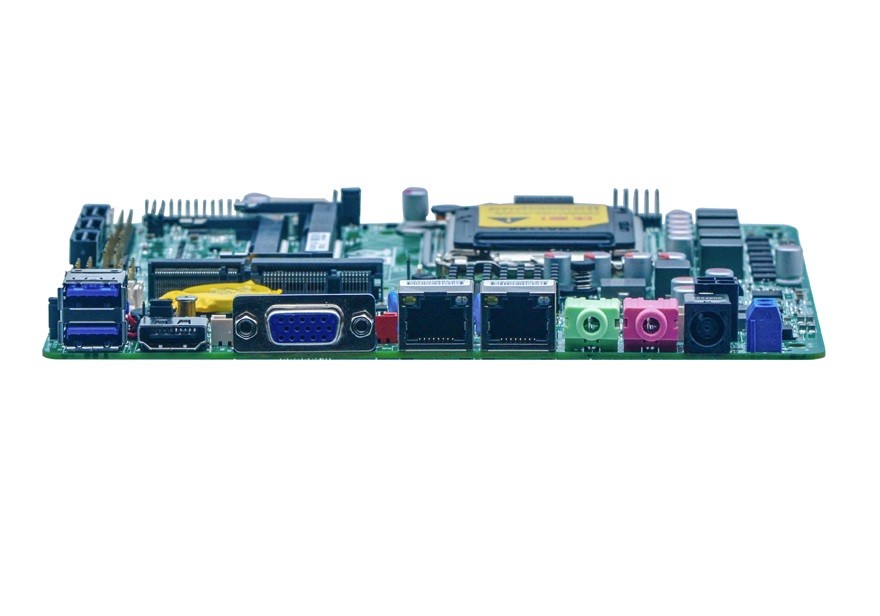

Rear I/O

2* USB3.0


1* HDMI


1* VGA


2* RJ45 Gigabit LAN Port


1* Line-out(Green), 1*MIC(red )


1* DC12~19V power input port

Built-In I/O

1* JVGA 1*12pin, same signal with VGA port


1* JHDMI 2*8pin (can be changed to DP)


1* LVDS 2*15pin, support 2*24bit


1* Backlight power supply port  1*6pin


6* RS232 COM port, COM2 support RS485/422


4* USB2.0  2*5pin


1* PS/2 KB/MS port  1*6pin


1* Front audio port  2*5pin


1* Power amplifier port  1*4pin


2* HDD power supply port  1*4pin


1* front panel function button and LED indicator  2*5pin


1*4pin ATX power connector, support 12V~19V power input output


1*2pin blue color power connector, support 12-19V power input output


1*SIM slot

Fan Connector

1*4pin CPU smart fan connector

BIOS

128Mb Flash ROM

OS supported

Windows® 7/ 8.1/ 10

WatchDog

Support hardware reset function (L256, 0-255 seconds )

Power Supply

Support DC19V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity ,non-condensing

Dimension

170mm x 170mm


事宜人群:

Support LGA1151 8th Intel® Celeron/Pentium/Core™ i3/i5/i7 CFL-S processor

Adopt Intel® H310 express chipset

2* DDR4 SODIMM memory slot, support 2133/1866MHz memory ,up to 32GB

Support 1*VGA、2* HDMI、1* LVDS

2* RTL8111F Gigabit Ethernet, support Wake On LAN/PXE

6*RS232 serial ports,4* USB2.0,2*USB3.0


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-D310_2L VER:1.2

Processor

Support LGA1151 8th Intel® Celeron/Pentium/Core™ i3/i5/i7 CFL-S processor

Chipset

Adopt Intel® H310 express chipset

Memory

2* DDR4 SODIMM memory slot, support 2133/1866MHz memory ,up to 32GB

Display

Integrated Intel® HD Graphics,support DirectX12,OpenGL4.4,support 4K

1* VGA, support resolution: 1920X1200@60Hz

2* HDMI1.4, support 4096X2304@24Hz, Or 1*DP2.0 & 1*HDMI1.4 (optional)

1* dual channel 24bit LVDS supported

Network

2* RTL8111H Gigabit Ethernet, support Wake On LAN /PXE

Storage

3* SATA3.0 HDD port ,transmission rate up to 6Gbps


1* M.2 slot, support M.2242 SSD

Audio

Onboard ALC662 6 channel high fidelity audio controller ,support MIC/Line-out, Power amplifier support 2Ω/5W dual channel

Expansion Slot

1* MiniPCIE slot ,support WIFI/3G/4G module

Rear I/O

2* USB3.0


1* HDMI


1* VGA


2* RJ45 Gigabit LAN Port


1* Line-out(Green), 1*MIC(red )


1* DC12~19V power input port

Built-In I/O

1* JVGA 1*12pin, same signal with VGA port


1* JHDMI 2*8pin (can be changed to DP)


1* LVDS 2*15pin, support 2*24bit


1* Backlight power supply port  1*6pin


6* RS232 COM port, COM2 support RS485/422


4* USB2.0  2*5pin


1* PS/2 KB/MS port  1*6pin


1* Front audio port  2*5pin


1* Power amplifier port  1*4pin


2* HDD power supply port  1*4pin


1* front panel function button and LED indicator  2*5pin


1*4pin ATX power connector, support 12V~19V power input output


1*2pin blue color power connector, support 12-19V power input output


1*SIM slot

Fan Connector

1*4pin CPU smart fan connector

BIOS

128Mb Flash ROM

OS supported

Windows® 7/ 8.1/ 10

WatchDog

Support hardware reset function (L256, 0-255 seconds )

Power Supply

Support DC19V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity ,non-condensing

Dimension

170mm x 170mm


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

EDP

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-D310_2L VER:1.2

LGA1151

/

H310

2*SODDR4

1

2

/

2ch/24bit

2*8111H

8

6

COM2

DC19V


Support LGA1151 8th Intel® Celeron/Pentium/Core™ i3/i5/i7 CFL-S processor

Adopt Intel® H310 express chipset

2* DDR4 SODIMM memory slot, support 2133/1866MHz memory ,up to 32GB

Support 1*VGA、2* HDMI、1* LVDS

2* RTL8111F Gigabit Ethernet, support Wake On LAN/PXE

6*RS232 serial ports,4* USB2.0,2*USB3.0
