LGA115X H81/H110/H310

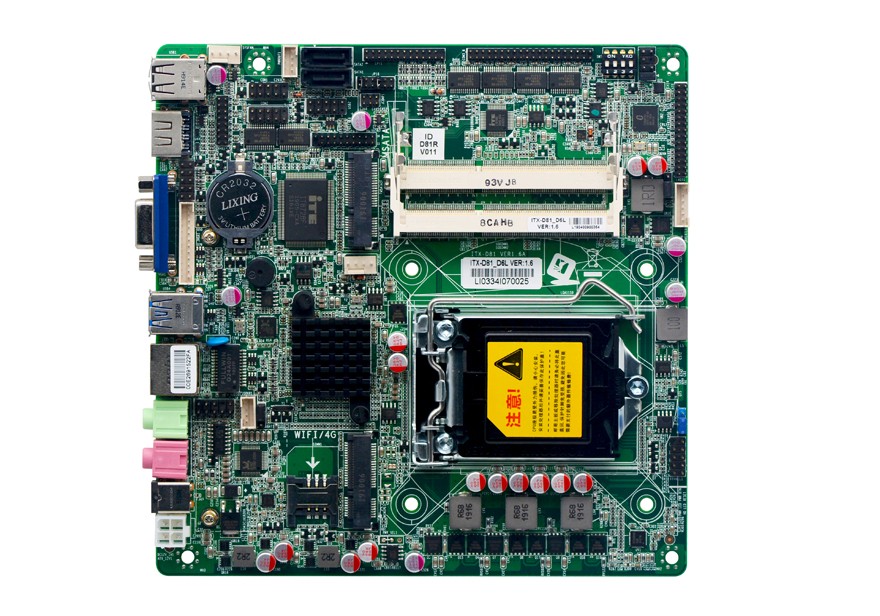

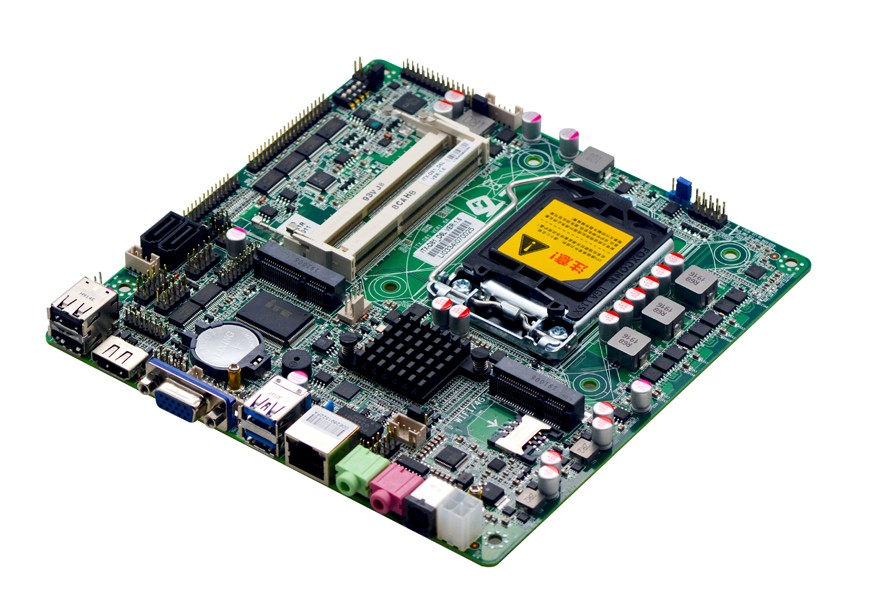

ITX-D81_D6L VER:1.6

项目介绍:

Mode No.

ITX-D81_D6L VER:1.6

Processor

Support LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 32nm/22nm processor

Chipset

Adopt Intel® H81 high speed chipset

Memory

2* DDR3 SODIMM,support dual channel1333/1600MHz memory,up to 16GB

Display

Integrated Intel® HD Graphics


1*VGA、2* HDMI、1* support dual channel 24bitLVDS


Support  single display, double display, double extension..

Network

1* RTL8111F Gigabit Ethernet ,support wake on LAN/PXE.

Storage

1* SATA3.0 HDD interface and 1* SATA2.0 HDD interface

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC /Line-out,amplifier


Amplifier proposed using3Ω2W speakers

Expansion slot

1* Mini-PCIE slot,support WIFI、4G module,


1* MSATA slot, support SSD,the transfer rate up to 6Gbps.

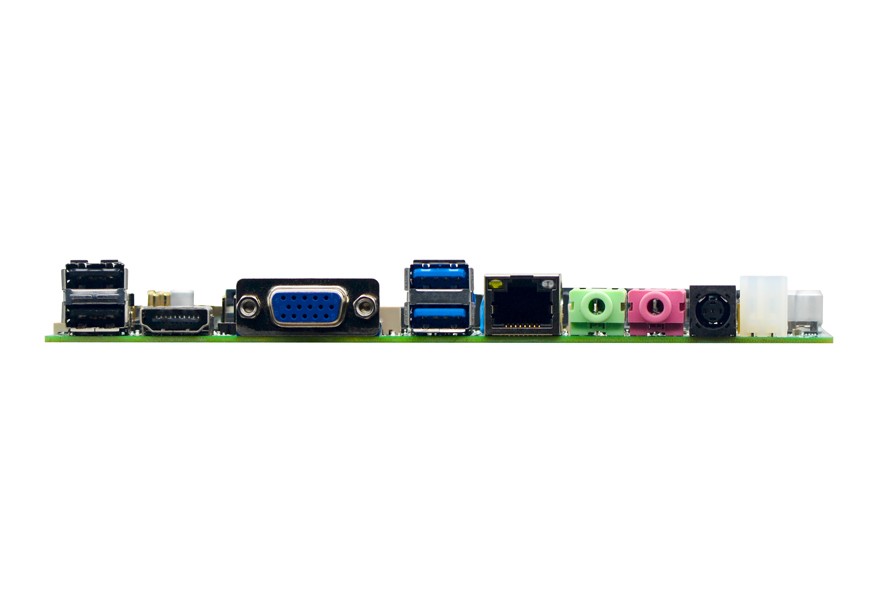

Rear I/O

2* USB 2.0


2* USB 3.0


1* VGA DB15


1* HDMI


1* RJ-45 Gigabit Ethernet connector


1* Line out(Green)


1* Mic (Red)


1* 12~19V DC power input

Internal I/O

1* LVDS  2*15pin


1* JVGA  1*12pin (same signal with VGA)


1* JHDMI 2*8pin, support dual HDMI display


6* RS232 serial ports, COM3 support RS422/RS485 mode


1* LPT print port 2*13pin


2* USB 2.0 2*5pin


2* USB 3.0  2*10pin(B85/H87/Q87/Q85/Z87 chipset can support)


1* front audio port 2*5pin


1* power amplifier  1* 4pin


1* front panel function buttons and indicator connector 2*5pin


1*ATX 4pin power interface,support 12V~19V power input/output(According to the output voltage of the power supply)


1* LVDS Backlight power supply connector 1*6pin


1* HDD power supply port 1*4pin

FAN interface

1* 4pin CPU Intelligent fan connector, 1*3pin system fan connector

GPIO

support 4 way input/output/GPIO

BIOS

32Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Adopt DC 12V~19V power input

Power input

-10℃~60℃

Working Temp.

-20℃~70℃

Storage Temp.

5%-95%(relative humidity; non-condensing)

Working Humidity

170mm x 170mm

Dimension

Support hardware reset function (L256, 0~255 seconds)


事宜人群:

♦ Support LGA1150 Intel® Core™ i3/i5/i7/ Pentium/Celeron 32nm/22nm Processor

♦ Adopt Intel® H81 high speed chipset

♦ 2* DDR3 SODIMM,support dual channel1333/1600MHz memory,up to 16GB

♦ Support 1*VGA、2* HDMI、1* LVDS

♦ 1* RTL8111F Gigabit Ethernet ,support wake on LAN/PXE.

♦ 6*RS232 serial ports,4* USB2.0,4*USB3.0



  • Product Specifications
  • Ordering Information
  • Download Center

Mode No.

ITX-D81_D6L VER:1.6

Processor

Support LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 32nm/22nm processor

Chipset

Adopt Intel® H81 high speed chipset

Memory

2* DDR3 SODIMM,support dual channel1333/1600MHz memory,up to 16GB

Display

Integrated Intel® HD Graphics


1*VGA、2* HDMI、1* support dual channel 24bitLVDS


Support  single display, double display, double extension..

Network

1* RTL8111F Gigabit Ethernet ,support wake on LAN/PXE.

Storage

1* SATA3.0 HDD interface and 1* SATA2.0 HDD interface

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC /Line-out,amplifier


Amplifier proposed using3Ω2W speakers

Expansion slot

1* Mini-PCIE slot,support WIFI、4G module,


1* MSATA slot, support SSD,the transfer rate up to 6Gbps.

Rear I/O

2* USB 2.0


2* USB 3.0


1* VGA DB15


1* HDMI


1* RJ-45 Gigabit Ethernet connector


1* Line out(Green)


1* Mic (Red)


1* 12~19V DC power input

Internal I/O

1* LVDS  2*15pin


1* JVGA  1*12pin (same signal with VGA)


1* JHDMI 2*8pin, support dual HDMI display


6* RS232 serial ports, COM3 support RS422/RS485 mode


1* LPT print port 2*13pin


2* USB 2.0 2*5pin


2* USB 3.0  2*10pin(B85/H87/Q87/Q85/Z87 chipset can support)


1* front audio port 2*5pin


1* power amplifier  1* 4pin


1* front panel function buttons and indicator connector 2*5pin


1*ATX 4pin power interface,support 12V~19V power input/output(According to the output voltage of the power supply)


1* LVDS Backlight power supply connector 1*6pin


1* HDD power supply port 1*4pin

FAN interface

1* 4pin CPU Intelligent fan connector, 1*3pin system fan connector

GPIO

support 4 way input/output/GPIO

BIOS

32Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Adopt DC 12V~19V power input

Power input

-10℃~60℃

Working Temp.

-20℃~70℃

Storage Temp.

5%-95%(relative humidity; non-condensing)

Working Humidity

170mm x 170mm

Dimension

Support hardware reset function (L256, 0~255 seconds)




No.

Model

Processor

Southbridge

Memory

VGA

HDMI

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-D81_D2LVER:1.6

LGA1150

H81

2*SODDR3

1

2

2ch/24BIT

1*RTL8111F

6

2

/

DC/19V

2

ITX-D81_D6L VER:1.6

LGA1150

H81

2*SODDR3

1

2

2ch/24BIT

1*RTL8111F

6

6

COM3

DC/19V


♦ Support LGA1150 Intel® Core™ i3/i5/i7/ Pentium/Celeron 32nm/22nm Processor

♦ Adopt Intel® H81 high speed chipset

♦ 2* DDR3 SODIMM,support dual channel1333/1600MHz memory,up to 16GB

♦ Support 1*VGA、2* HDMI、1* LVDS

♦ 1* RTL8111F Gigabit Ethernet ,support wake on LAN/PXE.

♦ 6*RS232 serial ports,4* USB2.0,4*USB3.0
