Skylake-U 3855/6360U

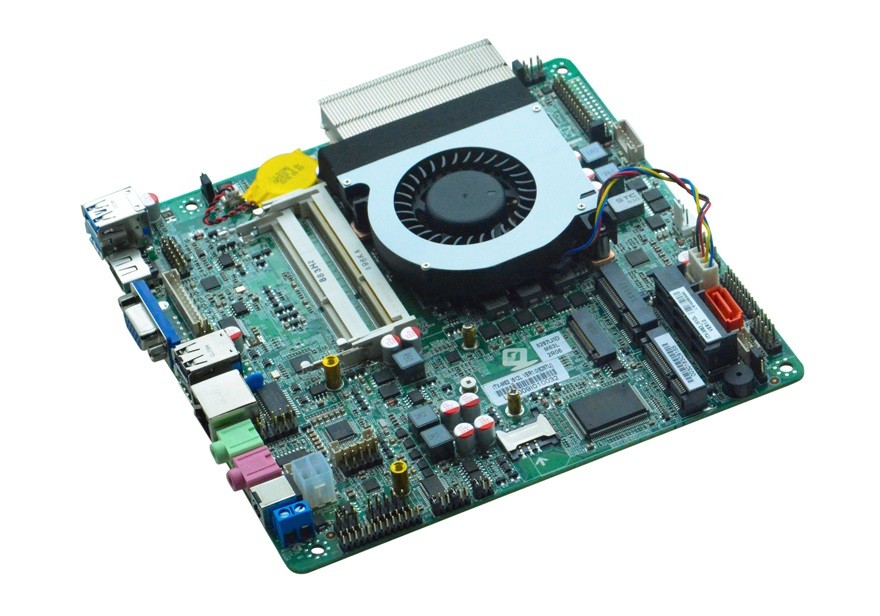

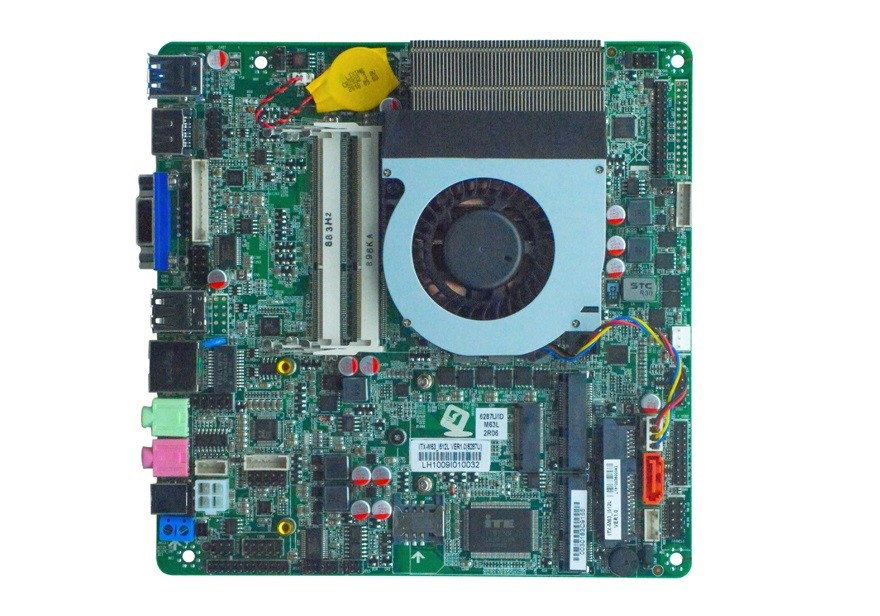

ITX-M63_I512L VER:1.0(6287U)

项目介绍:

Model No.

ITX-M63_I512L VER:1.0(6287U)

Processor

Integrated Intel®I5-6287U 3.1GHz dual core processor


Compatible with Intel® Skylake-U Pentium/Celeron/I3/I5/I7 processor

Chipset

SOC

Memory

2*DDR3L SODIMM slot, support dual channel 1600MHz memory, up to 16GB

Display

Integrated Intel HD Graphics 550, support DirectX 12, OpenGL 4.4, support 4K


1*VGA port, support the highest resolution:1920X1200@60Hz


1*HDMI1.4, support the highest resolution:4096X2304@24Hz


1* support dual channel 24bit LVDS

Network

Integrated 1*Realtek RTL8111F Gigabit Ethernet, support Wake On LAN, PXE

Storage

1*SATA3.0 HDD port, transmission rate up to 6Gbps


1*SATA3.0 2.5” laptop HDD slot, can install HDD directly


1*M.2 slot, support M.2 2242 standard SSD (defaulted SSD, with MSATA optional)


1*MSATA slot, support Intel protocol SSD, transmission rate up to 6Gbps

Audio

Integrated ALC662 6 channel high fidelity audio controller, support MIC、Line_out、power amplifier


Support power amplifier 2Ω5W speaker

Expansion Sot

1*Mini-PCIE slot, support WIFI、3G/4G module

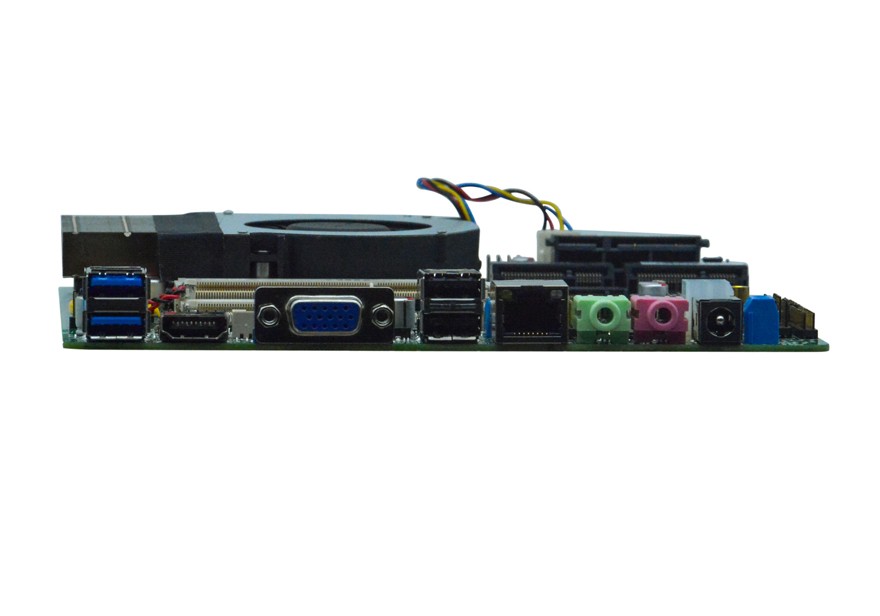

Rear I/O

2* USB3.0 port, 2*USB2.0 port


1* HDMI port (Display port optional)


1* DB15 VGA port(with DB9 RS232 COM port optional)


1* RJ45 Gigabit LAN port


1*Line-out(green), 1*MIC(red)


1*12V DC_In Jack

Built-in I/O

1* JVGA1 port, 1*12pin ( same signal with DB15)


1* JHDMI port, 2*8pin (same signal with HDMI)


1* LVDS port, 2*15pin, support dual channel 4bit


1*LVDS backlight power supply port 1*6pin


2*RS232 COM port, 2*5pin


1* PS/2 KB/MS port, 1*6Pin


2* USB2.0 port, 2*5pin


2*USB3.0 port, 2*10pin


1* LPT parallel port, 2*13Pin


1* Front audio port, 2*5pin


1* Front panel switching button and LED indicator port, 2*5Pin


1* HDD power supply port, 1*4pin


1* Power amplifier, 1*4pin


1* SIM socket


1* 4pin ATX power connector (can be 12V input output power connector)


1* 2pin blue color socket 12V DC power input port

Fan Connector

1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 way input output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Supply

Adopt DC 12V power supply

OS

 Windows 7 , Windows 8 , Windows 10 , Linux

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Wroking Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


事宜人群:

♦ Integrated Intel®I5-6287U 3.1GHz dual core processor, TDP28W

♦ Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 Low power processor

♦ 2*DDR3L SODIMM slot, support dual channel 1600MHz memory, up to 16GB

♦ Integrated 1* Realtek RTL8111F Gigabit Ethernet

♦ Integraged Intel® HD Graphics 550 support DirectX 12 OpenGL 4.4

♦ Provide 1* VGA,1*HDMI1.4,1* LVDS


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M63_I512L VER:1.0(6287U)

Processor

Integrated Intel®I5-6287U 3.1GHz dual core processor


Compatible with Intel® Skylake-U Pentium/Celeron/I3/I5/I7 processor

Chipset

SOC

Memory

2*DDR3L SODIMM slot, support dual channel 1600MHz memory, up to 16GB

Display

Integrated Intel HD Graphics 550, support DirectX 12, OpenGL 4.4, support 4K


1*VGA port, support the highest resolution:1920X1200@60Hz


1*HDMI1.4, support the highest resolution:4096X2304@24Hz


1* support dual channel 24bit LVDS

Network

Integrated 1*Realtek RTL8111F Gigabit Ethernet, support Wake On LAN, PXE

Storage

1*SATA3.0 HDD port, transmission rate up to 6Gbps


1*SATA3.0 2.5” laptop HDD slot, can install HDD directly


1*M.2 slot, support M.2 2242 standard SSD (defaulted SSD, with MSATA optional)


1*MSATA slot, support Intel protocol SSD, transmission rate up to 6Gbps

Audio

Integrated ALC662 6 channel high fidelity audio controller, support MIC、Line_out、power amplifier


Support power amplifier 2Ω5W speaker

Expansion Sot

1*Mini-PCIE slot, support WIFI、3G/4G module

Rear I/O

2* USB3.0 port, 2*USB2.0 port


1* HDMI port (Display port optional)


1* DB15 VGA port(with DB9 RS232 COM port optional)


1* RJ45 Gigabit LAN port


1*Line-out(green), 1*MIC(red)


1*12V DC_In Jack

Built-in I/O

1* JVGA1 port, 1*12pin ( same signal with DB15)


1* JHDMI port, 2*8pin (same signal with HDMI)


1* LVDS port, 2*15pin, support dual channel 4bit


1*LVDS backlight power supply port 1*6pin


2*RS232 COM port, 2*5pin


1* PS/2 KB/MS port, 1*6Pin


2* USB2.0 port, 2*5pin


2*USB3.0 port, 2*10pin


1* LPT parallel port, 2*13Pin


1* Front audio port, 2*5pin


1* Front panel switching button and LED indicator port, 2*5Pin


1* HDD power supply port, 1*4pin


1* Power amplifier, 1*4pin


1* SIM socket


1* 4pin ATX power connector (can be 12V input output power connector)


1* 2pin blue color socket 12V DC power input port

Fan Connector

1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 way input output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Supply

Adopt DC 12V power supply

OS

 Windows 7 , Windows 8 , Windows 10 , Linux

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Wroking Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-M63_I312L VER:1.0(6006U)

I3-6006U

2.0G

2*SODDR3L

1

1

2ch/24Bit

/

1*8111F

8

2

COM2

DC12V

2

ITX-M63_I312L VER:1.0(6100U)

I3-6100U

2.3G

2*SODDR3L

1

1

2ch/24Bit

/

1*8111F

8

2

COM2

DC12V

3

ITX-M63_I512L VER:1.0(6287U)

I5-6287U

3.1G

2*SODDR3L

1

1

2ch/24Bit

/

1*8111F

8

2

COM2

DC12V

4

ITX-M63_I512L VER:1.0(6360U)

I5-6360U

2.0G

2*SODDR3L

1

1

2ch/24Bit

/

1*8111F

8

2

COM2

DC12V
