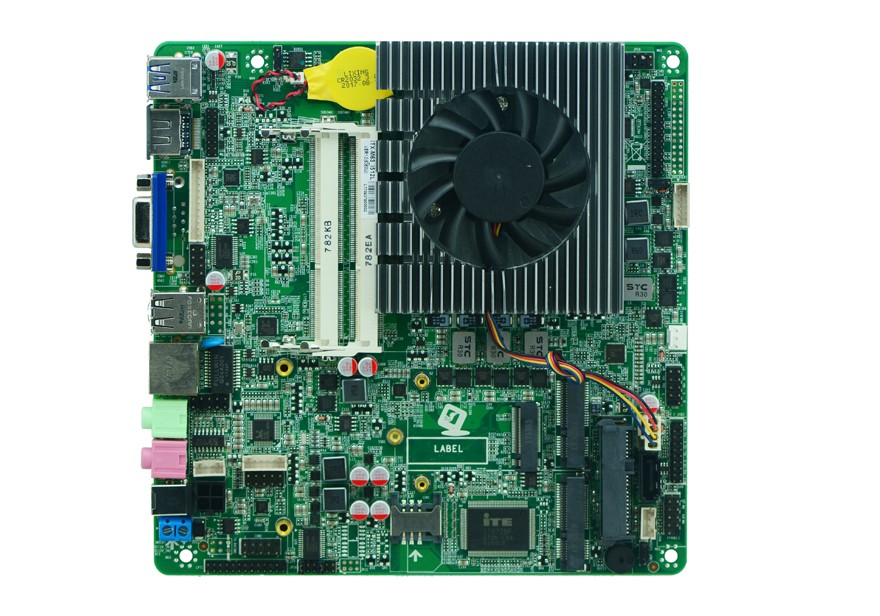

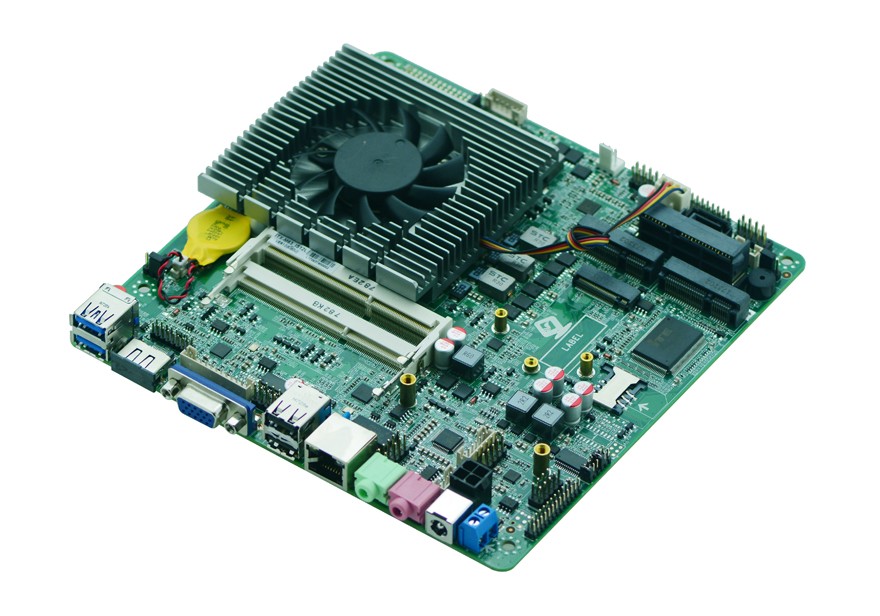

Skylake 3855U/1.6G

ITX-M63_I512L VER:1.0(6360U)

项目介绍:

Model No.

ITX-M63_I512L VER:1.0(6360U)

Processor

Integrated Intel®I5 6360U 2.0GHz dual core processor


Compatible with Intel® Skylake-U Pentium/Celeron/I3/I5/I7 low power consumption

Chipset

SOC

Memory

2* DDR3L SODIMM memory slot, support dual channel1600MHz memory, max support 16GB

Display

Integrated Intel® HD Graphics 540, support DirectX 12, OpenGL 4.4, support 4K


1* VGA port, support max resolution: 1920X1200@60Hz


1* HDMI1.4 port, support max resolution: 4096X2304@24Hz


1* dual channel 24bit LVDS interface

Network

Integrated 1*Realtek RTL8111F Gigabit LAN Port, Support Wake On LAN, PXE function

Storage

1* SATA3.0 HDD interface, transmission rate 6Gbps


1* SATA3.0 2.5” laptop HDD slot, can install HDD directly


1* M.2 standard slot, support M.2 2242 standard SSD(defaulted SSD, optional with MSATA)


1* MSATA slot, support Intel protocol SSD, transmission rate 6Gbps

Audio

Integrated ALC662 6 Channel high fidelity audio controller, support MIC, Line_out, power amplifier


Support power amplifier 2Ω5W trumpet

Expansion Slot

1* Mini-PCIE slot, support WIFI, 3G module

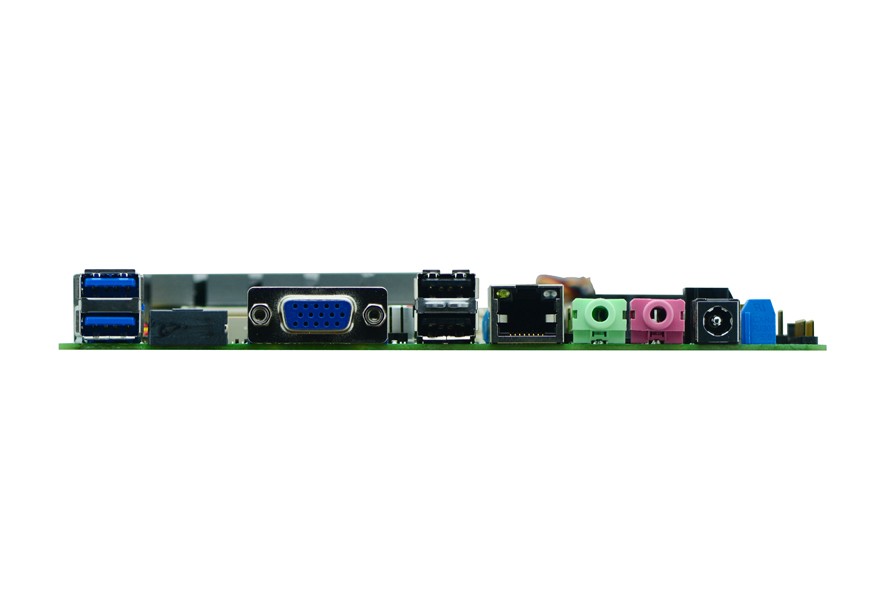

Rear I/O

2* USB3.0,2*USB2.0


1* HDMI (DP optional)


1* DB15 VGA(DB9 RS232 COM optional)


1* RJ45 Gigabit Ethernet LAN Port


1* Line-out(green), 1*MIC(red)


1* DC12V power supply port

Inner I/O Port

1* JVGA1 interface 1*12pin (same signal with DB15)


1* JHDMI interface 2*8pin (same signal with HDMI port)


1* LVDS interface 2*15pin, support dual channel 24bit


1* LVDS backlight power supply port 1*6pin


2* RS232 COM port 2*5pin,


1* PS/2 keyboard mouse port 1*6Pin


2* USB2.0 port 2*5pin


2* USB3.0 port 2*10pin


1* LPT parallel interface 2*13Pin


1* Front audio interface 2*5pin


1* Font panel power switch and led interface 2*5Pin


1* HDD power supply port 1*4pin


1* power amplifier 1*4pin


1* SIM card socket


1* 4pin ATX power supply connector (12V input output power supply connector optional)


1* 2pin blue seat 12V DC power input connector

Fan Interface

1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 channel input output GPIO

BIOS

64Mb Flash ROM

Watch Dog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC 12V

Operating System

Windows 7 , Windows 8 , Windows 10 , Linux

Working Temp

-10℃~60℃

Storage Temp

-20℃~70℃

Relative Humidity

5%-95% relative humidity, no condensing

Dimension

170mm x 170mm


事宜人群:

♦ Integrated Intel®I5 6360U 2.0GHz dual core processor

♦ Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 Low power processor

♦ 2* DDR3L SODIMM memory slot, support 1600MHz memory, max support 16GB

♦ Integrated 1* Realtek RTL8111F Gigabit Ethernet

♦ Integraged Intel® HD Graphics 540 support DirectX 12 OpenGL 4.4

♦ Provide 1* VGA,1*HDMI1.4,1* LVDS


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M63_I512L VER:1.0(6360U)

Processor

Integrated Intel®I5 6360U 2.0GHz dual core processor


Compatible with Intel® Skylake-U Pentium/Celeron/I3/I5/I7 low power consumption

Chipset

SOC

Memory

2* DDR3L SODIMM memory slot, support dual channel1600MHz memory, max support 16GB

Display

Integrated Intel® HD Graphics 540, support DirectX 12, OpenGL 4.4, support 4K


1* VGA port, support max resolution: 1920X1200@60Hz


1* HDMI1.4 port, support max resolution: 4096X2304@24Hz


1* dual channel 24bit LVDS interface

Network

Integrated 1*Realtek RTL8111F Gigabit LAN Port, Support Wake On LAN, PXE function

Storage

1* SATA3.0 HDD interface, transmission rate 6Gbps


1* SATA3.0 2.5” laptop HDD slot, can install HDD directly


1* M.2 standard slot, support M.2 2242 standard SSD(defaulted SSD, optional with MSATA)


1* MSATA slot, support Intel protocol SSD, transmission rate 6Gbps

Audio

Integrated ALC662 6 Channel high fidelity audio controller, support MIC, Line_out, power amplifier


Support power amplifier 2Ω5W trumpet

Expansion Slot

1* Mini-PCIE slot, support WIFI, 3G module

Rear I/O

2* USB3.0,2*USB2.0


1* HDMI (DP optional)


1* DB15 VGA(DB9 RS232 COM optional)


1* RJ45 Gigabit Ethernet LAN Port


1* Line-out(green), 1*MIC(red)


1* DC12V power supply port

Inner I/O Port

1* JVGA1 interface 1*12pin (same signal with DB15)


1* JHDMI interface 2*8pin (same signal with HDMI port)


1* LVDS interface 2*15pin, support dual channel 24bit


1* LVDS backlight power supply port 1*6pin


2* RS232 COM port 2*5pin,


1* PS/2 keyboard mouse port 1*6Pin


2* USB2.0 port 2*5pin


2* USB3.0 port 2*10pin


1* LPT parallel interface 2*13Pin


1* Front audio interface 2*5pin


1* Font panel power switch and led interface 2*5Pin


1* HDD power supply port 1*4pin


1* power amplifier 1*4pin


1* SIM card socket


1* 4pin ATX power supply connector (12V input output power supply connector optional)


1* 2pin blue seat 12V DC power input connector

Fan Interface

1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4 channel input output GPIO

BIOS

64Mb Flash ROM

Watch Dog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC 12V

Operating System

Windows 7 , Windows 8 , Windows 10 , Linux

Working Temp

-10℃~60℃

Storage Temp

-20℃~70℃

Relative Humidity

5%-95% relative humidity, no condensing

Dimension

170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-M63_I312L VER:1.0(6006U)

I3-6006U

2.0G

2*SODDR3L

1

1

2ch/24Bit

/

1*8111F

8

2

COM2

DC12V

2

ITX-M63_I312L VER:1.0(6100U)

I3-6100U

2.3G

2*SODDR3L

1

1

2ch/24Bit

/

1*8111F

8

2

COM2

DC12V

3

ITX-M63_I512L VER:1.0(6287U)

I5-6287U

3.1G

2*SODDR3L

1

1

2ch/24Bit

/

1*8111F

8

2

COM2

DC12V

4

ITX-M63_I512L VER:1.0(6360U)

I5-6360U

2.0G

2*SODDR3L

1

1

2ch/24Bit

/

1*8111F

8

2

COM2

DC12V

5

ITX-M63_I512L

VER1.0 (6267U)

I5-6267U

2.90G

2*SODDR3L

1

1

2ch/24Bit

/

1*8111F

8

2

COM2

DC12V
