Skylake-U 3855/6360U

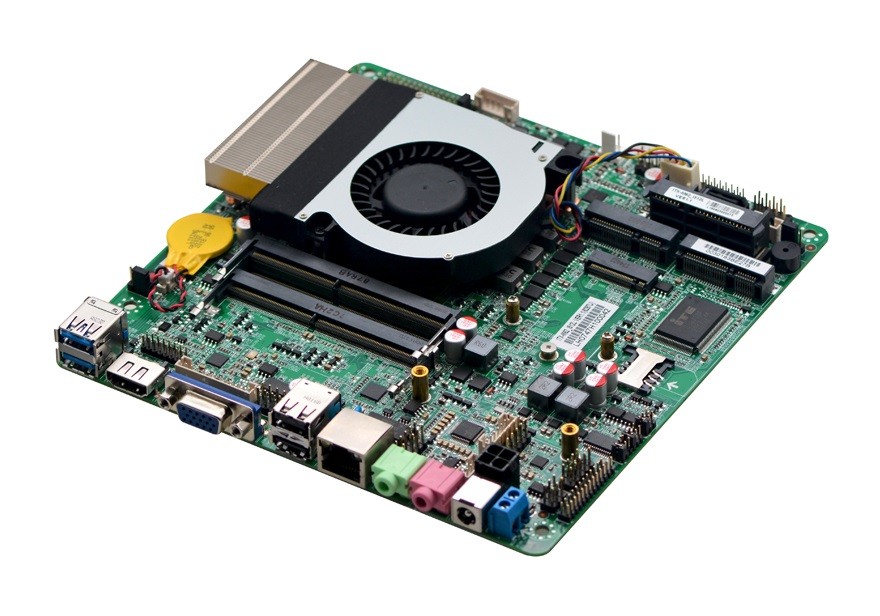

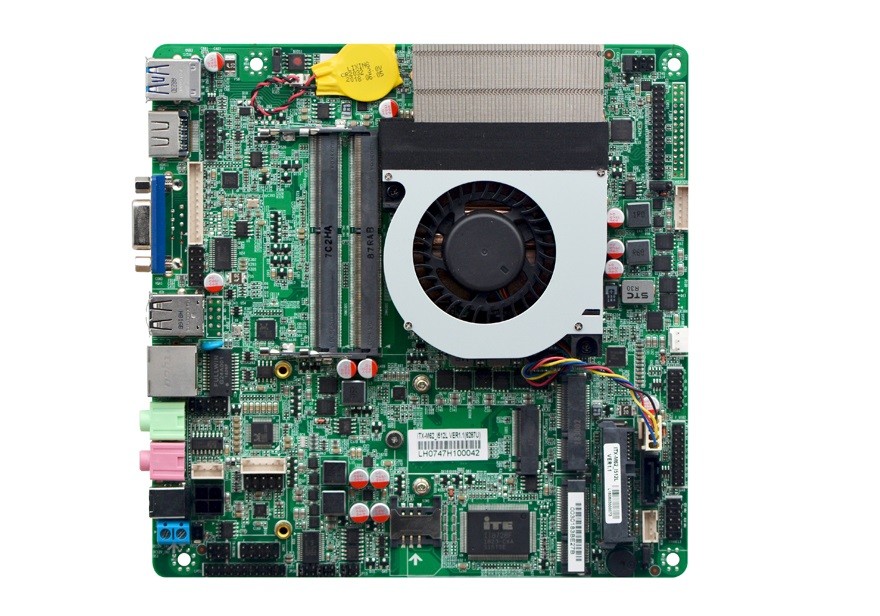

ITX-M62_I512L VER:1.1(6287U)

项目介绍:

Model No.

ITX-M62_I512L VER:1.1(6287U)

Processor

Integrated Intel®I5-6287U 3.1GHz dual core processor, TDP28W


Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor

Chipset

SOC

Memory

2*DDR4 SODIMM memory slot, support 2133MHz memory, up to 32GB

Graphics

Integrated Intel® Iris™ Graphics 550 support DirectX 12 OpenGL 4.4, support 4K


1*VGA, support the highest resolution:1920X1200@60Hz


1*HDMI1.4, support the highest resolution:4096X2304@24Hz


1* support dual channel 24bit LVDS(with EDP optional, defaulted LVDS)

Network

Integrated 1*Realtek RTL8111F Gigabit Ethernet, support Wake On LAN, PXE.

Storage

Provide 1*SATA3.0 HDD slot, transmission rate up to 6Gbps


Provide 1*M.2 standard slot, support M.2 2242 standard SSD(with mSATA optional)


1*MSATA slot, support Intel protocol SSD, transmission rate up to 6Gbps (defaulted)


Provide 1*2.5 inch laptop hdd slot, can install hdd directly

Audio

Integrated ALC662 6 channel high fidelity audio controller, support MIC、Line_out


Support power amplifier 2Ω5W trumpet

Expansion Slot

Provide 1* Mini-PCIE slot, support WIFI、3G module

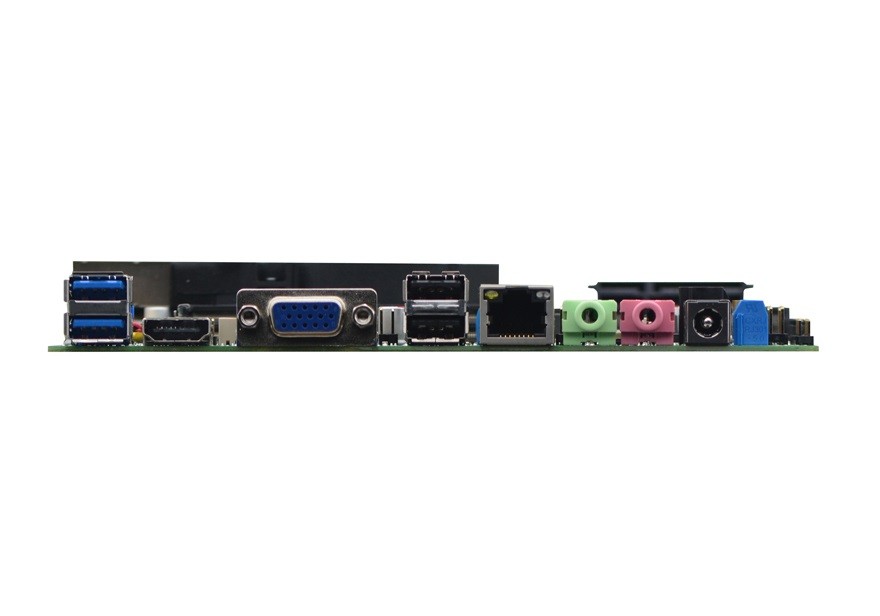

Rear I/O

2* USB3.0, 2*USB2.0


1* HDMI (can change to Display port)


1* DB15 VGA(can change to DB9 RS232 optional)


1* RJ45 Gigabit Ethernet LAN port


1*Line-out(green), 1*MIC(red)


1*DC12V port

Internal I/O

1* JVGA1 port 1*12pin(same signal with DB15 port)


1* JHDMI port 2*8pin (same signal with HDMI port)


1* LVDS port 2*15pin, support dual channel 24bit, with EDP optional


1*LVDS backlight power supply port 1*6pin


2* RS232 serial port 2*5pin, COM2 support RS485/422


1* PS/2 KB/MS port 1*6Pin


2* USB2.0 port 2*5pin


2*USB3.0 port 2*10pin


1* LPT parallel port 2*13Pin


1* Front audio port 2*5pin


1* Front panel switch button and LED indicator 2*5Pin


1* HDD power supply port


1* Power amplifier 1*4pin


1* SIM socket


1* 4pin ATX power connector(can change to 12V input output power port)


1* 2pin 12V DC power input port

Fan connector

1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4-way input output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function(L256, 0~255 seconds)

Power Type

Adopt DC 12V power supply

Operating System

Windows 7 , Windows 8 , Windows 10 , Linux

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Temp.

5%-95% relative humidity, non condensing

Dimension

170mm x 170mm


事宜人群:

♦ Integrated Intel®I5-6287U 3.1GHz dual core processor, TDP28W

♦ Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 Low power processor

♦ 2*DDR4 SODIMM memory slot, support 2133MHz memory, up to 32GB

♦ Integrated 1* Realtek RTL8111F Gigabit Ethernet

♦ Integraged Intel® HD Graphics 550 support DirectX 12 OpenGL 4.4

♦ Provide 1* VGA,1*HDMI1.4,1* LVDS


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M62_I512L VER:1.1(6287U)

Processor

Integrated Intel®I5-6287U 3.1GHz dual core processor, TDP28W


Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor

Chipset

SOC

Memory

2*DDR4 SODIMM memory slot, support 2133MHz memory, up to 32GB

Graphics

Integrated Intel® Iris™ Graphics 550 support DirectX 12 OpenGL 4.4, support 4K


1*VGA, support the highest resolution:1920X1200@60Hz


1*HDMI1.4, support the highest resolution:4096X2304@24Hz


1* support dual channel 24bit LVDS(with EDP optional, defaulted LVDS)

Network

Integrated 1*Realtek RTL8111F Gigabit Ethernet, support Wake On LAN, PXE.

Storage

Provide 1*SATA3.0 HDD slot, transmission rate up to 6Gbps


Provide 1*M.2 standard slot, support M.2 2242 standard SSD(with mSATA optional)


1*MSATA slot, support Intel protocol SSD, transmission rate up to 6Gbps (defaulted)


Provide 1*2.5 inch laptop hdd slot, can install hdd directly

Audio

Integrated ALC662 6 channel high fidelity audio controller, support MIC、Line_out


Support power amplifier 2Ω5W trumpet

Expansion Slot

Provide 1* Mini-PCIE slot, support WIFI、3G module

Rear I/O

2* USB3.0, 2*USB2.0


1* HDMI (can change to Display port)


1* DB15 VGA(can change to DB9 RS232 optional)


1* RJ45 Gigabit Ethernet LAN port


1*Line-out(green), 1*MIC(red)


1*DC12V port

Internal I/O

1* JVGA1 port 1*12pin(same signal with DB15 port)


1* JHDMI port 2*8pin (same signal with HDMI port)


1* LVDS port 2*15pin, support dual channel 24bit, with EDP optional


1*LVDS backlight power supply port 1*6pin


2* RS232 serial port 2*5pin, COM2 support RS485/422


1* PS/2 KB/MS port 1*6Pin


2* USB2.0 port 2*5pin


2*USB3.0 port 2*10pin


1* LPT parallel port 2*13Pin


1* Front audio port 2*5pin


1* Front panel switch button and LED indicator 2*5Pin


1* HDD power supply port


1* Power amplifier 1*4pin


1* SIM socket


1* 4pin ATX power connector(can change to 12V input output power port)


1* 2pin 12V DC power input port

Fan connector

1*4pin CPU smart fan connector, 1* 3pin system fan connector

GPIO

Support 4-way input output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function(L256, 0~255 seconds)

Power Type

Adopt DC 12V power supply

Operating System

Windows 7 , Windows 8 , Windows 10 , Linux

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Temp.

5%-95% relative humidity, non condensing

Dimension

170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-M62_I512L VER:1.1(6287U)

I5-6287U

3.1G

2*SODDR4

1

1

1

/

1*8111F

8

2

COM2

DC12V

2

ITX-M62_I512L VER:1.1(6360U)

I5-6360U

2.0G

1*SODDR4

1

1

1

/

1*8111F

8

2

COM2

DC12V


♦ Integrated Intel®I5-6287U 3.1GHz dual core processor, TDP28W

♦ Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 Low power processor

♦ 2*DDR4 SODIMM memory slot, support 2133MHz memory, up to 32GB

♦ Integrated 1* Realtek RTL8111F Gigabit Ethernet

♦ Integraged Intel® HD Graphics 550 support DirectX 12 OpenGL 4.4

♦ Provide 1* VGA,1*HDMI1.4,1* LVDS
