Haswell-U 4300/5257U

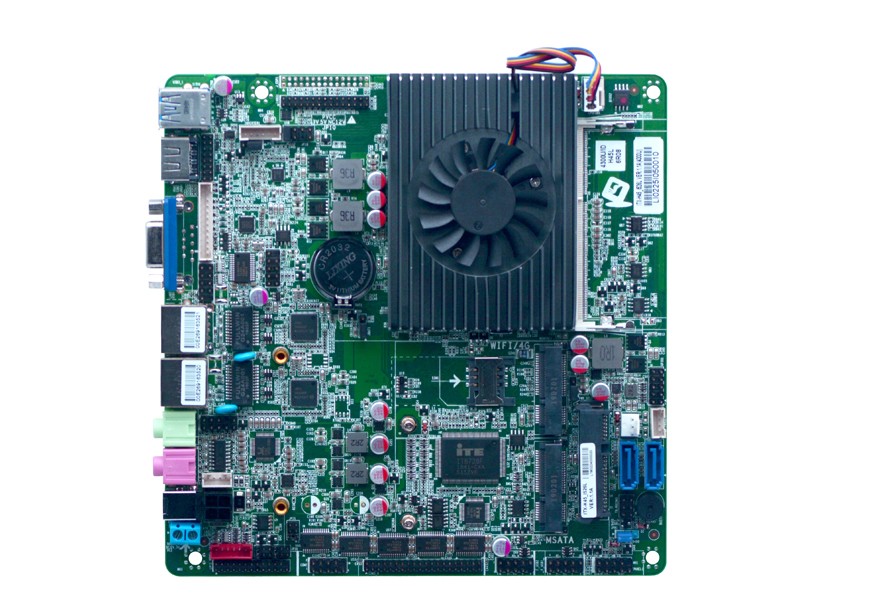

ITX-H45_I526L VER:1.1A

项目介绍:

Model No.

ITX-H45_I526L VER1.1A(4300U)

Processor

Integrated Intel®Haswell-U I5-4300U/1.9GHz dual core processor


Compatible Intel Celeron,Pentium,core®I3/I5/I7 Haswell/Broadwell-U processor

Chipset

Based on Intel®Haswell-U/Broadwell-U SOC platform

Memory

1*SO DDRIII slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel® HD Graphics 4400


1*VGA,1*HDMI,1*LVDS port(support dual channel 24BIT)


Support dual independent display.

Network

Integrated 2*Intel WGI211AT Gigabit Ethernet,support Wake On LAN/PXE

Storage

1*SATA3.0 2.5 inch laptop HDD slot

2* 7pin SATA3.0 HDD port, transmission rate up to 6Gbps

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out Power amplifier


Power amplifier support 2Ω5W speaker

Expansion

1* Mini-PCIE slot support WIFI/3G module


1*MSATA slot, support Intel protocol SSD,transmission rate up to 6Gbps


Note: If use MINIPE1 support 3G module, need to adjust related hardware settings, thus will lead to F_USB2 support 1*USB only.

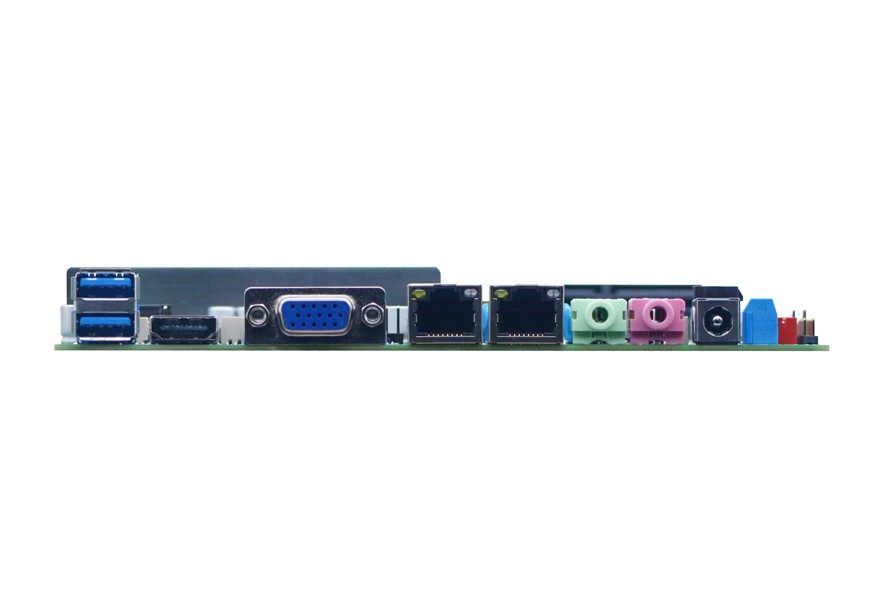

Rear Panel I/O

1* 12V DC JACK


1* HDMI


1* VGA


2* USB 3.0


2* RJ-45 LAN port


1* Line out (green)


1* MIC (red)

Built-in I/O

1* JVGA1, 1*12Pin (same signal with DB15)


1* J_HDMI, 2*8pin (same signal with rear panel HDMI port)


1* support dual channel 24bit(double 8)LVDS port 2*15pin


1* LVDS backlight power supply port 1*6pin


1* Front audio port 2*5pin


1* Front power amplifier port 1*4Pin


6* USB 2.0 port 2*5Pin


6* RS232 serial port (COM1、COM2 support the 9th pin charged function 2*5Pin, COM3 support RS422/RS485 transmission mode)


1* LPT print port 2*13pin


1* PS/2 KB/MS port 1*6Pin


1* HDD power supply port 1*4pin


1* SIM socket


1* Front panel function button and indicator LED port 2*5pin


1* 4pin ATX power port


1* 2pin 12V DC_IN Jack

Fan Connector

1*4pin CPU fan connector, 1* 3pin system fan connector

GPIO

Support 4 ways input output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function(L256, 0~255 seconds)

Power Type

DC_12V single power supply input

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


事宜人群:

♦ Integrated Intel®Haswell-U I5-4300U/1.9GHz dual core processor

♦Intel®Haswell-U/Broadwell-U SOC platform

♦1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory.up to8GB

♦Integrated Intel®HD Graphics4400

♦Integrated 2*Intel WGI211AT Gigabit Ethernet,support Wake On LAN/PXE

♦Provide 1*VGA,1*HDMI,1*LVDS(support dual channel 24BIT)

♦6* RS232 serial ,COM3 supportRS485/RS422

♦5* USB2.0,2*USB3.0



  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-H45_I526L VER1.1A(4300U)

Processor

Integrated Intel®Haswell-U I5-4300U/1.9GHz dual core processor


Compatible Intel Celeron,Pentium,core®I3/I5/I7 Haswell/Broadwell-U processor

Chipset

Based on Intel®Haswell-U/Broadwell-U SOC platform

Memory

1*SO DDRIII slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel® HD Graphics 4400


1*VGA,1*HDMI,1*LVDS port(support dual channel 24BIT)


Support dual independent display.

Network

Integrated 2*Intel WGI211AT Gigabit Ethernet,support Wake On LAN/PXE

Storage

1*SATA3.0 2.5 inch laptop HDD slot

2* 7pin SATA3.0 HDD port, transmission rate up to 6Gbps

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out Power amplifier


Power amplifier support 2Ω5W speaker

Expansion

1* Mini-PCIE slot support WIFI/3G module


1*MSATA slot, support Intel protocol SSD,transmission rate up to 6Gbps


Note: If use MINIPE1 support 3G module, need to adjust related hardware settings, thus will lead to F_USB2 support 1*USB only.

Rear Panel I/O

1* 12V DC JACK


1* HDMI


1* VGA


2* USB 3.0


2* RJ-45 LAN port


1* Line out (green)


1* MIC (red)

Built-in I/O

1* JVGA1, 1*12Pin (same signal with DB15)


1* J_HDMI, 2*8pin (same signal with rear panel HDMI port)


1* support dual channel 24bit(double 8)LVDS port 2*15pin


1* LVDS backlight power supply port 1*6pin


1* Front audio port 2*5pin


1* Front power amplifier port 1*4Pin


6* USB 2.0 port 2*5Pin


6* RS232 serial port (COM1、COM2 support the 9th pin charged function 2*5Pin, COM3 support RS422/RS485 transmission mode)


1* LPT print port 2*13pin


1* PS/2 KB/MS port 1*6Pin


1* HDD power supply port 1*4pin


1* SIM socket


1* Front panel function button and indicator LED port 2*5pin


1* 4pin ATX power port


1* 2pin 12V DC_IN Jack

Fan Connector

1*4pin CPU fan connector, 1* 3pin system fan connector

GPIO

Support 4 ways input output GPIO

BIOS

AMI 64Mb Flash ROM

Watchdog

Support hardware reset function(L256, 0~255 seconds)

Power Type

DC_12V single power supply input

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-H45_I516L VER:1.1A(4300U)

I5-4300U

1.9G

1*SODDR3L

1

1

2ch*24bit

/

1*WGI211AT

8

6

COM3

DC12V

2

ITX-H45_I526L VER:1.1A(4300U)

I5-4300U

1.9G

1*SODDR3L

1

1

2ch*24bit

/

2*WGI211AT

8

6

COM3

DC12V

3

ITX-H45_I726L VER:1.1A(4500U)

I7-4500U

1.8G

1*SODDR3L

1

1

2ch*24bit

/

2*WGI211AT

8

6

COM3

DC12V

4

ITX-H45_I716L VER:1.1A(4510U)

I7-4510U

2.0G

1*SODDR3L

1

1

2ch*24bit

/

1*WGI211AT

8

6

COM3

DC12V


♦ Integrated Intel®Haswell-U I5-4300U/1.9GHz dual core processor

♦Intel®Haswell-U/Broadwell-U SOC platform

♦1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory.up to8GB

♦Integrated Intel®HD Graphics4400

♦Integrated 2*Intel WGI211AT Gigabit Ethernet,support Wake On LAN/PXE

♦Provide 1*VGA,1*HDMI,1*LVDS(support dual channel 24BIT)

♦6* RS232 serial ,COM3 supportRS485/RS422

♦5* USB2.0,2*USB3.0
