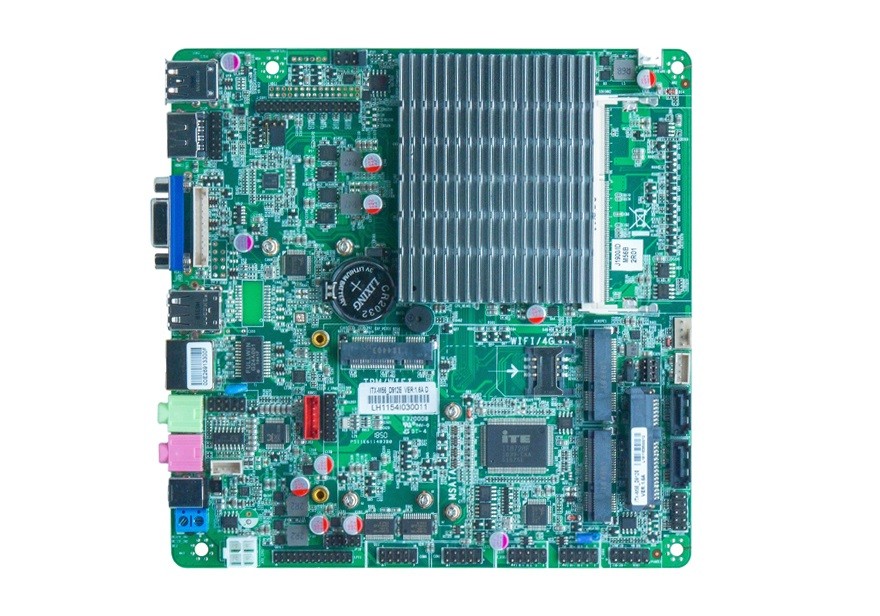

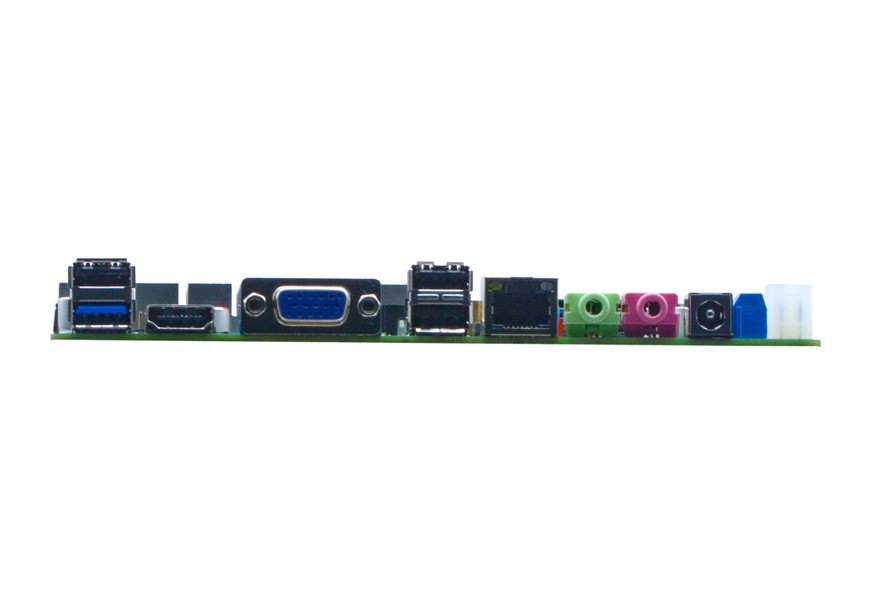

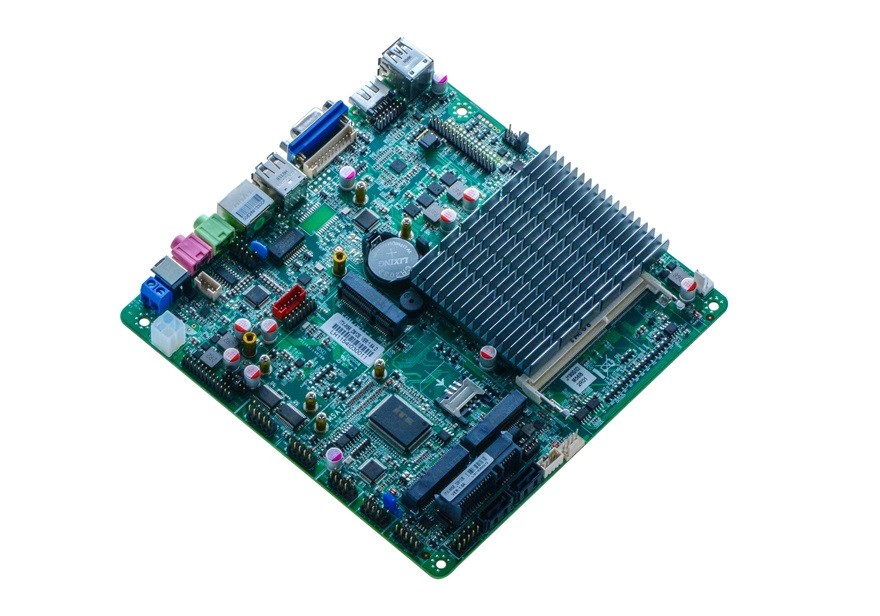

Baytrail J1900/2.00G

ITX-M56_D912E VER:1.6A

项目介绍:

Model No.

ITX-M56_D912E VER:1.6A

Processor

Integrated Intel® Celeron J1900/2.0GHz quad core processor


Compatible with Intel® Bay Trail -I/M/D series CPU

Chipset

Based on Intel® Bay trail SOC Platform

Memory

1*SODDR3L memory slot,Support single channel1600/1333MHz DDR3L/1.35V Memory ,up to 8GB

Graphics

Integrated  Intel® HD Graphics


1* VGA,1*HDMI,1*EDP


Support VGA;HDMI;LVDS synchronous/asynchronous display

Ethernet

1* Realtek RTL8111H Gigabit ethernet , support wake on LAN/PXE

Storage

1* SATA2.0  interface (with the built-in 2.5 inch hard disk SATA5 optional)


1* SATA 2.5 inch Notebook hard disk place ,can installed  the hard disk directly


1* MSATA slot , supports  SSD hard disk, the transfer rate up to 3Gbps

Audio

Onboard  ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Amplifier proposed using 2Ω5W speakers

Expansion slots

1* Mini-PCIE slot,support WIFI/3G module

Internal I/O

1* HDMI


1* VGA


3* USB 2.0


1* USB3.0


1* RJ-45  Gigabit Ethernet connectors


1* Line out(Green)、1* MIC(Red)


1* 12V DC power input

Internal I/O

1* 4pin ATX power input (can do 12V power input/output interface)


1* 2pin 12V DC power input


4* USB 2.0 2*5Pin,


1* J_HDMI 2*8Pin same signal with HDMI1


1* JVGA 1*12Pin same signal with DB15


1* JEDP,2*15pin ,


1* PS/2  KB/MS connector(Red) 1*6Pin


2* RS232 serial ports,


1* JTPM ,2*8pin ,


1* LPT  2*13Pin


1* front panel audio connector , 2*5pin


1* front panel function buttons and indicator connector,2*5Pin


1* HDD power supply connector, 1*4pin


1* power amplifier interface, 1*4pin


1* SIM card socket

FAN interface

support 4 way input/output GPIO

GPIO

64Mb Flash ROM

BIOS

Support hardware reset function (L256, 0~255 seconds)

Watchdog

Windows 7/Windows 10/Linux

operating system

Adopt  DC 12V power supply

Power supply

-10℃~60℃

Operating Temp.

-20℃~70℃

Storage Temp.

5%-95%(relative humidity; non-condensing)

Humidity

170mm x 170mm

Dimension

support 4 way input/output GPIO


事宜人群:

◆ Integrated Intel® Celeron J1900/2.0GHz quad core processor

◆ 1*SODDR3L memory slot,Support 1600/1333MHz DDR3L/1.35V Memory ,up to 8GB

◆ Integrated Intel®HD Graphics ,1*VGA,1*HDMI,1*LVDS

◆ 1* Realtek RTL8111H Gigabit ethernet ports ,Support wake on LAN/PXE functiont

◆ 7*USB2.0,1*USB3.0,6*RS232 serial ports


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M56_D912E VER:1.6A

Processor

Integrated Intel® Celeron J1900/2.0GHz quad core processor


Compatible with Intel® Bay Trail -I/M/D series CPU

Chipset

Based on Intel® Bay trail SOC Platform

Memory

1*SODDR3L memory slot,Support single channel1600/1333MHz DDR3L/1.35V Memory ,up to 8GB

Graphics

Integrated  Intel® HD Graphics


1* VGA,1*HDMI,1*EDP


Support VGA;HDMI;LVDS synchronous/asynchronous display

Ethernet

1* Realtek RTL8111H Gigabit ethernet , support wake on LAN/PXE

Storage

1* SATA2.0  interface (with the built-in 2.5 inch hard disk SATA5 optional)


1* SATA 2.5 inch Notebook hard disk place ,can installed  the hard disk directly


1* MSATA slot , supports  SSD hard disk, the transfer rate up to 3Gbps

Audio

Onboard  ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Amplifier proposed using 2Ω5W speakers

Expansion slots

1* Mini-PCIE slot,support WIFI/3G module

Internal I/O

1* HDMI


1* VGA


3* USB 2.0


1* USB3.0


1* RJ-45  Gigabit Ethernet connectors


1* Line out(Green)、1* MIC(Red)


1* 12V DC power input

Internal I/O

1* 4pin ATX power input (can do 12V power input/output interface)


1* 2pin 12V DC power input


4* USB 2.0 2*5Pin,


1* J_HDMI 2*8Pin same signal with HDMI1


1* JVGA 1*12Pin same signal with DB15


1* JEDP,2*15pin ,


1* PS/2  KB/MS connector(Red) 1*6Pin


2* RS232 serial ports,


1* JTPM ,2*8pin ,


1* LPT  2*13Pin


1* front panel audio connector , 2*5pin


1* front panel function buttons and indicator connector,2*5Pin


1* HDD power supply connector, 1*4pin


1* power amplifier interface, 1*4pin


1* SIM card socket

FAN interface

support 4 way input/output GPIO

GPIO

64Mb Flash ROM

BIOS

Support hardware reset function (L256, 0~255 seconds)

Watchdog

Windows 7/Windows 10/Linux

operating system

Adopt  DC 12V power supply

Power supply

-10℃~60℃

Operating Temp.

-20℃~70℃

Storage Temp.

5%-95%(relative humidity; non-condensing)

Humidity

170mm x 170mm

Dimension

support 4 way input/output GPIO


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-M56_D912E VER:1.6A

 J1900

2.0G

1*SODDR3L

1

1

/

1

1*8111H

8

2

/

DC12V

2

ITX-M56_D912L VER:1.6A

J1900

2.0G

1*SODDR3L

1

1

2ch/24bit

/

1*8111H

8

2

/

DC12V

3

ITX-M56_D812L VER:1.6A

J1800

2.41G

1*SODDR3L

1

1

2ch/24bit

/

1*8111H

8

2

/

DC12V


◆ Integrated Intel® Celeron J1900/2.0GHz quad core processor

◆ 1*SODDR3L memory slot,Support 1600/1333MHz DDR3L/1.35V Memory ,up to 8GB

◆ Integrated Intel®HD Graphics ,1*VGA,1*HDMI,1*LVDS

◆ 1* Realtek RTL8111H Gigabit ethernet ports ,Support wake on LAN/PXE functiont

◆ 7*USB2.0,1*USB3.0,6*RS232 serial ports
