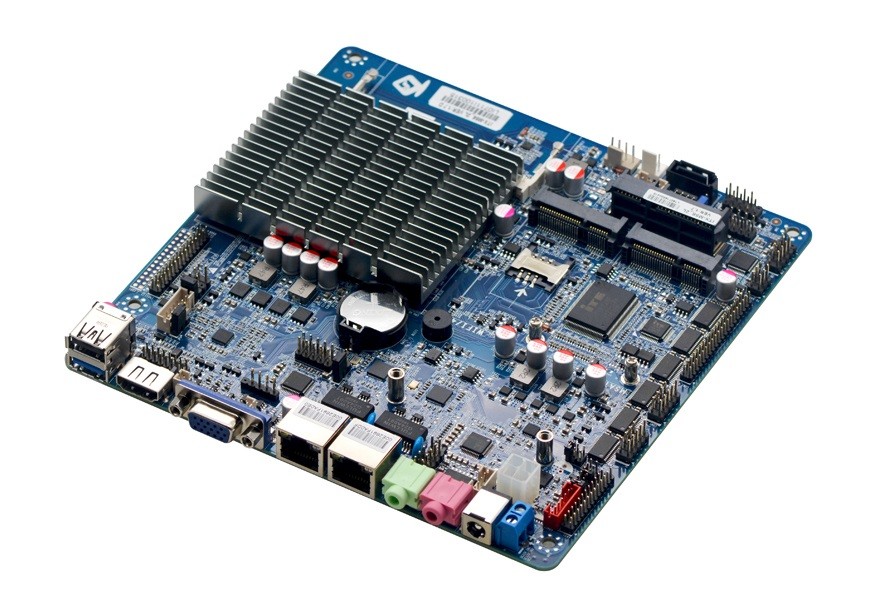

Baytrail J1900/2.00G

ITX-M56_2L VER:1.7

项目介绍:

Model No.

ITX-M56_2L VER:1.7

Processor

Integrated Intel® Celeron J1900/2.0GHz quad core processor


Compatible with Intel® Bay Trail -I/M/D series CPU

Chipset

Based on Intel® Bay trail SOC Platform

Memory

1*SODDR3L memory slot,Support single channel1600/1333MHz DDR3L/1.35V Memory ,up to 8GB

Graphics

Integrated  Intel® HD Graphics


1* VGA,1*HDMI,1*LVDS interface(support dual channel  24BIT)


Support VGA;HDMI;LVDS synchronous/asynchronous display

Ethernet

2* Realtek RTL8111F Gigabit ethernet ports ,Support wake on LAN/PXE function

Storage

1* SATA2.0  interface (with the built-in 2.5 inch hard disk SATA5 optional)


1* SATA 2.5 inch Notebook hard disk place ,can installed  the hard disk directly


1* MSATA slot , supports  SSD hard disk, the transfer rate up to 3Gbps

Audio

Onboard  ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Amplifier proposed using 2Ω5W speakers

Expansion slots

1* Mini-PCIE slot,support WIFI/3G module

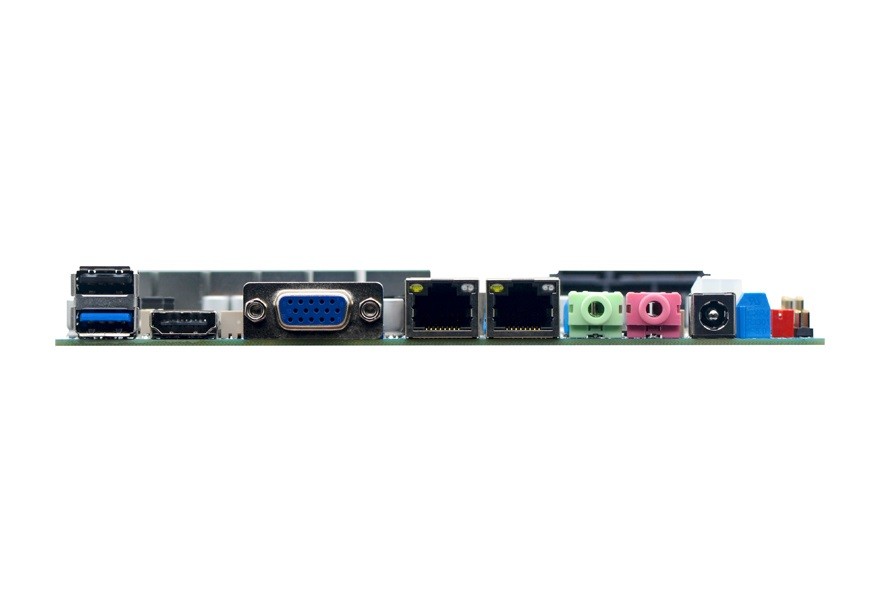

Rear I/O

1* HDMI


1* VGA


1* USB 2.0


1* USB3.0


2* RJ-45 Gigabit Ethernet connectors


1* Line out(Green)、1* MIC(Red)


1* 12V DC power input

Internal I/O

1* 4pin ATX power input (can do 12V power input/output interface)


1* 2pin 12V DC power input


4* USB 2.0 2*5Pin


1* USB 2.0 1*5Pin


1* J_HDMI 2*8Pin  same signal with HDMI1


1* JVGA 1*12Pin same signal with DB15


1* PS/2  KB/MS port(Red) 1*6Pin


6* RS232 serial port,COM3 supports RS485/RS422


1* LPT, 2*13Pin


1* front panel audio port , 2*5pin


1* front panel function buttons and indicator port,2*5Pin


1* LVDS, 2*15pin, support dual channel 24bit(double 24bit )


1* LVDS  backlight power supply port ,1*6pin


1* HDD power supply port, 1*4pin


1* power amplifier port, 1*4pin


1* SIM card socket

FAN interface

Fanless Cooling design ,Reserve 1*4pin CPU smart fan connector,1* 3pin system fan connector

GPIO

support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

operating system

Windows 7/Windows 10/Linux

Power supply

Adopt  DC 12V power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm


事宜人群:

◆ Integrated Intel® Celeron J1900/2.0GHz quad core processor

◆ 1*SODDR3L memory slot,Support single channel1600/1333MHz DDR3L/1.35V Memory ,up to 8GB

◆ Integrated Intel®HD Graphics ,1*VGA,1*HDMI,1*LVDS

◆ 2* Realtek RTL8111F Gigabit ethernet ports ,Support wake on LAN/PXE function

◆ 6*USB2.0,1*USB3.0,6*RS232 serial ports


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M56_2L VER:1.7

Processor

Integrated Intel® Celeron J1900/2.0GHz quad core processor


Compatible with Intel® Bay Trail -I/M/D series CPU

Chipset

Based on Intel® Bay trail SOC Platform

Memory

1*SODDR3L memory slot,Support single channel1600/1333MHz DDR3L/1.35V Memory ,up to 8GB

Graphics

Integrated  Intel® HD Graphics


1* VGA,1*HDMI,1*LVDS interface(support dual channel  24BIT)


Support VGA;HDMI;LVDS synchronous/asynchronous display

Ethernet

2* Realtek RTL8111F Gigabit ethernet ports ,Support wake on LAN/PXE function

Storage

1* SATA2.0  interface (with the built-in 2.5 inch hard disk SATA5 optional)


1* SATA 2.5 inch Notebook hard disk place ,can installed  the hard disk directly


1* MSATA slot , supports  SSD hard disk, the transfer rate up to 3Gbps

Audio

Onboard  ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier


Amplifier proposed using 2Ω5W speakers

Expansion slots

1* Mini-PCIE slot,support WIFI/3G module

Rear I/O

1* HDMI


1* VGA


1* USB 2.0


1* USB3.0


2* RJ-45 Gigabit Ethernet connectors


1* Line out(Green)、1* MIC(Red)


1* 12V DC power input

Internal I/O

1* 4pin ATX power input (can do 12V power input/output interface)


1* 2pin 12V DC power input


4* USB 2.0 2*5Pin


1* USB 2.0 1*5Pin


1* J_HDMI 2*8Pin  same signal with HDMI1


1* JVGA 1*12Pin same signal with DB15


1* PS/2  KB/MS port(Red) 1*6Pin


6* RS232 serial port,COM3 supports RS485/RS422


1* LPT, 2*13Pin


1* front panel audio port , 2*5pin


1* front panel function buttons and indicator port,2*5Pin


1* LVDS, 2*15pin, support dual channel 24bit(double 24bit )


1* LVDS  backlight power supply port ,1*6pin


1* HDD power supply port, 1*4pin


1* power amplifier port, 1*4pin


1* SIM card socket

FAN interface

Fanless Cooling design ,Reserve 1*4pin CPU smart fan connector,1* 3pin system fan connector

GPIO

support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

operating system

Windows 7/Windows 10/Linux

Power supply

Adopt  DC 12V power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-M56_2L VER:1.7

 J1900

2.0G

1*SODDR3L

1

1

2ch*24BIT

/

2*8111F

7

6

COM3

DC12V

2

ITX-M56_D6L VER:1.7

J1900

2.0G

1*SODDR3L

1

1

2ch*24BIT

/

1*8111F

9

6

COM3

DC12V
