Ivy Bridge 1037U/1.80G

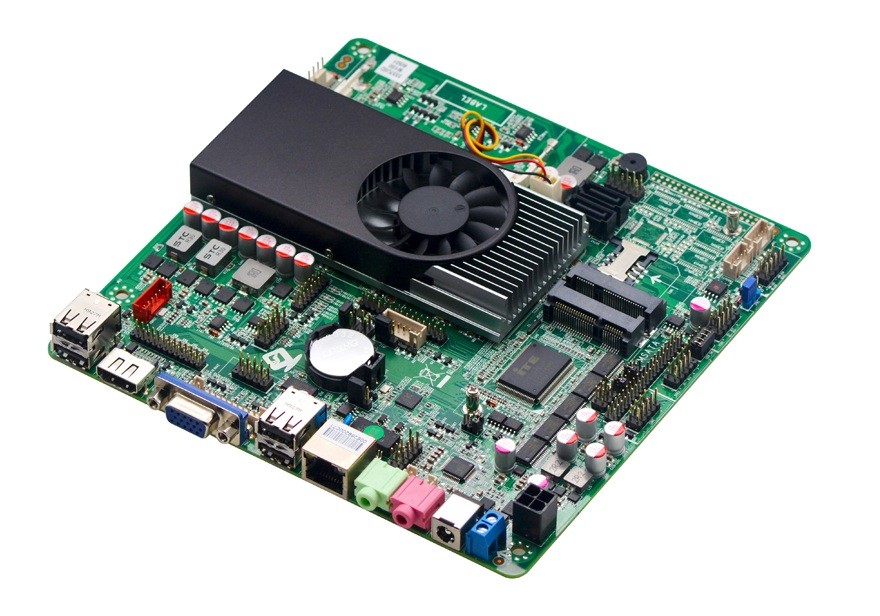

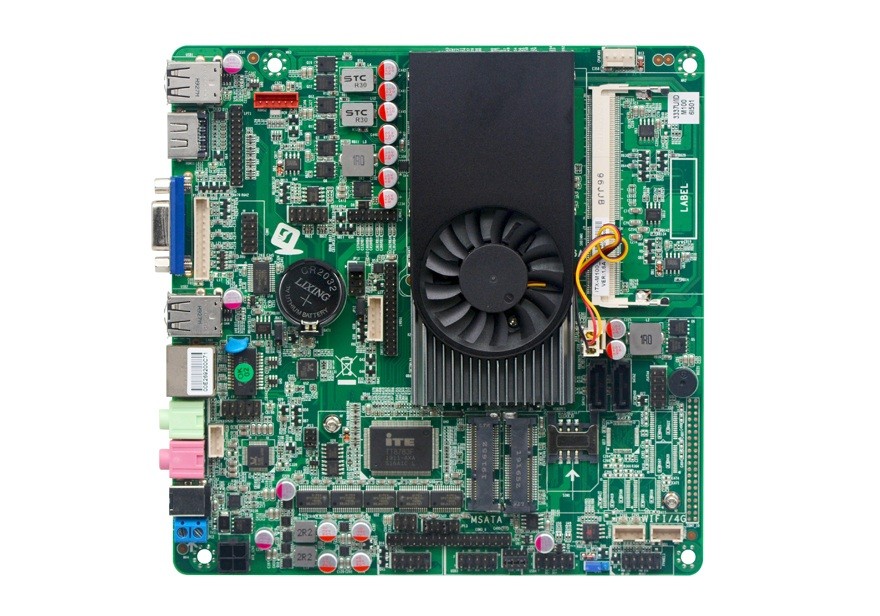

ITX-M100_I5 VER1.6A (3337U)

项目介绍:

Model No

ITX-M100_I5 VER:1.6A(3337U)

Processor

Integrated Intel®Core I5-3337U /1.8GHz dual core processor,17W


Compatible Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low powerprocessor

Chipset

Adopt Intel® NM70 high speed chipset

Memory

1*SODDR3 memory slot,support single channle DDR3 1600/1333 memory, up to 8GB

Graphics

Integrated Intel® HD Graphics4000


1*VGA、2*HDMI、1* LVDS, support dual channel 24bit

Network

1* Realtek RTL8111F gigabit ethernet ,support wake on LAN/PXE

Storage

2* SATA2.0 HDD port ,the transfer rate up to 3Gbps


1* SATA2.0 port

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out, amplifier


Amplifier proposed using 3Ω2W speakers

Expansion slots

1* Mini-PCIE slot,support WIFI、3G/4G module


1*MSATA slot ,support SSD,the transfer rate up to 6Gbps

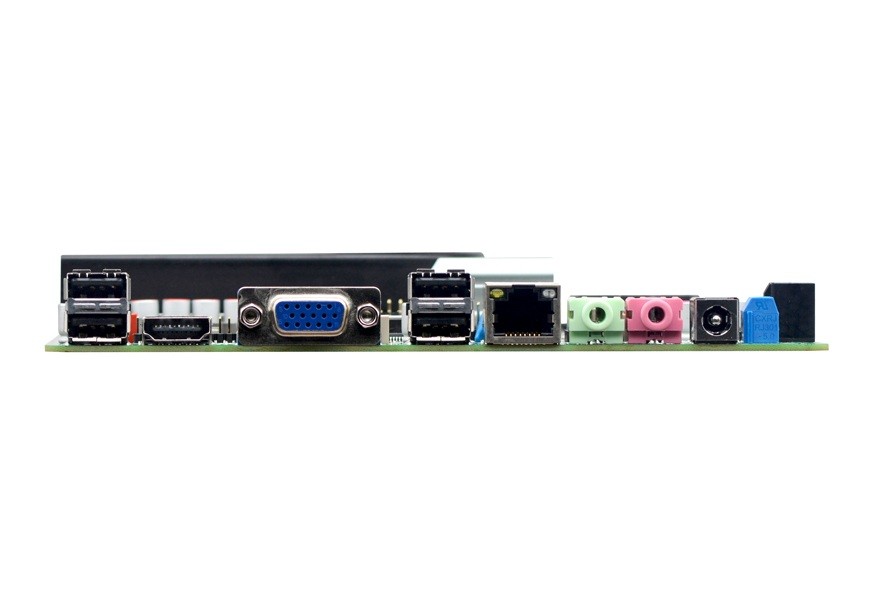

Rear I/O

4* USB 2.0


1* HDMI


1* VGA


1* RJ-45 gigabit ethernet connector


1* Line out(Green)


1* Mic (Red)


1* 12V DC_JACK input

Internal I/O

1* LVDS(2*15pin),support dual channel 24bit(double 8)


1* LVDS backlight power supply port (1*6pin)


1* J_HDMI接口(2*8Pin)


1* JVGA1(2*5pin),the same signal with DB15


6* RS232 serial ports (COM2 support RS232/422/485, COM1/COM2 support 9pin charged function )


1* LPT print port (2*13pin)


4* USB 2.0 ports(2*5pin),  if the Mini-PCIE use USB device, support 2* USB2.0


1* PS/2 KB/MS connector(1*6Pin)


1* front panel function buttons and indicator connector(2*5pin)


1* Front panel audio port(2*5pin)


1* power amplifier port(1*4pin)


1* SIM card socket


2* HDD power supply port  (1*4pin)


1* 4pin ATX 12V power input/output  port


1* 2pin 12V DC power input port

FAN connector

1*4pin CPU smart fan connector,1*4pin system fan connector

GPIO

support 4-way input/output GPIO

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

OS

Window 7/Windows 10/Linux

Power input

Adopt DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm


事宜人群:

♦ Integrated Intel® Core I5-3337U/1.8GHz dual core processor, 17W

♦ Adopt Intel® NM70 high speed chipset

♦ 1* SODDR3 memory slot, 1600/1333, up to 8GB

♦ Integrated Intel® HD Graphics

♦ 1*VGA,2*HDMI,1*LVDS

♦ 1* Realtek RTL8111F Gigabit Ethernet, Support wake on LAN/PXE

♦ 6* RS232 serial port (COM2/3 support RS232/422/485)

♦ 8*USB2.0


  • Product Specifications
  • Ordering Information
  • Download Center

Model No

ITX-M100_I5 VER:1.6A(3337U)

Processor

Integrated Intel®Core I5-3337U /1.8GHz dual core processor,17W


Compatible Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low powerprocessor

Chipset

Adopt Intel® NM70 high speed chipset

Memory

1*SODDR3 memory slot,support single channle DDR3 1600/1333 memory, up to 8GB

Graphics

Integrated Intel® HD Graphics4000


1*VGA、2*HDMI、1* LVDS, support dual channel 24bit

Network

1* Realtek RTL8111F gigabit ethernet ,support wake on LAN/PXE

Storage

2* SATA2.0 HDD port ,the transfer rate up to 3Gbps


1* SATA2.0 port

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out, amplifier


Amplifier proposed using 3Ω2W speakers

Expansion slots

1* Mini-PCIE slot,support WIFI、3G/4G module


1*MSATA slot ,support SSD,the transfer rate up to 6Gbps

Rear I/O

4* USB 2.0


1* HDMI


1* VGA


1* RJ-45 gigabit ethernet connector


1* Line out(Green)


1* Mic (Red)


1* 12V DC_JACK input

Internal I/O

1* LVDS(2*15pin),support dual channel 24bit(double 8)


1* LVDS backlight power supply port (1*6pin)


1* J_HDMI接口(2*8Pin)


1* JVGA1(2*5pin),the same signal with DB15


6* RS232 serial ports (COM2 support RS232/422/485, COM1/COM2 support 9pin charged function )


1* LPT print port (2*13pin)


4* USB 2.0 ports(2*5pin),  if the Mini-PCIE use USB device, support 2* USB2.0


1* PS/2 KB/MS connector(1*6Pin)


1* front panel function buttons and indicator connector(2*5pin)


1* Front panel audio port(2*5pin)


1* power amplifier port(1*4pin)


1* SIM card socket


2* HDD power supply port  (1*4pin)


1* 4pin ATX 12V power input/output  port


1* 2pin 12V DC power input port

FAN connector

1*4pin CPU smart fan connector,1*4pin system fan connector

GPIO

support 4-way input/output GPIO

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

OS

Window 7/Windows 10/Linux

Power input

Adopt DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm


No.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M100_I3 VER:1.6A(3217U)

I3-3217U

1.8G

1*SODDR3

1

2

2*24BIT

1*8111F

8

6

COM2

DC12V

2

ITX-M100_I5 VER:1.6A(3337U)

I5-3337U

1.8G

1*SODDR3

1

2

2*24BIT

1*8111F

8

6

COM2

DC12V

3

ITX-M100_I7 VER:1.6A(3537U)

I7-3537U

2.0G

1*SODDR3

1

2

2*24BIT

1*8111F

8

6

COM2

DC12V


SpecificationsITX-M100_I5 VER:1.5


Driver(WINXP/7/8)


OSDriver TypeDriver NameDownload Now
WinXP/7/8 32/64BITChipsetchipsetITX-M100
WinXP/7/8 32/64BITGraphicsVGAITX-M100
WinXP/7/8 32/64BITAudioRealtek AudioITX-M100
WinXP/7/8 32/64BITLANRealtekITX-M100
WinXP/7/8 32/64BITMEiamt
ITX-M100
Win7 32/64BIT
USB3.0USB3.0ITX-M100
