LGA115X H61/H81/H110

ITX-P360 VER:1.0

项目介绍:

Product number

ITX-P360 VER: 1.0

processor

Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

chipset

Using Intel® B365 chipset,

RAM

2* DDR4 DIMM memory slot, support dual channel 2133/1866/2400MHz memory, maximum support 32GB

Show



Integrated Intel®HD Graphics core graphics card supports DirectX12, OpenGL4.5, supports 4K display

1* VGA interface, support the highest resolution 1920X1200@60Hz

1* HDMI1.4 interface, supports a maximum resolution of 4096x2304 @24Hz

The internet

2* WGI211AT Gigabit Ethernet chip, support Wake-on-LAN/PXE function

Store

2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out

Expansion slot

1* PCIE3.0 X16 slot


1* MSATA slot, support SSD (default)/WIFI

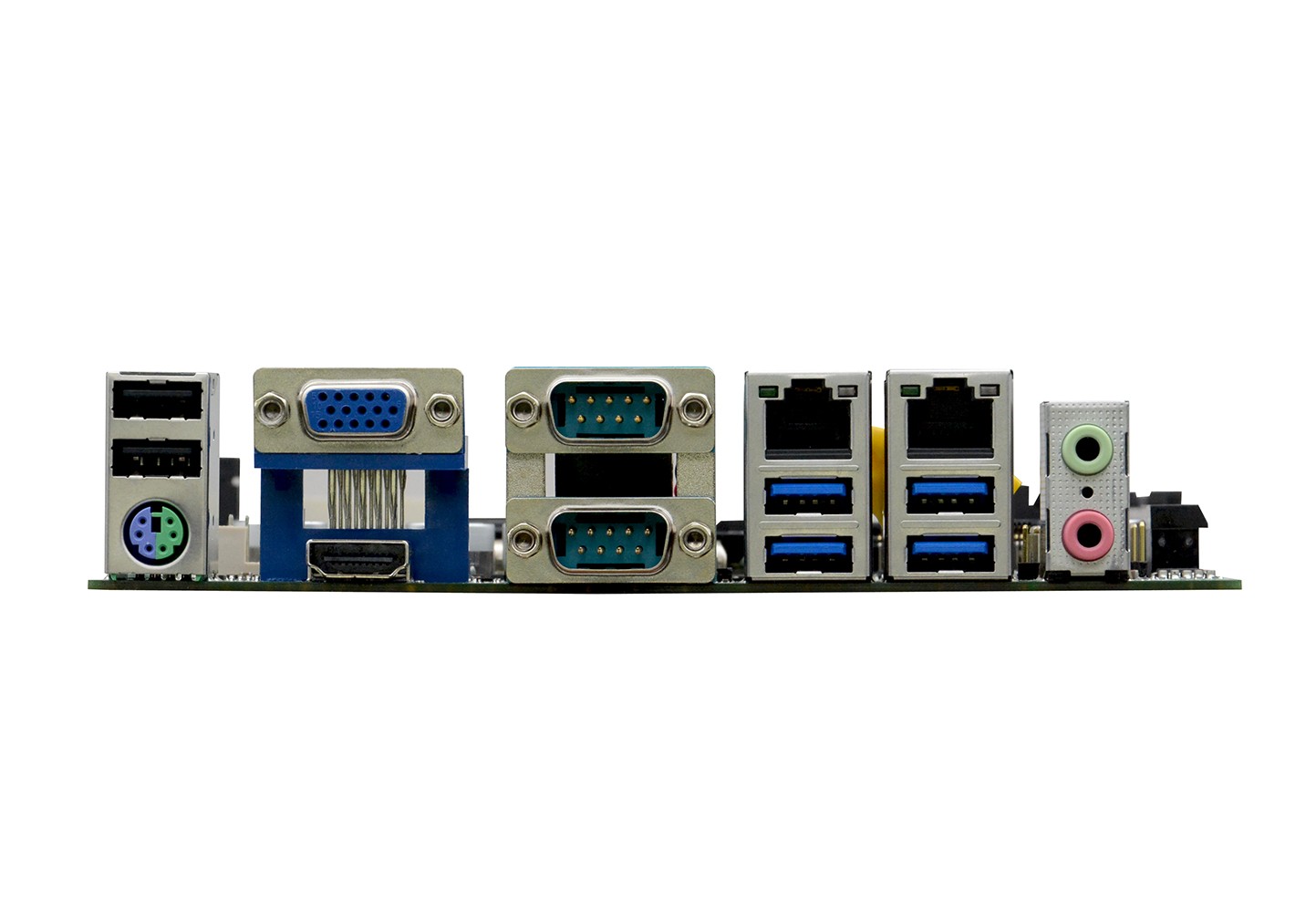

Backplane I/O interface



1* PS/2 interface (expandable keyboard and mouse)

1* DB15 VGA interface

1* HDMI1.4 interface

2* DB9 RS232 serial port,

2* USB2.0 interface

4* USB3.0 interface

2* RJ-45 Gigabit network interface

1* Double-layer audio interface (sound output and MIC input)

Built-in I/O interface



4* USB2.0 interface 2*5pin

4* RS232 serial interface 2*20pin, among which COM3/COM4 supports RS485

1* Front panel audio interface 2*5pin

1* Front panel function button and indicator port 2*5pin

1* 24pin ATX power socket 1* 4pin ATX power socket


1*4pin CPU fan interface; 1*4pin system fan interface

Fan interface

64Mb Flash ROM

BIOS

Support hardware reset function (256 levels, 0~255 seconds)

Watchdog

Windows 7/Windows 10/Linux

operating system

Powered by ATX 24Pin and 4pin power supply

Power type

0℃~60℃

Operating temperature

-20℃~70℃

Storage temperature

5%-95% relative humidity, non-condensing

Working humidity

170mm x 170mm


事宜人群:

♦Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

♦Using Intel® B365 chipset,

♦2* DDR4 DIMM memory slot, support dual channel 2133/1866/2400MHz memory, maximum support 32GB

♦Integrated Intel®HD Graphics core graphics card supports DirectX12, OpenGL4.5, supports 4K display

♦1* VGA interface, support the highest resolution 1920X1200@60Hz

♦1* HDMI1.4 interface, supports a maximum resolution of 4096x2304 @24Hz

♦2* WGI211AT Gigabit Ethernet chip, support Wake-on-LAN/PXE function

♦2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

♦Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out


  • Product Specifications
  • Ordering Information
  • Download Center

Product number

ITX-P360 VER: 1.0

processor

Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

chipset

Using Intel® B365 chipset,

RAM

2* DDR4 DIMM memory slot, support dual channel 2133/1866/2400MHz memory, maximum support 32GB

Show



Integrated Intel®HD Graphics core graphics card supports DirectX12, OpenGL4.5, supports 4K display

1* VGA interface, support the highest resolution 1920X1200@60Hz

1* HDMI1.4 interface, supports a maximum resolution of 4096x2304 @24Hz

The internet

2* WGI211AT Gigabit Ethernet chip, support Wake-on-LAN/PXE function

Store

2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

Audio

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out

Expansion slot

1* PCIE3.0 X16 slot


1* MSATA slot, support SSD (default)/WIFI

Backplane I/O interface



1* PS/2 interface (expandable keyboard and mouse)

1* DB15 VGA interface

1* HDMI1.4 interface

2* DB9 RS232 serial port,

2* USB2.0 interface

4* USB3.0 interface

2* RJ-45 Gigabit network interface

1* Double-layer audio interface (sound output and MIC input)

Built-in I/O interface



4* USB2.0 interface 2*5pin

4* RS232 serial interface 2*20pin, among which COM3/COM4 supports RS485

1* Front panel audio interface 2*5pin

1* Front panel function button and indicator port 2*5pin

1* 24pin ATX power socket 1* 4pin ATX power socket


1*4pin CPU fan interface; 1*4pin system fan interface

Fan interface

64Mb Flash ROM

BIOS

Support hardware reset function (256 levels, 0~255 seconds)

Watchdog

Windows 7/Windows 10/Linux

operating system

Powered by ATX 24Pin and 4pin power supply

Power type

0℃~60℃

Operating temperature

-20℃~70℃

Storage temperature

5%-95% relative humidity, non-condensing

Working humidity

170mm x 170mm


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

DP

LAN

USB

COM

RS485

Power

1

ITX-P360

VER:1.0

LGA1151

/

B365

2*DDR4

1

1

/

2*211AT

10

6

COM3/4

ATX


Specification
ITX-P360


DRIVER (Win7/8/10)

OSDriver TypeDriver Name Download Now
Win7/8/10 32/64BITChipsetchipsetITX-P360
Win7/8/10 32/64BITGraphicsVGAITX-P360
Win7/8/10 32/64BITAudioRealtek AudioITX-P360
Win7/8/10 32/64BITLANIntel
ITX-P360
Win7/8/10 32/64BITMEME CorporateITX-P360
Win7/8/10 32/64BITDPTFDPTFITX-P360
Win7/8/10 32/64BITRSTRSTITX-P360
Win7/8/10 32/64BITSerial IOSerial_IOITX-P360
