LGA115X H61/H81/H110

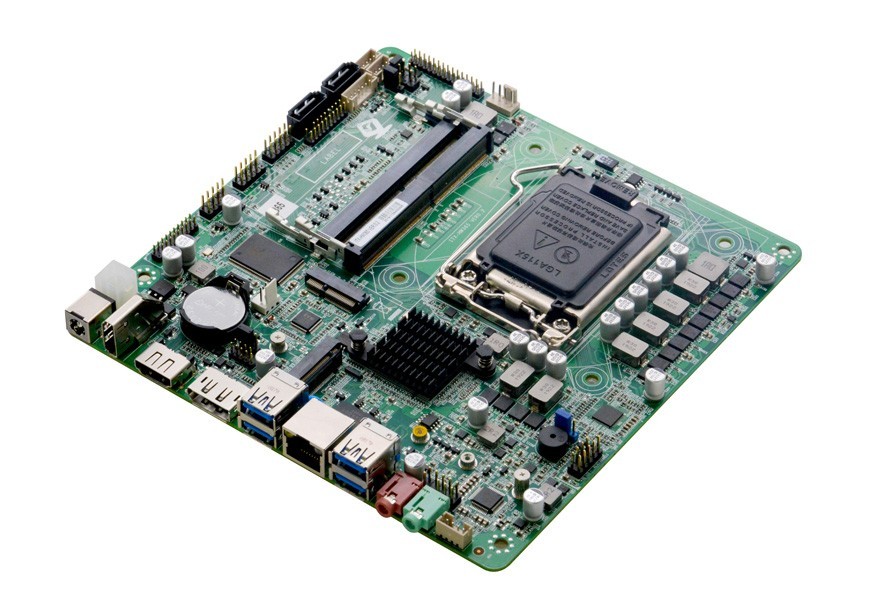

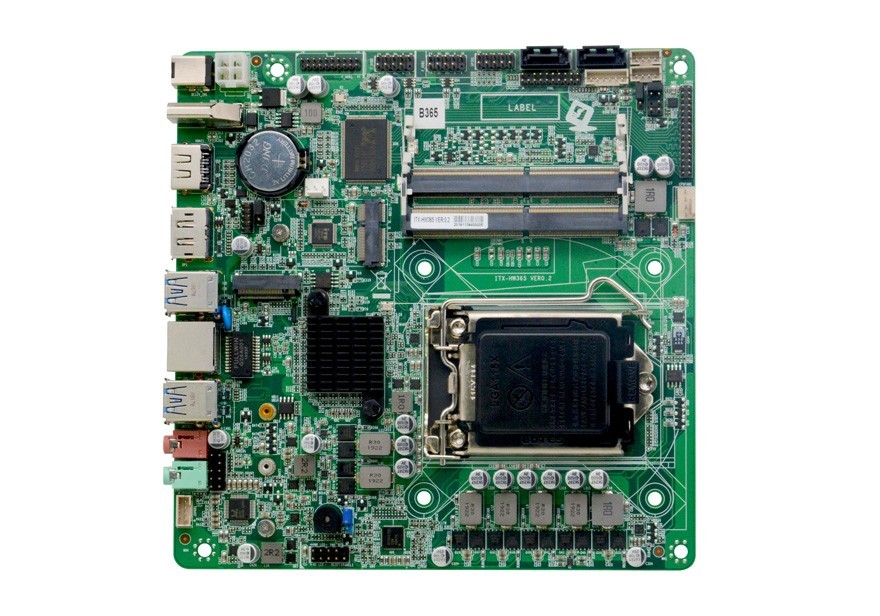

ITX-HW365 VER:1.0

项目介绍:

Model NO.

ITX-HW365 VER:1.0

Processor

Support for LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

Chipset

With Intel ® B365 high-speed chipset,

Memory

2*DDR4 SODIMM memory slot with 2400/2133MHz memory, up to 32GB

Display

Integrated Intel ® HD Graphics core graphics card with DirectX12, OpenGL4.4, 4K display

1*HDMI1.4 interface with the highest resolution of 4096X2304@24Hz

1*Displayport interface with maximum resolution 4096X2304@60Hz

1*LVDS interface with dual-channel 24BIT support

Network

1*RTL811H Gigabit Card Chip, Supports Network Wake-up/PXE Function

Storage

2*SATA3.0 hard drive interface with transmission speeds of up to 6Gbps

1*M.2 slot, supports M.2 2280/2260/2240 PCIE/SATA specification SSD, PCIE/SATA automatic identification

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out, amplifier

Amplifier supports 2o/5W dual channels

Extended

1*M.2 slot, supportmed M,2 2230 WIFI module

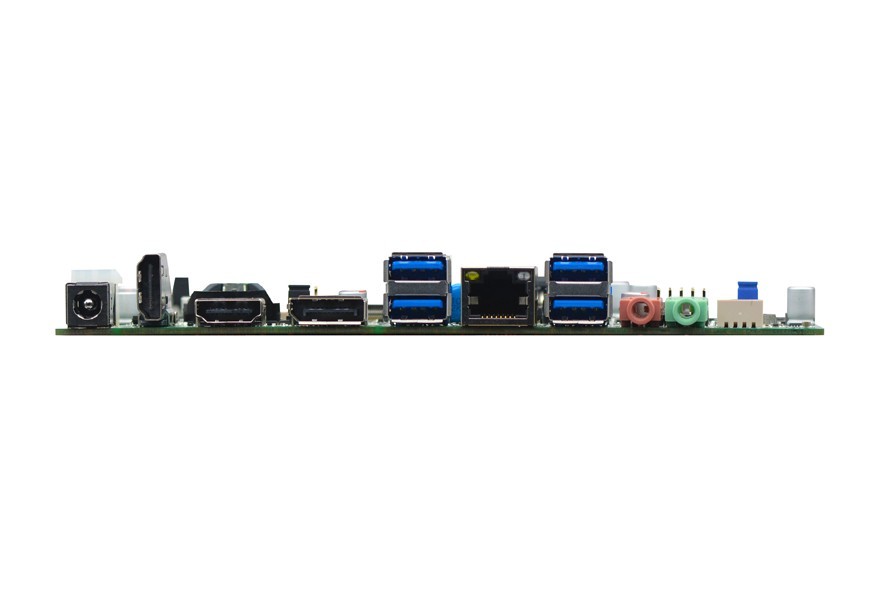

Backplane I/O Interface

1*HDMI interface,

1*HDMI-IN interface, supports external HDMI signal input and automatically switches to LVDS output (requires burning LVDS screen FW)

1*Displayport Interface

4*USB3.0 interface

1*RJ45 Gigabit Network Interface

1*Line-out (green), 1*MIC (red)

1*DC12 to 19V power input

Built-in I/O interface

1*LVDS interface 2*15pin, support s24BIT support

1*screen backlit power supply interface 1*6pin

4*USB2.0 interface, 2*5pin

2*USB3.0 interface, 2*10pin

1*TPM interface 2*10pin

2*hard drive power interface 1x4pin

1*RS232 Serial Interface 2x5pin

1*front audio interface 2x5pin

1*Amplifier Interface 1x4pin

1*4pin ATX power interface, supports 12V to 19V power input and output

1*front panel function button and LED interface 2*5pin

FAN Interface

1*4pin CPU Smart Fan Interface;

GPIO

Support for 4-way input and output GPIO

BIOS

128Mb Flash ROM


Windows ® 7/ 8.1/10

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Power type

Support for DC12V to 19V power supply

Operating temperature

-10C to 60C

Storage temperature

-20C to 70C

Working humidity

5%-95% relative humidity, no condensation

Size

170mm*170mm


事宜人群:

♦ Support SLA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

♦ with Intel® B365 high-speed chipset

♦ 2*DDR4 SODIMM with support for 2133/2400MHz memory, up to 32GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ 1*HDMI1.4 interface, 1*Displayport interface, 1*LVDS interface, support for dual-channel 24BIT

♦ 1*RTL811H Gigabit card chip, supports network wake-up/PXE function


  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

ITX-HW365 VER:1.0

Processor

Support for LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

Chipset

With Intel ® B365 high-speed chipset,

Memory

2*DDR4 SODIMM memory slot with 2400/2133MHz memory, up to 32GB

Display

Integrated Intel ® HD Graphics core graphics card with DirectX12, OpenGL4.4, 4K display

1*HDMI1.4 interface with the highest resolution of 4096X2304@24Hz

1*Displayport interface with maximum resolution 4096X2304@60Hz

1*LVDS interface with dual-channel 24BIT support

Network

1*RTL811H Gigabit Card Chip, Supports Network Wake-up/PXE Function

Storage

2*SATA3.0 hard drive interface with transmission speeds of up to 6Gbps

1*M.2 slot, supports M.2 2280/2260/2240 PCIE/SATA specification SSD, PCIE/SATA automatic identification

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out, amplifier

Amplifier supports 2o/5W dual channels

Extended

1*M.2 slot, supportmed M,2 2230 WIFI module

Backplane I/O Interface

1*HDMI interface,

1*HDMI-IN interface, supports external HDMI signal input and automatically switches to LVDS output (requires burning LVDS screen FW)

1*Displayport Interface

4*USB3.0 interface

1*RJ45 Gigabit Network Interface

1*Line-out (green), 1*MIC (red)

1*DC12 to 19V power input

Built-in I/O interface

1*LVDS interface 2*15pin, support s24BIT support

1*screen backlit power supply interface 1*6pin

4*USB2.0 interface, 2*5pin

2*USB3.0 interface, 2*10pin

1*TPM interface 2*10pin

2*hard drive power interface 1x4pin

1*RS232 Serial Interface 2x5pin

1*front audio interface 2x5pin

1*Amplifier Interface 1x4pin

1*4pin ATX power interface, supports 12V to 19V power input and output

1*front panel function button and LED interface 2*5pin

FAN Interface

1*4pin CPU Smart Fan Interface;

GPIO

Support for 4-way input and output GPIO

BIOS

128Mb Flash ROM


Windows ® 7/ 8.1/10

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Power type

Support for DC12V to 19V power supply

Operating temperature

-10C to 60C

Storage temperature

-20C to 70C

Working humidity

5%-95% relative humidity, no condensation

Size

170mm*170mm


No.

Model

Processor

Frequency

Southbridge

Memory

HDMI

DP

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-HW365 VER:1.0

LGA1151

/

B365

2*SODDR4

1

1

2ch/24bit

1*8111H

10

1

/

DC12~19V


SpecificationsITX-HW365 VER:1.0


Driver(Win7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-P365
Win7/8/10 32/64BITGraphicsVGAITX-P365
Win7/8/10 32/64BITAudioRealtek AudioITX-P365
Win7/8/10 32/64BITLANRealtek
ITX-P365
Win7/8/10 32/64BITMEME CorporateITX-P365
Win7/8/10 32/64BITDPTFDPTFITX-P365
Win7/8/10 32/64BITRSTRSTITX-P365
Win7/8/10 32/64BITSerial IOSerial_IOITX-P365


♦ Support SLA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

♦ with Intel® B365 high-speed chipset

♦ 2*DDR4 SODIMM with support for 2133/2400MHz memory, up to 32GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ 1*HDMI1.4 interface, 1*Displayport interface, 1*LVDS interface, support for dual-channel 24BIT

♦ 1*RTL811H Gigabit card chip, supports network wake-up/PXE function
