LGA115X H61/H81/H110

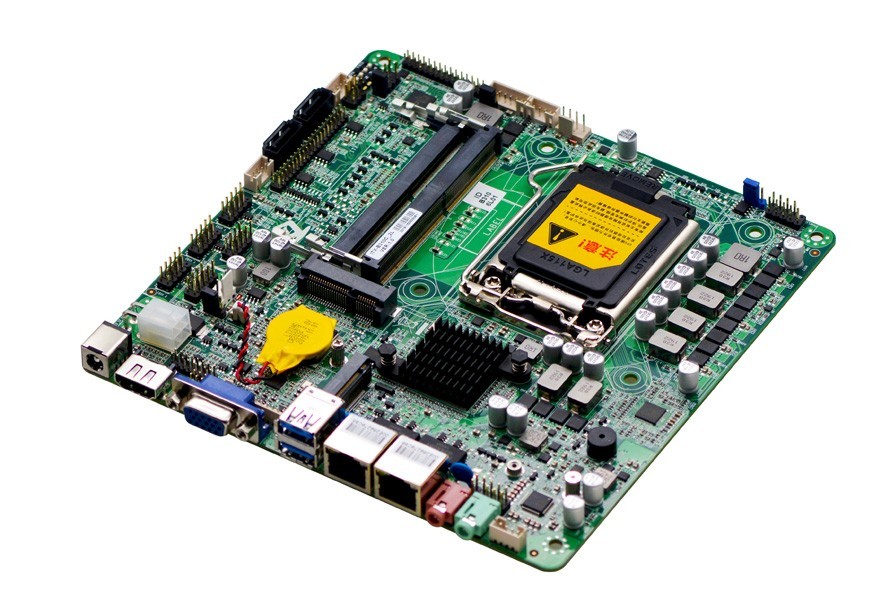

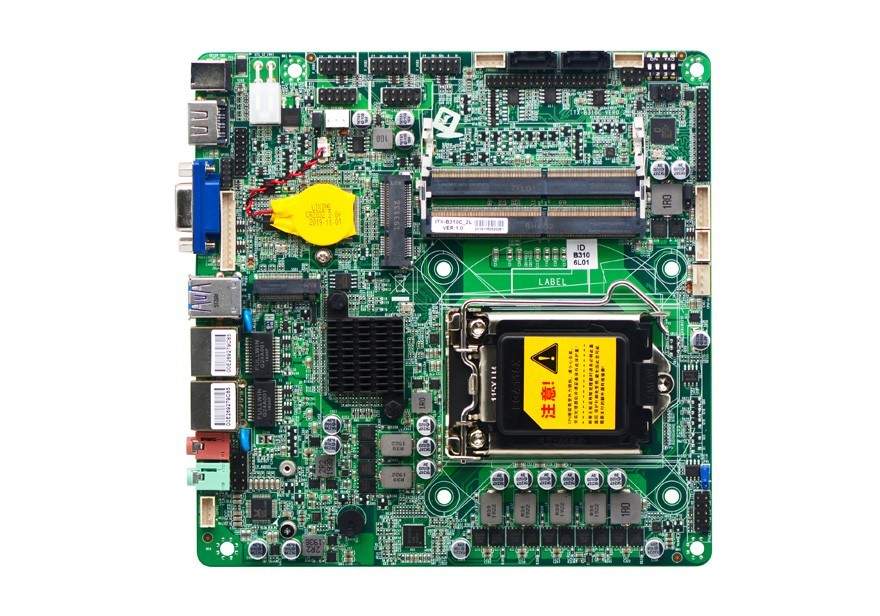

ITX-B310C_2L VER:1.0

项目介绍:
Model NO.ITX-B310C_2L VER:1.0
ProcessorSupport for LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
ChipsetWith Intel ® H310C high-speed chipset,
Memory2*DDR4 SODIMM memory slot with 2400/2133MHz memory, up to 32GB
DisplayIntegrated Intel ® HD Graphics core graphics card with DirectX12, OpenGL4.4, 4K display

1*VGA interface with the highest resolution of 1920X1200@60Hz

2x HDMI1.4 interface with the highest resolution of 4096X2304@24Hz

1*Support for dual-channel 24bit LVDS interface
Network2x RTL811H Gigabit Card Chip, Support snetwork/PXE function
Storage2*SATA3.0 hard drive interface with transmission speeds of up to 6Gbps

1*M.2 slot with M.2 2260/2280 PCIE standard SSD transmission speed up to 32Gbps
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out, amplifier

Amplifier supports 2o/5W dual channels
Extended1*MiniPCIE slot with SUPPORT for WIFI module

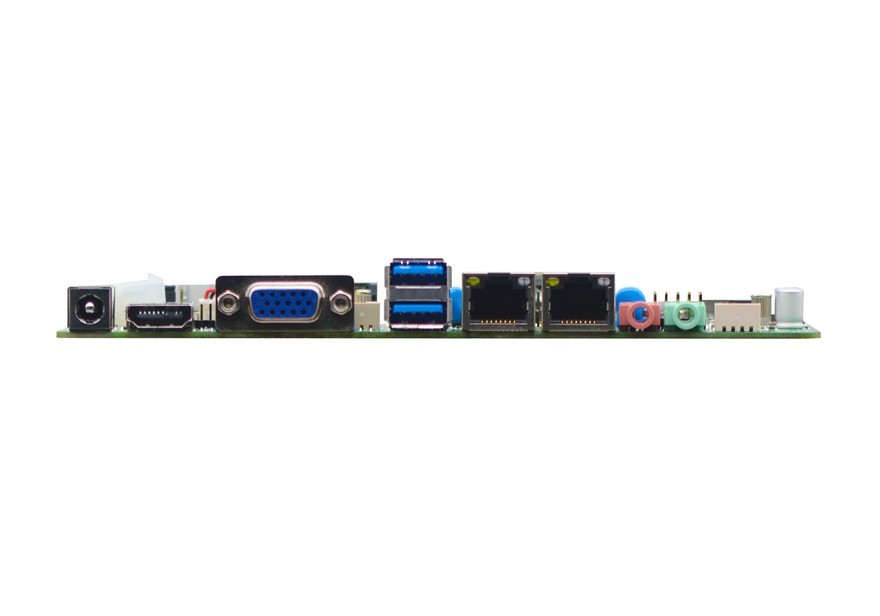

Backplane I/O Interface2*USB3.0 interface

1x HDMI interface

1*VGA interface

2*RJ45 Gigabit Network Interface

1*Line-out (green), 1*MIC (red)

1*DC12 to 19V power input
Built-in I/O interface1*JVGA interface 1*12pin, with the same signal as the VGA interface

1*JHDMI interface 2*8pin,

1*LVDS interface 2*15pin, support s24bit support

1*backlit power interface 1x6pin

1*screen brightness adjustment interface 1x4pin

6x RS232 Serial Interface, COM2 supports RS485/422

6x USB2.0 Interface 2x5pin

1*front audio interface 2x5pin

1*Amplifier Interface 1x4pin

2x hard drive supply voltage interface 1x4pin

1*front panel function button and LED interface 2*5pin

1x 4pin ATX power interface. Support s12V to 19V power in-supply
FAN Interface1x4pin CPU Smart Fan Interface;
GPIOSupport for 4-way input and output GPIO
BIOS64Mb Flash ROM

Windows 10/Linux
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Power typeSupport for DC19V power supply
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm x 170mm


事宜人群:

♦ support sleight-LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

♦ with Intel ® H310C chipset

♦ 2*DDR4 SODIMM memory slot with support for 2400/2133/1866MHz memory, up to 32GB

♦ Integrated Intel ® HD Graphics Core Graphics, DirectX12, OpenGL4.4, 4K display

♦ 1*VGA interface, 2 x HDMI1.4 interface, 1*support dual-channel 24bit LVDS interface

♦ 2*RTL811H Gigabit Card Chip, Support stoic/PXE function

♦ 6*USB2.0 interface, 2*USB 3.0 interface

♦ 6*RS232 serial port


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.ITX-B310C_2L VER:1.0
ProcessorSupport for LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor
ChipsetWith Intel ® H310C high-speed chipset,
Memory2*DDR4 SODIMM memory slot with 2400/2133MHz memory, up to 32GB
DisplayIntegrated Intel ® HD Graphics core graphics card with DirectX12, OpenGL4.4, 4K display

1*VGA interface with the highest resolution of 1920X1200@60Hz

2x HDMI1.4 interface with the highest resolution of 4096X2304@24Hz

1*Support for dual-channel 24bit LVDS interface
Network2x RTL811H Gigabit Card Chip, Support snetwork/PXE function
Storage2*SATA3.0 hard drive interface with transmission speeds of up to 6Gbps

1*M.2 slot with M.2 2260/2280 PCIE standard SSD transmission speed up to 32Gbps
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out, amplifier

Amplifier supports 2o/5W dual channels
Extended1*MiniPCIE slot with SUPPORT for WIFI module
Backplane I/O Interface2*USB3.0 interface

1x HDMI interface

1*VGA interface

2*RJ45 Gigabit Network Interface

1*Line-out (green), 1*MIC (red)

1*DC12 to 19V power input
Built-in I/O interface1*JVGA interface 1*12pin, with the same signal as the VGA interface

1*JHDMI interface 2*8pin,

1*LVDS interface 2*15pin, support s24bit support

1*backlit power interface 1x6pin

1*screen brightness adjustment interface 1x4pin

6x RS232 Serial Interface, COM2 supports RS485/422

6x USB2.0 Interface 2x5pin

1*front audio interface 2x5pin

1*Amplifier Interface 1x4pin

2x hard drive supply voltage interface 1x4pin

1*front panel function button and LED interface 2*5pin

1x 4pin ATX power interface. Support s12V to 19V power in-supply
FAN Interface1x4pin CPU Smart Fan Interface;
GPIOSupport for 4-way input and output GPIO
BIOS64Mb Flash ROM

Windows 10/Linux
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Power typeSupport for DC19V power supply
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm x 170mm


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

EDP

LVDS

LAN

USB

COM

RS485

Power

1

ITX-B310C_2L VER:1.0

LGA1151

/

H310C

2*SODDR4

1

2

/

2ch/24bit

2*8111H

8

6

COM2

DC19V



SpecificationsITX-B310C_2L


Driver

OSDriver TypeDriver NameDownload Now
Win 10 64BITChipsetchipset-10.1.1.45_nda-mupITX-D310_2L
Win 10 64BITGraphicsWin64ITX-D310_2L
Win 10 64BITAudioRealtek AudioITX-D310_2L
Win 10 64BITLANRealtekITX-D310_2L
Win 10 64BITMEintel(r) management_engine_consumer_12.0.0.1033ITX-D310_2L
Win 10 64BITRSTRSTITX-D310_2L
Win 10 64BITDPTF
DPTFITX-D310_2L
Win 10 64BITSerial IO
SerialIO_30.100.1727.1_CNL-PCH_RS2ITX-D310_2L


♦ support sleight-LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

♦ with Intel ® H310C chipset

♦ 2*DDR4 SODIMM memory slot with support for 2400/2133/1866MHz memory, up to 32GB

♦ Integrated Intel ® HD Graphics Core Graphics, DirectX12, OpenGL4.4, 4K display

♦ 1*VGA interface, 2 x HDMI1.4 interface, 1*support dual-channel 24bit LVDS interface

♦ 2*RTL811H Gigabit Card Chip, Support stoic/PXE function

♦ 6*USB2.0 interface, 2*USB 3.0 interface

♦ 6*RS232 serial port
