LGA115X H61/H81/H110

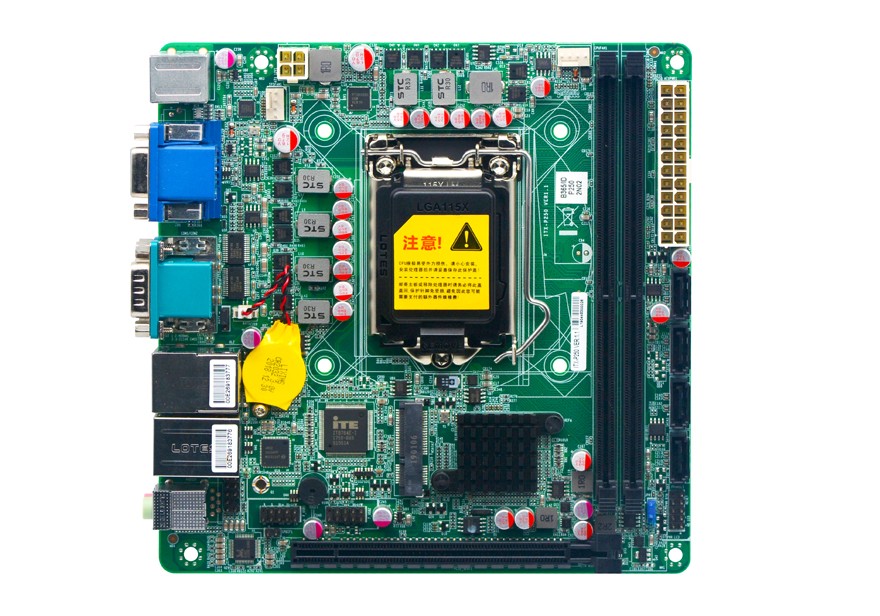

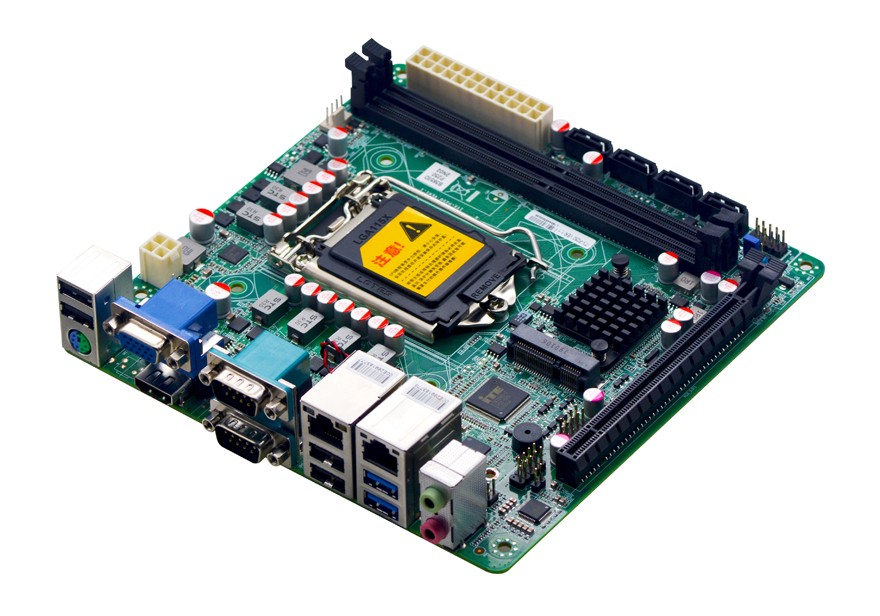

ITX-P365 VER:1.1

项目介绍:

Model No.

ITX-P365 VER:1.1

Processor

Support LGA1151 8th Intel® Celeron/Pentium/Core™ i3/i5/i7 CFL-S processor

Chipset

Adopt Intel® B365 chipset

Memory

2*DDR4 DIMM slot, support dual channel 2133/1866/2400MHz memory, up to 32GB

Graphics

Integrated Intel® HD Graphics DirectX12,OpenGL4.5, support 4K display


1* VGA, support the highest resolution: 1920X1200@60Hz


1* HDMI1.4, support the highest resolution: 4096x2304 @24Hz

Network

2* WGI211AT Gigabit Ethernet, support Wake On LAN/PXE function

Storage

4* SATA3.0 HDD port, transmission rate up to 6Gbps

Audio

On board ALC662 6 channel high fidelity audio controller,support MIC/Line-out

Expansion Slot

1* PCIE3.0 X16 slot


1* MSATA slot, support WIFI and SSD (optional via resistor)

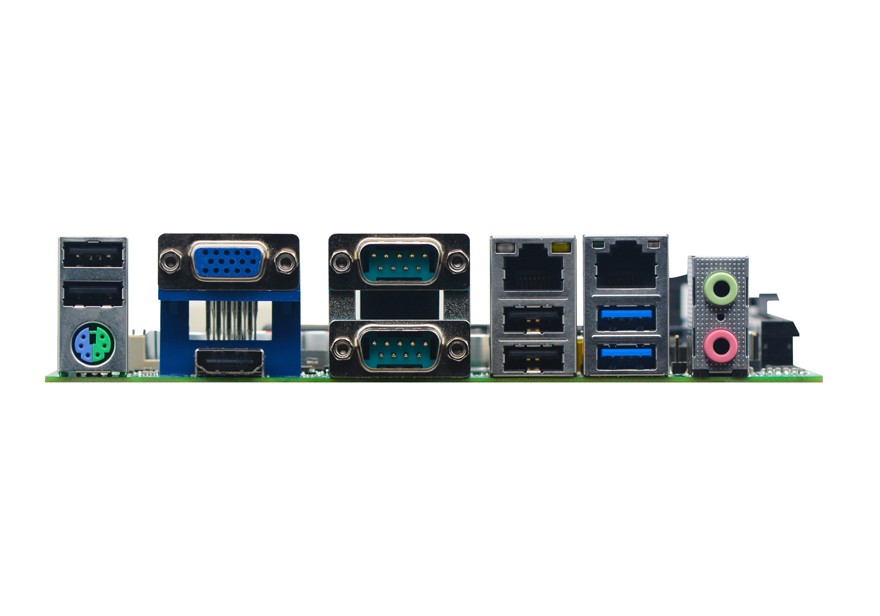

Rear I/O

1* PS/2 port


1* DB15 VGA


1* HDMI1.4


1* Power Switch


2* DB9 RS232 COM port


4* USB2.0


2* USB3.0


2* RJ-45 Gigabit LAN port


1* Power LED, 1* HDD LED


1* Double deck audio port (sound output and MIC input)

Built-in I/O

4* USB2.0 port 2*5pin


1* Front panel audio port (2*5pin)


1* Front panel function button and LED port (2*5pin)


1* 4pin ATX power connector

Fan Connector

1*4pin CPU fan connector; 1*4pin system fan connector

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Support OS

Windows 10/Linux

Power Type

ATX power supply

Working Temp.

0℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


事宜人群:

♦ Support LGA1151 8th Intel® Celeron/Pentium/Core™ i3/i5/i7 CFL-S processor

♦ Adopt Intel® B365 chipset

♦ 2*DDR4 DIMM slot, support dual channel 2133/1866/2400MHz memory, up to 32GB

♦ Integrated Intel® HD Graphics,Support 1*VGA,1*HDMI display output

♦ Integrated 2* WGI211AT Gigabit Ethernet, support wake on LAN/PXE

♦ 1* PCIE3.0 X16 slot


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-P365 VER:1.1

Processor

Support LGA1151 8th Intel® Celeron/Pentium/Core™ i3/i5/i7 CFL-S processor

Chipset

Adopt Intel® B365 chipset

Memory

2*DDR4 DIMM slot, support dual channel 2133/1866/2400MHz memory, up to 32GB

Graphics

Integrated Intel® HD Graphics DirectX12,OpenGL4.5, support 4K display


1* VGA, support the highest resolution: 1920X1200@60Hz


1* HDMI1.4, support the highest resolution: 4096x2304 @24Hz

Network

2* WGI211AT Gigabit Ethernet, support Wake On LAN/PXE function

Storage

4* SATA3.0 HDD port, transmission rate up to 6Gbps

Audio

On board ALC662 6 channel high fidelity audio controller,support MIC/Line-out

Expansion Slot

1* PCIE3.0 X16 slot


1* MSATA slot, support WIFI and SSD (optional via resistor)

Rear I/O

1* PS/2 port


1* DB15 VGA


1* HDMI1.4


1* Power Switch


2* DB9 RS232 COM port


4* USB2.0


2* USB3.0


2* RJ-45 Gigabit LAN port


1* Power LED, 1* HDD LED


1* Double deck audio port (sound output and MIC input)

Built-in I/O

4* USB2.0 port 2*5pin


1* Front panel audio port (2*5pin)


1* Front panel function button and LED port (2*5pin)


1* 4pin ATX power connector

Fan Connector

1*4pin CPU fan connector; 1*4pin system fan connector

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Support OS

Windows 10/Linux

Power Type

ATX power supply

Working Temp.

0℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

DP

LAN

USB

COM

RS485/422

Power

1

ITX-P365 VER:1.1

LGA1151

/

B365

2*DDR4

1

1

/

2*211AT

10

2

/

ATX



SpecificationsITX-P365 VER:1.1


Driver(WINXP/7/8)


OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetIntel_infITX-P365 VER:1.1
Win7/8/10 32/64BITGraphicsVGAITX-P365 VER:1.1
Win7/8/10 32/64BITAudioRealtek AudioITX-P365 VER:1.1
Win7/8/10 32/64BITLAN
IntelITX-P365 VER:1.1
Win7/8/10 32/64BITMEME CorporateITX-P365 VER:1.1
Win7/8/10 32/64BITDPTFDPTFITX-P365 VER:1.1
Win7/8/10 32/64BITRSTRSTITX-P365 VER:1.1
Win7/8/10 32/64BITSerial IOSerial IOITX-P365 VER:1.1



♦ Support LGA1151 8th Intel® Celeron/Pentium/Core™ i3/i5/i7 CFL-S processor

♦ Adopt Intel® B365 chipset

♦ 2*DDR4 DIMM slot, support dual channel 2133/1866/2400MHz memory, up to 32GB

♦ Integrated Intel® HD Graphics,Support 1*VGA,1*HDMI display output

♦ Integrated 2* WGI211AT Gigabit Ethernet, support wake on LAN/PXE

♦ 1* PCIE3.0 X16 slot
