LGA115X H61/H81/H110

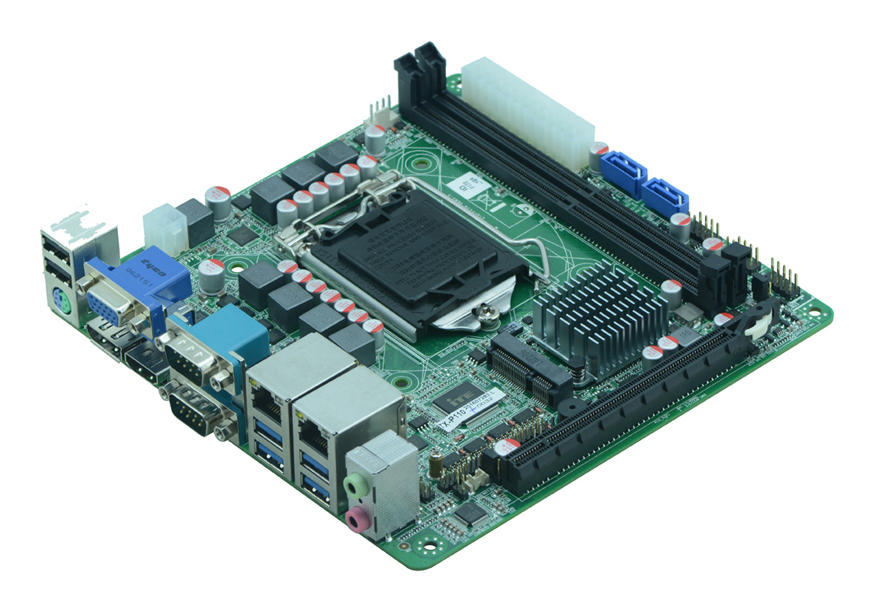

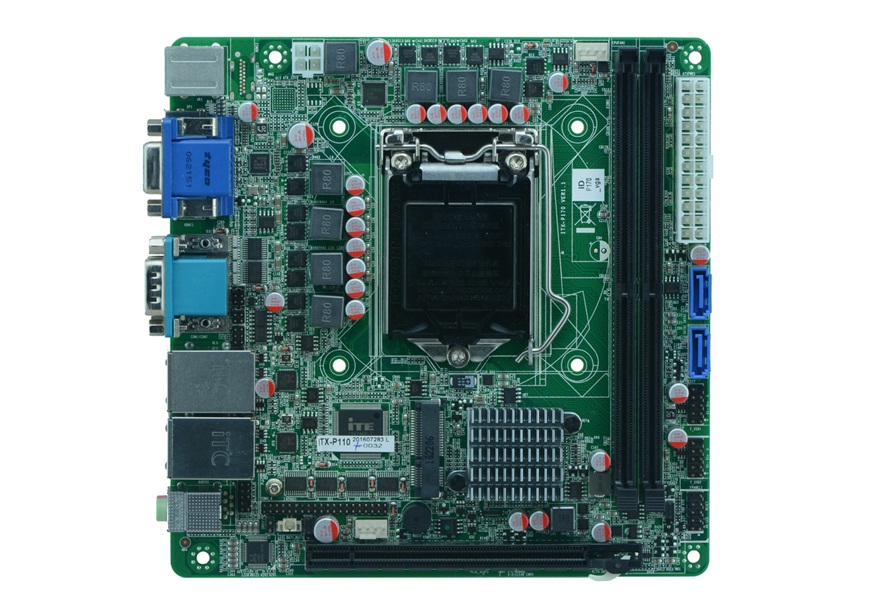

ITX-P110 VER:1.0

项目介绍:

Model No.

ITX-P110 VER:1.0

CPU

Support LGA1151 6th Intel® Core™ i3/i5/i7/Celeron/Pentium Processor

Chipset

Adopt Intel® H110 chipset, Compatible with Intel®Q170/ Q150/H170/Z170/H110 chipset

Memory

2* DDR4 DIMM memory slot, Support double channel 2133/1866MHz Memory, Up to 32GB

Display

Support DirectX12,OpenGL4.4,Support 4K/60Hz display

1* VGA, support resolution 1920X1200@60Hz(Default,with HDMI2.0 Optional)

1* Display Port, support resolution 4096x2304@60Hz(Optional,HDMI1.4 optional)

1* HDMI1.4, support resolution 2560×1600 @60Hz (Default,Display Port optional)

LAN

Integrated 2* RTL8111F Gigabit Ethernet, support wake on LAN/PXE

Storage

2* SATA3.0 ,the transmission rate up to 6Gbps


1* MSATA slot ,support  SSD/WIFI(Default is SSD),the transfer rate up to 6Gbps

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC / Line-out, amplifier

Expansion Slot

1* PCIE3.0 X16 slot


1* Mini-PCIE slot,support WIFI/SSD(WIFI and SSD adjusted via resistance)

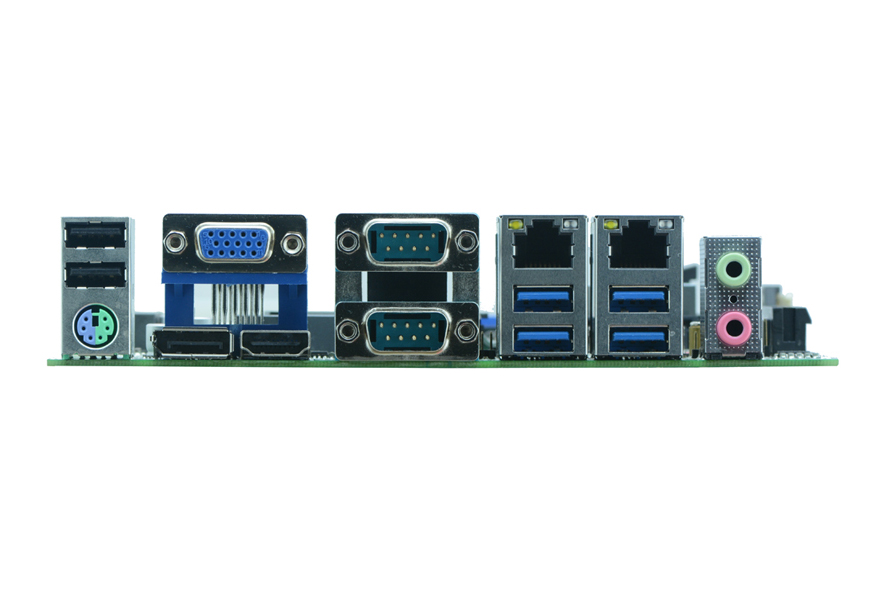

Rear I/O

1* PS/2 (can expandable keyboard and mouse)


1* DB15 VGA (Default ,with HDMI2.0 optional)


1* HDMI1.4 (Default with Display Port optional)


1* Display Port (Optional ,with HDMI1.4 optional)


2* DB9 RS232 serial Port ,the 9th pin of COM1 support 5V/12V charged function


2* USB2.0


4* USB3.0


2* RJ-45 Gigabit Ethernet connector


1* Double deck audio interface(audio output and MIC input)

Internal I/O

4* USB2.0


4* RS232 serial port (COM3 support RS232/RS485/RS422)


1* Front panel audio connector 2*5pin


1* Front panel function buttons and indicator connector 2*5Pin


1* 24pin ATX power input port, 1* 4pin ATX power input port

FAN Connector

1*4pin CPUFAN;1*4pin System FAN connector

BIOS

64Mb Flash ROM

OS

Windows® 7/ 8.1/ 10

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

ATX power input

Working Temp.

-10°C~60°C

Storage Temp

-20°C~70°C

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm



事宜人群:

♦ Support LGA1151 6th Intel® Core™ i3/i5/i7/Celeron/Pentium Processor

♦ Adopt Intel® H110 chipset

♦ 2* DDR4 DIMM memory slot,Support double channel 2133/1866MHz Memory,Up to 32GB

♦ Integrated Intel® HD Graphics

♦ 1*VGA,1*DP.1*HDMI1.4 interface

♦ Integrated 2* RTL8111F Gigabit Ethernet,Support wake on LAN/PXE

♦ 1*PCIE3.0x16 Slot

♦ 6*RS232 serial (COM3 support RS232/RS485/RS422)

  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-P110 VER:1.0

CPU

Support LGA1151 6th Intel® Core™ i3/i5/i7/Celeron/Pentium Processor

Chipset

Adopt Intel® H110 chipset, Compatible with Intel®Q170/ Q150/H170/Z170/H110 chipset

Memory

2* DDR4 DIMM memory slot, Support double channel 2133/1866MHz Memory, Up to 32GB

Display

Support DirectX12,OpenGL4.4,Support 4K/60Hz display

1* VGA, support resolution 1920X1200@60Hz(Default,with HDMI2.0 Optional)

1* Display Port, support resolution 4096x2304@60Hz(Optional,HDMI1.4 optional)

1* HDMI1.4, support resolution 2560×1600 @60Hz (Default,Display Port optional)

LAN

Integrated 2* RTL8111F Gigabit Ethernet, support wake on LAN/PXE

Storage

2* SATA3.0 ,the transmission rate up to 6Gbps


1* MSATA slot ,support  SSD/WIFI(Default is SSD),the transfer rate up to 6Gbps

Audio

Onboard ALC662 6-channel high fidelity audio controller, support MIC / Line-out, amplifier

Expansion Slot

1* PCIE3.0 X16 slot


1* Mini-PCIE slot,support WIFI/SSD(WIFI and SSD adjusted via resistance)

Rear I/O

1* PS/2 (can expandable keyboard and mouse)


1* DB15 VGA (Default ,with HDMI2.0 optional)


1* HDMI1.4 (Default with Display Port optional)


1* Display Port (Optional ,with HDMI1.4 optional)


2* DB9 RS232 serial Port ,the 9th pin of COM1 support 5V/12V charged function


2* USB2.0


4* USB3.0


2* RJ-45 Gigabit Ethernet connector


1* Double deck audio interface(audio output and MIC input)

Internal I/O

4* USB2.0


4* RS232 serial port (COM3 support RS232/RS485/RS422)


1* Front panel audio connector 2*5pin


1* Front panel function buttons and indicator connector 2*5Pin


1* 24pin ATX power input port, 1* 4pin ATX power input port

FAN Connector

1*4pin CPUFAN;1*4pin System FAN connector

BIOS

64Mb Flash ROM

OS

Windows® 7/ 8.1/ 10

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power input

ATX power input

Working Temp.

-10°C~60°C

Storage Temp

-20°C~70°C

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm



No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

DP

LAN

USB

COM

RS485/422

Power

1

ITX-P110 VER:1.0

LGA1151

/

H110

2*DDR4

1

1

1

2*8111F

10

6

COM3

ATX






SpecificationsITX-P110 VER:1.0




Driver(Win7/8/10 )

OSDriver TypeDrive NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-P110
Win7/8/10 32/64BITGraphicsVGAITX-P110
Win7/8/10 32/64BITAudioRealtek AudioITX-P110
Win7/8/10 32/64BITLANRealtekITX-P110
Win7/8/10 32/64BITMEMEITX-P110

Win7/8/10 32/64BITDPTFintel_dptf_81137_1114ITX-P110
Win7/8/10 32/64BITRSTRSTITX-P110
Win7/8/10 32/64BITSerial IOSerial_IOITX-P110
