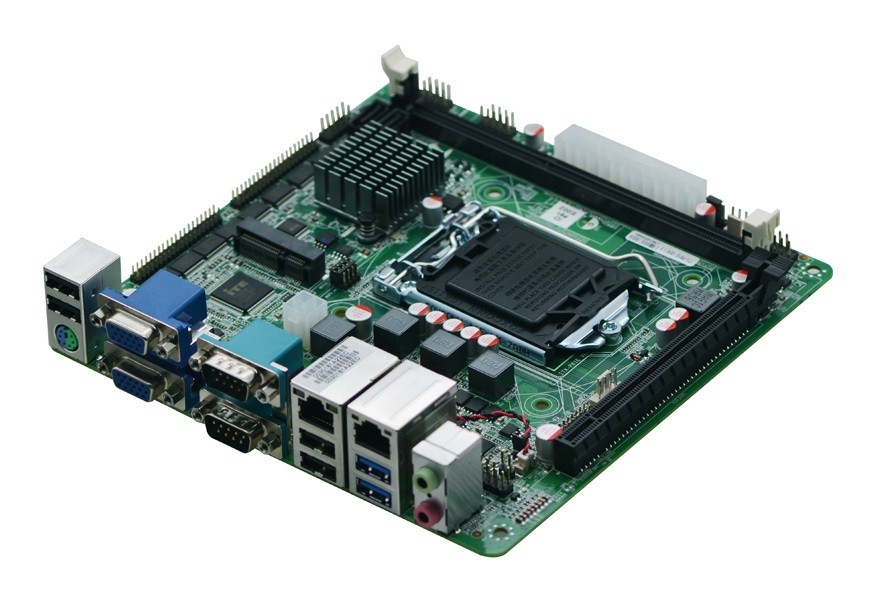

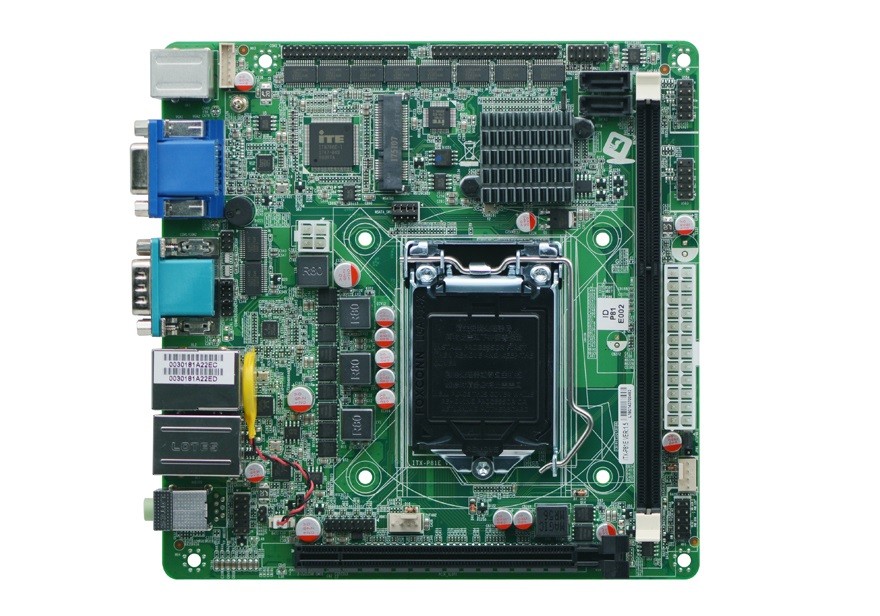

LGA115X H61/H81/H110

ITX-P81E VER:1.5

项目介绍:

Model No.

ITX-P81E VER:1.5

Processor

Support LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

Chipset

Adopt Intel® H81 express chipset

Memory

1* DDRIII DIMM Memory Slot,Support single channel 1600/1333MHz memory,up to 16GB

Display

Integrated Intel® HD graphics,support DirectX11.2,OpenGL4.3


2*VGA,1*HDMI,support 2 x VGA synchronous/asynchronous display ,support VGA/HDMI synchronous/asynchronous display

Network

2* RTL8111F Gigabit LAN port, support Wake On LAN ,PXE function

Storage

2* SATA hard disk(SATA1 support SATA3.0,the transfer rate up to 6Gbps)

Audio

Onboard ALC662 6-channel high fidelity audio controller,support MIC/Line-out

Expansion Slot

1* PCIE X16 slot


1* MSATA slot ,support SSD (default ),WIFI,transfer rate up to 6Gbps

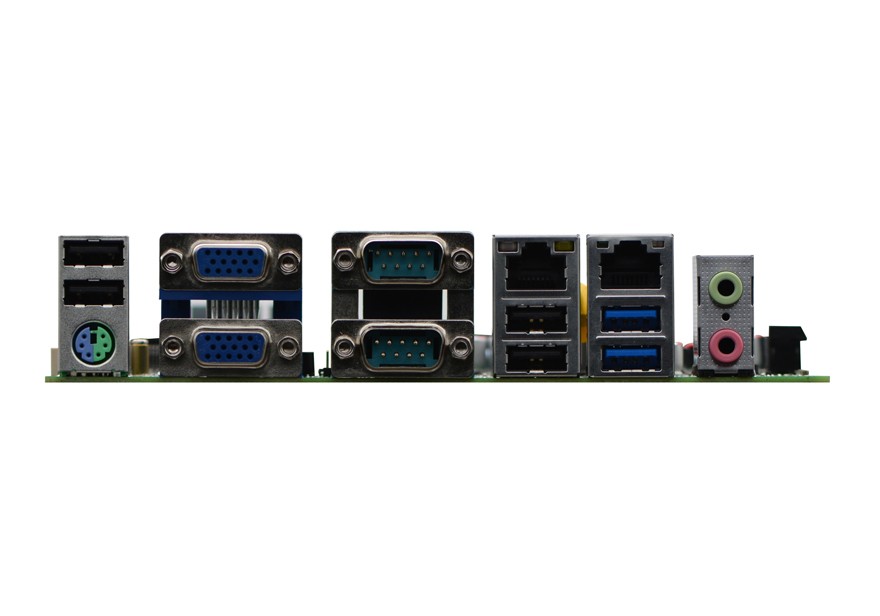

Rear I/O

1* PS/2 KB/MS connect


2* VGA


2* DB9 COM, The 9th pin of COM1 support charged function


4* USB 2.0


2* USB 3.0


2* RJ-45 Gigabit Ethernet Ports


1* dual layer Audio port(audio output / MIC input )

Built-in I/O

1* 24pinATX power input


1*4pin ATX power input

1* HDMI接口(2*8Pin)

1* PS/2 KB/MS connect 1*6Pin


8* RS232 COM  Ports (COM3 support RS232/RS485/RS422)


1* Front Audio Interface  2*5pin


1* HDMI     2*8Pin


4* USB 2.0   2*5Pin


1* front panel function button and LED indicator 2*5pin

Fan Connector

1* 4pinCPU fan connector ;1* 4pin system fan connector

BIOS

64Mb Flash ROM

GPIO

Support 4 way input output GPIO

Watch Dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power Type

Adopt  ATX 24Pin /  4pin power Supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm



事宜人群:

♦ Support LGA1150 Intel® Core™ i3/i5/i7/Celeron/Pentium processor

♦ Intel® H81 Express chipset

♦ 1* DDRIII DIMM Memory slot,Support single channel 1600/1333MHz Memory,Up to 16GB

♦ Integrated Intel® HD Graphics

♦ Support 2*VGA,1*HDMI display output

♦ 2* RTL8111F Gigabit Ethernet,Support wake on LAN/PXE

♦ 10* RS232 serial port(COM3 support RS232/RS485/RS422)

♦ 8*USB,2*USB2.0



  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-P81E VER:1.5

Processor

Support LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

Chipset

Adopt Intel® H81 express chipset

Memory

1* DDRIII DIMM Memory Slot,Support single channel 1600/1333MHz memory,up to 16GB

Display

Integrated Intel® HD graphics,support DirectX11.2,OpenGL4.3


2*VGA,1*HDMI,support 2 x VGA synchronous/asynchronous display ,support VGA/HDMI synchronous/asynchronous display

Network

2* RTL8111F Gigabit LAN port, support Wake On LAN ,PXE function

Storage

2* SATA hard disk(SATA1 support SATA3.0,the transfer rate up to 6Gbps)

Audio

Onboard ALC662 6-channel high fidelity audio controller,support MIC/Line-out

Expansion Slot

1* PCIE X16 slot


1* MSATA slot ,support SSD (default ),WIFI,transfer rate up to 6Gbps

Rear I/O

1* PS/2 KB/MS connect


2* VGA


2* DB9 COM, The 9th pin of COM1 support charged function


4* USB 2.0


2* USB 3.0


2* RJ-45 Gigabit Ethernet Ports


1* dual layer Audio port(audio output / MIC input )

Built-in I/O

1* 24pinATX power input


1*4pin ATX power input

1* HDMI接口(2*8Pin)

1* PS/2 KB/MS connect 1*6Pin


8* RS232 COM  Ports (COM3 support RS232/RS485/RS422)


1* Front Audio Interface  2*5pin


1* HDMI     2*8Pin


4* USB 2.0   2*5Pin


1* front panel function button and LED indicator 2*5pin

Fan Connector

1* 4pinCPU fan connector ;1* 4pin system fan connector

BIOS

64Mb Flash ROM

GPIO

Support 4 way input output GPIO

Watch Dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Windows 10/Linux

Power Type

Adopt  ATX 24Pin /  4pin power Supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm



NO.

Model

Processor

Memory

VGA

HDMI

LAN

USB

COM

RS485/422

Power

1

ITX-P81E VER:1.5

LGA1150

1*DDR3

2

1

2*RTL8111F

10

10

1

ATX



SpecificationsITX-P81E




Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-M81
Win7/8/10 32/64BITGraphicsVGAITX-M81
Win7/8/10 32/64BITAudioRealtek AudioITX-M81
Win7/8/10 32/64BITLANRealtekITX-M81
Win7/8/10 32/64BITMEME_SW_MSIITX-M81




♦ Support LGA1150 Intel® Core™ i3/i5/i7/Celeron/Pentium processor

♦ Intel® H81 Express chipset

♦ 1* DDRIII DIMM Memory slot,Support single channel 1600/1333MHz Memory,Up to 16GB

♦ Integrated Intel® HD Graphics

♦ Support 2*VGA,1*HDMI display output

♦ 2* RTL8111F Gigabit Ethernet,Support wake on LAN/PXE

♦ 10* RS232 serial port(COM3 support RS232/RS485/RS422)

♦ 8*USB,2*USB2.0
