LGA115X H61/H81/H110

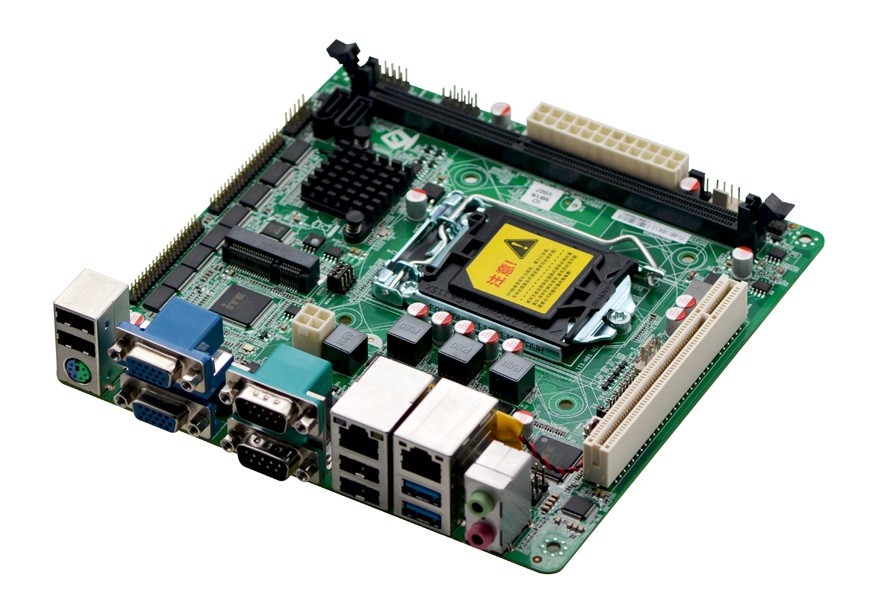

ITX-M81 VER:1.2

项目介绍:

Processor

Support LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

Chipset

Adopt Intel® H81 High express chipset

Memory

1* DDRIII DIMM memory slot, support single channel 1600/1333MHz memory,up to 16GB

Display

Integrated Intel® HD Graphic, Support DirectX11.2,OpenGL4.3


2*VGA,1*HDMI,Support dual VGA synchronous/asynchronous display,support VGA/HDMI synchronous/asynchronous display

Network

2* WGI211AT Gigabit LAN ports,support Wake-On-LAN /PXE function

Storage

2* SATA HDD Slot (SATA1 support SATA3.0,Transfer rate up to 6Gbps)

Audio

Onboard  ALC662 6-channel audio controller ,support MIC/Line-out

Expansion Slot

1* PCI slot


1* MSATA slot ,support SSD,WIFI(default : SSD),support Intel Agreement SSD Hard Disk,Transfer rate up to 6Gbps

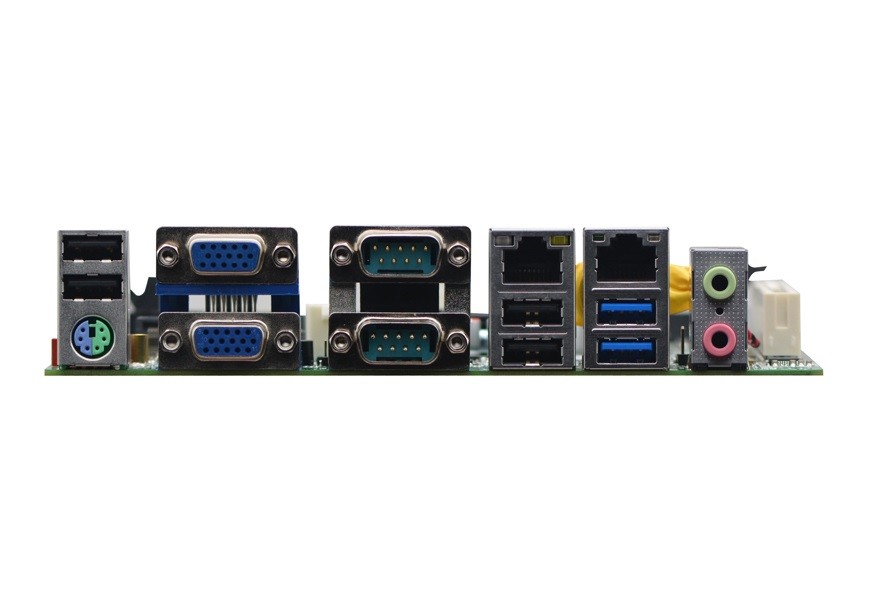

Rear I/O

1* PS/2  (Keyboard and Mouse extendable )


2* VGA


2* DB9 RS232 Serial Ports ,COM1 Support 9th Pin charged function


4* USB 2.0


2* USB 3.0


2* RJ-45 Gigabit Ethernet Ports


1* dual layer audio port (Audio Output and MIC)

Built-in I/O

1* 24pinATX  Power Input


1*4pin ATX Power Input


1* PS/2 Keyboard / mouse Port 1*6Pin


8* RS232 Serial Interface (COM3 can support RS232/RS485/RS422)


1* Front Audio Interface  2*5pin


1* HDMI port , 2*8Pin


4* USB 2.0   2*5Pin


1* front panel function buttons and indicator connector  2*5pin

Fan Connector

1* 4pin CPU Fan Port ;1* 4pin System Fan Port

BIOS

64Mb Flash ROM

GPIO

Support 4 way input output GPIO

Watch Dog

Support hardware reset function (L256, 0~255 seconds)

Operating System

Windows 7/Windows 10/Linux

Power Type

Adopt ATX 24 Pin and 4pin Power Input

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm



事宜人群:

♦ Support LGA1150 Intel® Core i3/i5/i7/Celeron/Pentium processor

♦ Adopt Intel® H81 Express chipset

♦ 1* DDRIII DIMM slot,support1600/1333MHz memory, max. up to16GB

♦ Integrated Intel® HD Graphics,Support 2*VGA,1*HDMI display output

♦Integrated 2* WGI211AT Gigabit Ethernet, support wake on LAN/PXE

♦1*PCI slot

♦10*RS232 serial port,(COM3 support RD232/RD485/RD422)

♦8*USB,2*USB3.0



  • Product Specifications
  • Ordering Information
  • Download Center

Processor

Support LGA1150 Intel® Celeron/Pentium/Core™ i3/i5/i7 processor

Chipset

Adopt Intel® H81 High express chipset

Memory

1* DDRIII DIMM memory slot, support single channel 1600/1333MHz memory,up to 16GB

Display

Integrated Intel® HD Graphic, Support DirectX11.2,OpenGL4.3


2*VGA,1*HDMI,Support dual VGA synchronous/asynchronous display,support VGA/HDMI synchronous/asynchronous display

Network

2* WGI211AT Gigabit LAN ports,support Wake-On-LAN /PXE function

Storage

2* SATA HDD Slot (SATA1 support SATA3.0,Transfer rate up to 6Gbps)

Audio

Onboard  ALC662 6-channel audio controller ,support MIC/Line-out

Expansion Slot

1* PCI slot


1* MSATA slot ,support SSD,WIFI(default : SSD),support Intel Agreement SSD Hard Disk,Transfer rate up to 6Gbps

Rear I/O

1* PS/2  (Keyboard and Mouse extendable )


2* VGA


2* DB9 RS232 Serial Ports ,COM1 Support 9th Pin charged function


4* USB 2.0


2* USB 3.0


2* RJ-45 Gigabit Ethernet Ports


1* dual layer audio port (Audio Output and MIC)

Built-in I/O

1* 24pinATX  Power Input


1*4pin ATX Power Input


1* PS/2 Keyboard / mouse Port 1*6Pin


8* RS232 Serial Interface (COM3 can support RS232/RS485/RS422)


1* Front Audio Interface  2*5pin


1* HDMI port , 2*8Pin


4* USB 2.0   2*5Pin


1* front panel function buttons and indicator connector  2*5pin

Fan Connector

1* 4pin CPU Fan Port ;1* 4pin System Fan Port

BIOS

64Mb Flash ROM

GPIO

Support 4 way input output GPIO

Watch Dog

Support hardware reset function (L256, 0~255 seconds)

Operating System

Windows 7/Windows 10/Linux

Power Type

Adopt ATX 24 Pin and 4pin Power Input

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm



NO.

Model

Processor

Memory

VGA

HDMI

LAN

USB

COM

RS485/422

Power

1

ITX-M81 VER:1.2

LGA1150

1*DDR3

2

1

2*WGI211AT

10

10

1

ATX



SpecificationsITX-M81 VER:1.2


Driver(WIN7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-M81
Win7/8/10 32/64BITGraphicsVGAITX-M81
Win7/8/10 32/64BITAudioRealtek AudioITX-M81
Win7/8/10 32/64BITLANIntel
ITX-M81
Win7/8/10 32/64BITMEME_SW_MSIITX-M81


♦ Support LGA1150 Intel® Core i3/i5/i7/Celeron/Pentium processor

♦ Adopt Intel® H81 Express chipset

♦ 1* DDRIII DIMM slot,support1600/1333MHz memory, max. up to16GB

♦ Integrated Intel® HD Graphics,Support 2*VGA,1*HDMI display output

♦Integrated 2* WGI211AT Gigabit Ethernet, support wake on LAN/PXE

♦1*PCI slot

♦10*RS232 serial port,(COM3 support RD232/RD485/RD422)

♦8*USB,2*USB3.0
