Skylake-U/Kabylake-U

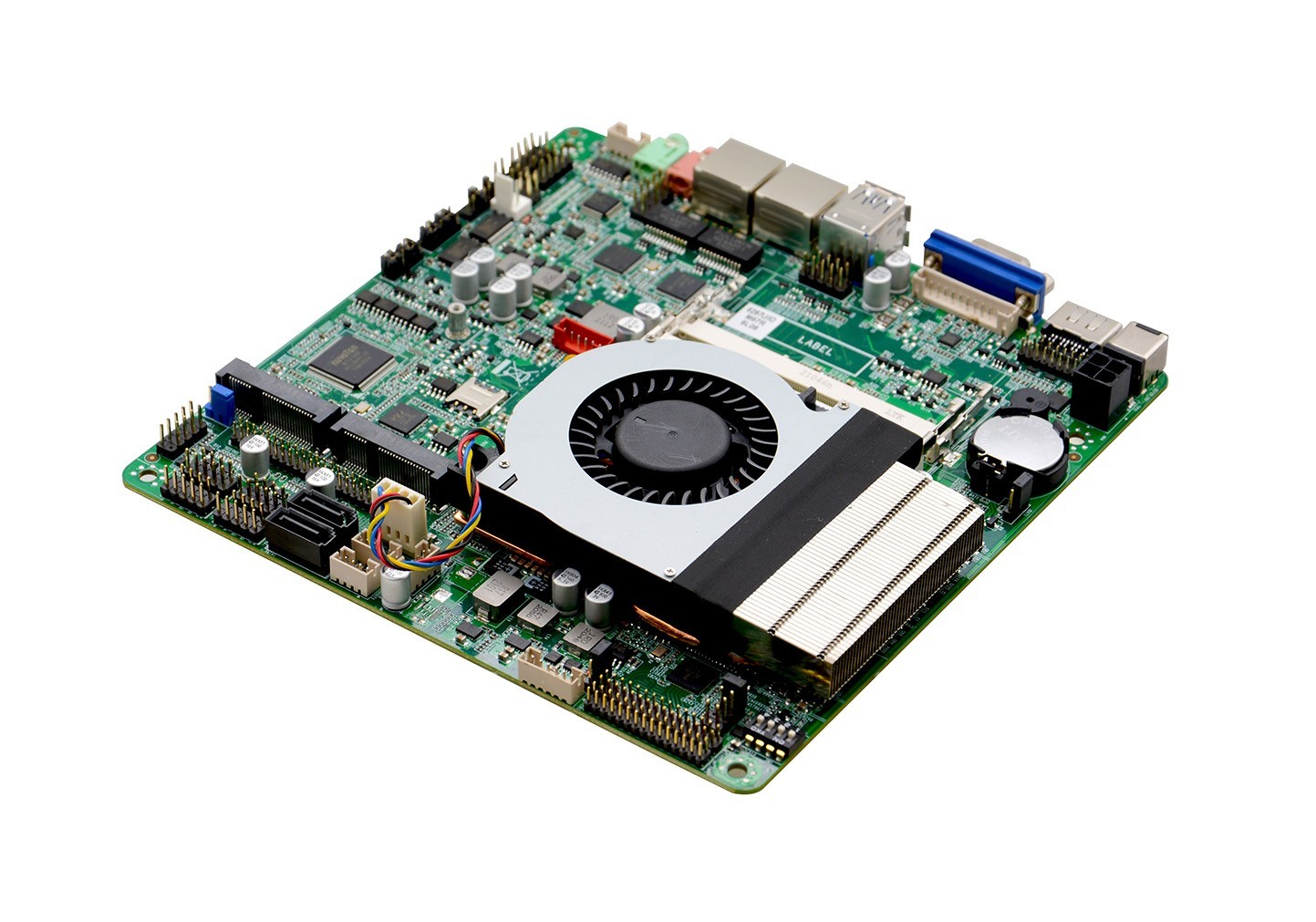

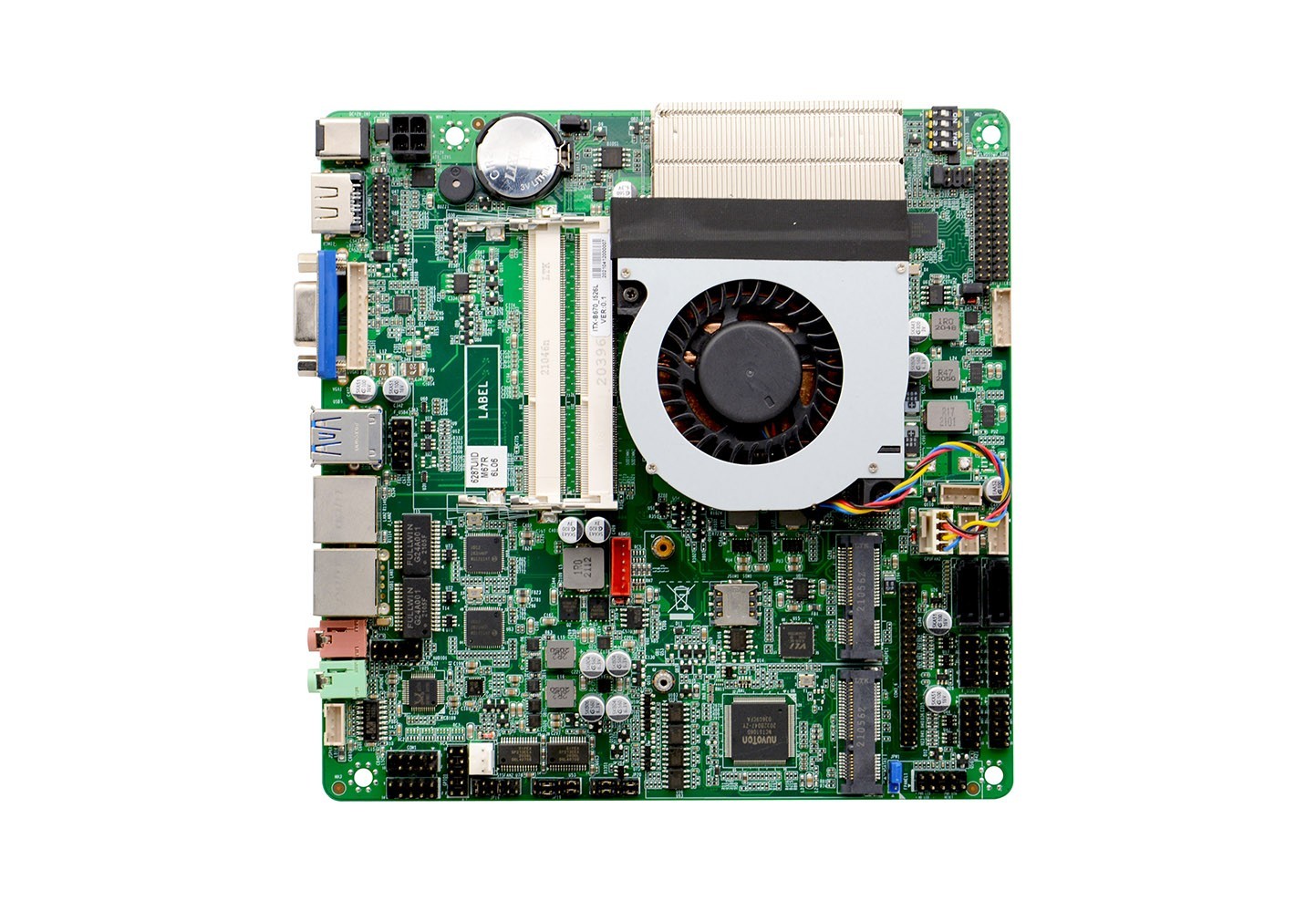

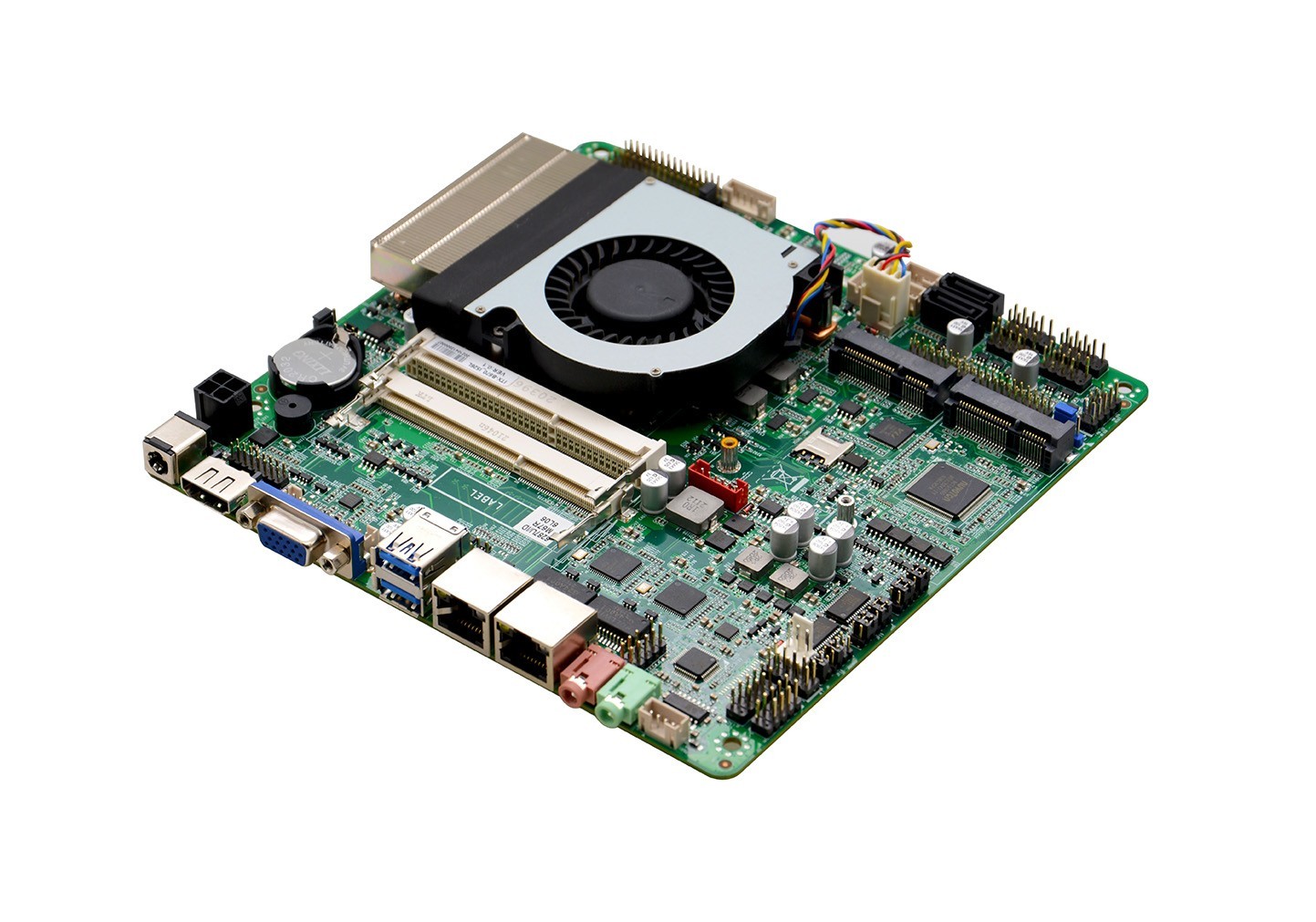

ITX-B670_I526L VER: 0.1

项目介绍:

Product No.

ITX-B670_I526L VER: 0.1

Processor

Integrated Intel®I5-6287U 3.1GHz dual-core processor, TDP 28W


Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

Chipset

SOC

RAM

2*DDR3L SODIMM memory slot, support 1600MHz memory, maximum support 16GB

Display



Integrated Intel® Iris® Graphics550, support DirectX 12, OpenGL 4.5, support 4K

1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz

1*Support dual channel 24bit LVDS interface

Internet

2* Intel WGI211AT Gigabit network card, support Wake on LAN, PXE function

Store



2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps

Audio

Integrated ALC268 2-channel high-fidelity audio controller, support MIC, Line_out, power amplifier


Support power amplifier 2Ω5W speaker

Expansion slot

1* Mini-PCIE slot, support WIFI/4G module

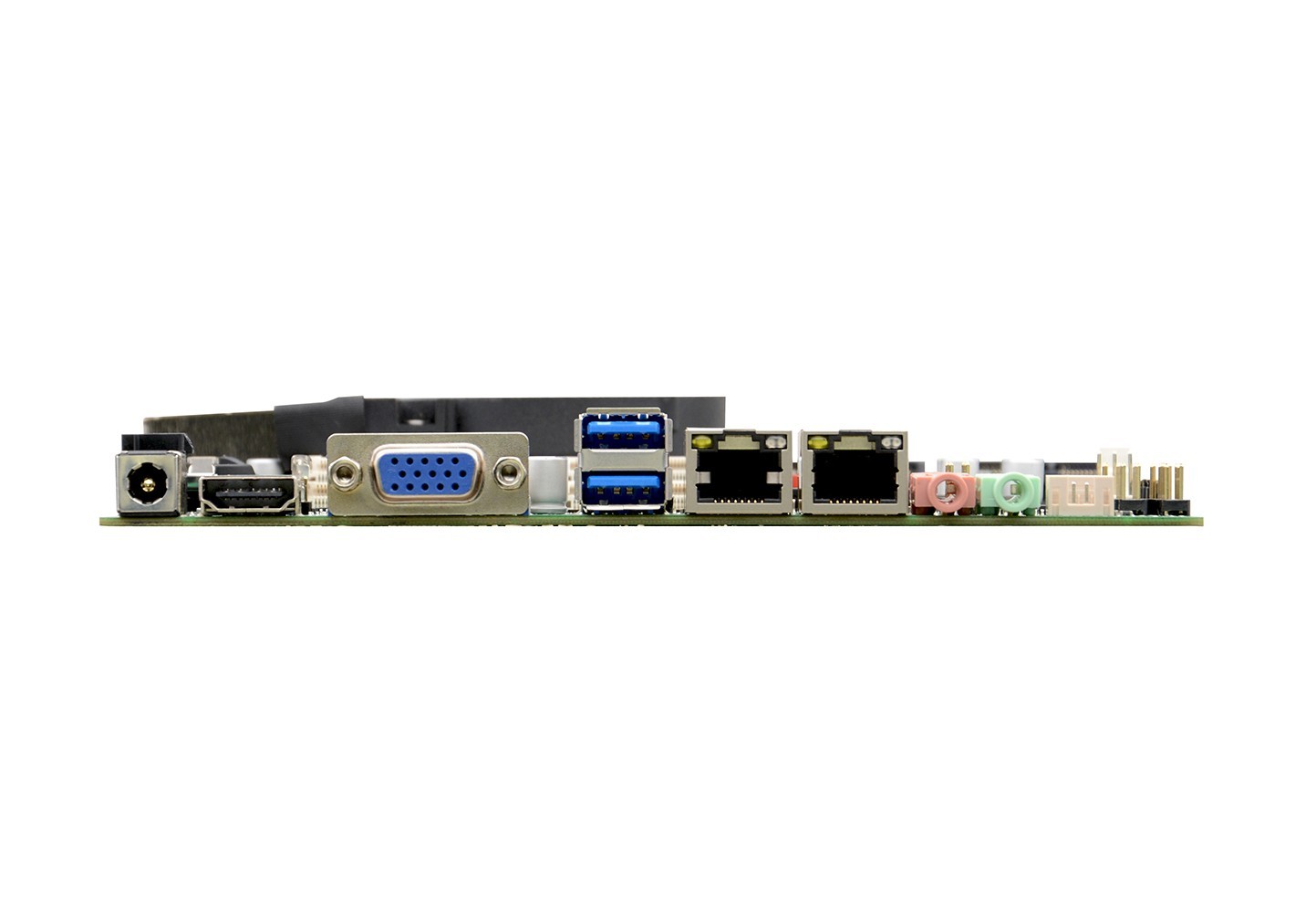

Backplane I/O interface



2* USB3.0 interface,

1* HDMI port

1* DB15 VGA interface

2* RJ45 Gigabit network interface

1*Line-out (green), 1*MIC (red)

1*DC12V power supply, support 12V power input and output

Built-in I/O interface



1* JVGA1 interface 1*12pin (same signal with DB15)

1* JHDMI interface 2*8pin (same signal as HDMI interface)

1* LVDS interface 2*15pin, support dual channel 24bit

1*LVDS backlight power supply interface 1*6pin

1*Screen brightness adjustment interface 1*4pin

6*RS232 serial interface, COM2/3 supports RS485/422 function

10* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* Front panel switch button and indicator light interface 2*5Pin

2* Hard disk power supply interface 1*4pin

1* power amplifier interface 1*4pin


1* PS/2 keyboard and mouse interface

1* 4pin ATX power interface (can be used as 12V input and output power interface)

Fan interface

1*4pin CPU smart fan interface, 1* 4pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Powered by DC 12V power supply

operating system

 Windows 7, Windows 8, Windows 10, Linux

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


事宜人群:

♦Integrated Intel®I5-6287U 3.1GHz dual-core processor, TDP 28W

♦Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

♦2*DDR3L SODIMM memory slot, support 1600MHz memory, maximum support 16GB

♦Integrated Intel® Iris® Graphics550, support DirectX 12, OpenGL 4.5, support 4K

♦1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

♦1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz

♦1*Support dual channel 24bit LVDS interface

♦2* Intel WGI211AT Gigabit network card, support Wake on LAN, PXE function

♦2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

♦1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

ITX-B670_I526L VER: 0.1

Processor

Integrated Intel®I5-6287U 3.1GHz dual-core processor, TDP 28W


Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

Chipset

SOC

RAM

2*DDR3L SODIMM memory slot, support 1600MHz memory, maximum support 16GB

Display



Integrated Intel® Iris® Graphics550, support DirectX 12, OpenGL 4.5, support 4K

1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz

1*Support dual channel 24bit LVDS interface

Internet

2* Intel WGI211AT Gigabit network card, support Wake on LAN, PXE function

Store



2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps

Audio

Integrated ALC268 2-channel high-fidelity audio controller, support MIC, Line_out, power amplifier


Support power amplifier 2Ω5W speaker

Expansion slot

1* Mini-PCIE slot, support WIFI/4G module

Backplane I/O interface



2* USB3.0 interface,

1* HDMI port

1* DB15 VGA interface

2* RJ45 Gigabit network interface

1*Line-out (green), 1*MIC (red)

1*DC12V power supply, support 12V power input and output

Built-in I/O interface



1* JVGA1 interface 1*12pin (same signal with DB15)

1* JHDMI interface 2*8pin (same signal as HDMI interface)

1* LVDS interface 2*15pin, support dual channel 24bit

1*LVDS backlight power supply interface 1*6pin

1*Screen brightness adjustment interface 1*4pin

6*RS232 serial interface, COM2/3 supports RS485/422 function

10* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* Front panel switch button and indicator light interface 2*5Pin

2* Hard disk power supply interface 1*4pin

1* power amplifier interface 1*4pin


1* PS/2 keyboard and mouse interface

1* 4pin ATX power interface (can be used as 12V input and output power interface)

Fan interface

1*4pin CPU smart fan interface, 1* 4pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Powered by DC 12V power supply

operating system

 Windows 7, Windows 8, Windows 10, Linux

Operating temperature

-1060

Storage temperature

-2070

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

485/422

Power

1

ITX-B670_I526L VER:0.1

I5-6287U

3.1G

1*SODDR3L

1

1

2ch/24Bit

/

1*211AT

12

6

2

DC12V


SpecificationITX-B670




Driver(Win7/8/10 )

OSDriver typeDriver nameDownload now
Win7/8/10 32/64BITChipsetchipsetITX-B670
Win7/8/10 32/64BITGraphicsVGAITX-B670
Win7/8/10 32/64BITAudioRealtek AudioITX-B670
Win7/8/10 32/64BITLANIntel
ITX-B670
Win7/8/10 32/64BITMEMEITX-B670
Win7/8/10 32/64BITDPTFintel_dptf_81137_1114ITX-B670
Win7/8/10 32/64BITRSTRSTITX-B670
Win7/8/10 32/64BITSerial IOSerial_IOITX-B670
