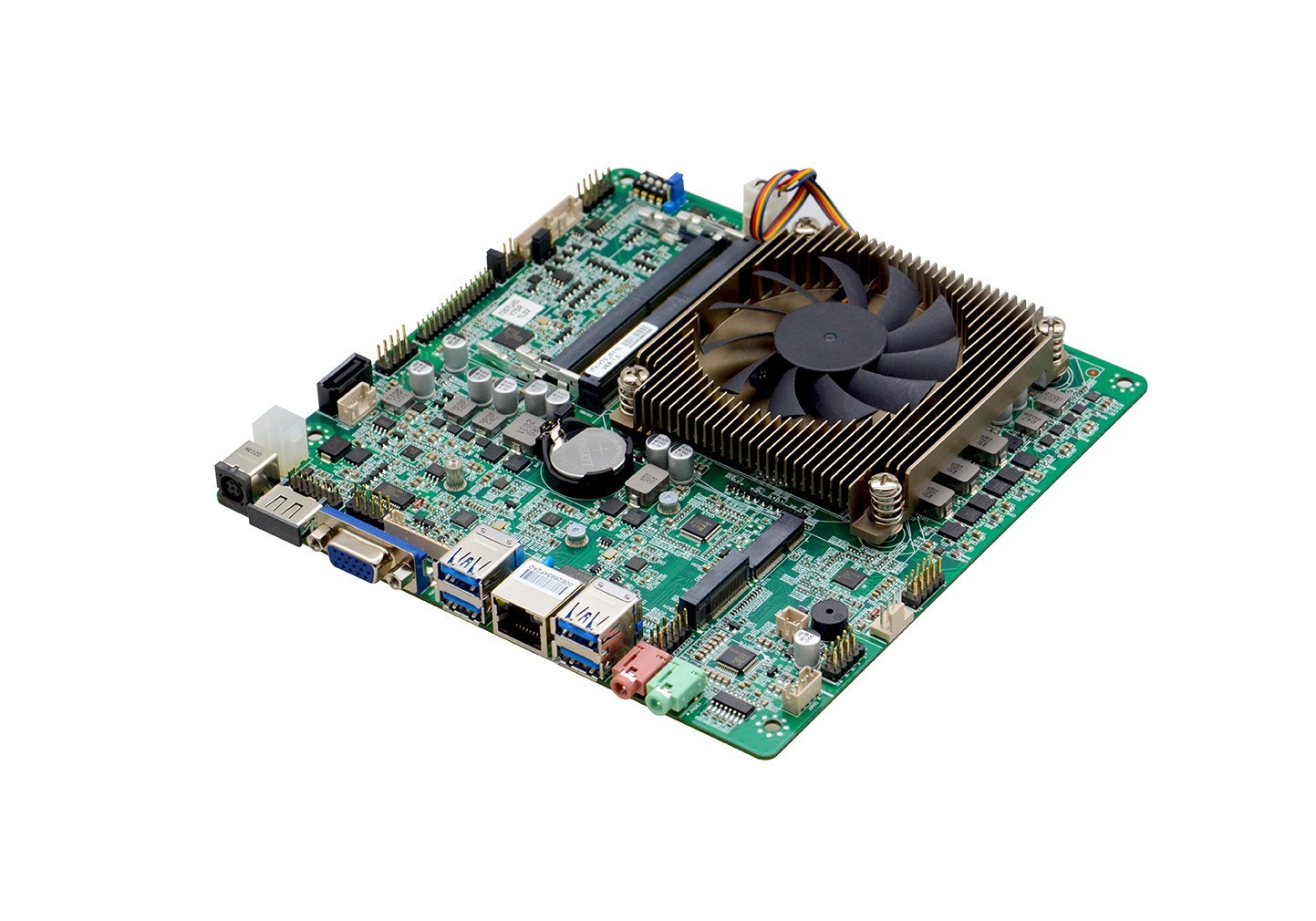

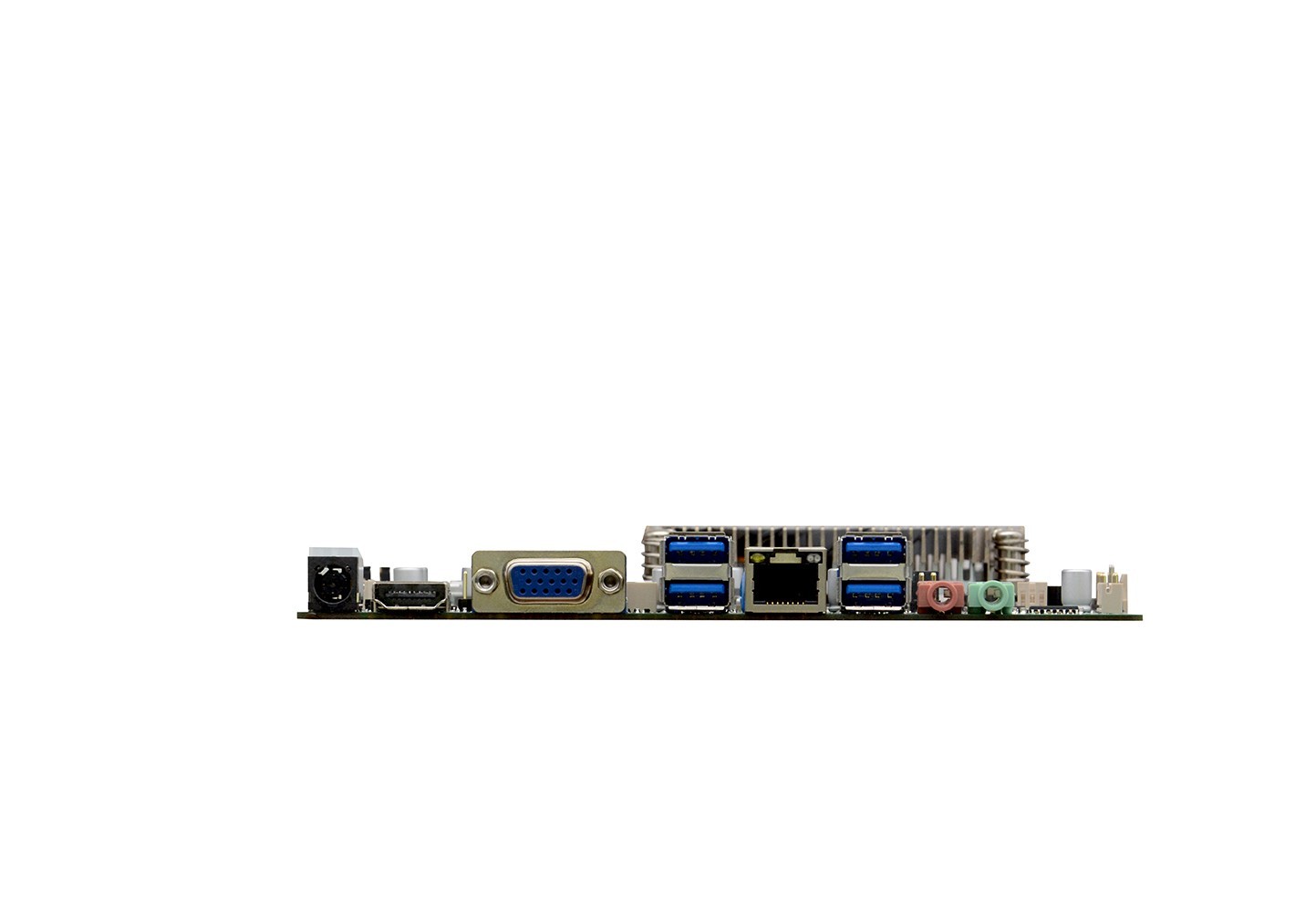

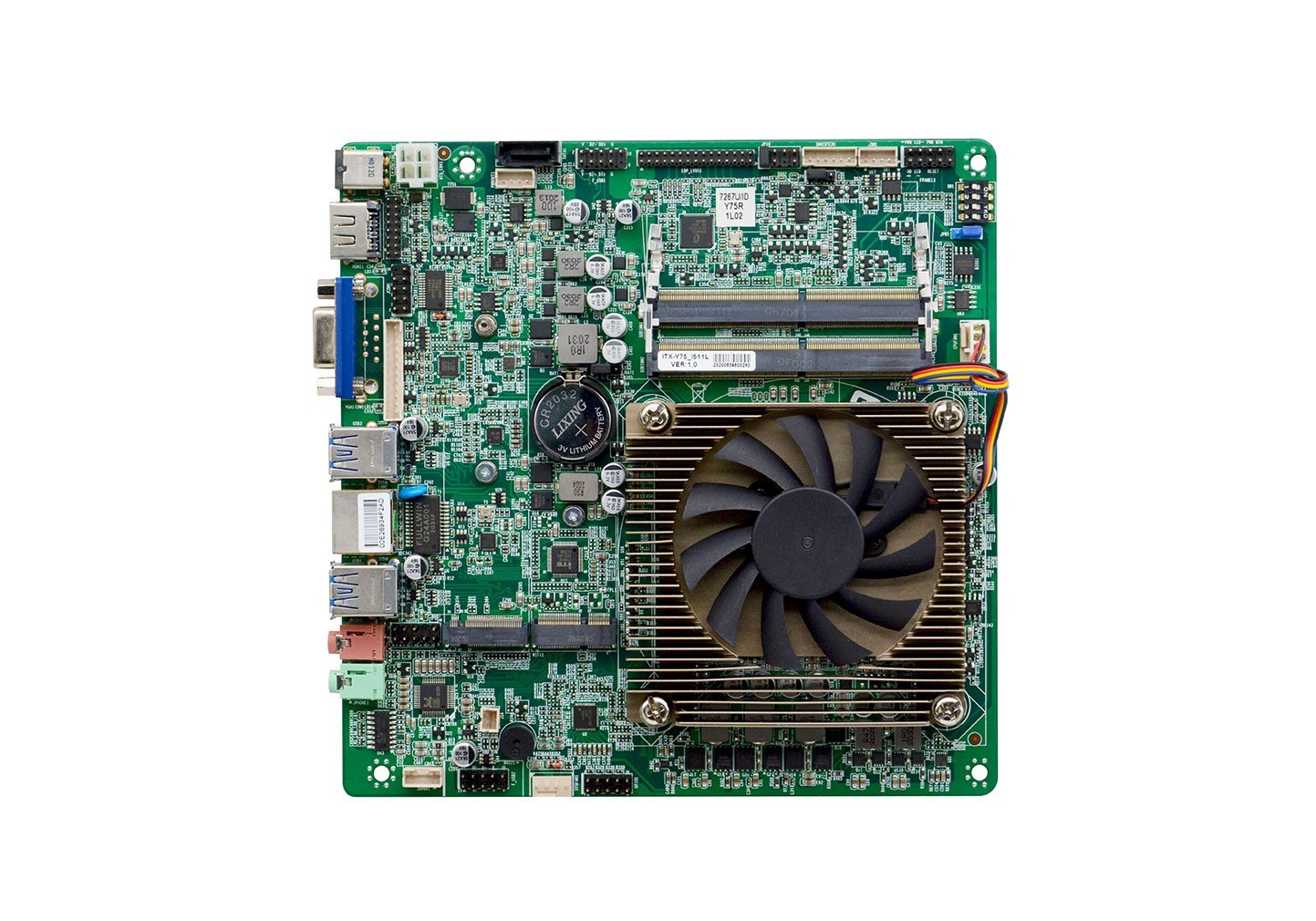

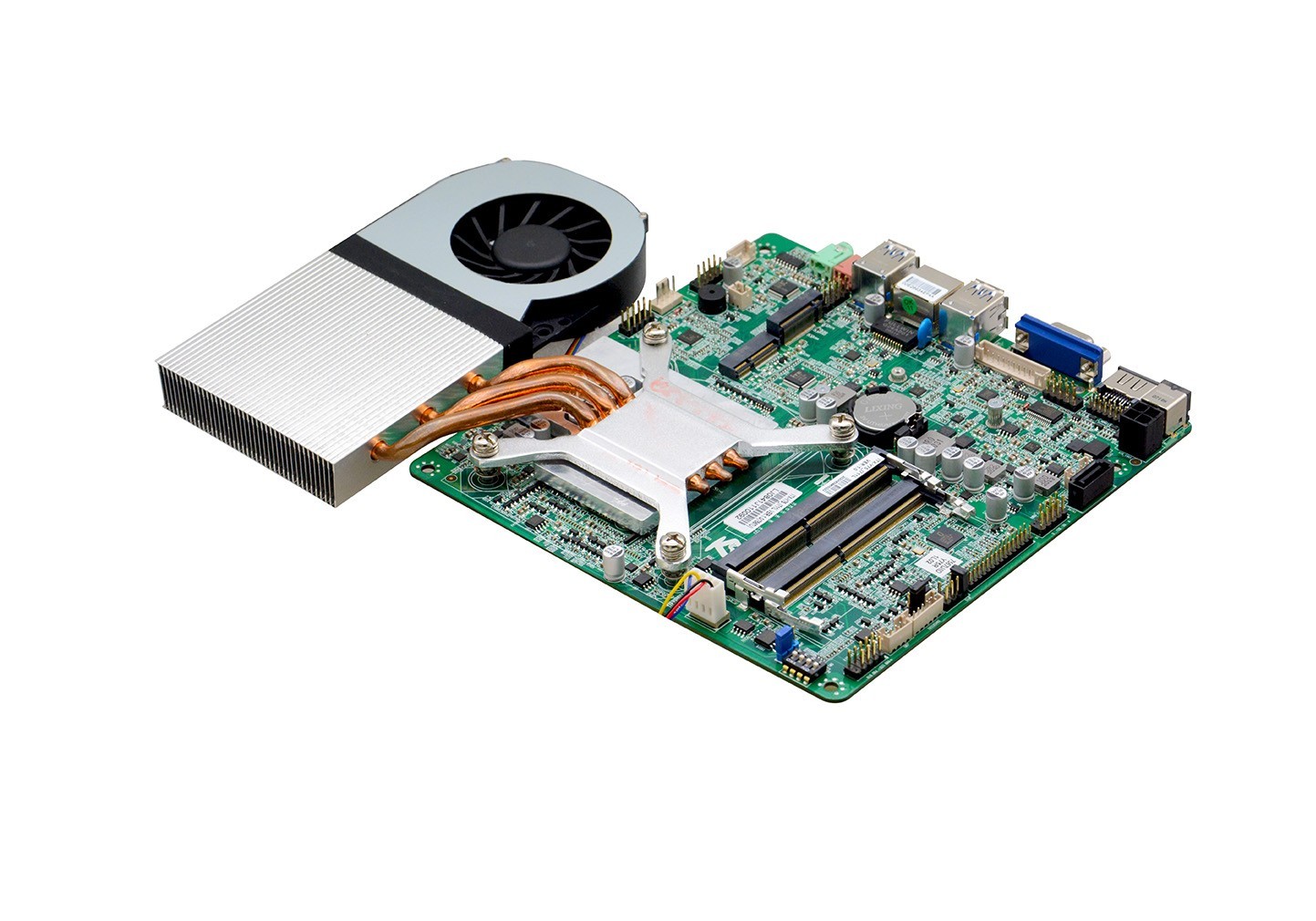

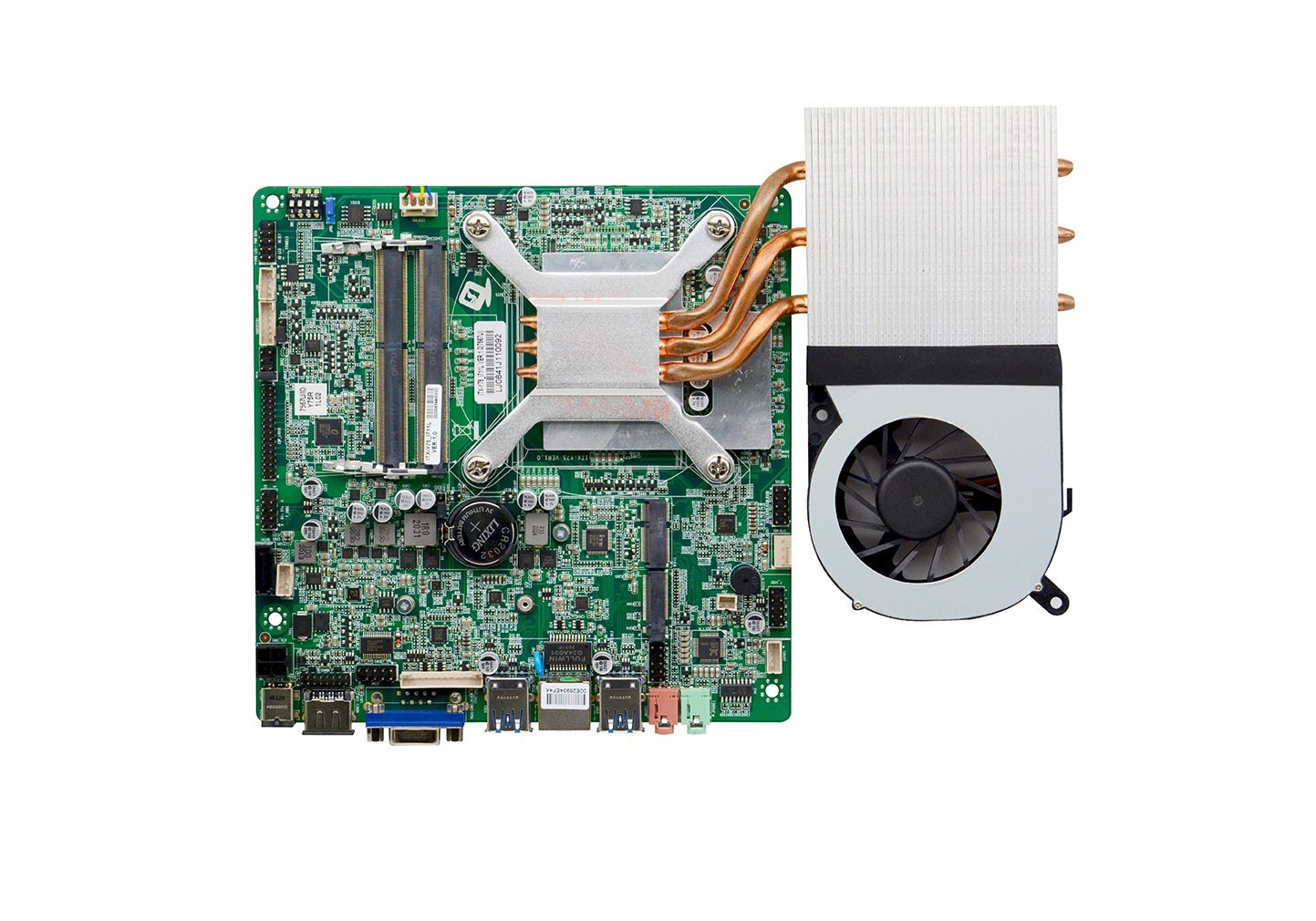

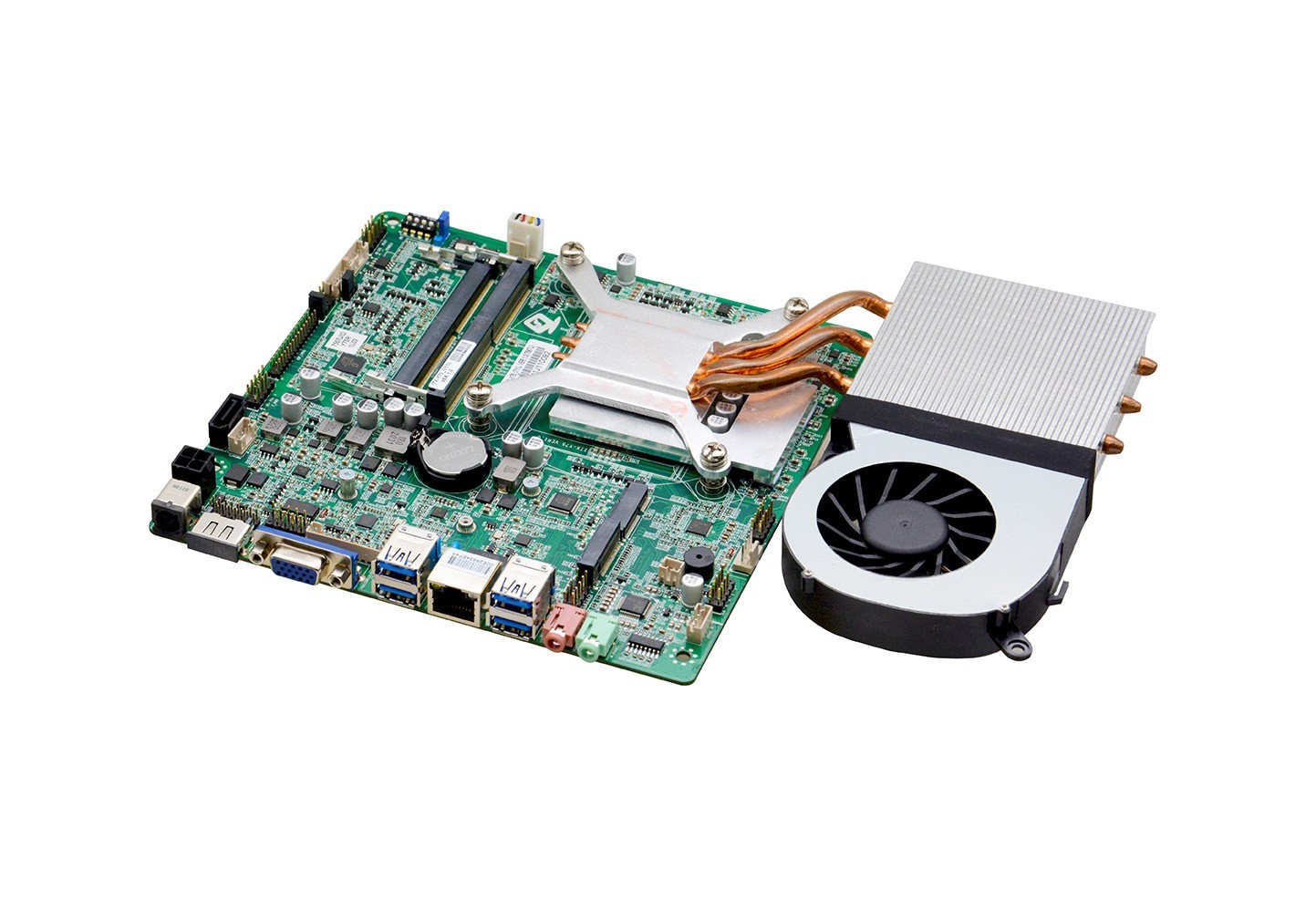

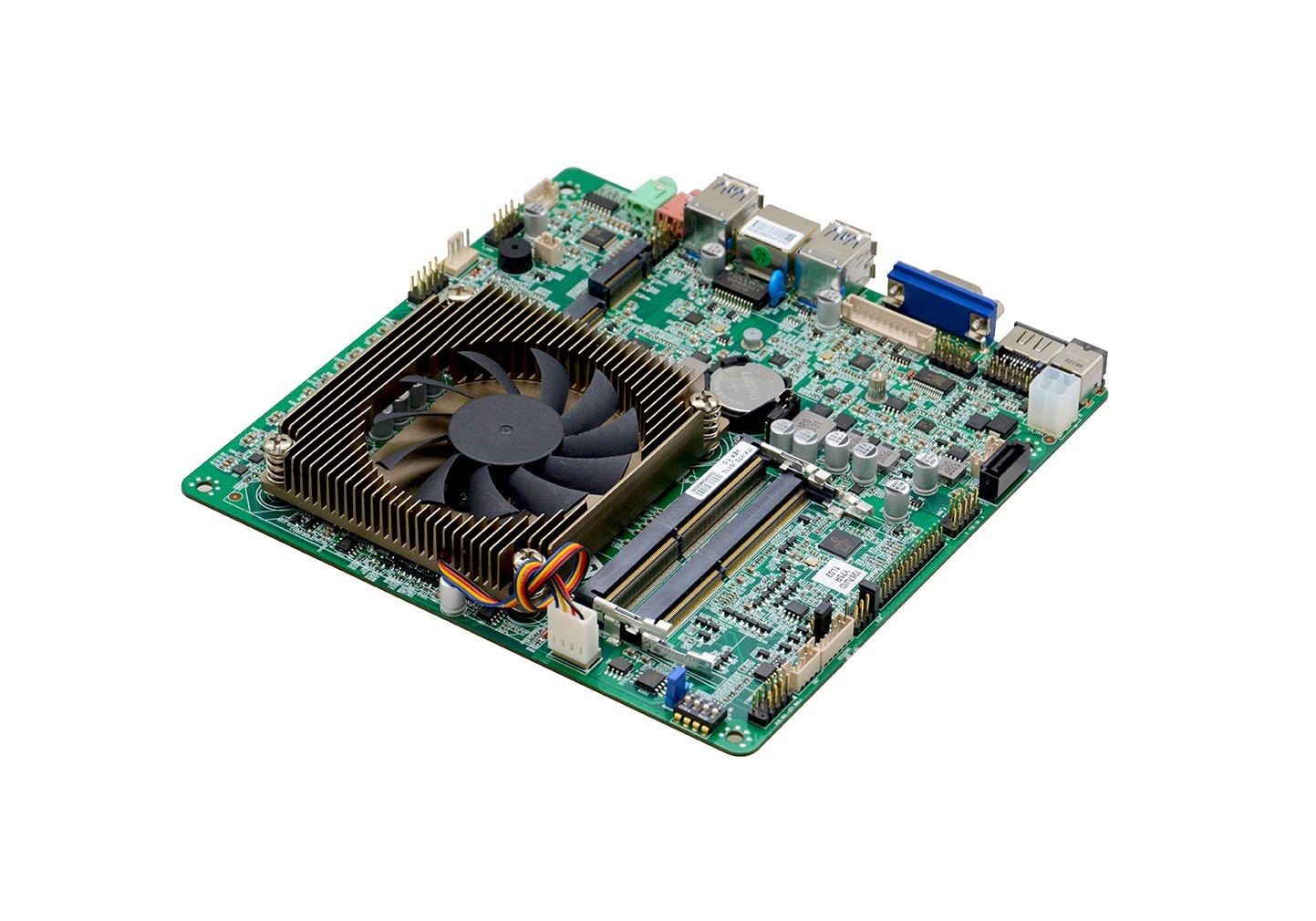

ITX-Y75_I711L VER:1.0(7567U)

项目介绍:

Product No.

ITX-Y75_I711L VER:1.0(7567U)

Processor

Integrated Intel@ I7-7567U 3.5GHz dual-core four-thread processor, TDP 28W

Chipset

Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

SOC

RAM

2* SODIMM memory slot, support dual-channel DDR4 2133MHz memory, maximum support 32GB

Show

Integrated Intel® Iris® Plus Graphics 650 core graphics card, support DirectX12, OpenGL4.5, support 4K display

The internet

1* VGA interface, support the highest resolution 1920X1200@60Hz

Store



1* HDMI interface, the highest resolution supported is 4096x2304@30Hz

1*LVDS interface, support dual channel 24BIT

Audio

1* RTL8111H Gigabit Ethernet chip, support Wake on LAN/PXE function

Expansion slot

1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

Backplane I/O interface



1* M.2 slot, support M.2 2280/2260 PCIE x4/SATA specification SSD, PCIE/SATA signal automatic recognition

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier

Power amplifier supports 2Ω/5W dual channel

1* M.2 slot, support M.2 2230 WIFI module

4* USB3.0 interface,

1* HDMI port

Built-in I/O interface



1* VGA display interface

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC19V power input interface

1* JVGA interface 1*12pin, same signal as VGA interface

1* JHDMI interface 2*8pin, same signal as HDMI interface

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface 2*5pin, choose one of the two with DB9 serial interface

4* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin


1* power amplifier interface 1*4pin

Fan interface

1* Hard disk power supply voltage interface 1*4pin

BIOS

1* Front panel function button and indicator port 2*5pin

GPIO

1*4pin ATX power interface. Support 19V power input and output

support system

1*4pin CPU intelligent fan interface; 1*4pin system intelligent fan interface

Watchdog

64Mb Flash ROM

Power type

Support 4 input and output GPIO function

Operating temperature

Windows® 7/ 8.1/ 10

Storage temperature

Support hardware reset function (256 levels, 0~255 seconds)

Working humidity

Support DC19V power supply



事宜人群:

♦Integrated Intel@ I7-7567U 3.5GHz dual-core four-thread processor, TDP 28W

♦Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

♦2* SODIMM memory slot, support dual-channel DDR4 2133MHz memory, maximum support 32GB

♦Integrated Intel® Iris® Plus Graphics 650 core graphics card, support DirectX12, OpenGL4.5, support 4K display

♦1* VGA interface, support the highest resolution 1920X1200@60Hz

♦1* HDMI interface, the highest resolution supported is 4096x2304@30Hz

♦1*LVDS interface, support dual channel 24BIT

♦1* RTL8111H Gigabit Ethernet chip, support Wake on LAN/PXE function

♦1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps


  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

ITX-Y75_I711L VER:1.0(7567U)

Processor

Integrated Intel@ I7-7567U 3.5GHz dual-core four-thread processor, TDP 28W

Chipset

Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

SOC

RAM

2* SODIMM memory slot, support dual-channel DDR4 2133MHz memory, maximum support 32GB

Show

Integrated Intel® Iris® Plus Graphics 650 core graphics card, support DirectX12, OpenGL4.5, support 4K display

The internet

1* VGA interface, support the highest resolution 1920X1200@60Hz

Store



1* HDMI interface, the highest resolution supported is 4096x2304@30Hz

1*LVDS interface, support dual channel 24BIT

Audio

1* RTL8111H Gigabit Ethernet chip, support Wake on LAN/PXE function

Expansion slot

1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

Backplane I/O interface



1* M.2 slot, support M.2 2280/2260 PCIE x4/SATA specification SSD, PCIE/SATA signal automatic recognition

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier

Power amplifier supports 2Ω/5W dual channel

1* M.2 slot, support M.2 2230 WIFI module

4* USB3.0 interface,

1* HDMI port

Built-in I/O interface



1* VGA display interface

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC19V power input interface

1* JVGA interface 1*12pin, same signal as VGA interface

1* JHDMI interface 2*8pin, same signal as HDMI interface

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface 2*5pin, choose one of the two with DB9 serial interface

4* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin


1* power amplifier interface 1*4pin

Fan interface

1* Hard disk power supply voltage interface 1*4pin

BIOS

1* Front panel function button and indicator port 2*5pin

GPIO

1*4pin ATX power interface. Support 19V power input and output

support system

1*4pin CPU intelligent fan interface; 1*4pin system intelligent fan interface

Watchdog

64Mb Flash ROM

Power type

Support 4 input and output GPIO function

Operating temperature

Windows® 7/ 8.1/ 10

Storage temperature

Support hardware reset function (256 levels, 0~255 seconds)

Working humidity

Support DC19V power supply



NO.

Model

Processor

SouthBridge

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

Power

1

ITX-Y75_I711L VER:1.0(7567U)

I7-7567U

/

3.5G

2*SODDR4

1

1

2ch/24BIT

1*8111H

8

1

DC19V

2

ITX-Y75_I511L VER:1.0(7267U)

I5-7267U

/

3.1G

2*SODDR4

1

1

2ch/24BIT

1*8111H

8

1

DC19V

3

ITX-Y75_I511L VER:1.0(6360U)

I5-6360U

/

2.0G

2*SODDR4

1

1

2ch/24BIT

1*8111H

8

1

DC19V



SpecificationITX-Y75 VER:1.0







Driver(Win7/8/10)

OSDriver TypeDriver NameDownload Name
Win7/8/10 32/64BITChipsetchipsetITX-Y75
Win7/8/10 32/64BITGraphicsVGAITX-Y75
Win7/8/10 32/64BITAudioRealtek AudioITX-Y75
Win7/8/10 32/64BITLANRealtek
ITX-Y75
Win7/8/10 32/64BITMEME CorporateITX-Y75

Win7/8/10 32/64BITDPTFDPTFITX-Y75
Win7/8/10 32/64BITRSTRSTITX-Y75
Win7/8/10 32/64BITSerial IOSerial_IOITX-Y75



♦Integrated Intel@ I7-7567U 3.5GHz dual-core four-thread processor, TDP 28W

♦Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

♦2* SODIMM memory slot, support dual-channel DDR4 2133MHz memory, maximum support 32GB

♦Integrated Intel® Iris® Plus Graphics 650 core graphics card, support DirectX12, OpenGL4.5, support 4K display

♦1* VGA interface, support the highest resolution 1920X1200@60Hz

♦1* HDMI interface, the highest resolution supported is 4096x2304@30Hz

♦1*LVDS interface, support dual channel 24BIT

♦1* RTL8111H Gigabit Ethernet chip, support Wake on LAN/PXE function

♦1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps
