Skylake-U/Kabylake-U

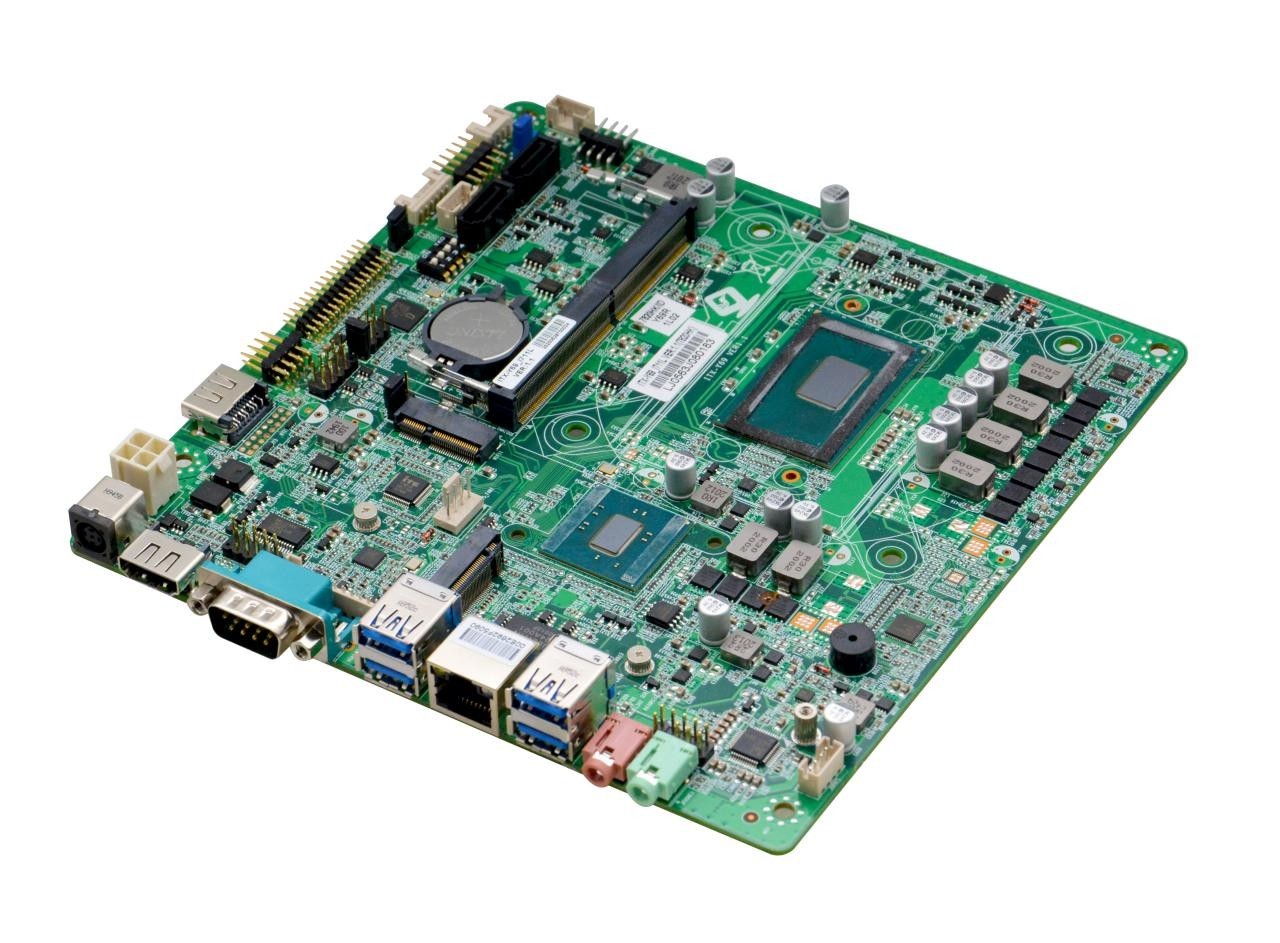

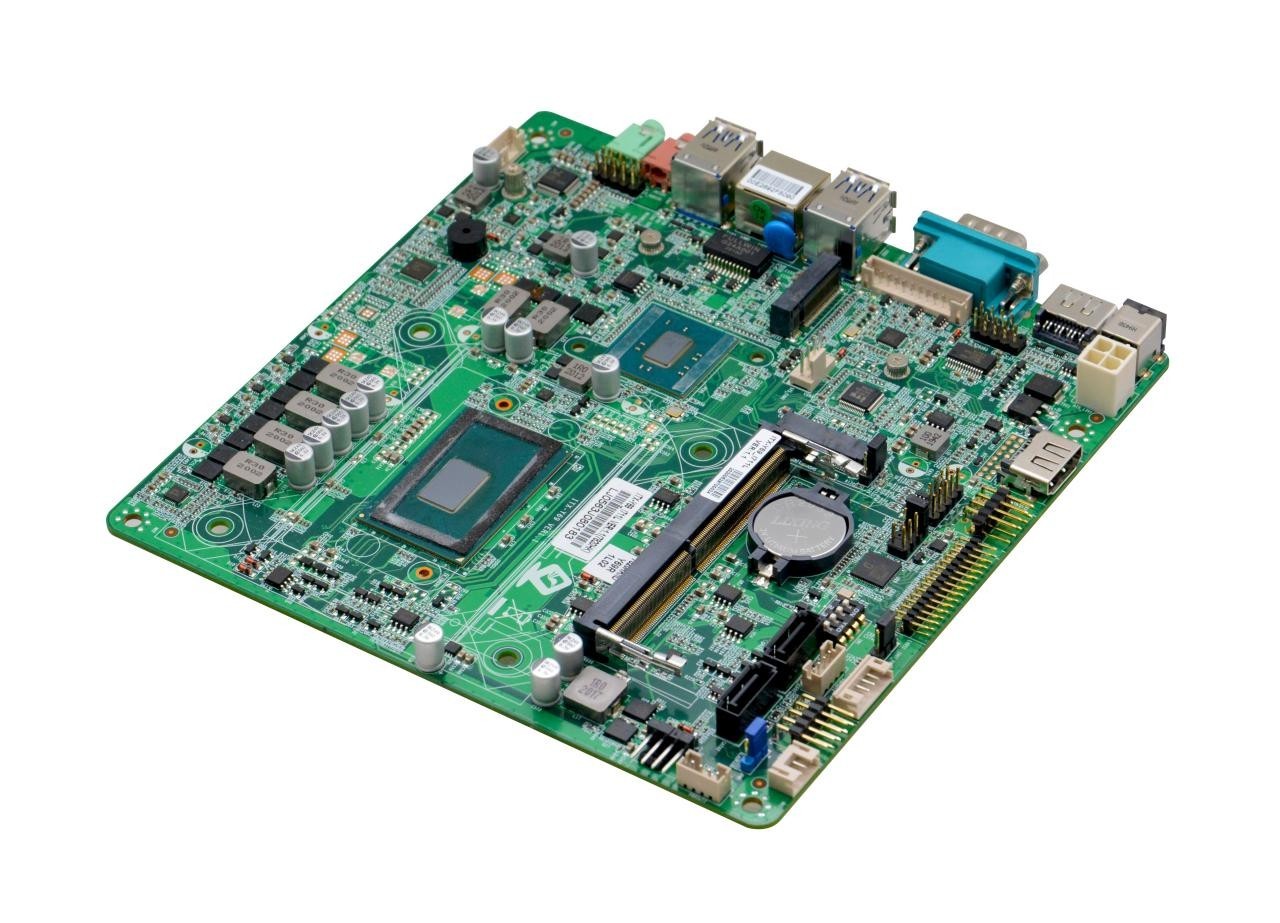

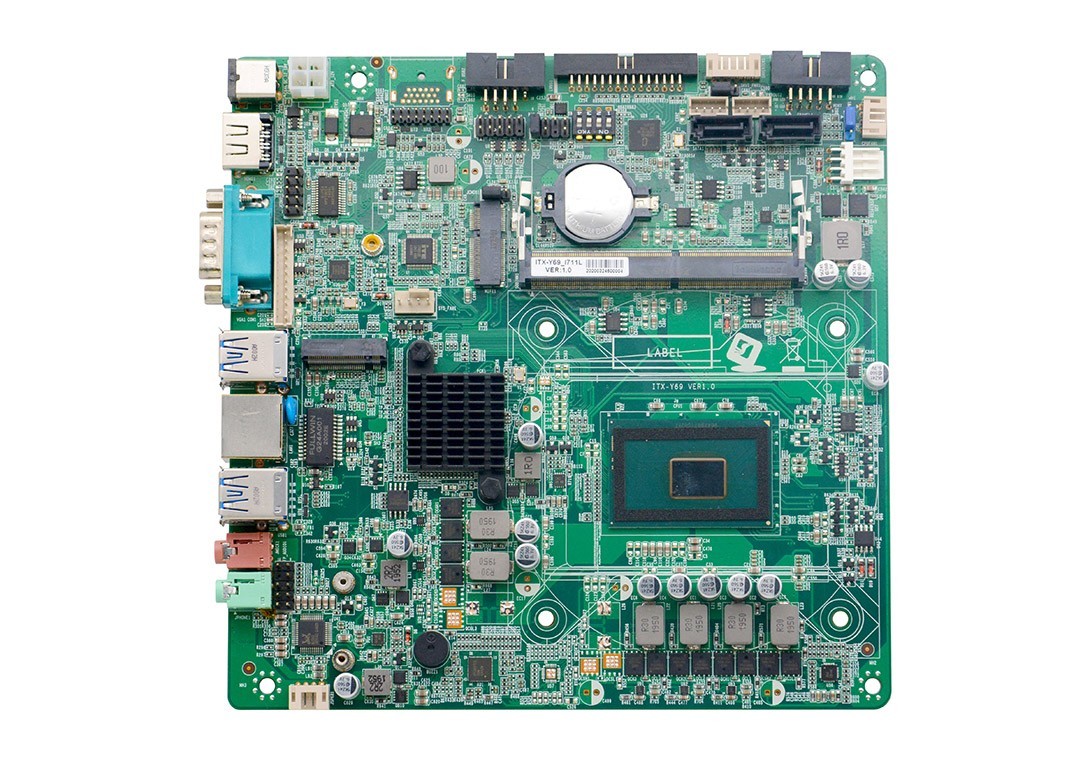

ITX-Y69_I711L VER: 1.1(7820HK)

项目介绍:

Product number

ITX-Y69_I711L VER: 1.1(7820HK)

processor

Integrated Intel@Kabylake-H I7-7820HK 2.9GHz quad-core eight-thread processor, TDP 45W


Compatible with Intel@Skylake-H/Kabylake-H core/I3/I5/I7 processors

chipset

Using Intel®HM175 Express Chipset,

RAM

1* SODIMM memory slot, support single channel DDR4 2400MHz memory, maximum support 32GB

Show

Integrated Intel® HD Graphics 630 core graphics card, support DirectX12, OpenGL4.5, support 4K display

The internet

1* VGA interface, support the highest resolution 1920X1200@60Hz

Store



2* HDMI interface, the highest resolution supported is 4096x2304@24Hz

1*LVDS interface, support dual channel 24BIT

Audio

1* RTL8111H Gigabit Ethernet chip, support Wake on LAN/PXE function

Expansion slot

2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

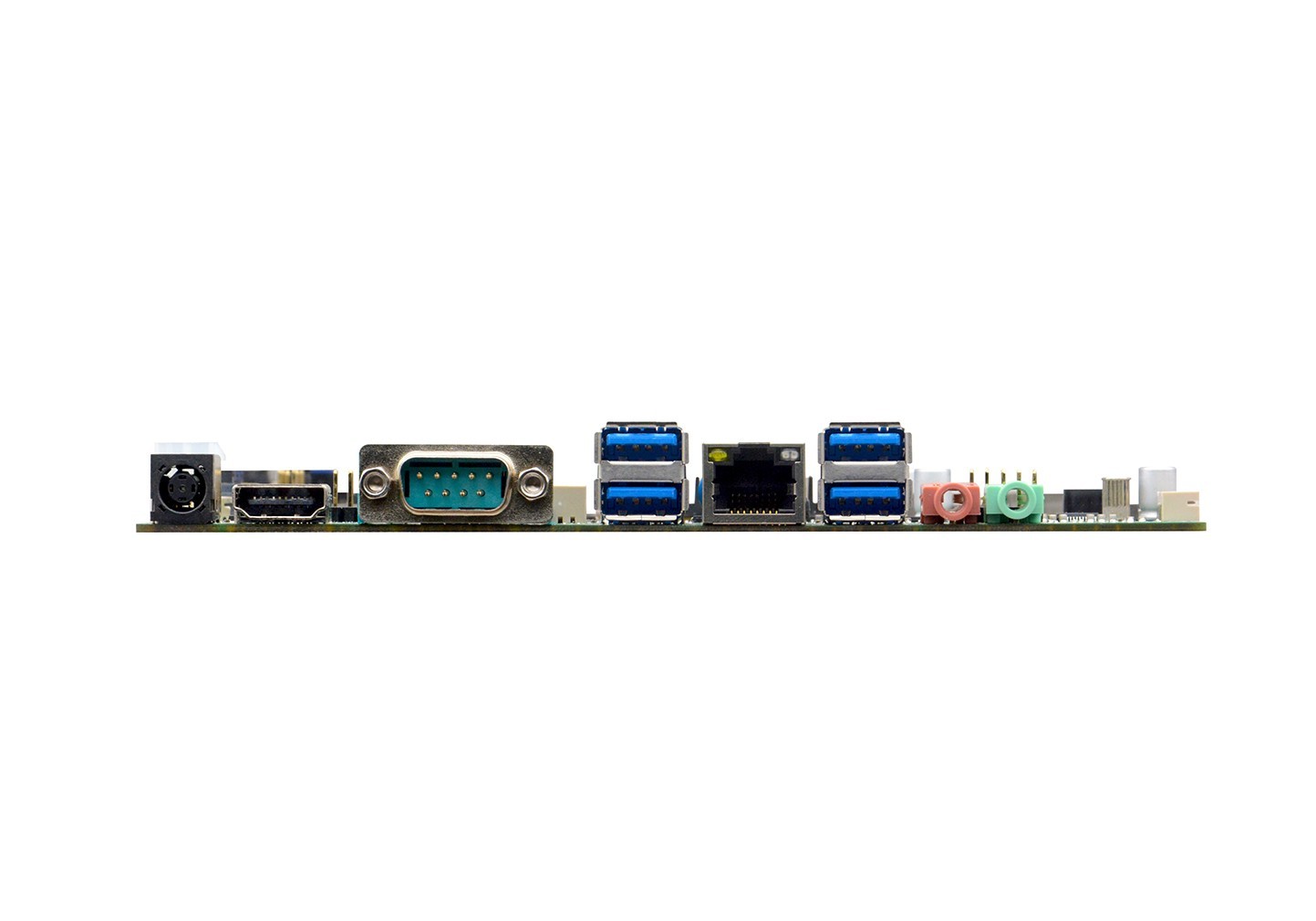

Backplane I/O interface



1* M.2 slot, support M.2 2280/2260 PCIE x4/SATA specification SSD, PCIE/SATA signal automatic recognition

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier

Power amplifier supports 2Ω/5W dual channel

1* M.2 slot, support M.2 2230 WIFI module

4* USB3.0 interface,

2* HDMI interface

Built-in I/O interface



1* DB9 RS232 serial interface

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC19V power input interface

1* JVGA interface 1*12pin, same signal as VGA interface

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface 2*5pin, choose one of the two with DB9 serial interface

4* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin


1* power amplifier interface 1*4pin

Fan interface

2* Hard disk power supply voltage interface 1*4pin

BIOS

1* Front panel function button and indicator port 2*5pin

GPIO

1*4pin ATX power interface. Support 19V power input and output

support system

1*4pin CPU intelligent fan interface; 1*4pin system intelligent fan interface

Watchdog

64Mb Flash ROM

Power type

NA

Operating temperature

Windows® 7/ 8.1/ 10

Storage temperature

Support hardware reset function (256 levels, 0~255 seconds)

Working humidity

Support DC19V power supply


事宜人群:

♦Integrated Intel@Kabylake-H I7-7820HK 2.9GHz quad-core eight-thread processor, TDP 45W

♦Compatible with Intel@Skylake-H/Kabylake-H core/I3/I5/I7 processors

♦Using Intel®HM175 Express Chipset,

♦1* SODIMM memory slot, support single channel DDR4 2400MHz memory, maximum support 32GB

♦Integrated Intel® HD Graphics 630 core graphics card, support DirectX12, OpenGL4.5, support 4K display

♦1* VGA interface, support the highest resolution 1920X1200@60Hz

♦2* HDMI interface, the highest resolution supported is 4096x2304@24Hz

♦1*LVDS interface, support dual channel 24BIT


  • Product Specifications
  • Ordering Information
  • Download Center

Product number

ITX-Y69_I711L VER: 1.1(7820HK)

processor

Integrated Intel@Kabylake-H I7-7820HK 2.9GHz quad-core eight-thread processor, TDP 45W


Compatible with Intel@Skylake-H/Kabylake-H core/I3/I5/I7 processors

chipset

Using Intel®HM175 Express Chipset,

RAM

1* SODIMM memory slot, support single channel DDR4 2400MHz memory, maximum support 32GB

Show

Integrated Intel® HD Graphics 630 core graphics card, support DirectX12, OpenGL4.5, support 4K display

The internet

1* VGA interface, support the highest resolution 1920X1200@60Hz

Store



2* HDMI interface, the highest resolution supported is 4096x2304@24Hz

1*LVDS interface, support dual channel 24BIT

Audio

1* RTL8111H Gigabit Ethernet chip, support Wake on LAN/PXE function

Expansion slot

2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

Backplane I/O interface



1* M.2 slot, support M.2 2280/2260 PCIE x4/SATA specification SSD, PCIE/SATA signal automatic recognition

Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier

Power amplifier supports 2Ω/5W dual channel

1* M.2 slot, support M.2 2230 WIFI module

4* USB3.0 interface,

2* HDMI interface

Built-in I/O interface



1* DB9 RS232 serial interface

1* RJ45 Gigabit network interface

1* Line-out (green), 1*MIC (red)

1* DC19V power input interface

1* JVGA interface 1*12pin, same signal as VGA interface

1* LVDS interface, 2*15pin, support dual channel 24BIT

1* Screen backlight power supply interface 1*6pin

1* Screen brightness adjustment interface 1*4pin

1* RS232 serial interface 2*5pin, choose one of the two with DB9 serial interface

4* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin


1* power amplifier interface 1*4pin

Fan interface

2* Hard disk power supply voltage interface 1*4pin

BIOS

1* Front panel function button and indicator port 2*5pin

GPIO

1*4pin ATX power interface. Support 19V power input and output

support system

1*4pin CPU intelligent fan interface; 1*4pin system intelligent fan interface

Watchdog

64Mb Flash ROM

Power type

NA

Operating temperature

Windows® 7/ 8.1/ 10

Storage temperature

Support hardware reset function (256 levels, 0~255 seconds)

Working humidity

Support DC19V power supply


No.

Model

Processor

Frequency

Southbridge

Memory

VGA

HDMI

EDP

LVDS

LAN

USB

COM

485/422

Power

1

ITX-Y69_I711L VER:1.1(6920HQ)

I7-6920HQ

2.9G

HM175

1*SODDR4

1

2

/

2ch*24bit

1*8111H

8

1

/

DC19V

2

ITX-Y69_I511L VER:1.1(7300HQ)

I5-7300HQ

2.5G

HM175

1*SODDR4

1

2

/

2ch*24bit

1*8111H

8

1

/

DC19V

3

ITX-Y69_I711L VER:1.1(7820HK)

I7-7820HK

2.9G

HM175

1*SODDR4

1

2

/

2ch*24bit

1*8111H

8

1

/

DC19V


SpecificationITX-Y69_I711L VER:1.1(7820HK)


Driver(Win7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-B640
Win7/8/10 32/64BITGraphicsVGAITX-B640
Win7/8/10 32/64BITAudioRealtek AudioITX-B640
Win7/8/10 32/64BITLANRealtekITX-B640
Win7/8/10 32/64BITMEMEITX-B640
Win7/8/10 32/64BITDPTFintel_dptf_81137_1114ITX-B640
Win7/8/10 32/64BITRSTRSTITX-B640
Win7/8/10 32/64BITSerial IOSerial_IOITX-B640
