Skylake-U/Kabylake-U

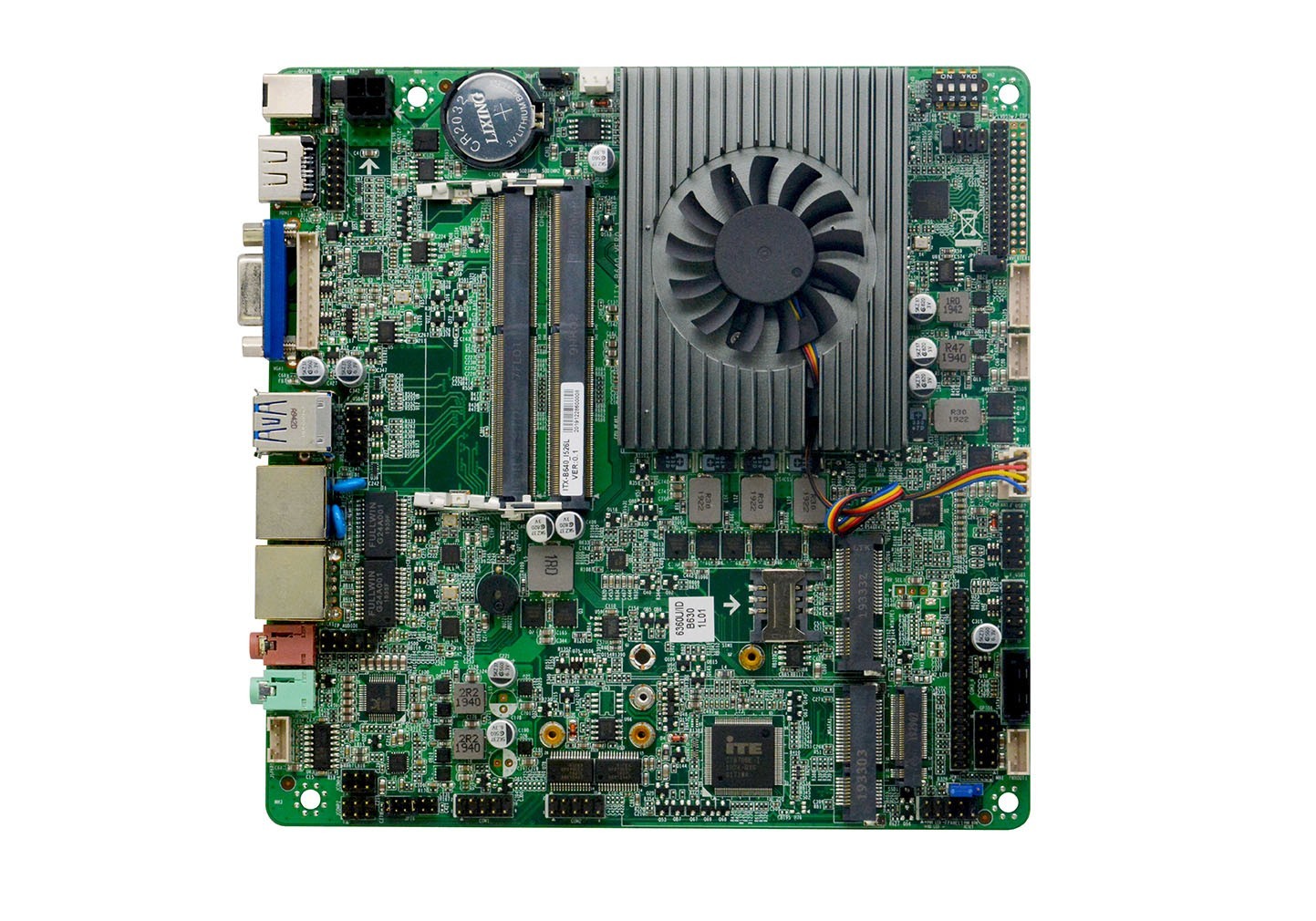

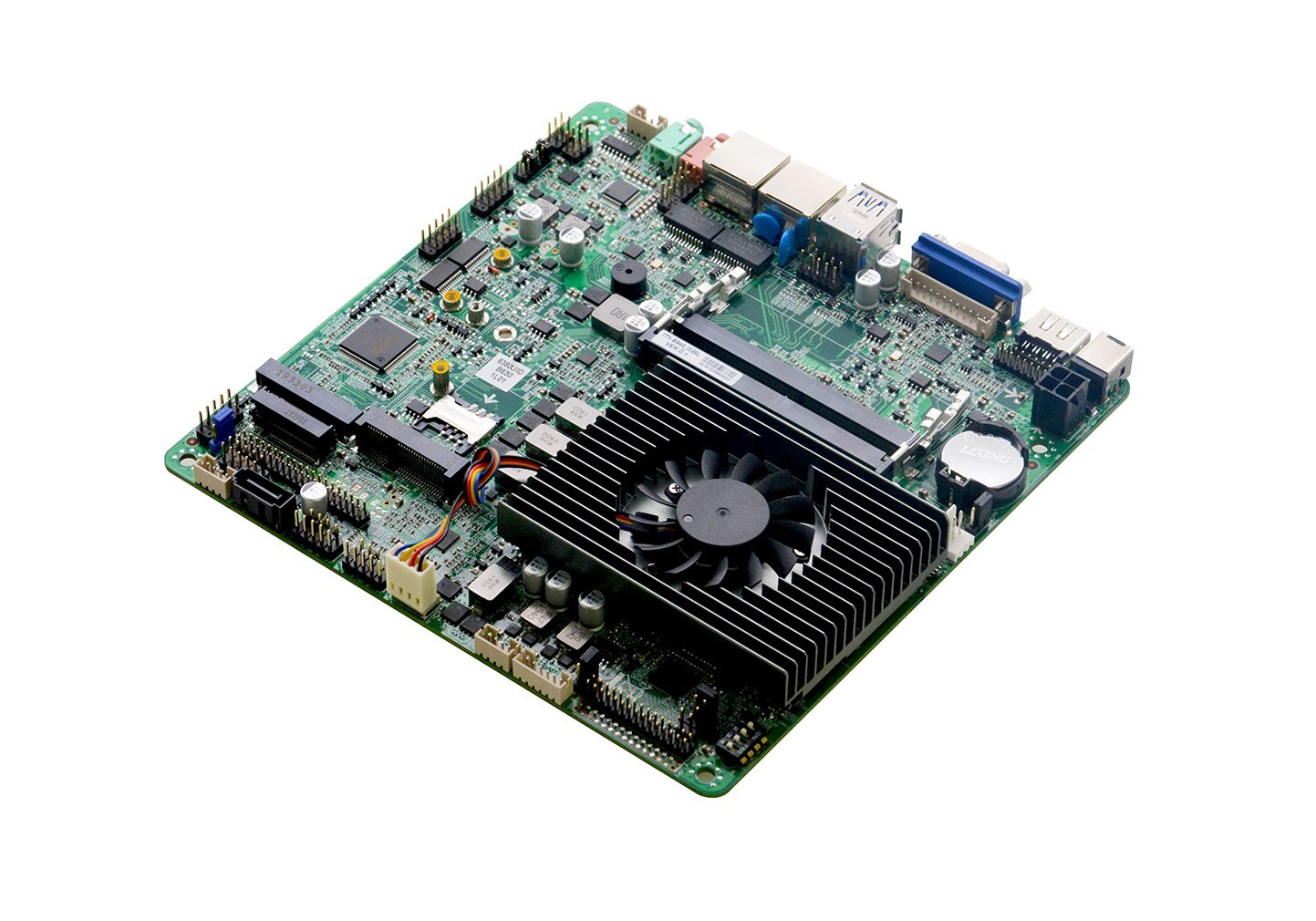

ITX-B640_I526L VER:1.0(7200U)

项目介绍:

Product number

ITX-B640_I526L VER:1.0(7200U)

Processor

Integrated Intel®I5 7200U 2.5GHz dual-core four-thread processor, TDP 15W


Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

Chipset

SOC

RAM

2* SODIMM memory slot, support dual-channel DDR4 2133MHz memory, maximum support 32GB

Display

Integrated Intel® HD Graphics 620, support DirectX 12, OpenGL 4.5, support 4K

1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz

1*Support dual channel 24bit LVDS interface

The internet

2* Realtek RTL8111H Gigabit LAN, support Wake-on-LAN, PXE function

Store



1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* M.2 standard slot, support M.2 2280 PCIE X4 standard SSD

1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps

Audio

Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier

Support power amplifier 2Ω5W speaker

Expansion slot

1* Mini-PCIE slot, support WIFI/4G module

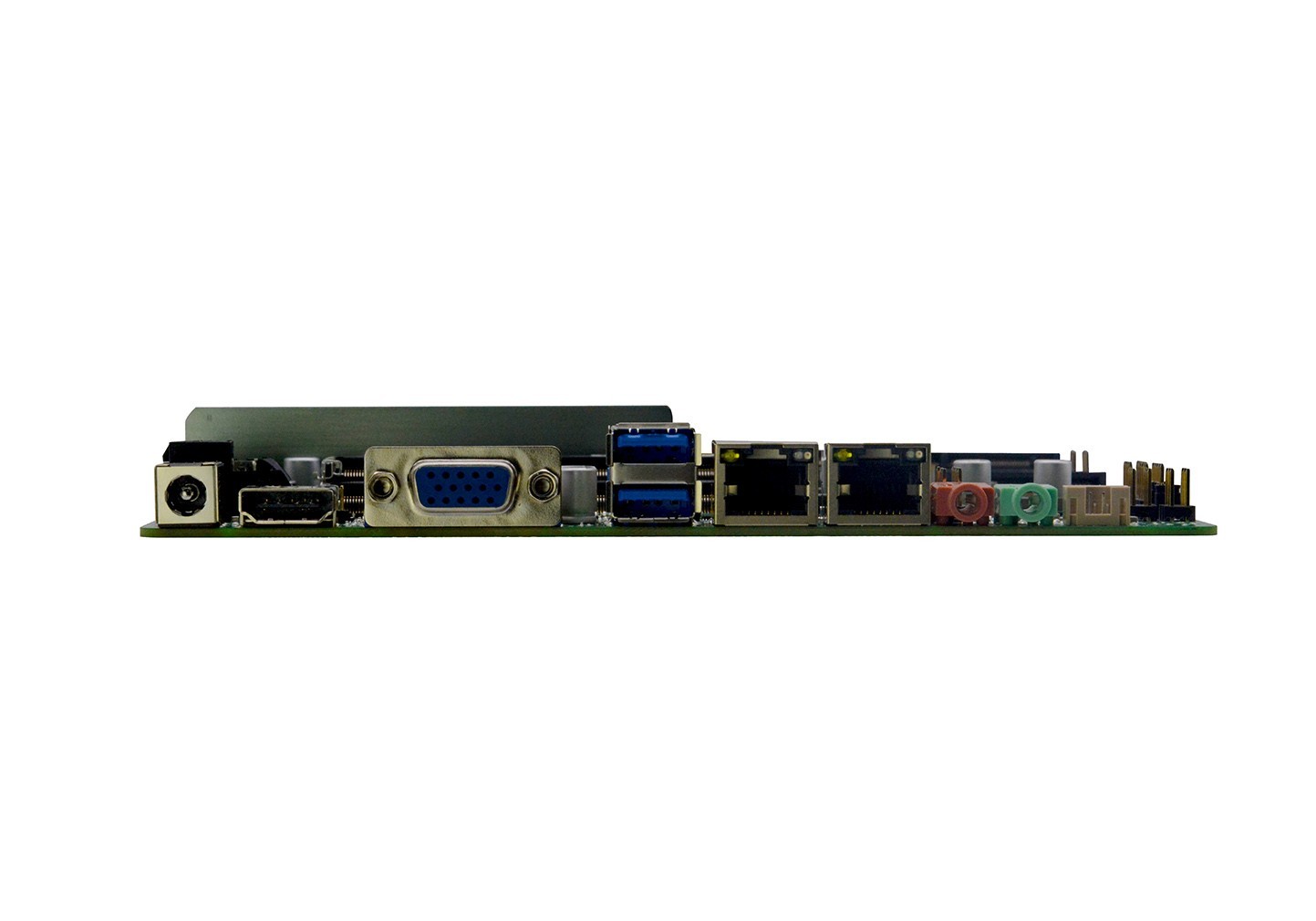

Backplane

I/O interface

2* USB3.0 interface

1* HDMI port

Backplane

I/O interface

1* DB15 VGA interface

2* RJ45 Gigabit network interface

1*Line-out (green), 1*MIC (red)

1*DC12V power supply, support 12V power input and output

Built-in

I/O interface



1* JVGA1 interface 1*12pin (same signal with DB15)

1* JHDMI interface 2*8pin (same signal with HDMI interface)

1* LVDS interface 2*15pin, support dual channel 24bit

1*LVDS backlight power supply interface 1*6pin

1*Screen brightness adjustment interface 1*4pin

6* RS232 serial interface, COM1/COM2 supports the 9th pin charged function, COM2/COM4 supports RS485

6* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* Front panel switch button and indicator light interface 2*5Pin

1* Hard disk power supply interface 1*4pin

1* power amplifier interface 1*4pin

1* 4pin ATX power interface (can be used as 12V input and output power interface)

1* SIM card slot

Fan interface

1*4pin CPU smart fan interface, 1* 3pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Powered by DC 12V power supply

operating system

 Windows 7, Windows 8, Windows 10, Linux

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


事宜人群:

♦Integrated Intel®I5 7200U 2.5GHz dual-core four-thread processor, TDP 15W

♦Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

♦2* SODIMM memory slot, support dual-channel DDR4 2133MHz memory, maximum support 32GB

♦Integrated Intel® HD Graphics 620, support DirectX 12, OpenGL 4.5, support 4K

♦1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

♦1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz

♦1*Support dual channel 24bit LVDS interface

♦2* Realtek RTL8111H Gigabit LAN, support Wake-on-LAN, PXE function

♦1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

♦1* M.2 standard slot, support M.2 2280 PCIE X4 standard SSD

♦1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps


  • Product Specifications
  • Ordering Information
  • Download Center

Product number

ITX-B640_I526L VER:1.0(7200U)

Processor

Integrated Intel®I5 7200U 2.5GHz dual-core four-thread processor, TDP 15W


Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low-power processors

Chipset

SOC

RAM

2* SODIMM memory slot, support dual-channel DDR4 2133MHz memory, maximum support 32GB

Display

Integrated Intel® HD Graphics 620, support DirectX 12, OpenGL 4.5, support 4K

1*VGA interface, the highest resolution supported is: 1920X1200@60Hz

1*HDMI1.4 interface, the highest resolution supported is: 4096X2304@24Hz

1*Support dual channel 24bit LVDS interface

The internet

2* Realtek RTL8111H Gigabit LAN, support Wake-on-LAN, PXE function

Store



1* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps

1* M.2 standard slot, support M.2 2280 PCIE X4 standard SSD

1* MSATA slot, SSD solid state drive supporting Intel protocol, transmission speed up to 6Gbps

Audio

Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier

Support power amplifier 2Ω5W speaker

Expansion slot

1* Mini-PCIE slot, support WIFI/4G module

Backplane

I/O interface

2* USB3.0 interface

1* HDMI port

Backplane

I/O interface

1* DB15 VGA interface

2* RJ45 Gigabit network interface

1*Line-out (green), 1*MIC (red)

1*DC12V power supply, support 12V power input and output

Built-in

I/O interface



1* JVGA1 interface 1*12pin (same signal with DB15)

1* JHDMI interface 2*8pin (same signal with HDMI interface)

1* LVDS interface 2*15pin, support dual channel 24bit

1*LVDS backlight power supply interface 1*6pin

1*Screen brightness adjustment interface 1*4pin

6* RS232 serial interface, COM1/COM2 supports the 9th pin charged function, COM2/COM4 supports RS485

6* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* Front panel switch button and indicator light interface 2*5Pin

1* Hard disk power supply interface 1*4pin

1* power amplifier interface 1*4pin

1* 4pin ATX power interface (can be used as 12V input and output power interface)

1* SIM card slot

Fan interface

1*4pin CPU smart fan interface, 1* 3pin system fan interface

GPIO

Support 4 input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Powered by DC 12V power supply

operating system

 Windows 7, Windows 8, Windows 10, Linux

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

485

Power

1

ITX-B640_C316L VER:1.0(3865U)

3865U

1.8G

2*SODDR4

1

1

2ch/24Bit

/

1*8111H

8

6

COM2/4

DC12V

2

ITX-B640_I526L VER:1.0(6200U)

I5-6200U

2.3G

2*SODDR4

1

1

2ch/24Bit

/

2*8111H

8

6

COM2/4

DC12V

3

ITX-B640_I526L VER:1.0(7200U)

I7-7200U

2.5G

2*SODDR4

1

1

2ch/24Bit

/

2*8111H

 8

6

COM2/4

DC12V

4

ITX-B640_I726L VER:1.0(7600U)

I7-7600U

2.8G

2*SODDR4

1

1

2ch/24Bit

/

2*8111H

 8

6

COM2/4

DC12V



Specification
ITX-B640



Driver(Win7/8/10 )

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-B640
Win7/8/10 32/64BITGraphicsVGAITX-B640
Win7/8/10 32/64BITAudioRealtek AudioITX-B640
Win7/8/10 32/64BITLANRealtekITX-B640
Win7/8/10 32/64BITMEMEITX-B640
Win7/8/10 32/64BITDPTFintel_dptf_81137_1114ITX-B640
Win7/8/10 32/64BITRSTRSTITX-B640
Win7/8/10 32/64BITSerial IOSerial_IOITX-B640
