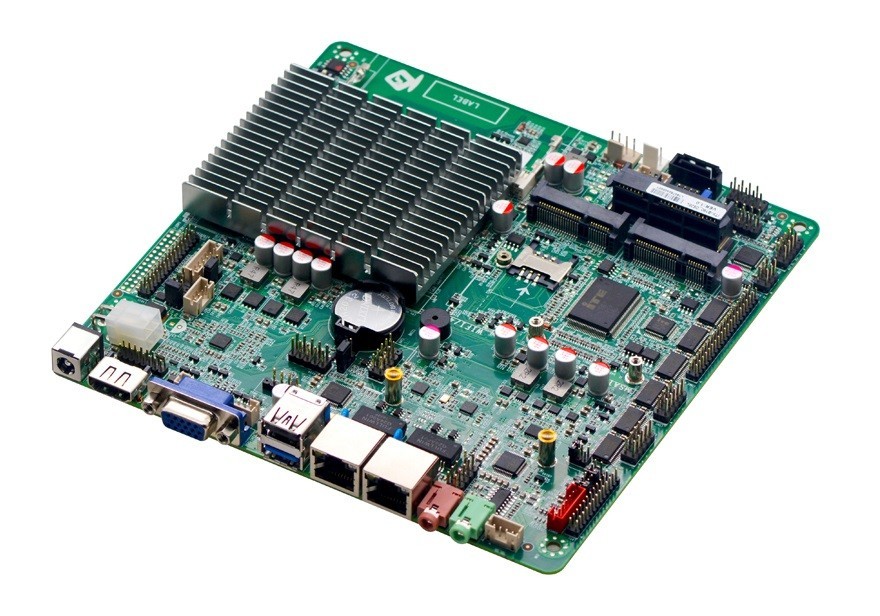

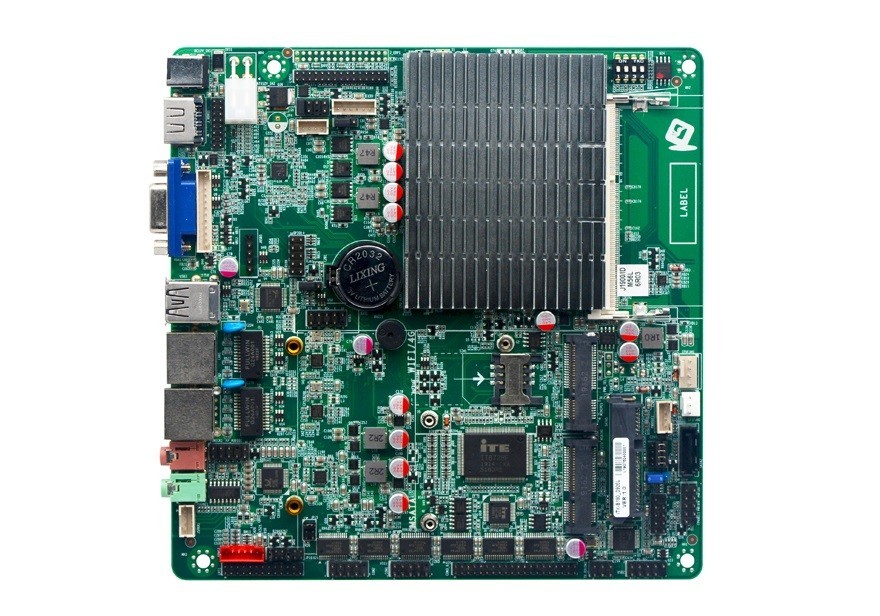

Baytrail J1900/2.0G

ITX-B190_D926L VER:1.0

项目介绍:
Model NO.ITX-B190_D926L VER:1.0
ProcessorIntegrated Intel ® Celeron J1900/2.00GHz quad-core processor, TDP 10W

Compatible with Intel ® Bay Trail - I/M/D full range of CPUs for flexible customer choice
ChipsetBased on the Intel ® Bay trail SOC platform
Internal storage1'SODDR3L memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
DisplayIntegrated Intel ® HD Graphics Core Graphics

1 x VGA, 1 x HDMI, 1 x LVDS

Support for VGA; HDMI; LVDS Sync/Asynchronous Display
Network2x Realtek RTL811H Gigabit Network Card, support stoic/PXE
Storage1 x SATA 2.0 hard drive interface (where SATA2 with built-in 2.5 inch hard drive SATA5 optional one)

1 x SATA 2.5 inch notebook hard drive bit, can be installed directly

1 x MSATA slot supports SSD SSDs with transmission speeds of up to 3Gbps
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support

Amplifiers are recommended for the use of a 2-plus-5W horn
Extended slot1x Mini-PCIE slot with WIFI, 4G modules

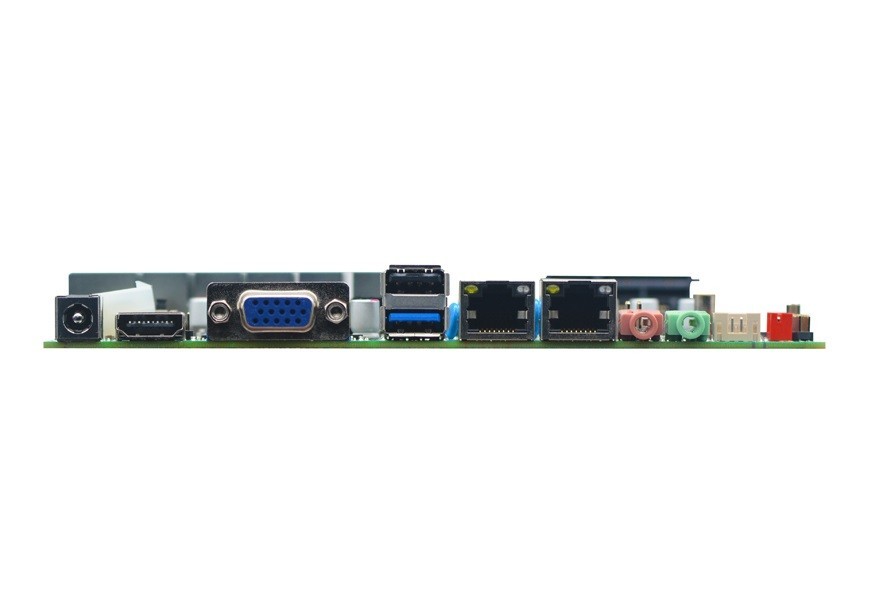

Backplane I/O Interface1 x HDMI display interface

1 x VGA display interface

1 x USB 2.0 interface

1 x USB3.0 interface

2x RJ-45 gigabit network interface, where LAN2 and USB1 are two-in-one

1x Line out interface (green), 1 x MIC interface (red)

1 x 12V DC power input
Built-in I/O interface1 x 4pin ATX power interface (can be done 12V input and output power interface)

1 x USB2.0 interface 1 x 5pin

6 x USB 2.0 interface 2 x 5Pin, where USB 5 and USB1 are two options

1 x J_HDMI interface 2 x 8Pin (hdmi1 signal with back plate IO interface)

1 x JVGA interface 1 x 12Pin (with DB15 signal)

1 x LVDS interface 2 x 15pin, supports dual-channel 24bit,

1 x screen backlit power supply interface 1x6pin

1 x screen brightness adjustment interface 1 x 4pin

1 x PS/2 keyboard mouse interface (red) 1 x 6Pin

6x RS232 Serial Interface, COM1/COM2 supports 9pin live, COM2 supports RS485 mode

1 x LPT Parallel Interface 2x13Pin

1 x front audio interface 2x5pin

1 x front panel switch button and LED interface 2 x 5Pin

1 x hard drive power interface 1x4pin

1 x Amplifier Interface 1x4pin

1 x SIM seat
Fan interfaceFanless cooling design, reserved 1 x 4pin CPU fan interface, 1 x 3pin system fan interface
GPIOSupport for 4-way input and output GPIO
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 7/Windows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm x 170mm


事宜人群:

♦ Integrated Intel ® Celeron J1900/2.0GHz quad-core processor

♦ Based on Intel® Bay trail SOC platform

♦ 1 x SODIMM memory slot with support for 1600/133MHz DDR3L/1.35V memory, up to 8GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ 1 x VGA, 1 x HDMI, 1 x LVDS interface (support s24BIT support)

♦ 2 x RTL811H Gigabit Card Chip, Support stoic/PXE function

♦ 6 x RS232 serial port, where COM2 supports RS485

♦ 7-USB2.0 interface, 1 x USB3.0 interface

♦ Fanless cooling


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.ITX-B190_D926L VER:1.0
ProcessorIntegrated Intel ® Celeron J1900/2.00GHz quad-core processor, TDP 10W

Compatible with Intel ® Bay Trail - I/M/D full range of CPUs for flexible customer choice
ChipsetBased on the Intel ® Bay trail SOC platform
Internal storage1'SODDR3L memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB
DisplayIntegrated Intel ® HD Graphics Core Graphics

1 x VGA, 1 x HDMI, 1 x LVDS

Support for VGA; HDMI; LVDS Sync/Asynchronous Display
Network2x Realtek RTL811H Gigabit Network Card, support stoic/PXE
Storage1 x SATA 2.0 hard drive interface (where SATA2 with built-in 2.5 inch hard drive SATA5 optional one)

1 x SATA 2.5 inch notebook hard drive bit, can be installed directly

1 x MSATA slot supports SSD SSDs with transmission speeds of up to 3Gbps
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support

Amplifiers are recommended for the use of a 2-plus-5W horn
Extended slot1x Mini-PCIE slot with WIFI, 4G modules
Backplane I/O Interface1 x HDMI display interface

1 x VGA display interface

1 x USB 2.0 interface

1 x USB3.0 interface

2x RJ-45 gigabit network interface, where LAN2 and USB1 are two-in-one

1x Line out interface (green), 1 x MIC interface (red)

1 x 12V DC power input
Built-in I/O interface1 x 4pin ATX power interface (can be done 12V input and output power interface)

1 x USB2.0 interface 1 x 5pin

6 x USB 2.0 interface 2 x 5Pin, where USB 5 and USB1 are two options

1 x J_HDMI interface 2 x 8Pin (hdmi1 signal with back plate IO interface)

1 x JVGA interface 1 x 12Pin (with DB15 signal)

1 x LVDS interface 2 x 15pin, supports dual-channel 24bit,

1 x screen backlit power supply interface 1x6pin

1 x screen brightness adjustment interface 1 x 4pin

1 x PS/2 keyboard mouse interface (red) 1 x 6Pin

6x RS232 Serial Interface, COM1/COM2 supports 9pin live, COM2 supports RS485 mode

1 x LPT Parallel Interface 2x13Pin

1 x front audio interface 2x5pin

1 x front panel switch button and LED interface 2 x 5Pin

1 x hard drive power interface 1x4pin

1 x Amplifier Interface 1x4pin

1 x SIM seat
Fan interfaceFanless cooling design, reserved 1 x 4pin CPU fan interface, 1 x 3pin system fan interface
GPIOSupport for 4-way input and output GPIO
Bios64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
Operating systemWindows 7/Windows 10/Linux
Power typePowered with DC 12V
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm x 170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485

Power

1

ITX-B190_D912L VER:1.0

 J1900

2.0G

1*SODDR3L

1

1

2ch*24bit

/

1*8111H

8

2

COM2

DC12V

2

ITX-B190_D916L VER:1.0

J1900

2.0G

1*SODDR3L

1

1

2ch*24bit

/

1*8111H

8

6

COM2

DC12V


SpecificationsITX-B190_D926L VER:1.0
DriverITX-B190_D926L VER:1.0





♦ Integrated Intel ® Celeron J1900/2.0GHz quad-core processor

♦ Based on Intel® Bay trail SOC platform

♦ 1 x SODIMM memory slot with support for 1600/133MHz DDR3L/1.35V memory, up to 8GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ 1 x VGA, 1 x HDMI, 1 x LVDS interface (support s24BIT support)

♦ 2 x RTL811H Gigabit Card Chip, Support stoic/PXE function

♦ 6 x RS232 serial port, where COM2 supports RS485

♦ 7-USB2.0 interface, 1 x USB3.0 interface

♦ Fanless cooling
