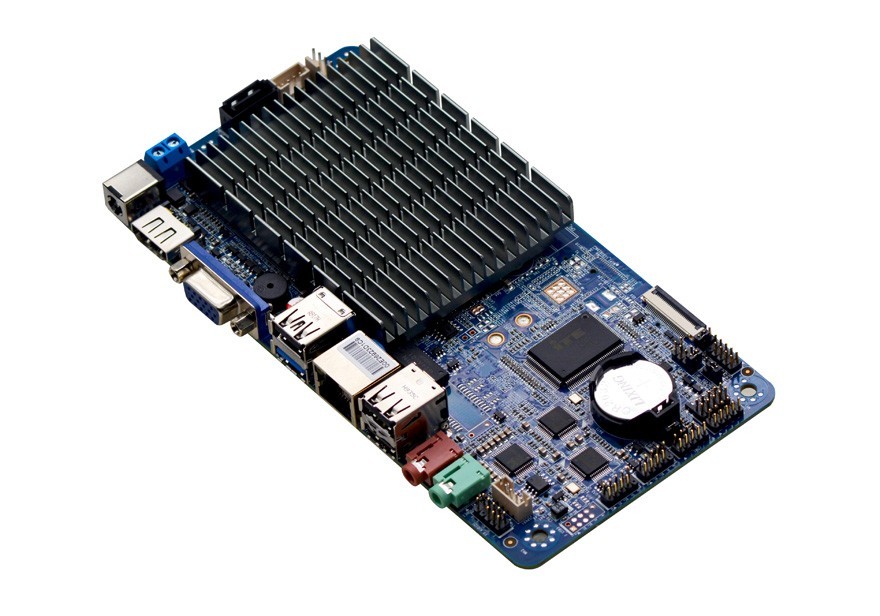

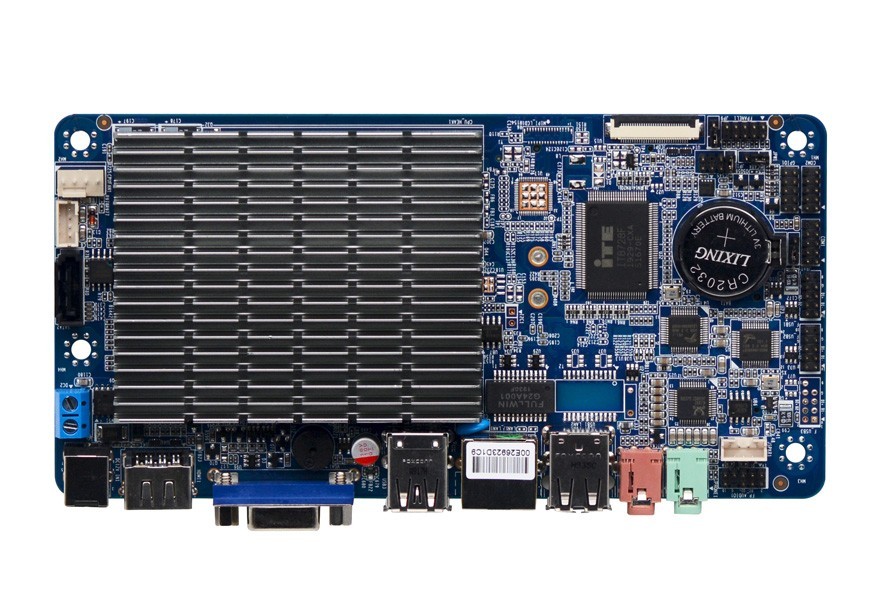

Baytrail J1900/2.0G

ITX-B290_D912E VER:1.0

项目介绍:
Model NO.ITX-B290_D912E VER:1.0

Processor

Integrated Intel ® Celeron J1900/2.0GHz quad-core processor


Compatible with Intel® Bay Trail -M/D full range of CPUs for flexible choice

Chipset

Based on the Intel ® Bay trail SOC platform

Memory

1*SODIMM slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel ® HD Graphics Core Graphics

1*VGA, 1*HDMI, 1*EDP display interface,

Support for VGA; HDMI; EDP Sync/Asynchronous Dual Display

Network

1*Realtek RTL811H Gigabit Network Card, support stoic/PXE

Storage

1*SATA 2.0 hard drive interface

1*MSATA slot with up to 3Gbps transfer speed

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support

Amplifiers are recommended for the use of a 2-plus-5W horn


1*Mini-PCIE slot with WIFI module support

Backplane I/O Interface

1*HDMI display interface

1*VGA display interface

3*USB 2.0 interface

1*USB3.0 interface

1*RJ-45 Gigabit Network Interface

1*Line out interface (green), 1*MIC interface (red)

1*12V DC power input

Built-in I/O interface

1*2pin blue power holder, supports 12V power in and out

4*USB 2.0 Interface 2x5Pin

1*JEDP interface, 30pin FPC specification

2*RS232 serial interface,

1*front audio interface 2x5pin

1*front panel switch button and LED interface 2*5Pin

1*hard drive power interface 1x4pin

1*Amplifier Interface 1x4pin

FAN Interface

Fanless cooling design, reserved for 1x4pin CPU fan interface,

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Power type

Powered with DC 12V

Operating temperature

-10C to 60C

Storage temperature

-20C to 70C

Working humidity

5%-95% relative humidity, no condensation

Size

170mm*85mm


事宜人群:

♦ Integrated Intel ® Celeron J1900/2.0GHz quad-core processor

♦ Based on Intel® Bay trail SOC platform

♦ 1*SODIMM memory slot with support for 1600/133MHz DDR3L/1.35V memory, up to 8GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ 1*VGA, 1*HDMI, 1*EDP display interface, support VGA; HDMI; EDP Sync/Asynchronous Dual Display

♦ 1*RTL811H Gigabit card chip, supports network wake-up/PXE function

♦ 2*RS232 serial port, 7*USB2.0 interface, 1*USB 3.0 connector

♦ Fanless cooling


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.ITX-B290_D912E VER:1.0

Processor

Integrated Intel ® Celeron J1900/2.0GHz quad-core processor


Compatible with Intel® Bay Trail -M/D full range of CPUs for flexible choice

Chipset

Based on the Intel ® Bay trail SOC platform

Memory

1*SODIMM slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel ® HD Graphics Core Graphics

1*VGA, 1*HDMI, 1*EDP display interface,

Support for VGA; HDMI; EDP Sync/Asynchronous Dual Display

Network

1*Realtek RTL811H Gigabit Network Card, support stoic/PXE

Storage

1*SATA 2.0 hard drive interface

1*MSATA slot with up to 3Gbps transfer speed

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support

Amplifiers are recommended for the use of a 2-plus-5W horn


1*Mini-PCIE slot with WIFI module support

Backplane I/O Interface

1*HDMI display interface

1*VGA display interface

3*USB 2.0 interface

1*USB3.0 interface

1*RJ-45 Gigabit Network Interface

1*Line out interface (green), 1*MIC interface (red)

1*12V DC power input

Built-in I/O interface

1*2pin blue power holder, supports 12V power in and out

4*USB 2.0 Interface 2x5Pin

1*JEDP interface, 30pin FPC specification

2*RS232 serial interface,

1*front audio interface 2x5pin

1*front panel switch button and LED interface 2*5Pin

1*hard drive power interface 1x4pin

1*Amplifier Interface 1x4pin

FAN Interface

Fanless cooling design, reserved for 1x4pin CPU fan interface,

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Power type

Powered with DC 12V

Operating temperature

-10C to 60C

Storage temperature

-20C to 70C

Working humidity

5%-95% relative humidity, no condensation

Size

170mm*85mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-B290_D912E VER:1.0

 J1900

2.0G

1*SODDR3L

1

1

/

1

1*8111H

8

2

/

DC12V



SpecificationsITX-B290_D912E VER:1.0



Driver(WIN7/8/10 )

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-B290
Win7/8/10 32/64BITGraphicsVGAITX-B290
Win7/8/10 32/64BITAudioRealtek AudioITX-B290
Win7/8/10 32/64BITLANRealtekITX-B290
Win7/8/10 32/64BITTXETXEITX-B290
Win7/8/10 32/64BITMBIMBIITX-B290
Win7 32/64BITUSB3.0USB3.0ITX-B290


♦ Integrated Intel ® Celeron J1900/2.0GHz quad-core processor

♦ Based on Intel® Bay trail SOC platform

♦ 1*SODIMM memory slot with support for 1600/133MHz DDR3L/1.35V memory, up to 8GB

♦ Integrated Intel ® HD Graphics Core Graphics

♦ 1*VGA, 1*HDMI, 1*EDP display interface, support VGA; HDMI; EDP Sync/Asynchronous Dual Display

♦ 1*RTL811H Gigabit card chip, supports network wake-up/PXE function

♦ 2*RS232 serial port, 7*USB2.0 interface, 1*USB 3.0 connector

♦ Fanless cooling
