Baytrail J1900/2.0G

ITX-W19_D912E VER:1.1

项目介绍:

Model NO.

ITX-W19_D912E VER:1.1

Processor

Integrated Intel® Celeron J1900/2.0GHz quad-core processor, TDP 10W


Compatible with Intel ® Bay Trail - I/M/D full range of CPUs for flexible customer choice

Chipset

Based on the Intel ® Bay trail SOC platform

Memory

1* SODIMM Slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel ® HDGraphics Core Graphics

1*VGA, 2*EDP display interface,

Support for VGA/EDP synchronous/asynchronous display

Network

1*Realtek RTL811H Gigabit Network Card, support stoic/PXE

Store

1*SATA 2.0 hard drive interface

1*MSATA slot with up to 3Gbps transfer speed

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support

Amplifiers are recommended for the use of a 2Ω5W horn

Extended

1x Mini-PCIE slot with WIFI module support

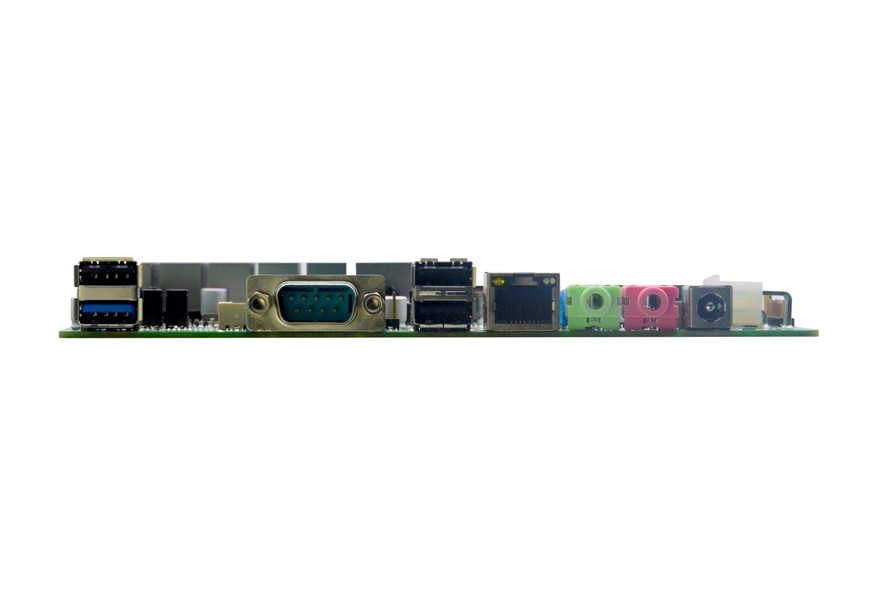

Backplane I/O Interface

1*RS232 Serial Interface

3x USB 2.0 interface

1*USB3.0 interface

1*RJ-45 Gigabit Network Interface

1*Line out interface (green), 1*MIC interface (red)

1*12VDC power input

Built-in I/O interface

1*4pin ATX power interface (can be done 12V input and output power interface)

4x USB 2.0 Interface 2x5Pin

1*JVGA interface 1*12Pin, with DB15 signal

2*RS232 serial interface, COM1/COM2 supports 9th pin live function, COM2 supports RS485/422, JCOM1 and external serial interface for the second choice

1*LPT Parallel Interface 2x13Pin

1*front audio interface 2*5pin

1*front panel switch button and LED interface 2*5Pin

2*JEDP interface, 2*15pin

1*hard drive power interface 1*4pin

1*Amplifier Interface 1x4pin

Fan interface

Fanless cooling design, reserved 1*4pin CPU fan interface, 1*3pin system fan interface

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Power type

Powered with DC 12V

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm*170mm


事宜人群:

♦ Integrated Intel ® Celeron J1900 2.0GHz quad-core processor

♦ Based on Intel® Bay Trail SOC Platform snbsp;

♦ 1-SODIMM memory slot with support for 1600/133MHz /1.35V memory, up to 8GB

♦ Integrated Intel ® HDGraphics Core Graphics

♦ 1*VGA, 2*EDP display interface

♦ 1*RTL811H Gigabit Card Chip, Supports Network Wake-up/PXE Function

♦ 3-RS232 serial interface, COM1/COM2 supports 9th pin live, COM2 supports RS485/422

♦ 7-usb2.0 interface, 1*USB 3.0 interface

♦ Fanless cooling


  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

ITX-W19_D912E VER:1.1

Processor

Integrated Intel® Celeron J1900/2.0GHz quad-core processor, TDP 10W


Compatible with Intel ® Bay Trail - I/M/D full range of CPUs for flexible customer choice

Chipset

Based on the Intel ® Bay trail SOC platform

Memory

1* SODIMM Slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel ® HDGraphics Core Graphics

1*VGA, 2*EDP display interface,

Support for VGA/EDP synchronous/asynchronous display

Network

1*Realtek RTL811H Gigabit Network Card, support stoic/PXE

Store

1*SATA 2.0 hard drive interface

1*MSATA slot with up to 3Gbps transfer speed

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support

Amplifiers are recommended for the use of a 2Ω5W horn

Extended

1x Mini-PCIE slot with WIFI module support

Backplane I/O Interface

1*RS232 Serial Interface

3x USB 2.0 interface

1*USB3.0 interface

1*RJ-45 Gigabit Network Interface

1*Line out interface (green), 1*MIC interface (red)

1*12VDC power input

Built-in I/O interface

1*4pin ATX power interface (can be done 12V input and output power interface)

4x USB 2.0 Interface 2x5Pin

1*JVGA interface 1*12Pin, with DB15 signal

2*RS232 serial interface, COM1/COM2 supports 9th pin live function, COM2 supports RS485/422, JCOM1 and external serial interface for the second choice

1*LPT Parallel Interface 2x13Pin

1*front audio interface 2*5pin

1*front panel switch button and LED interface 2*5Pin

2*JEDP interface, 2*15pin

1*hard drive power interface 1*4pin

1*Amplifier Interface 1x4pin

Fan interface

Fanless cooling design, reserved 1*4pin CPU fan interface, 1*3pin system fan interface

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Power type

Powered with DC 12V

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm*170mm


NO.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-W19_D912E VER:1.1

 J1900

2.0G

1*SODDR3L

1

/

/

2

1*8111H

8

2

/

DC12V



SpecificationsITX-W19_D912E VER:1.1

Driver (WIN7/8/10)


OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-W19
Win7/8/10 32/64BITGraphicsVGAITX-W19
Win7/8/10 32/64BITAudioRealtek AudioITX-W19
Win7/8/10 32/64BITLANRealtekITX-W19
Win7/8/10 32/64BITTXETXEITX-W19
Win7/8/10 32/64BITMBIMBIITX-W19
Win7 32/64BITUSB3.0USB3.0ITX-W19


♦ Integrated Intel ® Celeron J1900 2.0GHz quad-core processor

♦ Based on Intel® Bay Trail SOC Platform snbsp;

♦ 1-SODIMM memory slot with support for 1600/133MHz /1.35V memory, up to 8GB

♦ Integrated Intel ® HDGraphics Core Graphics

♦ 1*VGA, 2*EDP display interface

♦ 1*RTL811H Gigabit Card Chip, Supports Network Wake-up/PXE Function

♦ 3-RS232 serial interface, COM1/COM2 supports 9th pin live, COM2 supports RS485/422

♦ 7-usb2.0 interface, 1*USB 3.0 interface

♦ Fanless cooling
