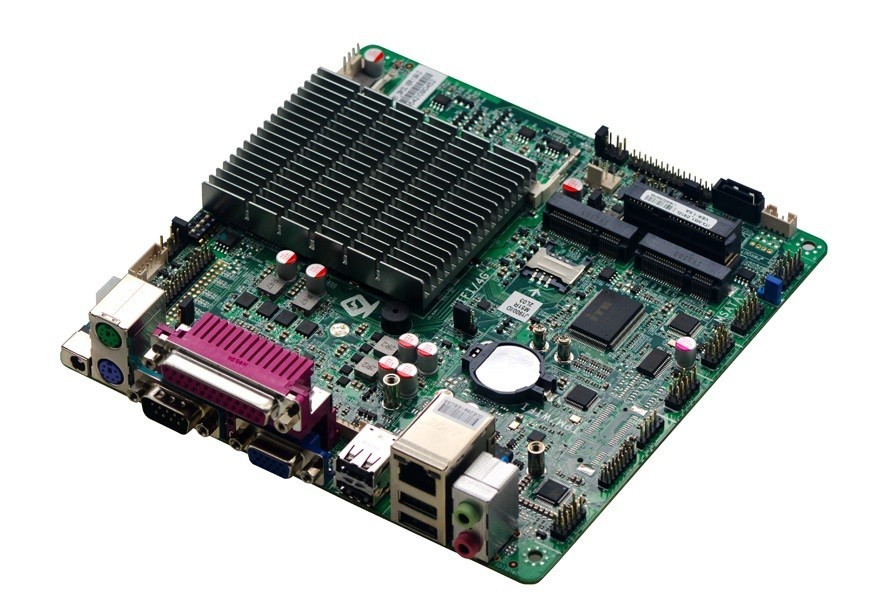

Baytrail J1900/2.0G

ITX-M51_D912L VER:1.6A

项目介绍:

Model NO.

ITX-M51_D912L VER:1.6A

Processor

Integrated Intel ® Celeron J1900?nbsp;2.0GHz quad-core processor,TDP 10W


Compatible with Intel ® Bay Trail - I/M/D full range of CPUs for flexible customer choice

Chipset

Based on the Intel ® Bay trail SOC platform

RAM

1*SODDR3L memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel® HD;Graphics Core Graphics

1*VGA,1*EDP Interface,1* LVDS Interface,support for dual-channel 24BIT

Support for VGA/EDP synchronous/asynchronous display

Network

1*Realtek RTL8111H Gigabit network card, support network wake-up, PXE function

Store

1*SATA 2.0 hard drive interface (where SATA2 and built-in 2.5-inch hard drive second-choice)

1*SATA 2.5 inch notebook hard drive bit SATA_CN2, can be installed directly

1*MSATA slot with SSD SSD support for up to 3Gbps

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC\/Line-out support

Extended slot

1'Mini-PCIE slot, WIFI, 3G modules。

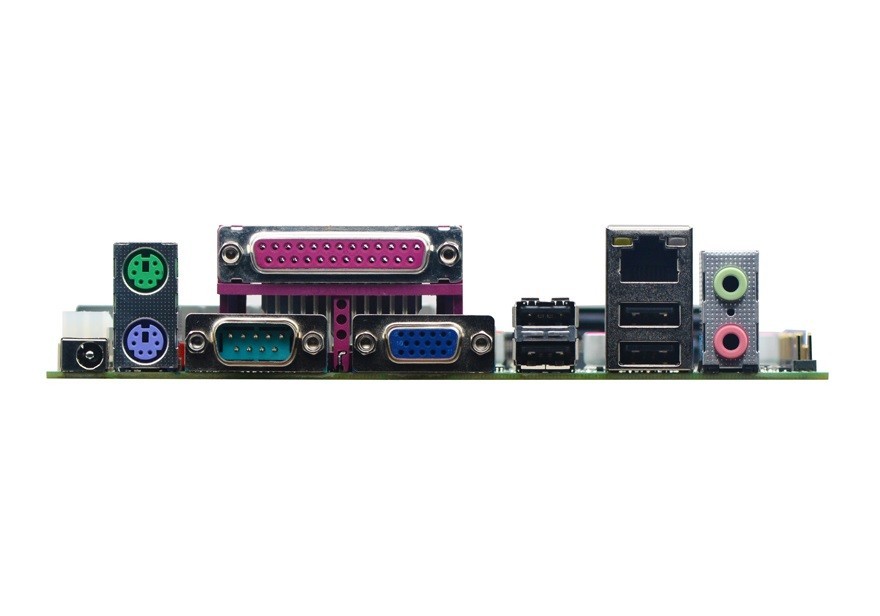

Backplane I/O Interface

1*12V DC power input

1*double-layer keyboard mouse interface

1*RS232

1*LPT print port

1*VGA display interface

4*USB 2.0 interface

1*RJ-45 Gigabit Network Interface

1*Line out interface (green), 1*MIC interface (red)

Built-in I/O interface

1*JEDP1 Interface 2*15pin

1* LVDS interface, 2*15pin, supports dual-channel 24bit

1*On-screen backlit power supply interface 1*6pin

1*TPM interface 2*8pin, with MINI-PCIE TPM for two picks

1* JVGA1 Interface 1*12Pin,Same signal as DB15

1* PS/2 Port(red)1*6Pin

1* RS232 COM  2*5Pin,

4* USB 2.0  2*5Pin

1* USB 2.0  1*5Pin

1* Front audio interface 2*5pin

1* Front panel switch button and LED interface  2*5Pin

1* Hard drive power interface,1*4pin

1* SIM

1*4pin ATX power interface (can be done 12V input and output power interface)

FAN interface

Fanless cooling design, reserved 1x4pin CPU smart fan interface, 1 x 4pin system fan interface

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Operating system

Windows 7/Windows 10/Linux

Power type

DC 12V single-supply power supply

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm


事宜人群:

♦ Integrated Intel ® J1900\/2.00GHz quad-core processor

♦ Based on the Intel ® Bay trail SOC platform

♦ 1* SODIMM memory slot with single-channel 1600\/1333MHz DDR3L\/1.35V memory, up to 8GB

♦ 1*VGA,1*EDP,1*LVDS Interface (supports dual-channel 24BIT),

♦ 1*Realtek RTL8111HGigabit network card, support network wake-up, PXE function

♦ 2* RS232 COM

♦ 9*USB 2.0 Interface,1* LPT,


  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

ITX-M51_D912L VER:1.6A

Processor

Integrated Intel ® Celeron J1900?nbsp;2.0GHz quad-core processor,TDP 10W


Compatible with Intel ® Bay Trail - I/M/D full range of CPUs for flexible customer choice

Chipset

Based on the Intel ® Bay trail SOC platform

RAM

1*SODDR3L memory slot with single-channel 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Display

Integrated Intel® HD;Graphics Core Graphics

1*VGA,1*EDP Interface,1* LVDS Interface,support for dual-channel 24BIT

Support for VGA/EDP synchronous/asynchronous display

Network

1*Realtek RTL8111H Gigabit network card, support network wake-up, PXE function

Store

1*SATA 2.0 hard drive interface (where SATA2 and built-in 2.5-inch hard drive second-choice)

1*SATA 2.5 inch notebook hard drive bit SATA_CN2, can be installed directly

1*MSATA slot with SSD SSD support for up to 3Gbps

Audio

On-board ALC662 6-channel hi-fi audio controller with MIC\/Line-out support

Extended slot

1'Mini-PCIE slot, WIFI, 3G modules。

Backplane I/O Interface

1*12V DC power input

1*double-layer keyboard mouse interface

1*RS232

1*LPT print port

1*VGA display interface

4*USB 2.0 interface

1*RJ-45 Gigabit Network Interface

1*Line out interface (green), 1*MIC interface (red)

Built-in I/O interface

1*JEDP1 Interface 2*15pin

1* LVDS interface, 2*15pin, supports dual-channel 24bit

1*On-screen backlit power supply interface 1*6pin

1*TPM interface 2*8pin, with MINI-PCIE TPM for two picks

1* JVGA1 Interface 1*12Pin,Same signal as DB15

1* PS/2 Port(red)1*6Pin

1* RS232 COM  2*5Pin,

4* USB 2.0  2*5Pin

1* USB 2.0  1*5Pin

1* Front audio interface 2*5pin

1* Front panel switch button and LED interface  2*5Pin

1* Hard drive power interface,1*4pin

1* SIM

1*4pin ATX power interface (can be done 12V input and output power interface)

FAN interface

Fanless cooling design, reserved 1x4pin CPU smart fan interface, 1 x 4pin system fan interface

GPIO

Support for 4-way input and output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support for hardware reset (256 levels, 0 to 255 seconds)

Operating system

Windows 7/Windows 10/Linux

Power type

DC 12V single-supply power supply

Operating temperature

-10℃~60℃

Storage temperature

-20℃~70℃

Working humidity

5%-95% relative humidity, no condensation

Size

170mm x 170mm


No.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-M51_D912L VER:1.6A

J1900

2.00G

1*SODDR3L

1

/

1

1

1*8111H

9

2

/

DC12V

2

ITX-M51_D912E VER:1.6A

J1900

2.00G

1*SODDR3L

1

/

/

2

1*8111H

9

2

/

DC12V



SpecificationsITX-M51_D912L VER:1.6A



Driver(WINXP/7/8/10)


OSDriver TypeDriver NameDownload Now
WinXP/7/8/10 32/64 BITChipsetIntel_infITX-M51_D912L VER:1.6A
WinXP/7/8/10 32/64 BITGraphicsVGAITX-M51_D912L VER:1.6A
WinXP/7/8/10 32/64 BITAudioRealtek AudioITX-M51_D912L VER:1.6A
WinXP/7/8/10 32/64 BITLANRealtekITX-M51_D912L VER:1.6A
WinXP/7/8/10 32/64 BITTXE
TXEITX-M51_D912L VER:1.6A
WinXP/7/8/10 32/64 BITMBIMBIITX-M51_D912L VER:1.6A
WinXP/7/8/10 32/64 BITUSB3.0USB3.0ITX-M51_D912L VER:1.6A



♦ Integrated Intel ® J1900\/2.00GHz quad-core processor

♦ Based on the Intel ® Bay trail SOC platform

♦ 1* SODIMM memory slot with single-channel 1600\/1333MHz DDR3L\/1.35V memory, up to 8GB

♦ 1*VGA,1*EDP,1*LVDS Interface (supports dual-channel 24BIT),

♦ 1*Realtek RTL8111HGigabit network card, support network wake-up, PXE function

♦ 2* RS232 COM

♦ 9*USB 2.0 Interface,1* LPT,
