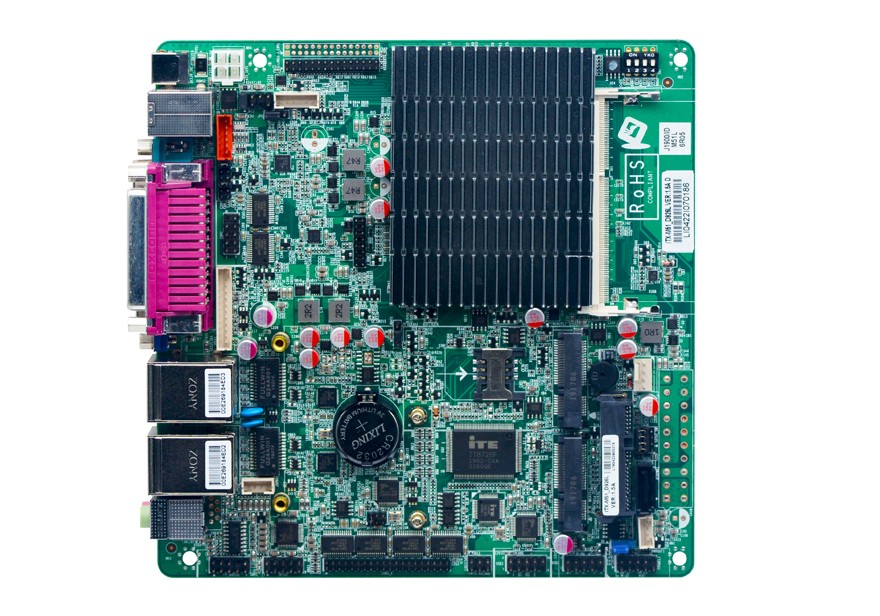

Baytrail J1900/2.0G

ITX-M51_D926L VER:1.5A

项目介绍:

Model No.

ITX-M51_D926L VER:1.5A

Processor

Integrated Intel® J1900/4Cores / 2.00GHz processor


Compatible Intel® Bay Trail -I/M/D  series CPU,Flexible choice for customers

Chipset

Based on Intel® Bay trail SOC platform

Memory

1* SODIMM ,support single channel 1600/1333MHz DDR3L/1.35V memory,up to 8GB

Display

Integrated Intel® HD Graphics


1*VGA,1*HDMI,1*LVDS(support dual channel 24BIT)


Support VGA;HDMI;LVDS Synchronous/ Asynchronous display

Network

2* Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

Storage

1* SATA2.0 HDD port  (with 2.5 inch HDD SATA5 optional)


1* SATA2.0 2.5  inch laptop HDD slot SATA5, can be installed HDD directly


1* MSATA slot(support Intel protocol SSD, the transfer rate up to 3Gbps)

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion slot

1*Mini-PCIE slot, support WIFI、3G module

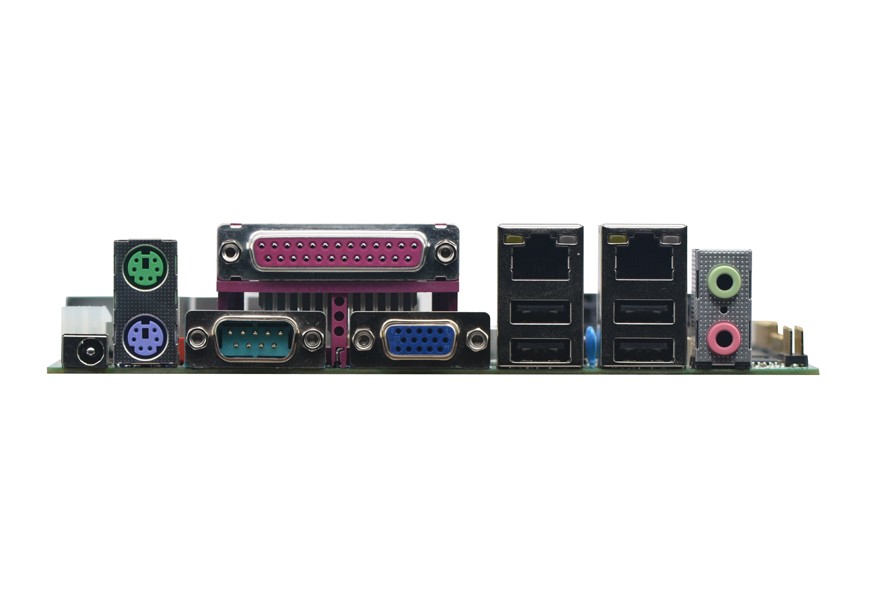

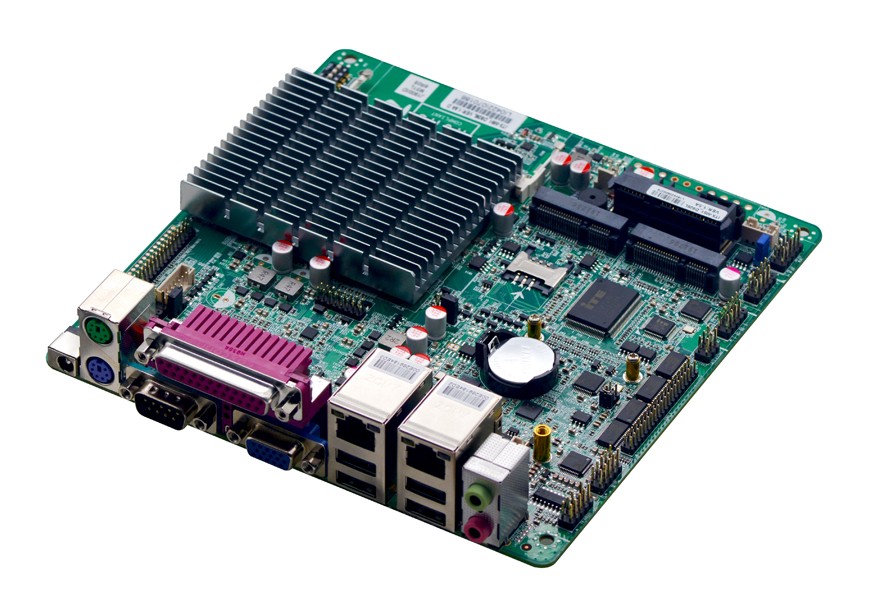

Rear I/O

1* 12V DC power input port


1* double  deck KB/MS port


1* RS232 serial port


1* LPT print port


1* VGA


4* USB 2.0


2* RJ-45 Gigabit Ethernet connectors


1* Line out (Green)、1* MIC(Red)

Internal I/O

1* LVDS  2*15pin, support dual channel 24bit(double 8)


1* LVDS backlight power supply port


1* J_HDMI 2*8Pin


1* JVGA1  1*12Pin, same signal with DB15


1* PS/2 KB/MS port 1*6Pin


4* RS232 serial ports 2*20Pin,COM3 support RS485/422


1* RS232 port 2*5Pin


4* USB 2.0  2*5Pin


1* front audio port 2*5pin


1* power amplifier 1*4pin


1* Front panel switching button and LED indicator port 2*5Pin


1* HDD power supply port 1*4pin


1* SIM card socket


1* 4pin ATX power port(can do 12V input/output port)

FAN interface

Fanless cooling design, reserve 1*4pin CPU smart fan connector,

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch DOG

Support hardware reset function (L256, 0~255 seconds)

Power input

DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


事宜人群:

♦ Integrated Intel® Celeron J1900 2.0GHz quad-core processor, TDP 10W.

♦ Based on the Intel® Bay trail SOC platform.

♦ 1* SODDR3L memory slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB.

♦ Integrated Intel® HD Graphics

♦ 2* Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

♦ 6* RS232 serial ports,8* USB2.0


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M51_D926L VER:1.5A

Processor

Integrated Intel® J1900/4Cores / 2.00GHz processor


Compatible Intel® Bay Trail -I/M/D  series CPU,Flexible choice for customers

Chipset

Based on Intel® Bay trail SOC platform

Memory

1* SODIMM ,support single channel 1600/1333MHz DDR3L/1.35V memory,up to 8GB

Display

Integrated Intel® HD Graphics


1*VGA,1*HDMI,1*LVDS(support dual channel 24BIT)


Support VGA;HDMI;LVDS Synchronous/ Asynchronous display

Network

2* Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE

Storage

1* SATA2.0 HDD port  (with 2.5 inch HDD SATA5 optional)


1* SATA2.0 2.5  inch laptop HDD slot SATA5, can be installed HDD directly


1* MSATA slot(support Intel protocol SSD, the transfer rate up to 3Gbps)

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion slot

1*Mini-PCIE slot, support WIFI、3G module

Rear I/O

1* 12V DC power input port


1* double  deck KB/MS port


1* RS232 serial port


1* LPT print port


1* VGA


4* USB 2.0


2* RJ-45 Gigabit Ethernet connectors


1* Line out (Green)、1* MIC(Red)

Internal I/O

1* LVDS  2*15pin, support dual channel 24bit(double 8)


1* LVDS backlight power supply port


1* J_HDMI 2*8Pin


1* JVGA1  1*12Pin, same signal with DB15


1* PS/2 KB/MS port 1*6Pin


4* RS232 serial ports 2*20Pin,COM3 support RS485/422


1* RS232 port 2*5Pin


4* USB 2.0  2*5Pin


1* front audio port 2*5pin


1* power amplifier 1*4pin


1* Front panel switching button and LED indicator port 2*5Pin


1* HDD power supply port 1*4pin


1* SIM card socket


1* 4pin ATX power port(can do 12V input/output port)

FAN interface

Fanless cooling design, reserve 1*4pin CPU smart fan connector,

GPIO

Support 4 way input/output GPIO

BIOS

64Mb Flash ROM

Watch DOG

Support hardware reset function (L256, 0~255 seconds)

Power input

DC 12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


No.

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M51_D926L VER:1.5A

J1900

2.00G

1*SODDR3L

1

1

2*24Bit

2*8111F

8

6

COM3

DC12V

2

ITX-M51_D826L VER:1.5A

J1800

2.41G

1*SODDR3L

1

1

2*24Bit

2*8111F

8

6

COM3

DC12V




SpecificationsITX-M51_D926L VER:1.5A
