Ivy Bridge

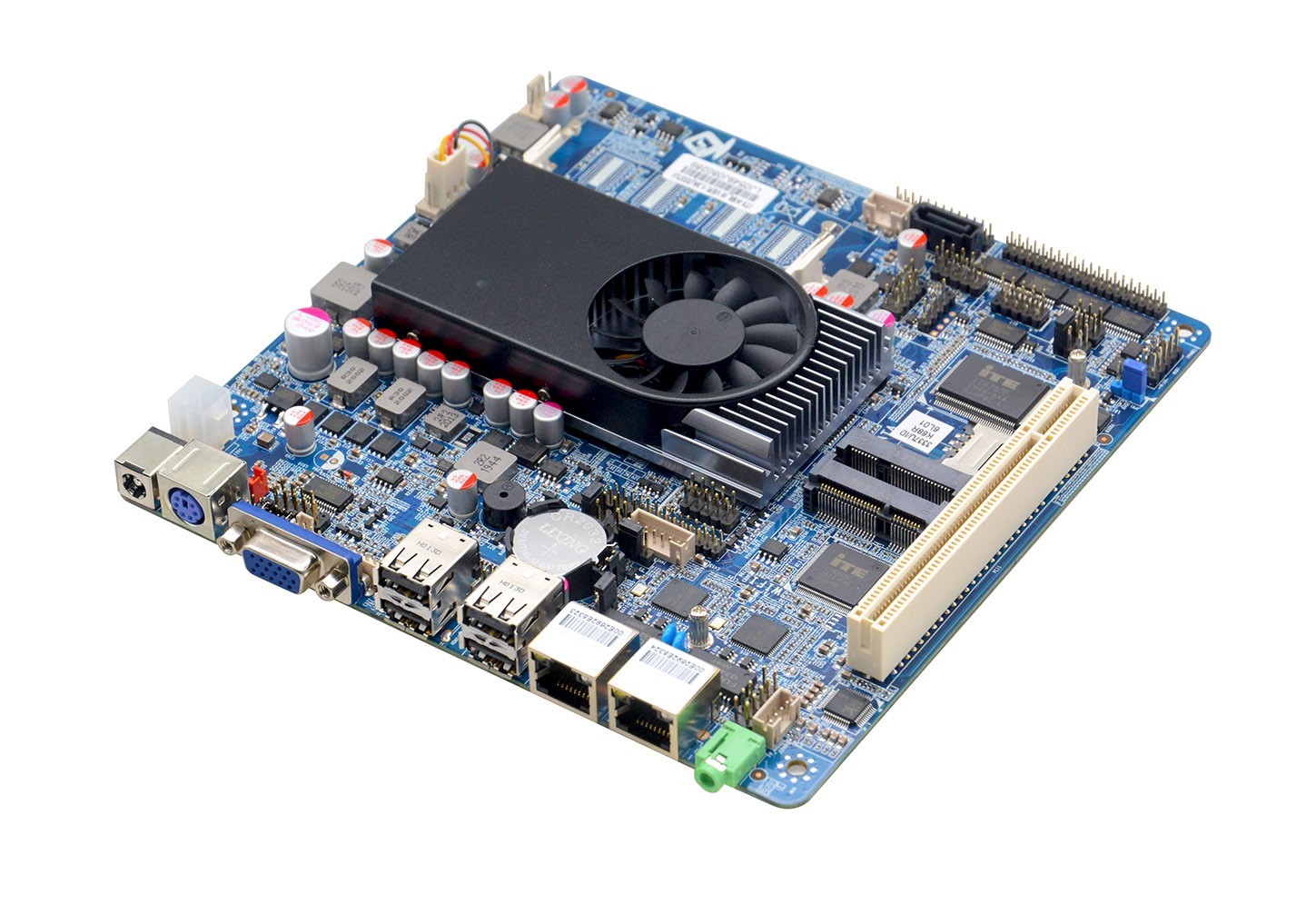

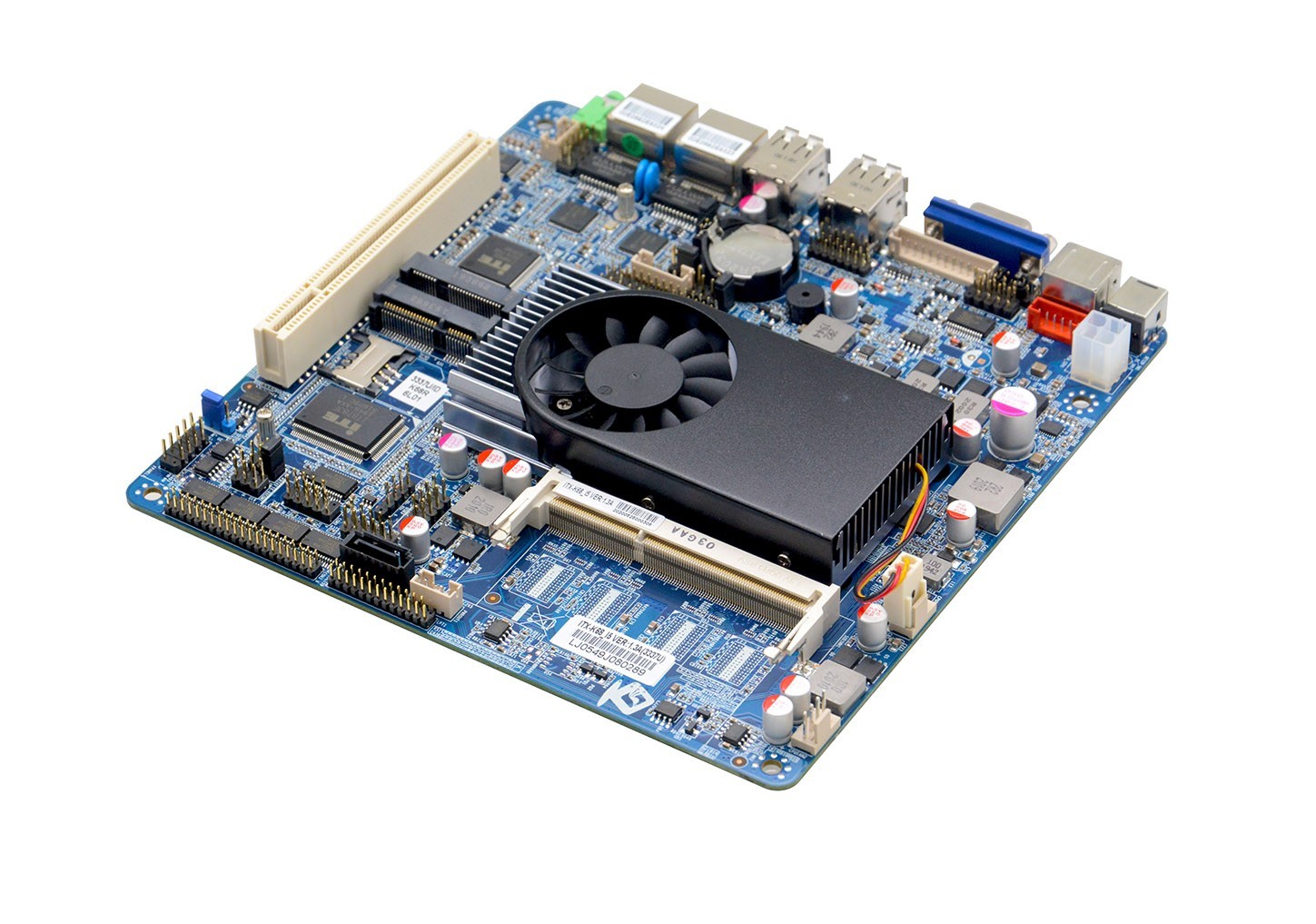

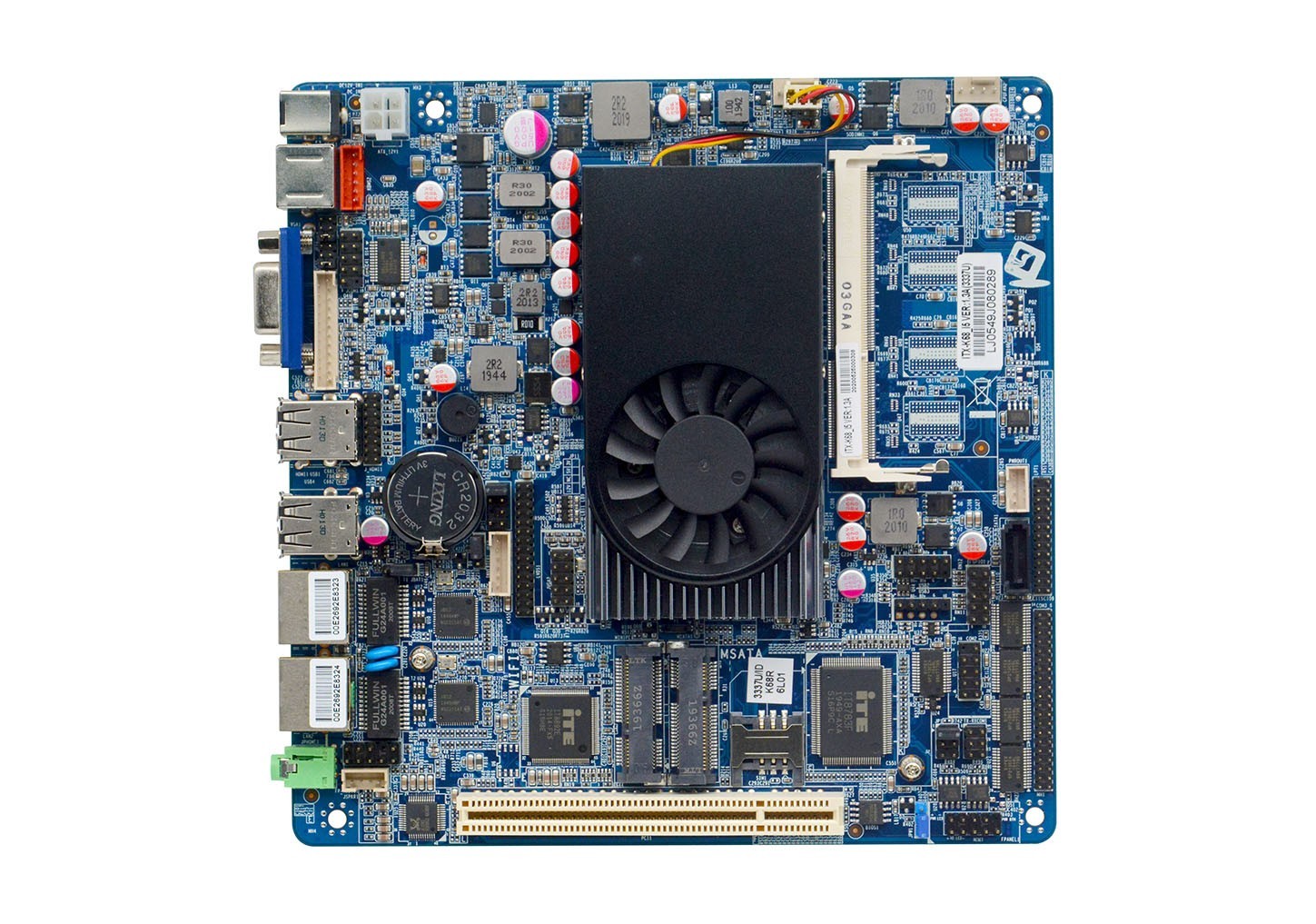

ITX-K68_I5 VER:1.3A(3337U)

项目介绍:

Product No.

ITX-K68_I5 VER:1.3A3337U

Processor

Integrated Intel®I5-3337U 1.8GHz dual-core four-thread processor, TDP 17W


Compatible with Intel®Sandy/IvyBridge Pentium/Celeron/I3/I5/I7 BGA1023 low-power processor

Chipset

Using Intel® NM70 Express Chipset

RAM

1*DDR3 SODIMM slot, support 1333/1600 memory, maximum support 8GB


Support onboard DDR3 2GB/4GB high-speed memory (optional), and SODIMM combination can support dual-channel

Display



Integrated Intel® HD Graphics 4000 core graphics card,

2*VGA interface, 1*dual channel 24bitLVDS interface, 1*HDMI display output interface

Support single display, dual display mode, extended mode.

The internet

2* Intel WGI211AT Gigabit network card, support Wake on LAN/PXE function.

Store

1* SATA2.0 hard disk interface, the transmission speed can reach 3Gbps.


1* MSATA slot, support SSD solid state drive, transfer rate up to 6Gbps

Audio



Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier

It is recommended to use 2Ω5W speakers for the power amplifier

Expand



1* Mini-PCIE slot, support WIFI, 3G module.

1* PCI slot

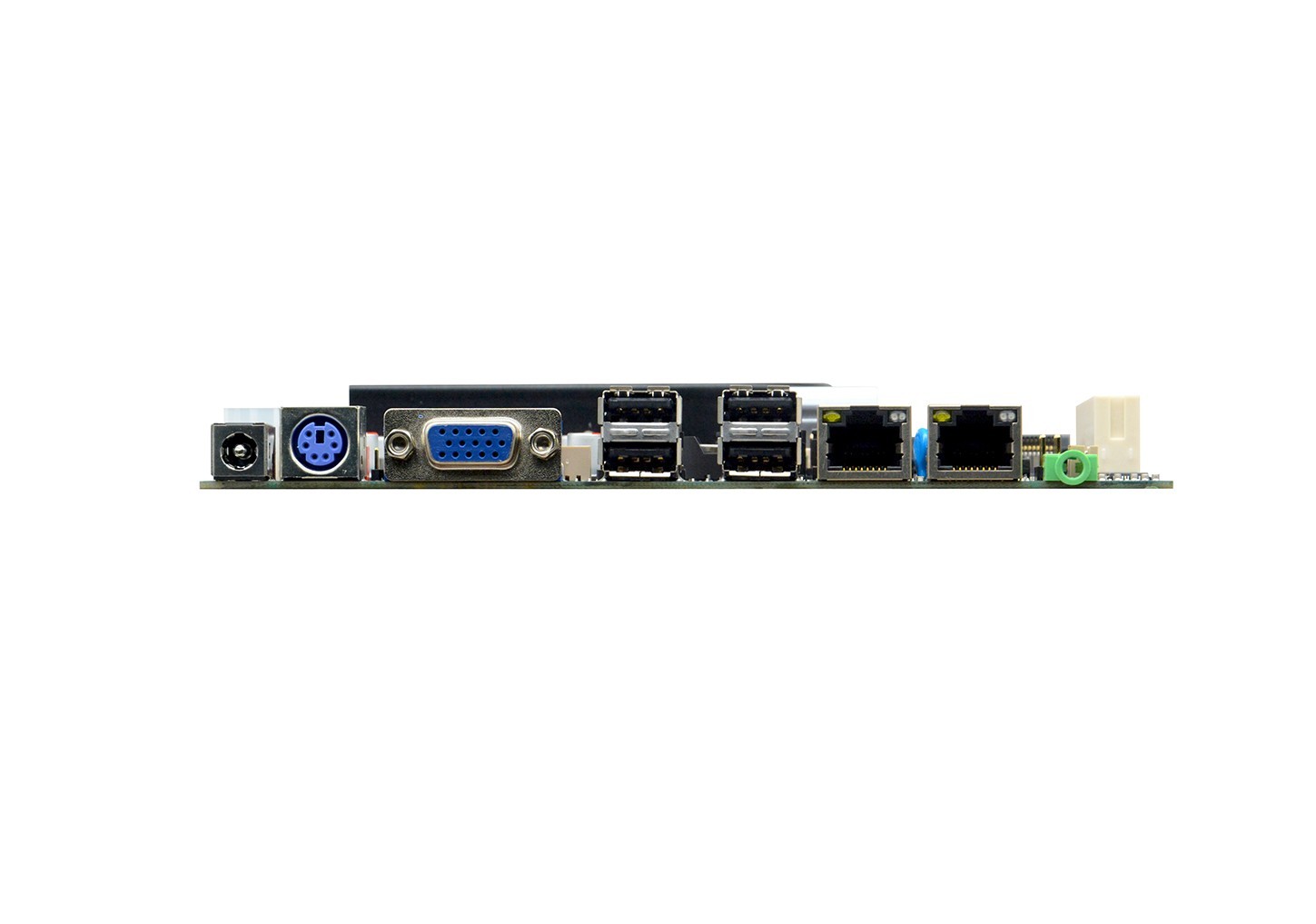

Backplane I/O interface



1* 8V~36V DC power input interface

1* PS/2 keyboard and mouse interface

1* VGA display interface

4* USB 2.0 interface (choose one of HDMI1 and USB1, optional HDMI interface)

2* RJ-45 Gigabit network interface

1* Line out interface (green)

Built-in I/O interface



1* 4pin ATX power interface (8~36V wide voltage input and output power interface can be used)

1* PS/2 keyboard and mouse interface 1*6Pin

1* JHDMI interface 2*8pin (same signal as HDMI1 of the back panel IO interface)

1* JVGA1 port 1*12Pin, same signal as DB15 (VGA1 port)

1* JVGA2 port 2*5pin

1* LVDS interface 2*15pin, support dual channel 24bit (double 8)

1* LVDS backlight power supply interface 1*6pin

1* Front audio interface 2*5pin

1* front power amplifier interface 1*4Pin

3* USB 2.0 interface 2*5Pin

6* RS232 serial port, COM1/COM2 supports the 9th pin charged function, COM3 supports 485/422 function.

1* LPT printer port 2*13pin

1* Hard disk power supply interface 1*4pin

1* SIM card holder

1* Front panel function button and indicator port 2*5pin

Fan interface

2* 4pin CPU fan interface

GPIO

Support 4 input and output GPIO

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Adopt DC 8V~36V wide voltage power supply

Operating temperature

-10℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


事宜人群:

♦Integrated Intel®I5-3337U 1.8GHz dual-core four-thread processor, TDP 17W

♦Compatible with Intel®Sandy/IvyBridge Pentium/Celeron/I3/I5/I7 BGA1023 low-power processor

♦Using Intel® NM70 Express Chipset

♦1*DDR3 SODIMM slot, support 1333/1600 memory, maximum support 8GB

♦Support onboard DDR3 2GB/4GB high-speed memory (optional), and SODIMM combination can support dual-channel

♦Integrated Intel® HD Graphics 4000 core graphics card,

♦2*VGA interface, 1*dual channel 24bitLVDS interface, 1*HDMI display output interface

♦Support single display, dual display mode, extended mode.

♦2* Intel WGI211AT Gigabit network card, support Wake on LAN/PXE function.



  • Product Specifications
  • Ordering Information
  • Download Center

Product No.

ITX-K68_I5 VER:1.3A3337U

Processor

Integrated Intel®I5-3337U 1.8GHz dual-core four-thread processor, TDP 17W


Compatible with Intel®Sandy/IvyBridge Pentium/Celeron/I3/I5/I7 BGA1023 low-power processor

Chipset

Using Intel® NM70 Express Chipset

RAM

1*DDR3 SODIMM slot, support 1333/1600 memory, maximum support 8GB


Support onboard DDR3 2GB/4GB high-speed memory (optional), and SODIMM combination can support dual-channel

Display



Integrated Intel® HD Graphics 4000 core graphics card,

2*VGA interface, 1*dual channel 24bitLVDS interface, 1*HDMI display output interface

Support single display, dual display mode, extended mode.

The internet

2* Intel WGI211AT Gigabit network card, support Wake on LAN/PXE function.

Store

1* SATA2.0 hard disk interface, the transmission speed can reach 3Gbps.


1* MSATA slot, support SSD solid state drive, transfer rate up to 6Gbps

Audio



Integrated ALC662 6-channel high-fidelity audio controller, support MIC, Line_out, power amplifier

It is recommended to use 2Ω5W speakers for the power amplifier

Expand



1* Mini-PCIE slot, support WIFI, 3G module.

1* PCI slot

Backplane I/O interface



1* 8V~36V DC power input interface

1* PS/2 keyboard and mouse interface

1* VGA display interface

4* USB 2.0 interface (choose one of HDMI1 and USB1, optional HDMI interface)

2* RJ-45 Gigabit network interface

1* Line out interface (green)

Built-in I/O interface



1* 4pin ATX power interface (8~36V wide voltage input and output power interface can be used)

1* PS/2 keyboard and mouse interface 1*6Pin

1* JHDMI interface 2*8pin (same signal as HDMI1 of the back panel IO interface)

1* JVGA1 port 1*12Pin, same signal as DB15 (VGA1 port)

1* JVGA2 port 2*5pin

1* LVDS interface 2*15pin, support dual channel 24bit (double 8)

1* LVDS backlight power supply interface 1*6pin

1* Front audio interface 2*5pin

1* front power amplifier interface 1*4Pin

3* USB 2.0 interface 2*5Pin

6* RS232 serial port, COM1/COM2 supports the 9th pin charged function, COM3 supports 485/422 function.

1* LPT printer port 2*13pin

1* Hard disk power supply interface 1*4pin

1* SIM card holder

1* Front panel function button and indicator port 2*5pin

Fan interface

2* 4pin CPU fan interface

GPIO

Support 4 input and output GPIO

BIOS

32Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power type

Adopt DC 8V~36V wide voltage power supply

Operating temperature

-10℃~60

Storage temperature

-20℃~70

Working humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm


No,

Model

Processor

Frequency

Memory

LAN

VGA

HDMI

LVDS

USB

COM

RS485/422

Power

1

ITX-K68_I5 VER:1.33337U

I5-3337U

1.8G

1*SODDR3

2*I211AT

2

1

2ch/24BIT

7

6

COM3

DC/8~36V

2

ITX-K68 VER:1.31037U

1037U

1.7G

1*SODDR3

2*I211AT

2

1

2ch/24BIT

7

6

COM3

DC/8~36V
