Ivy Bridge

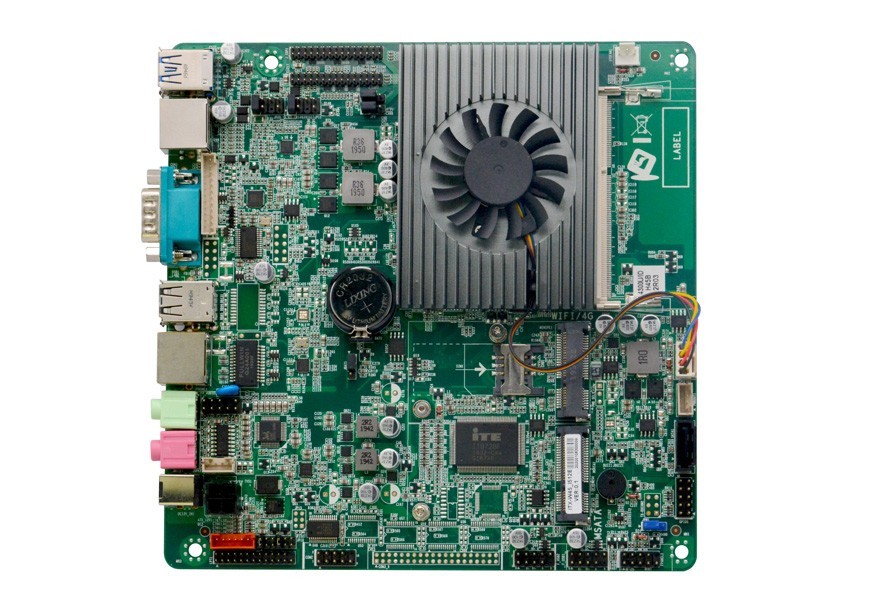

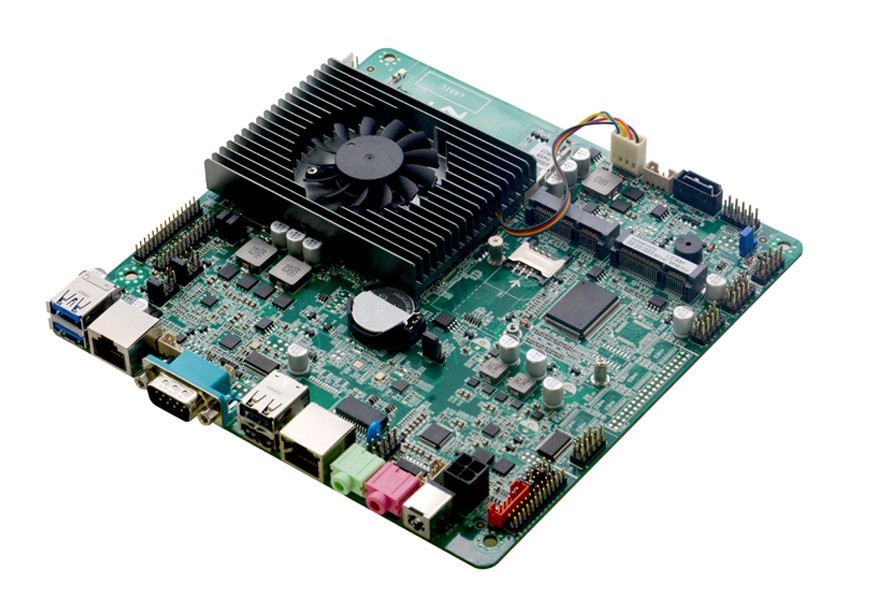

ITX-W45_I512E VER: 1.0 (4300U)

项目介绍:
Model NO.ITX-W45_I512E VER: 1.0 (4300U)
ProcessorIntegrated Intel ® Haswell-U I5-4300U/1.9GHz dual-core processor, TDP 15W
Compatible with Intel Celeoron, Pentium, Core® I3/I5/I7 Haswell/Broadwell-U processor
ChipsetBased on Intel® Haswell-U/Broadwell-U SOC platform
Memory1*SO DDRIII slot with 1600/1333MHz DDR3L/1.35V memory, up to 8GB
DisplayIntegrated Intel ® HD Graphics 4400 Core Graphics
1*VGA, 2*EDP interface
Support for individual display, dual-display mode, extended mode
Network1*RTL811H Gigabit Network Card, supports network wake-up/PXE function
Storage1*7pin SATA3.0 hard drive interface with a transfer rate of up to 6Gbps
1*MSATA slot, SSD SSD supports Intel protocol, with transmission speeds up to 6Gbps
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers use a 2-plus 5W horn

1*Mini-PCIE Slot Support WIFI/4G Module

Note: MINIPE1 If you need to support 4G modules, you will need to adjust the relevant hardware settings and will result in F_USB2 only 1 USB
Backplane I/O Interface1*12V DC JACK power input
1*RJ11 Money Box Interface
1*DB9 RS232 Serial Interface
2*USB 3.0 interface, 2*USB 2.0 connector
1*RJ-45 Gigabit Network Interface
1*Line out interface (green)
1*MIC interface (red)
Built-in I/O interface1*JVGA1 Interface 1x12Pin
2*EDP interface, 2*15pin,
1*front audio interface 2x5pin
1*Front Amplifier Interface 1x4Pin
4*USB 2.0 Interface 2x5Pin
1*RS232 Serial Interface, 2x 5pin, COM1/COM2 supports live functionality
1*hard drive power interface 1x4pin
1*LPT print interface 2*13pin
1*PS/2 keyboard mouse interface 1*6Pin
1*SIM seat
1*front panel function button and LED interface 2*5pin
1*4pin ATX power connector
FAN Interface1*4pin CPU smart fan interface, 1*3pin system fan interface
GPIOSupport for 4-way input and output GPIO
BIOSAMI 64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
OSWindows 7/Windows 10/Linux
Power typeDC_12V single power input
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm*170mm


事宜人群:

◆Integrated Intel ® Haswell-U I5-4300U/1.9GHz dual-core processor

◆1*SO DDRIII slot, support1600/1333MHz DDR3L/1.35V memory, up to 8GB support

◆1*VGA, 2*EDP interface, support for individual display, dual-display mode, expansion mode

◆Integrated Intel ® HD Graphics 4400 Core Graphics

◆1*RTL811H gigabit network card, support network wake-up/PXE function

◆6*USB 2.0 interface, 2*USB 3.0 interface, 1*LPT printing interface

◆2*RS232 serial interface, COM1/COM2 support live function


  • Product Specifications
  • Ordering Information
  • Download Center
Model NO.ITX-W45_I512E VER: 1.0 (4300U)
ProcessorIntegrated Intel ® Haswell-U I5-4300U/1.9GHz dual-core processor, TDP 15W
Compatible with Intel Celeoron, Pentium, Core® I3/I5/I7 Haswell/Broadwell-U processor
ChipsetBased on Intel® Haswell-U/Broadwell-U SOC platform
Memory1*SO DDRIII slot with 1600/1333MHz DDR3L/1.35V memory, up to 8GB
DisplayIntegrated Intel ® HD Graphics 4400 Core Graphics
1*VGA, 2*EDP interface
Support for individual display, dual-display mode, extended mode
Network1*RTL811H Gigabit Network Card, supports network wake-up/PXE function
Storage1*7pin SATA3.0 hard drive interface with a transfer rate of up to 6Gbps
1*MSATA slot, SSD SSD supports Intel protocol, with transmission speeds up to 6Gbps
AudioOn-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers use a 2-plus 5W horn

1*Mini-PCIE Slot Support WIFI/4G Module

Note: MINIPE1 If you need to support 4G modules, you will need to adjust the relevant hardware settings and will result in F_USB2 only 1 USB
Backplane I/O Interface1*12V DC JACK power input
1*RJ11 Money Box Interface
1*DB9 RS232 Serial Interface
2*USB 3.0 interface, 2*USB 2.0 connector
1*RJ-45 Gigabit Network Interface
1*Line out interface (green)
1*MIC interface (red)
Built-in I/O interface1*JVGA1 Interface 1x12Pin
2*EDP interface, 2*15pin,
1*front audio interface 2x5pin
1*Front Amplifier Interface 1x4Pin
4*USB 2.0 Interface 2x5Pin
1*RS232 Serial Interface, 2x 5pin, COM1/COM2 supports live functionality
1*hard drive power interface 1x4pin
1*LPT print interface 2*13pin
1*PS/2 keyboard mouse interface 1*6Pin
1*SIM seat
1*front panel function button and LED interface 2*5pin
1*4pin ATX power connector
FAN Interface1*4pin CPU smart fan interface, 1*3pin system fan interface
GPIOSupport for 4-way input and output GPIO
BIOSAMI 64Mb Flash ROM
WatchdogSupport for hardware reset (256 levels, 0 to 255 seconds)
OSWindows 7/Windows 10/Linux
Power typeDC_12V single power input
Operating temperature-10C to 60C
Storage temperature-20C to 70C
Working humidity5%-95% relative humidity, no condensation
Size170mm*170mm


No

Model

Processor

Frequency

Memory

VGA

HDMI

LVDS

EDP

LAN

USB

COM

RS485/422

Power

1

ITX-W45_I512E VER:1.0(4300U)

I5-4300U

1.9G

1*SODDR3L

1

/

/

2

1*8111H

8

2

/

DC12V



SpecificationsITX-W45_I512E


Driver(WIN7/8/10)


OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITChipsetchipsetITX-W45
Win7/8/10 32/64BITGraphicsVGAITX-W45
Win7/8/10 32/64BITAudioRealtek AudioITX-W45
Win7/8/10 32/64BITLANRealtekITX-W45
Win7/8/10 32/64BITMEME_SW_MSIITX-W45
WIN7 32/64BITUSB3.0USB3.0ITX-W45



◆Integrated Intel ® Haswell-U I5-4300U/1.9GHz dual-core processor

◆1*SO DDRIII slot, support1600/1333MHz DDR3L/1.35V memory, up to 8GB support

◆1*VGA, 2*EDP interface, support for individual display, dual-display mode, expansion mode

◆Integrated Intel ® HD Graphics 4400 Core Graphics

◆1*RTL811H gigabit network card, support network wake-up/PXE function

◆6*USB 2.0 interface, 2*USB 3.0 interface, 1*LPT printing interface

◆2*RS232 serial interface, COM1/COM2 support live function
