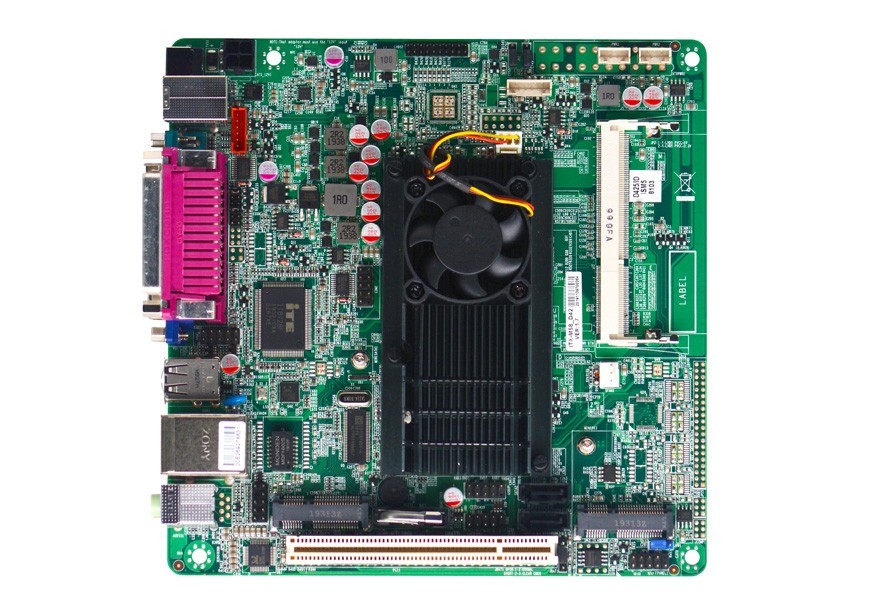

Pineview D525/1.8G

ITX-M58_D42 VER:1.7

项目介绍:

Model No.

ITX-M58_D42 VER:1.7

Processor

Integrated Intel® GMA3150 graphics,TDP 10W

Chipset

Intel® 82801HBM Express Chipset

Memory

1* DDR3 SODIMM ,support 800MHz memory, up to 2GB

Graphics

Integrated Intel® GMA3150 graphics

1* VGA、1*LVDS display output,LVDS support signal 18bit

Network

1* RTL8105E 100M ethernet ,support wake on LAN/PXE(Support gigabit network card, customization required)

Storage

2* SATA2.0 HDD interface the transfer rate up to 3Gbps.


1* MSATA slot, support Intel protocol SSD, the transfer rate up to 3Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out

Expansion Slots

1* PCI slot.


1* Mini-PCIE slot, support WIFI

Rear I/O

1* PS/2 KB/MS connector

4* USB2.0 port

1* RJ-45 ethernet connector

1* double audio port ,support MIC、Line out

1*  Print port

1* VGA

1* RS232 serial port, the 9th pin supports 5V/12V charged function

Internal I/O

4* USB2.0 interface, 2*5pin

1*RS232 serial port, where COM1/COM2 supports live function,

1*front audio port  2*5pin

1*front panel function buttons and indicator port  2*5pin

1*PS/2 KB/MS port  1*6pin

1*JVGA1 2*5pin , same signal with VGA1

1*LVDS 2*10pin, support signal 18Bit

1*LVDS backlight power supply port,1*6pin

1*4pin ATX power port , support 12V power input/output

2*HDD power supply port  1*4pin

FAN interface

1*3pin CPU fan interface ,1*3pin system interface

BIOS

8Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Linux

Power input

DC12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


事宜人群:

♦Intel Atom D425/1.80G) TDP 10W

♦Intel 82801HBM

♦1*DDR3 SODIMM/800MHz 2GB

♦Intel3150 Graphics

♦1* VGA1*LVDS LVDS18bit

♦1* RTL8105E/PXE

♦2* RS232

♦8* USB2.0 1*PCI


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M58_D42 VER:1.7

Processor

Integrated Intel® GMA3150 graphics,TDP 10W

Chipset

Intel® 82801HBM Express Chipset

Memory

1* DDR3 SODIMM ,support 800MHz memory, up to 2GB

Graphics

Integrated Intel® GMA3150 graphics

1* VGA、1*LVDS display output,LVDS support signal 18bit

Network

1* RTL8105E 100M ethernet ,support wake on LAN/PXE(Support gigabit network card, customization required)

Storage

2* SATA2.0 HDD interface the transfer rate up to 3Gbps.


1* MSATA slot, support Intel protocol SSD, the transfer rate up to 3Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out

Expansion Slots

1* PCI slot.


1* Mini-PCIE slot, support WIFI

Rear I/O

1* PS/2 KB/MS connector

4* USB2.0 port

1* RJ-45 ethernet connector

1* double audio port ,support MIC、Line out

1*  Print port

1* VGA

1* RS232 serial port, the 9th pin supports 5V/12V charged function

Internal I/O

4* USB2.0 interface, 2*5pin

1*RS232 serial port, where COM1/COM2 supports live function,

1*front audio port  2*5pin

1*front panel function buttons and indicator port  2*5pin

1*PS/2 KB/MS port  1*6pin

1*JVGA1 2*5pin , same signal with VGA1

1*LVDS 2*10pin, support signal 18Bit

1*LVDS backlight power supply port,1*6pin

1*4pin ATX power port , support 12V power input/output

2*HDD power supply port  1*4pin

FAN interface

1*3pin CPU fan interface ,1*3pin system interface

BIOS

8Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 7/Linux

Power input

DC12V power supply

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95% relative humidity, non-condensing

Dimension

170mm x 170mm


No.

Model

Processor

Frequency

Memory

VGA

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M58_D42 VER:1.7

D425

1.80G

1*SODDR3

1

1*18BIT

1*RTL805E

8

2

/

DC12V

2

ITX-M58_D56L VER:1.7

D525

1.80G

1*SODDR3

2

1*18BIT

1*RTL805E

8

6

COM2

DC12V

3

ITX-M58_A45E VER:1.7

D425

1.8G

1*SODDR3

1

1*18BIT

1*RTL805E

8

2

/

ATX





SpecificationsITX-M58_D42 VER:1.7



Driver(WINXP/7/8)


OSDriver TypeDriver NameDownload Now
WinXP/7/8 32/64 BITChipsetIntel_infITX-M58
WinXP/7/8 32/64 BITGraphicsVGAITX-M58
WinXP/7/8 32/64 BITAudioRealtek AudioITX-M58
WinXP/7/8 32/64 BITLANRealtekITX-M58
Win7 32/64 BITUSB3.0USB3.0ITX-M58
