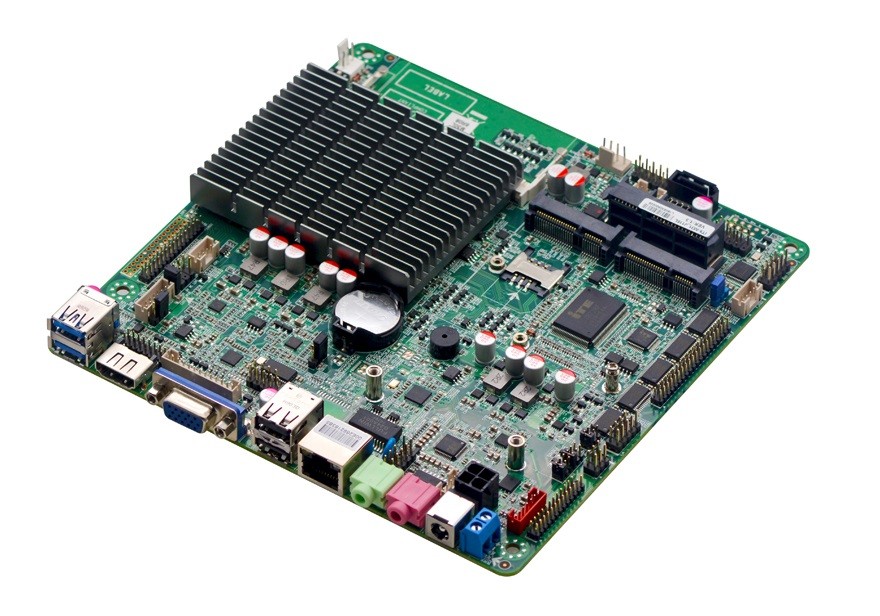

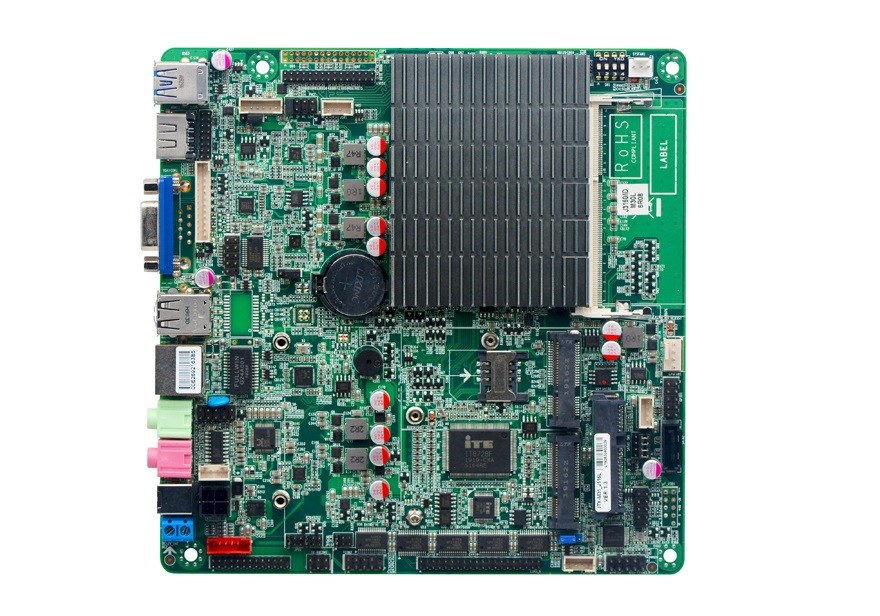

Braswell J3160/1.60G

ITX-M31_J116L VER:1.3

项目介绍:

Model No.

ITX-M31_J116L VER:1.3(J3160)

Processor

Integrated  Intel®Celeron J3160/1.6GHz quad core processor ,TDP 6W

Compatible Intel Braswell series CPU

Chipset

Based on Intel® Braswell SOC platform

Memory

1*SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Graphics

Integrated Intel®HD Graphics 400


1*VGA,1*HDMI,1* support double channel 24bit LVDS


Support synchronous/asynchronous display

Network

1*RTL8111F Gigabit ethernet , support wake on LAN/PXE

Storage

1* SATA3.0 2.5 inch laptop HDD slot , can install HDD directly


1* 7pin SATA3.0 HDD port (with 2.5 inch laptop HDD slot optional)

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion slot

1* Mini-PCIE slot, support WIFI/3G module


1* MSATA3.0 slot, support Intel protocol SSD,the transfer rate up to 6Gbps

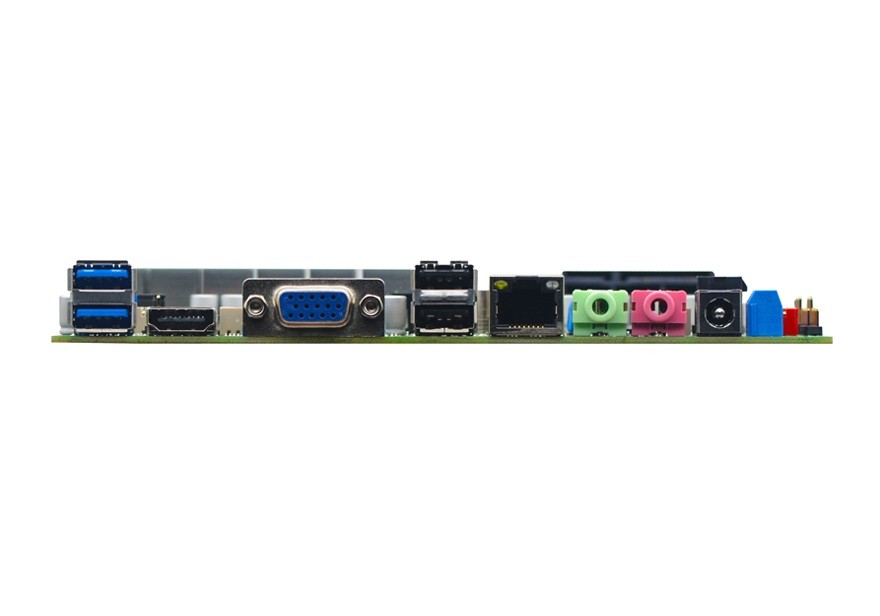

Rear I/O

2* USB2.0


2* USB3.0


1* HDMI


1* VGA (can do DB9 serial port )


1* RJ-45 gigabit ethernet


1* Line out(Green)


1* MIC(Red)


1* 12V DC power input port 口

Internal I/O

1*LVDS  2*15pin, support dual channel 24BIT


1*LVDS backlight power supply port  1*6pin


1* screen brightness adjustment port  1*4pin


1* JHDMI 2*8Pin,the same signal with HDMI


1* JVGA1 1*12pin the same signal with DB15


6* RS232 serial ports(COM1/2 support charged function,),COM2 support RS485/422


1* LPT print port  2*13pin


2* USB2.0 2*5pin


1* USB2.0 1*4pin


1* PS/2 KB/MS port  1*6Pin


1* front audio port  2*5pin


1*  power amplifier 1*4pin


1* SIM card socket


1* HDD power supply port  1*4pin


1* front panel buttons and indicator port  2*5pin


1* 4pin ATX power port , support 12V input/output


1*2pin blue power element ,support 12V power input/output

FAN connector

Support fanless cooling ,reserved 1* 4pin CPU smart fan connector,1* 3pin system fan connector

GPIO

Support 4 way inpu/output GPIO

BIOS

AMI 64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 10/Linux

Power input

DC 12V power input

Working Temp.

-10℃~60℃

Storage Tepm.

-20℃~70℃

Working Humidiry

5%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm


事宜人群:

◆ Integrated Intel® Celeron J3160 1.6GHz quad core processor,TDP 6W

◆ Based on Intel® Braswell SOC

◆ 1*SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB

◆ Integrated Intel®HD Graphics 400

◆ 1*VGA,1*HDMI,1*LVDS

◆ 1*RTL8111F Gigabit Ethernet

◆ 7*USB,6*RS232


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

ITX-M31_J116L VER:1.3(J3160)

Processor

Integrated  Intel®Celeron J3160/1.6GHz quad core processor ,TDP 6W

Compatible Intel Braswell series CPU

Chipset

Based on Intel® Braswell SOC platform

Memory

1*SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB

Graphics

Integrated Intel®HD Graphics 400


1*VGA,1*HDMI,1* support double channel 24bit LVDS


Support synchronous/asynchronous display

Network

1*RTL8111F Gigabit ethernet , support wake on LAN/PXE

Storage

1* SATA3.0 2.5 inch laptop HDD slot , can install HDD directly


1* 7pin SATA3.0 HDD port (with 2.5 inch laptop HDD slot optional)

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier.


Support amplifer 2Ω5W trumpet

Expansion slot

1* Mini-PCIE slot, support WIFI/3G module


1* MSATA3.0 slot, support Intel protocol SSD,the transfer rate up to 6Gbps

Rear I/O

2* USB2.0


2* USB3.0


1* HDMI


1* VGA (can do DB9 serial port )


1* RJ-45 gigabit ethernet


1* Line out(Green)


1* MIC(Red)


1* 12V DC power input port 口

Internal I/O

1*LVDS  2*15pin, support dual channel 24BIT


1*LVDS backlight power supply port  1*6pin


1* screen brightness adjustment port  1*4pin


1* JHDMI 2*8Pin,the same signal with HDMI


1* JVGA1 1*12pin the same signal with DB15


6* RS232 serial ports(COM1/2 support charged function,),COM2 support RS485/422


1* LPT print port  2*13pin


2* USB2.0 2*5pin


1* USB2.0 1*4pin


1* PS/2 KB/MS port  1*6Pin


1* front audio port  2*5pin


1*  power amplifier 1*4pin


1* SIM card socket


1* HDD power supply port  1*4pin


1* front panel buttons and indicator port  2*5pin


1* 4pin ATX power port , support 12V input/output


1*2pin blue power element ,support 12V power input/output

FAN connector

Support fanless cooling ,reserved 1* 4pin CPU smart fan connector,1* 3pin system fan connector

GPIO

Support 4 way inpu/output GPIO

BIOS

AMI 64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Windows 10/Linux

Power input

DC 12V power input

Working Temp.

-10℃~60℃

Storage Tepm.

-20℃~70℃

Working Humidiry

5%-95%(relative humidity; non-condensing)

Dimension

170mm x 170mm


No.

Model

Processor

Frequency

Memory

VGA

LVDS

EDP

HDMI

LAN

USB

COM

RS485/422

Power

1

ITX-M31_J116L VER:1.3(J3160)

J3160

1.60G

1*SODDR3L

1

2ch*24bit

/

1

1*RTL8111F

7

6

COM2

DC12V



SpecificationsITX-M31_J116L VER:1.3


Driver(WINXP/7/8)


OSDriver TypeDriver NameDownload Now
Win 7/8/10 32/64 BITChipsetChipsetITX-M31_J116L VER:1.3
Win 7/8/10 32/64 BITGraphicsVGAITX-M31_J116L VER:1.3
Win 7/8/10 32/64 BITAudioRealtek AudioITX-M31_J116L VER:1.3
Win 7/8/10 32/64 BITLANRealtekITX-M31_J116L VER:1.3
Win 7/8/10 32/64 BITTXETXEITX-M31_J116L VER:1.3



◆ Integrated Intel® Celeron J3160 1.6GHz quad core processor,TDP 6W

◆ Based on Intel® Braswell SOC

◆ 1*SODIMM slot, support 1600/1333MHz DDR3L/1.35V memory, up to 8GB

◆ Integrated Intel®HD Graphics 400

◆ 1*VGA,1*HDMI,1*LVDS

◆ 1*RTL8111F Gigabit Ethernet

◆ 7*USB,6*RS232
