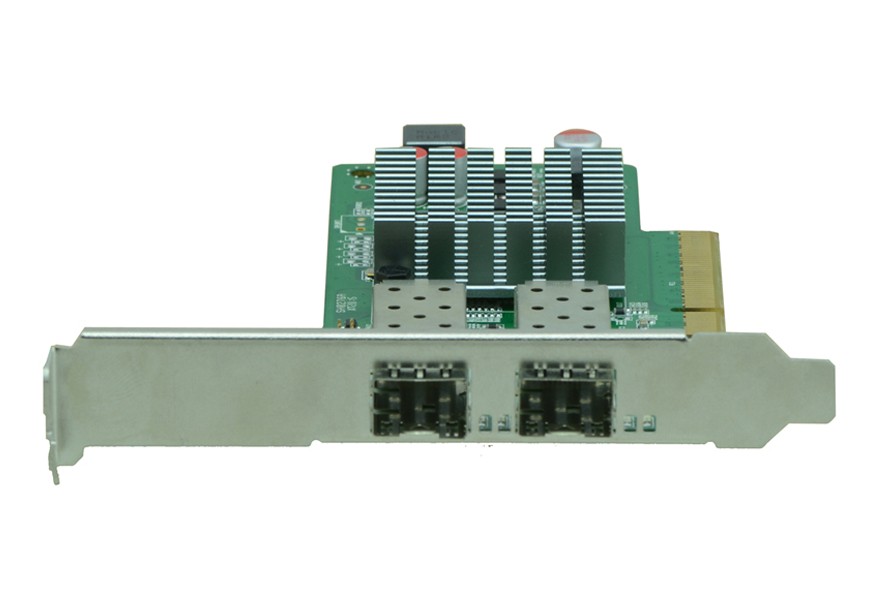

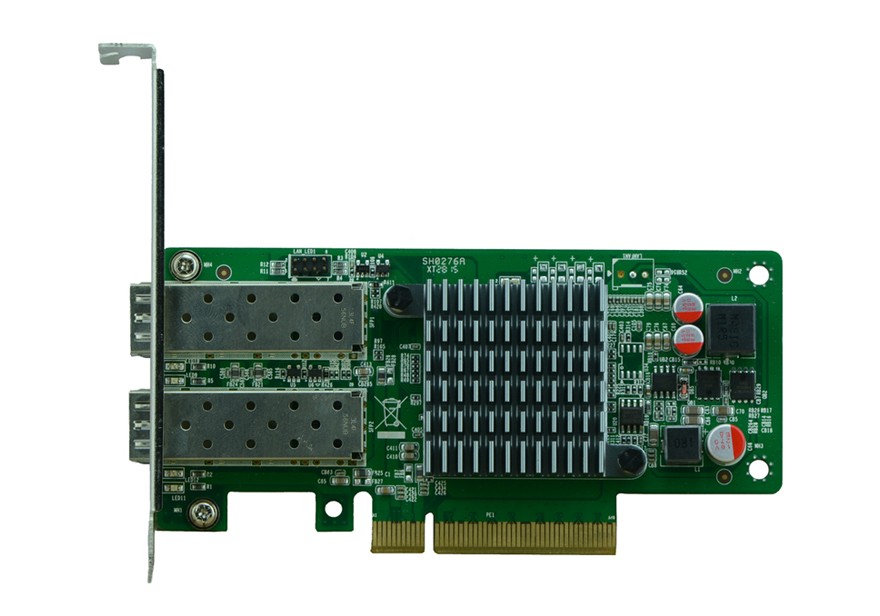

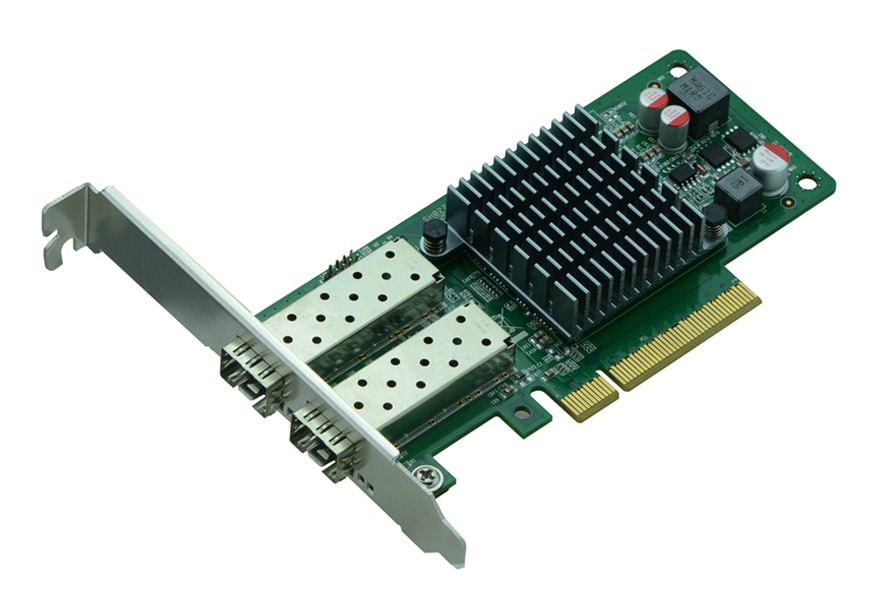

Expended Ethernet Card

OPT600 VER:1.0

项目介绍:

Model

OPT600 VER:1.0

Network chip

Using Intel® 82599ES 10 Gigabit Ethernet chip

Motherboard interface



PCI Express X8 lane

Support PCI Express Basic Specification 2.0

Narrow version of the adapter card (supports 1U and 2U chassis at the same time)

Performance Characteristics



There is a large receive packet buffer on the chip

There is a large sending packet buffer on the chip

LAN features



Support IEEE 802.x flow control

Support IEEE 802.q VLAN tagging


DDP offloading

LAN interface

2*10 Gigabit optical port (Intel® NH82599ES 10 Gigabit network chip)

Operating system



Windows 7/8/10

Windows Server 2008/2012

Linux

Support motherboard

Compliant with PCIE X8/X4 motherboard

Operating temperature

-10~60

Storage temperature

-20~70

Relative humidity

5%-95% relative humidity, non-condensing

Motherboard size

136mm(length)x64mm(width)x16mm(height)


事宜人群:

♦Using Intel® 82599ES 10 Gigabit Ethernet chip

♦PCI Express X8 lane

♦Support PCI Express Basic Specification 2.0

♦Narrow version of the adapter card (supports 1U and 2U chassis at the same time)

♦There is a large receive packet buffer on the chip

♦There is a large sending packet buffer on the chip

♦Support IEEE 802.x flow control

♦Support IEEE 802.q VLAN tagging

♦DDP offloading

♦2*10 Gigabit optical port (Intel® NH82599ES 10 Gigabit network chip)


  • Product Specifications
  • Ordering Information
  • Download Center

Model

OPT600 VER:1.0

Network chip

Using Intel® 82599ES 10 Gigabit Ethernet chip

Motherboard interface



PCI Express X8 lane

Support PCI Express Basic Specification 2.0

Narrow version of the adapter card (supports 1U and 2U chassis at the same time)

Performance Characteristics



There is a large receive packet buffer on the chip

There is a large sending packet buffer on the chip

LAN features



Support IEEE 802.x flow control

Support IEEE 802.q VLAN tagging


DDP offloading

LAN interface

2*10 Gigabit optical port (Intel® NH82599ES 10 Gigabit network chip)

Operating system



Windows 7/8/10

Windows Server 2008/2012

Linux

Support motherboard

Compliant with PCIE X8/X4 motherboard

Operating temperature

-10~60

Storage temperature

-20~70

Relative humidity

5%-95% relative humidity, non-condensing

Motherboard size

136mm(length)x64mm(width)x16mm(height)


Specification OPT600


Driver

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITLANIntel
OPT600


♦Using Intel® 82599ES 10 Gigabit Ethernet chip

♦PCI Express X8 lane

♦Support PCI Express Basic Specification 2.0

♦Narrow version of the adapter card (supports 1U and 2U chassis at the same time)

♦There is a large receive packet buffer on the chip

♦There is a large sending packet buffer on the chip

♦Support IEEE 802.x flow control

♦Support IEEE 802.q VLAN tagging

♦DDP offloading

♦2*10 Gigabit optical port (Intel® NH82599ES 10 Gigabit network chip)
