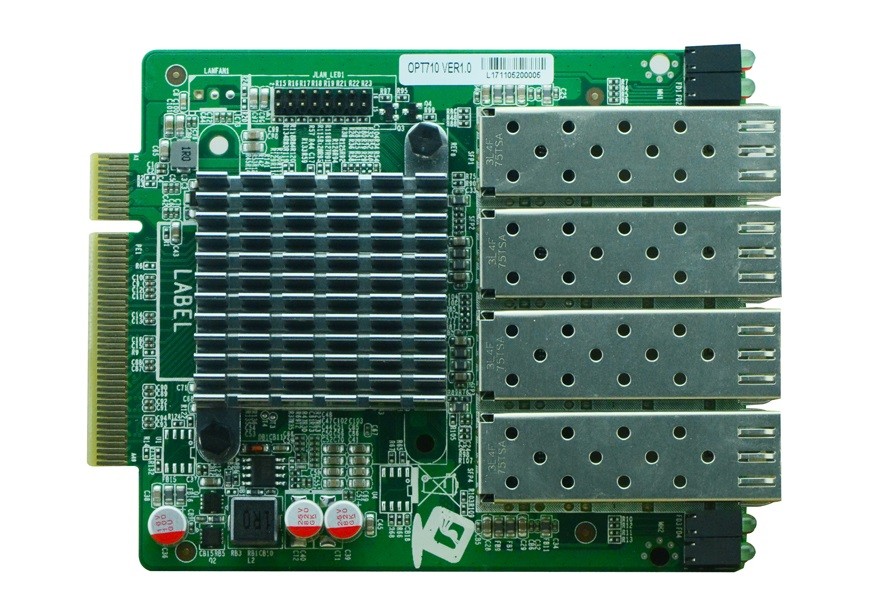

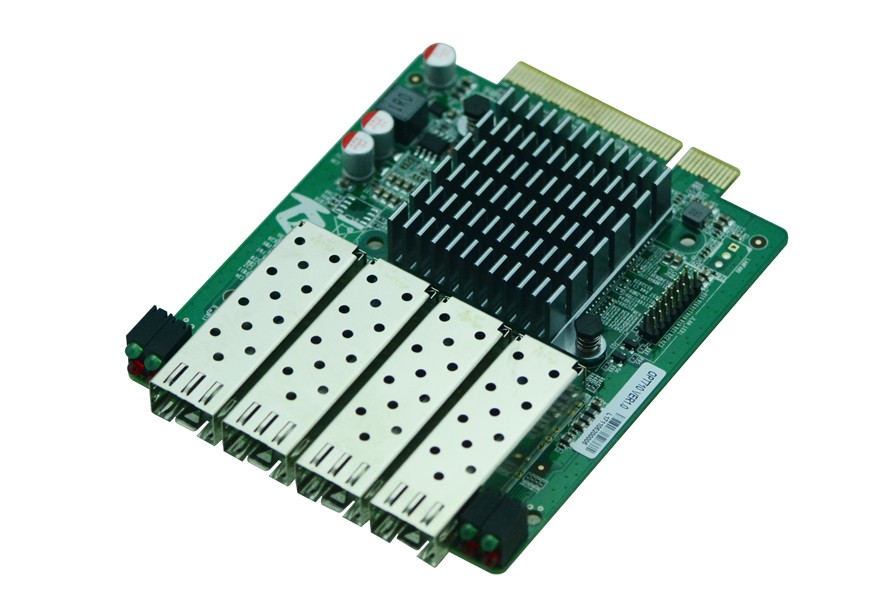

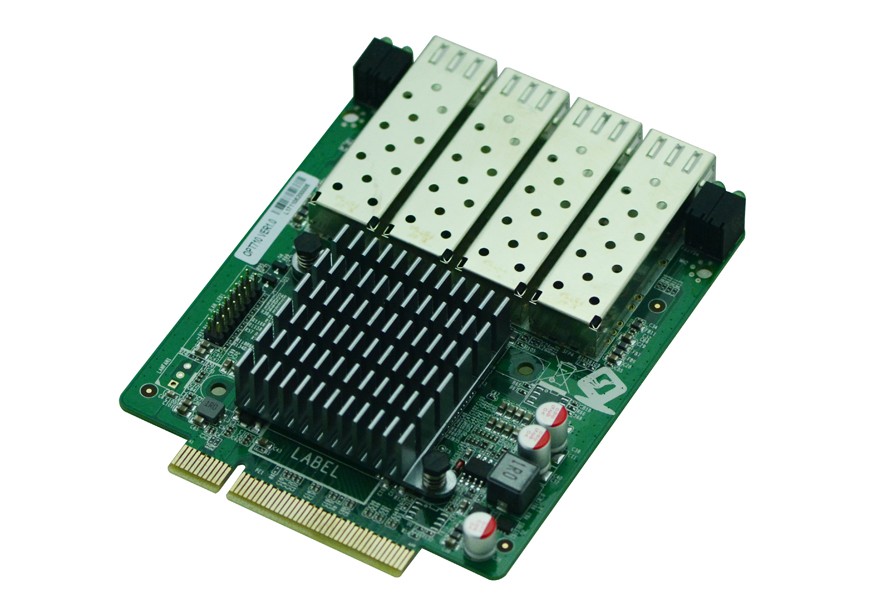

Expended Ethernet Card

OPT710 VER:1.0

项目介绍:

Model NO.

OPT710 VER:1.0

Chipset

Adopt Intel® XL710-BM210Gigabit Ethernet chip

Port

PCI Express X8 channel


Support PCI Express 3.0


Narrow edition adapter card.(1U、2U optional)

Feature

Support MSI,MSI-X, VMDq


Supports flexible port partitions.


Support QOS Strategy and traffic management.


Support PCI-SIG*SR-IOV

Network

Support IEEE1588


Support IEEE 802.q VLAN tagging

LAN

4*10GB SFP(Intel® XL710-BM2 10GB Lan chipset)

O/S

Windows 7/8/10


Windows Server 2008/2012


Linux


VMware ESX/ESXI/FreeBSD 9

For motherboard

For H87SL/H81SL model

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Operating humidity

5%-95% (relative humidity; non-condensing)

Dimension

107mm(L)x85mm(W)


事宜人群:

◆chipset :Intel® XL710-BM210Gigabit Ethernet chip

◆Support 4*10000Mbps SFP+interface;

◆Adopt PCIe x8 goldfinger power supply

◆Dimension:107mm(L)x85mm(W)


  • Product Specifications
  • Ordering Information
  • Download Center

Model NO.

OPT710 VER:1.0

Chipset

Adopt Intel® XL710-BM210Gigabit Ethernet chip

Port

PCI Express X8 channel


Support PCI Express 3.0


Narrow edition adapter card.(1U、2U optional)

Feature

Support MSI,MSI-X, VMDq


Supports flexible port partitions.


Support QOS Strategy and traffic management.


Support PCI-SIG*SR-IOV

Network

Support IEEE1588


Support IEEE 802.q VLAN tagging

LAN

4*10GB SFP(Intel® XL710-BM2 10GB Lan chipset)

O/S

Windows 7/8/10


Windows Server 2008/2012


Linux


VMware ESX/ESXI/FreeBSD 9

For motherboard

For H87SL/H81SL model

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Operating humidity

5%-95% (relative humidity; non-condensing)

Dimension

107mm(L)x85mm(W)


◆chipset :Intel® XL710-BM210Gigabit Ethernet chip

◆Support 4*10000Mbps SFP+interface;

◆Adopt PCIe x8 goldfinger power supply

◆Dimension:107mm(L)x85mm(W)
