Expended Ethernet Card

OPT580 VER:1.0

项目介绍:
Model No.OPT580

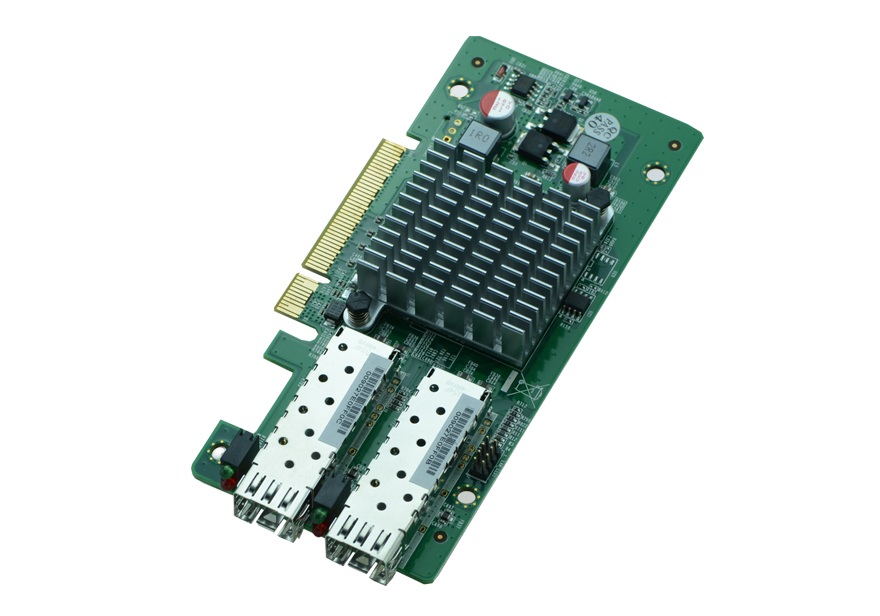

Product overviewIs a high performance PCIe 16x Gigabit Ethernet OPT580, using Intel & reg; NH82580DB high performance Gigabit Ethernet chip,provide two 1000Mbps SFP + interface, support PCIe 2.0, the physical sequence of each network port can be reached 128 to send and receive,support Auto-negotiation, IPSec Security features.

The module is designed according to the specification of PCIe, and it has a strong applicability, and can be used in the network security of the platform or motherboard.

It can also be applied to the server equipment to meet the needs of the bandwidth.

Product specifications

Chip: Intel NH82580DB Gigabit core network;

Dimensions: 121.9mm (long) x 64mm (wide) x 18mm (high);

Network function

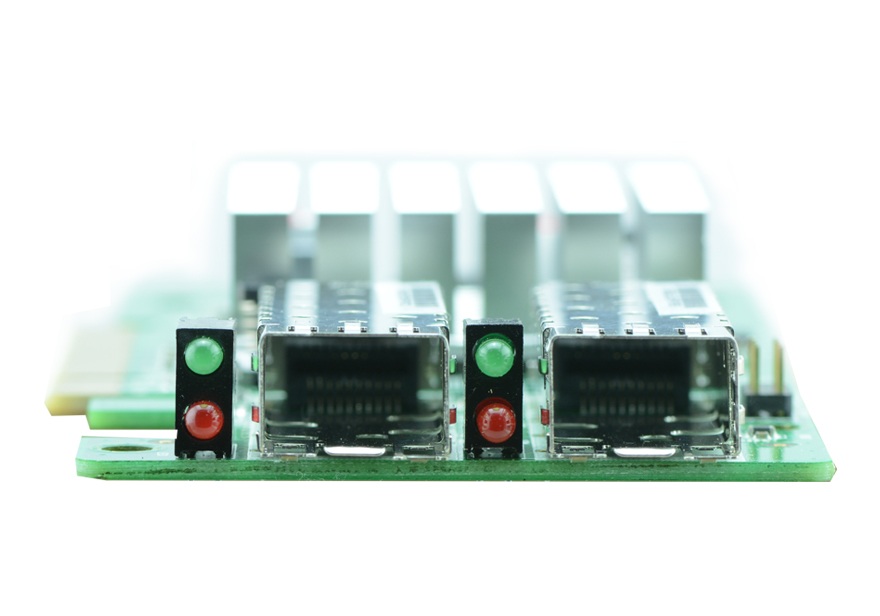

Provide 2 SFP+ Gigabit fiber network interface;
Power source

 X8 PCIe gold finger power supply;











事宜人群:

 ♦ Chip: Intel NH82580DB Gigabit core network

 ♦ Dimensions: 121.9mm (long) x 64mm (wide) x 18mm (high)

  • Product Specifications
  • Ordering Information
  • Download Center
Model No.OPT580
Product overviewIs a high performance PCIe 16x Gigabit Ethernet OPT580, using Intel & reg; NH82580DB high performance Gigabit Ethernet chip,provide two 1000Mbps SFP + interface, support PCIe 2.0, the physical sequence of each network port can be reached 128 to send and receive,support Auto-negotiation, IPSec Security features.

The module is designed according to the specification of PCIe, and it has a strong applicability, and can be used in the network security of the platform or motherboard.

It can also be applied to the server equipment to meet the needs of the bandwidth.

Product specifications

Chip: Intel NH82580DB Gigabit core network;

Dimensions: 121.9mm (long) x 64mm (wide) x 18mm (high);

Network function

Provide 2 SFP+ Gigabit fiber network interface;
Power source

 X8 PCIe gold finger power supply;











SpecificationsOPT580 VER:1.0



Driver(WIN 7/8/10)

OSDriver TypeDriver NameDownload Now
Win7/8/10 32/64BITLANIntel
OPT580



 ♦ Chip: Intel NH82580DB Gigabit core network

 ♦ Dimensions: 121.9mm (long) x 64mm (wide) x 18mm (high)
