Rockchip RK3288

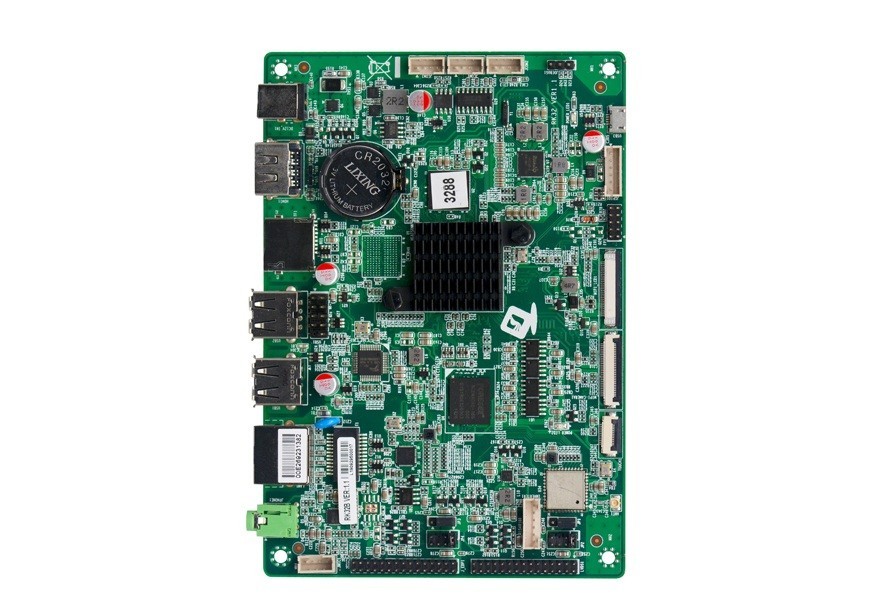

RK32B VER:1.1

项目介绍:

Model No.

RK32B VER:1.1

Processor

CPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor

Chipset

Based on RK3288  SOC platform

Memory

On board  LPDDR3 2G memory

Graphics

Integrated ARM Mali-T764 GPU,support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11

1*HDMI,1*LVDS,1*EDP

Support dual-screen synchronous/asynchronous display

Network

1* RTL8211F Gigabit Ethernet ,support wake on LAN


1*WIFI/ bluetooth module

Storage

1* eMMC 16G

1* TF card socket ,up to 64G

Audio

Onboard Everest ES8316 Audio ,support Line-out,MIC

Expansion slots

NA

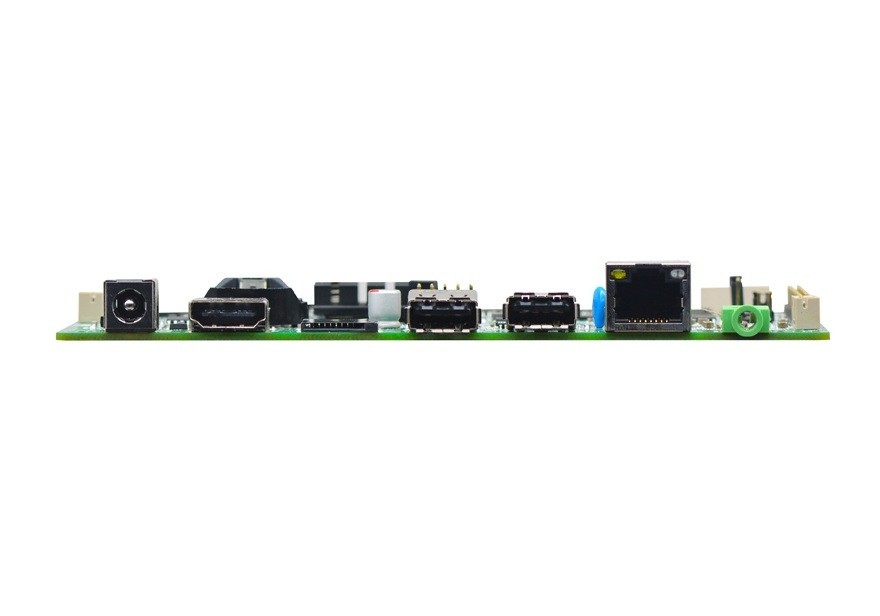

Rear I/O

2* USB2.0

1* HDMI

1* Gigabit Ethernet connector

1* Line-out(Green)

1* TF card socket

1* MICRO_USB2.0

1*DC12V power input port

Internal I/O

2*USB2.0

2* RS232 serial ports ,1*4pin

1*RS485 serial port ,1*4pin

1* Touch Panel port

2* MIPI ports,used to connect camera for one ,another used to connect MIPI screen

1*LVDS 2*15pin,support dual channel 24bit

1* EDP port,2*15pin

1* screen backlight power supply port1*6pin

1* MIC port 1*4pin

Power input

DC 12V power input

GPIO

Support 4 way GPIO

OS

Android 7.1

Working Temp.

0℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%(relative humidity; non-condensing)

Dimension

148mm x 102mm



事宜人群:

♦ CPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor

♦ Based on RK3288  SOC

♦ Onboard LPDDR3 2G

♦ Integrated ARM Mali-T764 GPU,support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11

♦ 1*HDMI,1*LVDS,1*EDP

♦ 1* RTL8211F Gigabit Ethernet ,support wake on LAN

♦1* eMMC  16G


  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

RK32B VER:1.1

Processor

CPU Rockchip RK3288 quad-core Cortex-A17 1.8GHz processor

Chipset

Based on RK3288  SOC platform

Memory

On board  LPDDR3 2G memory

Graphics

Integrated ARM Mali-T764 GPU,support OPENGL ES1.1/2.0/3.0, OPEN VG1.1, OPENCL, Directx11

1*HDMI,1*LVDS,1*EDP

Support dual-screen synchronous/asynchronous display

Network

1* RTL8211F Gigabit Ethernet ,support wake on LAN


1*WIFI/ bluetooth module

Storage

1* eMMC 16G

1* TF card socket ,up to 64G

Audio

Onboard Everest ES8316 Audio ,support Line-out,MIC

Expansion slots

NA

Rear I/O

2* USB2.0

1* HDMI

1* Gigabit Ethernet connector

1* Line-out(Green)

1* TF card socket

1* MICRO_USB2.0

1*DC12V power input port

Internal I/O

2*USB2.0

2* RS232 serial ports ,1*4pin

1*RS485 serial port ,1*4pin

1* Touch Panel port

2* MIPI ports,used to connect camera for one ,another used to connect MIPI screen

1*LVDS 2*15pin,support dual channel 24bit

1* EDP port,2*15pin

1* screen backlight power supply port1*6pin

1* MIC port 1*4pin

Power input

DC 12V power input

GPIO

Support 4 way GPIO

OS

Android 7.1

Working Temp.

0℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%(relative humidity; non-condensing)

Dimension

148mm x 102mm



NO.

Model

Processor

Frequency

Memory

EDP

HDMI

LVDS

eMMC

WIFI

LAN

USB

COM

Power

1

RK32A VER:1.1

RK3288

1.8G

1G

1

1

2ch/24BIT

8G

1

1*8211F

5

3

DC12V

2

RK32B VER:1.1

RK3288

1.8G

2G

1

1

2ch/24BIT

16G

1

1*8211F

5

3

DC12V
