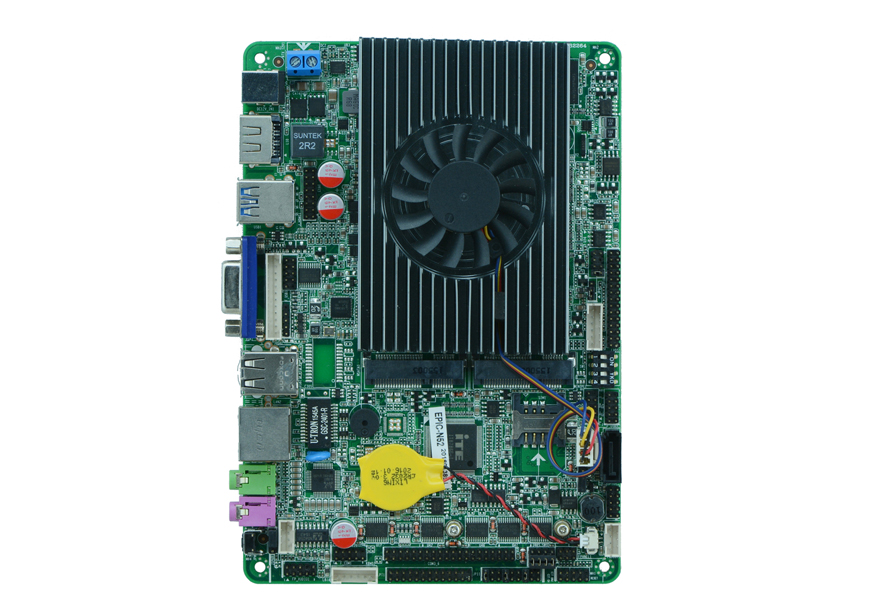

Model No. | EPIC-N52_I516L VER:1.5(4300U) |
Processor | Integrated Intel® Core(TM) I5-4300U 1.9GHz dual core processor, TDP15W Compatible with Intel® Haswell-U and Broadwell-U series processor |
Chipset | Haswell-U or Broadwell-U SOC |
Memory | Onboard DDR3L4GB Express memory |
Display | Integrated Intel® HD Graphics 4400 |
| 1* VGA,1* HDMI,1* LVDS (2*24BIT) |
| Support VGA;HDMI;LVDS independent display |
Network | 2* Realtek RTL8111F Gigabit Ethernet, support Wake On LAN、PXE |
Storage | 1* SATA3.0 HDD port, transmission rate up to 6Gbps |
| 1* MSATA slot, support WiFi (optional) and SSD (defaulted), SSD transmission rate up to 6Gbps |
Audio | Onboard ALC662 6 channel high fidelity audio controller, support MIC/Line-out |
| Power amplifier suggest to use 2Ω5W speaker |
Expansion | 1*Mini-PCIE slot, support WIFI、3G/4G module |
Rear I/O | 2* USB3.0 |
| 2* USB2.0 |
| 1* HDMI |
| 1* VGA |
| 2* RJ-45 Gigabit LAN port |
| 1* Line out (green) |
| 1* MIC (purple) |
| 1* 12V DC_In port |
Built-in I/O | 1* LVDS (2*15pin), support dual channel 24BIT LCD display |
| 1* LVDS backlight port (1*6pin) |
| 1* JVGA1 port 1*12pin ( same signal with DB15) |
| 6* RS232 COM port, COM3 support RS232/485/422, COM4 support RS232 (RS485 optional) |
| 1* LPT printing port (2*13pin) |
| 2* USB2.0 port 2*5pin |
| 1* USB2.0 port (1*5Pin) |
| 1* PS/2 KB/MS port (1*6Pin) |
| 1* Front panel audio port (2*5pin) |
| 1* Power amplifier port (1*4pin) |
| 1* SIM slot |
| 1* HDD power supply port 1*4pin |
| 1* Front panel function button and LED indicator port (2*5pin) |
| 2* 2pin ATX 12V input output power port, 1* 2Pin blue power socket |
Fan Connector | 1*4pin CPU fan connector |
GPIO | Support 4 way input output GPIO |
BIOS | AMI 64Mb Flash ROM |
Watch Dog | Support hardware reset function (L256, 0~255 seconds) |
OS | Windows 7/Windows 10/Linux |
Power Type | DC 12V single power input |
Working Temp. | -10℃～60℃ |
Storage Temp. | -20℃～70℃ |
Working Humidity | 5%-95% relative humidity, non-condensing |
Dimension | 165mm x 115mm |
