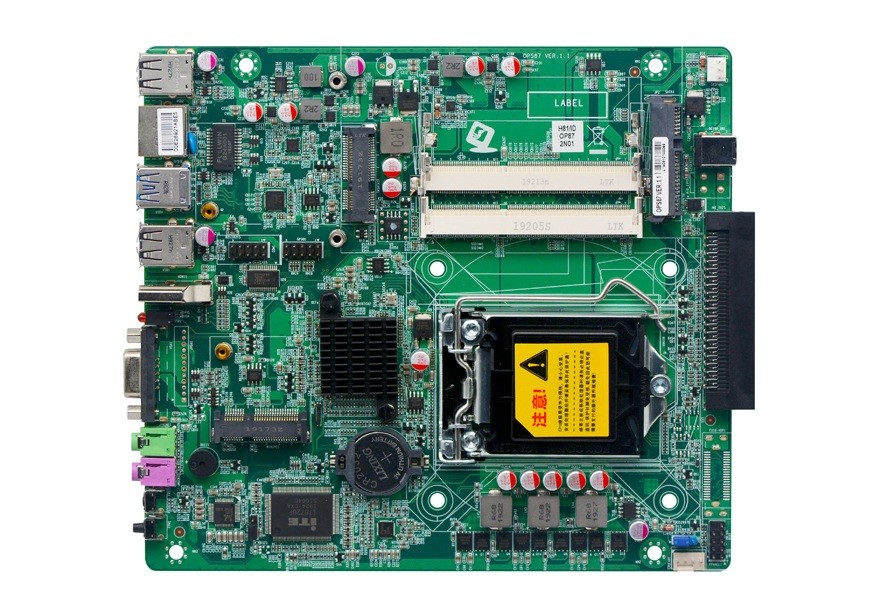

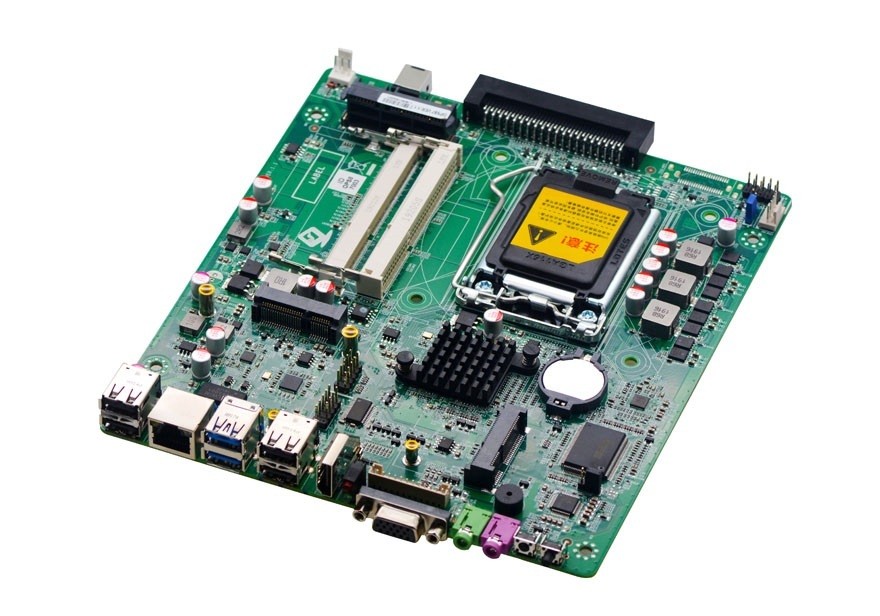

LGA115X H81/H110

OPS87 VER:1.1

项目介绍:

Model No.

OPS87 VER1.1

Processor

Support Intel®Haswell/Broadwell Celeron/PentiumCore™ i7/i5/i3LGA1150  processor

Chipset

Adopt Intel® H81 high speed chipset,

Memory

2* DDR3 SODIMM,support dual channel 1600/1333MHz memory, up to 16GB

Graphics

Integrated Intel®HD Graphics


Support DirectX* 11.2/12, OpenGL 4.3,support synchronous/asynchronous display


1*VGA 1*HDMI

Network

1* RTL8111F Gigabite Ethernet ,support wake on LAN/PXE

Storage

1* SATA2.0 2.5 inch HDD interface SATA5, can be installed HDD directly,the transfer rate up to 6Gbps


1* MSATA, support WIFI(optional)/SSD(default),the transfer rate up to 6Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out

Expansion slot

1*Mini-PCIE slot, support WIFI module


1* support  OPS-C+ standard slot JAE_TX25 (80pin)


1* support OPS-C+ standard slot HRS FX18-40S (40pin  reserve optional)

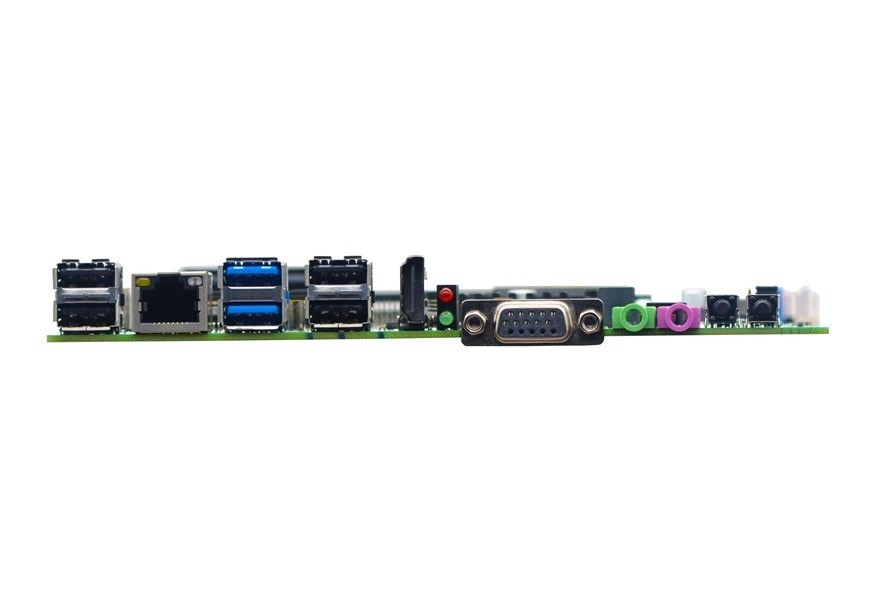

Front panel I/O

1* RJ-45 gigabit Ethernet connector


2* USB 3.0


4* USB 2.0


1* VGA DB15


1* HDMI


1* Mic(Red) 1* Line Out(Green)


1* power switch,1* support for on-key restore function button钮


1* HDD/Power LED

Back panel I/O

1* OPS-C+ standard slot JAE_TX25(80Pin)


1* DC power input


1* support OPS-C+ standard slot HRS FX18-40S (40pin reserve optional)

Internal I/O

1* RS232 serial port  2*5pin


1* Front panel switching button and LED indicator port 2*5Pin


1* 4pin ATX 12~19V power input (optional)

FAN interface

1*4pin CPU smart fan interface ,1*3pin system fan interface

GPIO

Support 4 way input /output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Support Windows10,Windows 8,Windows 7,Linux

Power input

Adopt DC 12~19V power supply or provide 12V~19V power through JAE_TX25 slot

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%( relative humidity, non-condensing)

Dimension

190mm x 170mm


事宜人群:

♦ Support Intel®Haswell/Broadwell Celeron/PentiumCore™ i7/i5/i3LGA1150  processor

♦ Adopt Intel® H81 high speed chipset

♦ 2* DDR3 SODIMM,support dual channel 1600/1333MHz memory, up to 16GB

♦ 1* HDMI1.4,1* VGA

♦ 1* RTL8111F Gigabite Ethernet ,support wake on LAN/PXE

♦ 4* USB2.0,2* USB3.0,1*RS232 serial port

♦ Adopt DC 12~19V power supply or provide 12V~19V power through JAE_TX25 slot

  • Product Specifications
  • Ordering Information
  • Download Center

Model No.

OPS87 VER1.1

Processor

Support Intel®Haswell/Broadwell Celeron/PentiumCore™ i7/i5/i3LGA1150  processor

Chipset

Adopt Intel® H81 high speed chipset,

Memory

2* DDR3 SODIMM,support dual channel 1600/1333MHz memory, up to 16GB

Graphics

Integrated Intel®HD Graphics


Support DirectX* 11.2/12, OpenGL 4.3,support synchronous/asynchronous display


1*VGA 1*HDMI

Network

1* RTL8111F Gigabite Ethernet ,support wake on LAN/PXE

Storage

1* SATA2.0 2.5 inch HDD interface SATA5, can be installed HDD directly,the transfer rate up to 6Gbps


1* MSATA, support WIFI(optional)/SSD(default),the transfer rate up to 6Gbps

Audio

Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out

Expansion slot

1*Mini-PCIE slot, support WIFI module


1* support  OPS-C+ standard slot JAE_TX25 (80pin)


1* support OPS-C+ standard slot HRS FX18-40S (40pin  reserve optional)

Front panel I/O

1* RJ-45 gigabit Ethernet connector


2* USB 3.0


4* USB 2.0


1* VGA DB15


1* HDMI


1* Mic(Red) 1* Line Out(Green)


1* power switch,1* support for on-key restore function button钮


1* HDD/Power LED

Back panel I/O

1* OPS-C+ standard slot JAE_TX25(80Pin)


1* DC power input


1* support OPS-C+ standard slot HRS FX18-40S (40pin reserve optional)

Internal I/O

1* RS232 serial port  2*5pin


1* Front panel switching button and LED indicator port 2*5Pin


1* 4pin ATX 12~19V power input (optional)

FAN interface

1*4pin CPU smart fan interface ,1*3pin system fan interface

GPIO

Support 4 way input /output GPIO

BIOS

64Mb Flash ROM

Watch dog

Support hardware reset function (L256, 0~255 seconds)

OS

Support Windows10,Windows 8,Windows 7,Linux

Power input

Adopt DC 12~19V power supply or provide 12V~19V power through JAE_TX25 slot

Working Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Working Humidity

5%-95%( relative humidity, non-condensing)

Dimension

190mm x 170mm


No.

Model

Processor

Southbridge

Memory

VGA

HDMI

LVDS

LAN

USB

COM

RS485/422

Power

1

OPS87 VER:1.1

LGA1150

H81

2*SODDR3

1

1

/

1

9

1

/

DC19V
